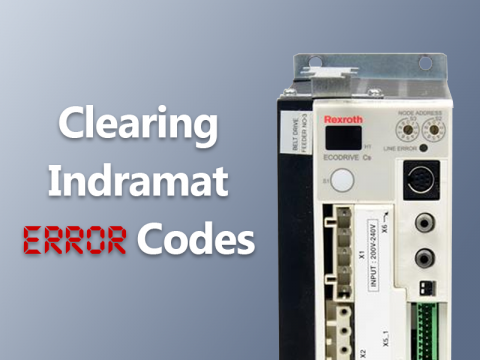

How To Clear Indramat Error Codes

Navigating Indramat error codes might initially appear overwhelming, but these codes are vital for diagnosing issues within the Indramat motion control systems. They identify problems arising within the drive, motor, controller, or cabling, which can be due to improper handling, incorrect configurations, or faults in hardware or software.

Some error codes might cause the machinery to shut down completely as a protective measure, which helps prevent equipment damage, system failures, and reduces the risk of injury to personnel. These codes are clearly visible on the H1 screen of the drive controller.

Types of Error Codes

Displayed in alphanumeric form on the H1 screen, these error codes vary in urgency. Some require immediate action, whereas others allow for a more delayed response. The first character of the code, usually a letter, classifies the error:

- "F" represents a high-priority fault code.

- "E" signals a warning code that needs swift attention.

- "C" and "D" are tied to command messages.

- "A" indicates a status message.

One should refer to the user manual of the drive controller for a detailed understanding of each error code and the appropriate measures to take. The manual typically lists potential causes for an error in descending order of likelihood, which aids in efficient problem-solving.

FAQs

Q: What typically triggers Indramat error codes?

Commonly, issues such as loose connections or faulty cables trigger Indramat error codes. Regular inspections to ensure that all connections are secure can prevent many such problems. Keeping spare authorized cables readily available for quick replacement is also recommended.

Q: Are all "F" error codes from Indramat so critical that they require expert resolution?

Not all "F" error codes from Indramat necessitate professional help. There are several non-critical F error codes that can be resolved internally, such as:

- F208 error might appear when the drive system is activated post a new motor installation.

- F209 error could emerge following a firmware update if the new firmware is incompatible with the old parameters.

These issues can often be resolved in-house by executing specific commands or pressing the F1 button. Other examples of minor F error codes include F218 (Amplifier overtemperature shutdown) and F248 (Low battery voltage).
