Importance of the Indramat H1 Status Indicator

In the complex world of Indramat motion control systems, every component plays a crucial role; however, the H1 status indicator, although small, stands out as a key element, just as essential as the motor itself.

The H1 status indicator is an invaluable tool for users, providing critical insights into the operation of the motion control system. Its main function is to detect any issues within the system to ensure everything runs smoothly. Essentially, it is a vital component for effective troubleshooting, helping to facilitate quick responses that maintain peak system performance.

Functionality of the H1 Status Indicator

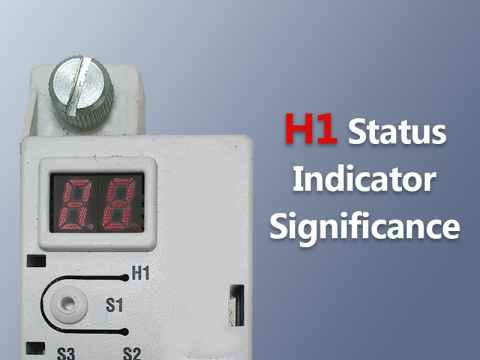

Operating as an optical display, the H1 status indicator delivers diagnostic messages that reflect the system’s status via the drive it's connected to. It displays essential information such as:

- Faults in the drive, motor, cables, conductors, or controls.

- Identification of incorrect or faulty parameters.

- Alerts on improper usage of the system.

FAQ

- Where can you find the H1 status indicator?

The H1 status indicator is prominently located on the front panel of the drive controller, usually towards the bottom. This two-character display is standard across various drive models like DDC, MDD, DKS, and DDS. It shows diagnostic codes in an alphanumeric format. For codes that are four characters long, the display alternates to show each part, and if there are multiple codes, it cycles through them in order of priority.

For a deep dive into what each code indicates, along with their causes and suggested remedies, it's best to consult the drive controller's specific user manual, where causes are listed in likely order of occurrence.

- Is it possible to clear diagnostic codes from the H1 status indicator on your own?

Some diagnostic codes on the H1 status indicator can be resolved in-house, depending on their complexity, while others might require professional expertise to address.

- What types of messages does the H1 status indicator display?

The H1 status indicator shows a variety of diagnostic messages, including error messages, warning messages, command messages, status messages, and operational status messages. Typically, fault codes on the H1 start with the letters F or E, denoting different levels of alerts and functions.
