Diagnosing and Fixing IndraDrive C Faults

Note: All insights in this article are adapted from original Bosch Rexroth manuals. Indramat USA does not provide live phone or email troubleshooting support. To request a quote for service or replacement, please use our online form or call 1-919-443-0207. Use this information at your own discretion. Indramat USA disclaims liability for any injuries, damages, or losses resulting from its application.

Click here for a list of common error codes.

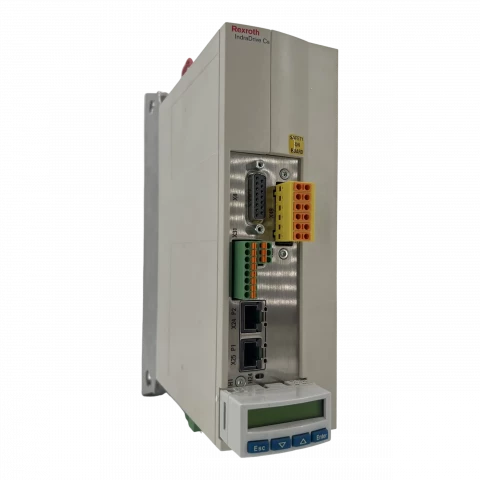

The Bosch Rexroth IndraDrive C lineup, which includes models HCS01 through HCS04, is a mainstay in many high-precision motion control environments. Known for reliability and efficiency, these controllers still occasionally present fault codes that bring production to a halt. When this happens, identifying the source of the error and acting quickly can make all the difference.

This article explores how to recognize, interpret, and correct common fault conditions across the IndraDrive C range. Whether you’re facing a communications issue, temperature alarm, encoder fault, or power anomaly, the steps below will help you narrow down and resolve the root cause.

For those times when hardware repair or a drive replacement is necessary, Indramat USA offers expert-level service and surplus inventory. Fill out our quote form or give us a call at 1-919-443-0207 to begin the repair process.

What Fault Codes Mean on IndraDrive C Units

Rexroth’s IndraDrive C controllers use a shared fault-code structure. Codes like F218 or F226 are standardized across the HCS01, HCS02, HCS03, and HCS04 families, so once you understand one, you understand them all. That means an F226 on an HCS01.1E-W0018-A-02 behaves the same as on an HCS02.1E-W0028 — making diagnosis much simpler across installations.

Most of the time, these codes fall under five main categories:

• Communication failures
• Overheating or thermal alarms
• Power stage faults
• Encoder or feedback issues
• Configuration or parameter mismatches

Communication Faults – No Connection Between Devices

Faults during bootup are frequently caused by communication problems. Drives may become stuck at SERCOS Phase 1, which generally means the controller can’t identify the drive on the bus. This may be due to an incorrect address setting or cabling problem.

Steps to resolve:

• Check all fiber optic or Ethernet cables for proper insertion and no visible damage.
• Confirm that the slave address set in your automation software matches the hardware.
• Look for messages such as C200 that indicate parameter conflicts or timeouts.

A full power reset of the drive and the controller often clears minor communication glitches. If not, try replacing cables, verifying SERCOS ring integrity, and assigning unique node addresses to each device.

Thermal Alarms – Hot Drives or Motors

Temperature alarms are some of the most common IndraDrive C alerts. These drives are equipped with internal temperature monitoring to protect both the drive and the motor.

• F218: Indicates the drive’s amplifier section is overheating. Causes include poor ventilation, blocked airflow, or excessive ambient temperatures.
• F219: Motor overheating. Can result from sustained overload, insufficient cooling, or faulty fan systems.
• F221: Issues with the thermistor, possibly due to damaged wiring or a sensor fault.

To correct these:

• Allow the drive or motor to cool down.
• Clean clogged air filters and check that fans are spinning.
• Inspect all sensor wiring and verify motor load conditions.

Power Stage Faults – Electrical Instability

Power-related issues show up under a variety of codes and usually involve the DC bus or current flow through the motor.

• F226: This undervoltage error often appears if power is removed while the drive is active. Always disable the drive before powering down.
• Overvoltage faults may occur when braking energy isn’t properly dissipated during deceleration. Check your braking resistor sizing and ramp settings.
• F860/F861: These indicate phase-to-phase or ground shorts. Worn motor cables or internal motor faults are common culprits.

To address:

• Check for damage or abrasion on motor leads.
• Use a multimeter to detect short circuits or ground leaks.
• If wiring is intact, the issue could lie inside the drive and require professional repair.

Encoder & Feedback Problems – When the Drive Can’t “See” the Motor

Feedback errors disrupt the ability of the drive to read position or speed accurately, and typically show up after encoder replacement or EMI exposure.

• F229 (Quadrant Error): Suggests inconsistent encoder pulses, often caused by interference or poor grounding.
• F822 (Signal Too Low): The encoder signal may be degraded or misconfigured.
• C204 (Motor Type Mismatch): The drive detects feedback from a motor type not matching its parameters.

Fixes include:

• Verifying encoder model and signal type in the drive configuration.
• Ensuring feedback wiring is properly shielded and routed away from power lines.
• Loading correct motor/encoder data via Rexroth’s IndraWorks software.

Configuration & Parameter Issues – Software vs. Hardware Conflicts

Drive configuration problems show up as C-codes, which relate to parameters that either don’t match the installed hardware or fall outside acceptable limits.

• C201 / C202: Parameters are invalid or out of range, possibly after firmware updates or drive replacements.
• C210: Drive expects an encoder or feedback channel that hasn’t been installed.

In these situations:

• Review your parameter file and correct any mismatches.
• Disable unused inputs and feedback devices to prevent false alarms.
• Reinitialize parameters using factory defaults if needed.

IndraDrive C Fault Code Chart

Conclusion: Fast Fault Resolution = Minimal Downtime

Although fault codes on IndraDrive C units may initially seem cryptic, they follow clear logic once broken down into categories. Whether it’s a temperature issue, voltage instability, or a simple configuration mismatch, methodical troubleshooting usually gets your drive running again quickly.

If the problem persists and appears to be hardware-related, Indramat USA can help. We offer refurbished replacements, expert diagnostics, and full repairs for all models in the HCS01–HCS04 series. While we do not offer live technical support, our team is ready to assist through quote submissions and chat tools.

We maintain a robust inventory of Bosch Rexroth IndraDrive C controllers and have a repair team with decades of experience restoring drive systems. Reach out at 1-919-443-0207 or use our online form to get your operation back up and running — fast.
