Understanding the Indramat E269 Error Code

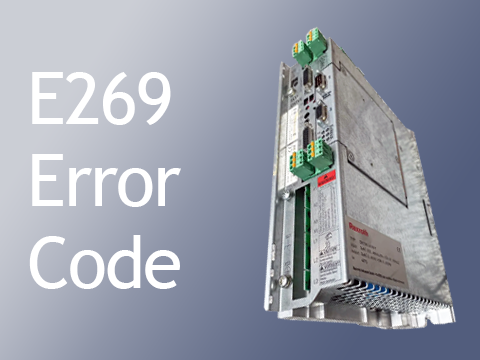

The E269 error code relates specifically to the ECODRIVE03 series of drive controllers from Indramat, which are primarily used in machine tool applications. This code starts with 'E', denoting it as a warning. It serves to alert that the drive controller will stop operating unless corrective measures are taken soon. More precisely, the E269 code indicates a substantial reduction in brake torque, which is the force needed to bring a machine to a stop.

A decrease in brake torque typically stems from problems within the braking system of the machine managed by this drive controller. When there's a significant drop in brake torque, the machine is unable to halt completely because the brakes do not produce adequate force. Furthermore, if the drive enable command is turned off utilizing the brake monitoring function, the motor may move, and its holding brake may fail to generate enough torque.

Reasons for Reduced Brake Torque

Several factors might lead to diminished brake torque, common ones being:

- Formation of an oxide layer on the brake's surface from extended periods of storage.

- Accumulation of grease or oil on the brake's surface.

- Wear and tear on the brake due to aged components or faulty elements, such as a defective brake caliper.

- Brake fluid leakage.

- General issues in the machine itself.

Determining the exact cause of the error might necessitate performing a brake check command multiple times.

Frequently Asked Questions (FAQs)

How can the E269 braking torque error in Indramat drives be fixed?

There are two primary methods to resolve the E269 braking torque error. One method involves issuing the brake monitoring command, which is advised if the warning appears after the drive has been disabled. This command reassesses the brake torque and initiates the brake's reconditioning to remove any films or residues, enhancing the brake's ability to achieve optimal torque.

Alternatively, if reconditioning fails to restore full torque after several attempts, it may be necessary to replace the motor's holding brake.

Should the E269 low brake torque warning in Indramat drives be ignored?

No, the low brake torque error, regardless of its cause, should be dealt with promptly. Failing to address this issue could lead to safety hazards or dangerous situations.
