What Does the Indramat F218 Fault Code Indicate?

Indramat was famously known for producing high-quality components like servomotors, drive controllers, power supplies, and encoders, paramount for efficient and durable motion control systems. The company provided detailed product manuals that include various error and fault codes, helping users to efficiently troubleshoot issues. These faults are systematically categorized to simplify identification and resolution.

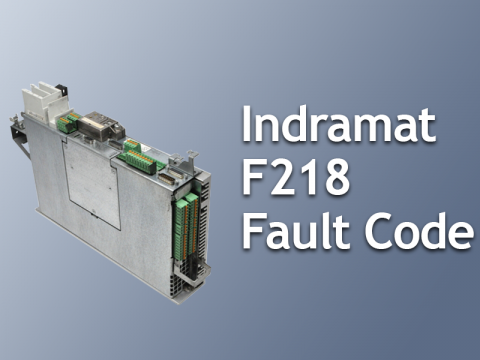

One such issue is represented by the Indramat F218 fault code, pertaining to the heatsink of the DKC drive controller. This non-fatal error occurs when the heatsink's temperature escalates beyond its maximum allowed limit, prompting the drive to automatically shut down to avoid damage. The manual refers to this as "Heatsink overtemperature shutdown."

Reasons Behind the F218 Fault Code

The heatsink temperature might rise above the safety threshold due to several reasons:

- High ambient temperatures around the heatsink, surpassing the 45°C threshold.

- Accumulation of dirt and debris on the heatsink which impedes its function.

- Poor airflow around the control panel assembly or other components, causing heat build-up.

- Failure of the blower associated with the heatsink.

Addressing FAQs

1. What steps are involved in rectifying the F218 fault code?

   Depending on the specific cause, several actions can be taken to resolve the F218 code. If it’s due to high ambient temperatures, introduce cooling measures within the cabinet that houses the drive controller. Ensure the heatsink is clean and free from dust and dirt that could inhibit its functionality. It’s also advisable to position the drive controller vertically to optimize airflow and avoid obstruction around the heatsink. If the issue originates from a faulty blower, consider replacing the drive controller.

2. Is it feasible to fix the F218 fault code without professional help?

   Many solutions for the F218 fault code can indeed be managed internally. Handling issues associated with environmental temperature controls, cleaning the heatsink, and ensuring adequate installation and ventilation can be done in-house. Nonetheless, if the fault relates to blower functionality, it might necessitate professional intervention to replace the defective drive controller.

Through understanding these key areas and possible solutions, users of Indramat systems can ensure they maintain effective operations and address any arising faults with informed precision.

FAQs

1. How can the F218 fault code be resolved?

   - The resolution of the F218 fault code depends on the underlying cause. If the ambient temperature is too high, it should be reduced by implementing cooling measures in the cabinet where the drive controller is installed. Check for and clean any dirt, dust, or debris on the heatsink's surface. Install the drive controller vertically and ensure sufficient free space around the heatsink for proper ventilation. If the blower of the heatsink is defective, the drive controller may need to be replaced.

2. Can the F218 fault code be resolved in-house?

   - Many of the remedial actions for the F218 fault code can be performed in-house. You can address issues related to ambient temperature, cleaning, and ensuring proper ventilation in your factory premises. However, if the problem lies with a defective blower, professional assistance may be required for drive controller replacement.
