Understanding Indramat F Error Codes

Indramat, once a leading producer of motion control systems, was known for crafting components marked by high performance and longevity. These systems, comprising drive controllers, motors, power supplies, and other parts, were engineered to deliver more than a decade of seamless service if properly set up. Nonetheless, eventual wear and potential issues are inevitable over time.

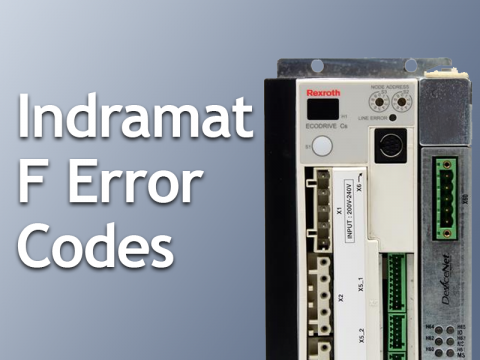

For efficient troubleshooting, Indramat introduced a system of error codes across its products. Among these, F error codes are commonly seen and usually appear on the H1 status display of the drive controller.

Classification of F Error Codes

Indramat organizes F error codes into four major categories, each identified by the first two characters of the error code:

- F2XX – Non-fatal error codes: These trigger a pre-set best possible deceleration action by the drive upon detection.

- F4XX – Interface error codes: Like non-fatal codes, these lead the drive to initiate an optimal deceleration action.

- F6XX – Traverse range error codes: These codes cause the drive to immediately set the velocity command to zero.

- F8XX – Fatal error codes: Activation of these codes causes the drive to rapidly reduce torque to zero.

The "XX" in these codes represents two additional, unique digits that specify the error further. When an error code is detected, the drive responds accordingly based on the category of the error. These F error codes help identify problems within the system, providing essential diagnostics even if the precise remedy is unclear.

Frequently Asked Questions

Is it important to pay attention to Indramat F error codes?

Absolutely, F error codes should be taken seriously as they appear. Depending on their severity, some may lead to an immediate halt of the drive, necessitating a pause in system operations until the error has been addressed and the code cleared.

Where can one find detailed information about F error codes and how to fix them?

The drive controller's user manual is an invaluable tool that offers a detailed enumeration of F error codes, complete with explanations and potential solutions. While certain F error codes can be handled internally, others might require intervention from a professional to resolve effectively.
