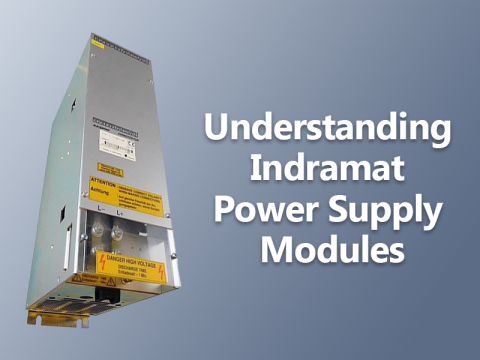

Understanding Indramat Power Supply Modules

Indramat was a pioneer in the field of motion control systems during its active years. A typical motion control system includes crucial components such as a motor, control unit, drive, and a power supply module designed by the manufacturer. Indramat's power supply modules were specifically crafted for compatibility with its own motion control systems, providing the needed DC power to operate the system effectively.

It is possible to use a single power supply module to power multiple drives. However, it's crucial to make sure that the total output power of all connected drives does not exceed the continuous mechanical power capability of the power supply module. For ease of troubleshooting, the fault codes for these power supply modules may be color-coded.

Diverse Indramat Power Supply Modules

Indramat offered a variety of power supply modules, each designed to meet different power output needs. The main types of Indramat power supply modules included:

- TVM Power Supply Modules: Capable of powering up to six servo drives simultaneously, these modules have a total continuous output limit of 4.1 kW.

- TVR Power Supply Modules: Designed to handle up to 10 main and servo drives with a maximum continuous output power not exceeding 12 kW.

- TVD Power Supply Modules: Available in two variations, these modules can power up to 10 servo drives. One type supports a total continuous output power up to 6 kW, while the other can manage up to 12 kW.

- KVR Power Supply Modules: These can supply power to 10 main and servo drives, with a total continuous power limitation of 24 kW.

- KDV Power Supply Modules: Similar to the KVR, these can also support 10 main and servo drives, with the total continuous output capped at 24 kW.

FAQs

What function does the power rectifier serve in Indramat power supply modules?

All Indramat power supply modules include power rectifiers that convert AC line voltage into DC bus voltage. This conversion is essential for supplying the requisite power to the drives. The transmission of signal voltage to the drives is handled via a wire-ribbon cable.

Do power supply modules feature monitoring capabilities?

Yes, all Indramat power supply modules come equipped with a variety of monitoring functions critical for ensuring the proper functioning of the drives. Should operational errors occur, these functions allow for the immediate cessation of power supply to the drives if needed.
