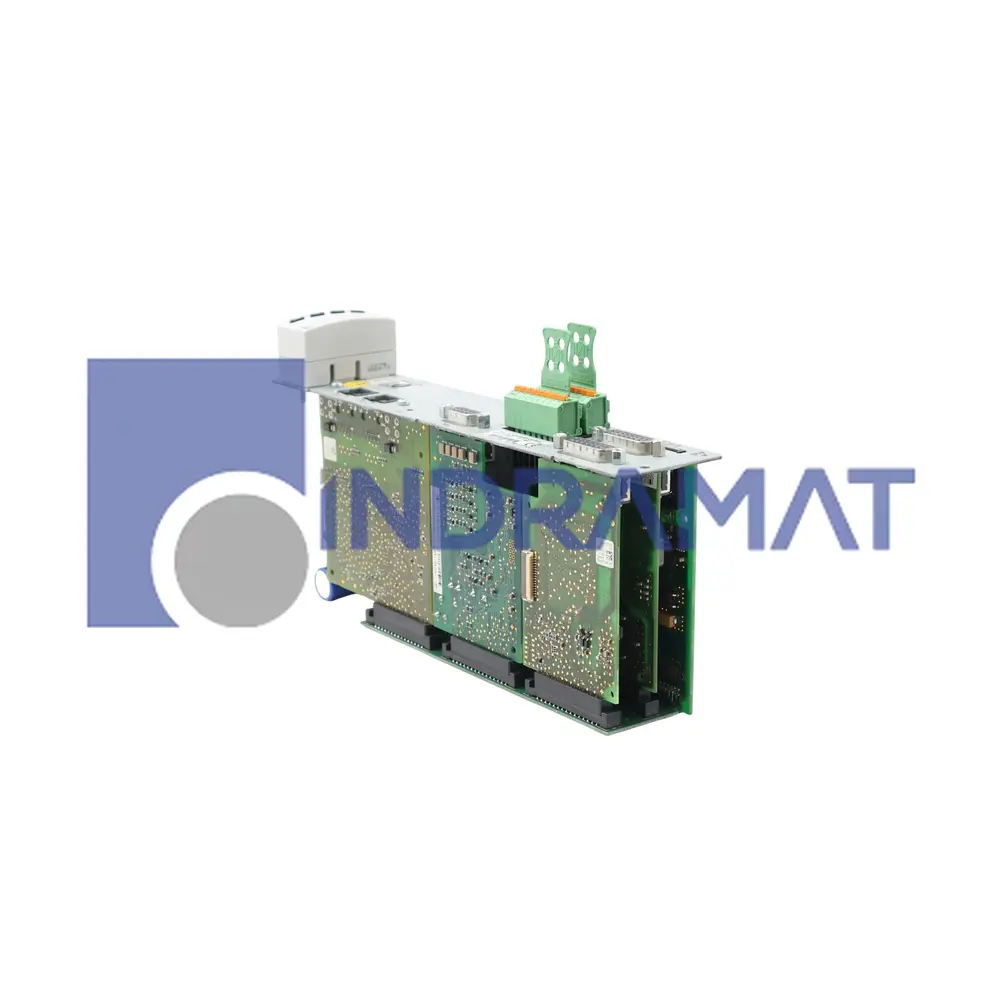

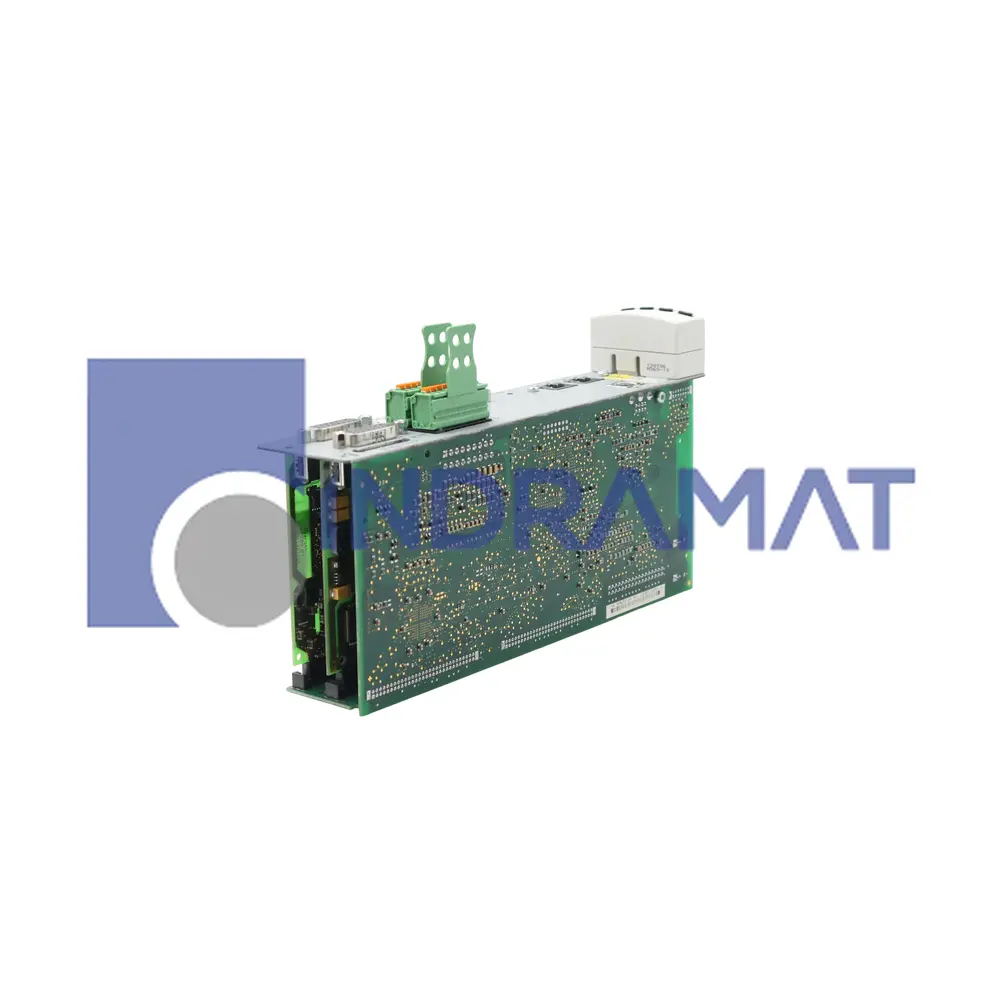

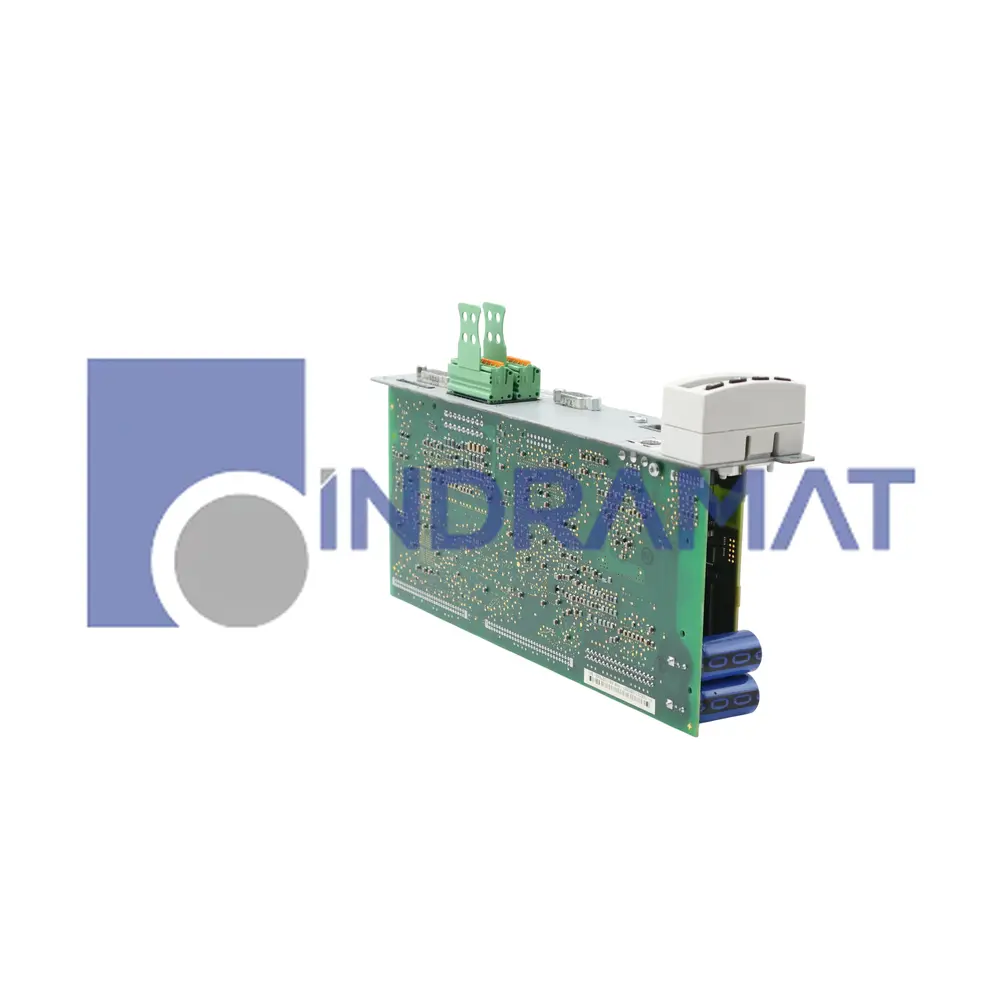

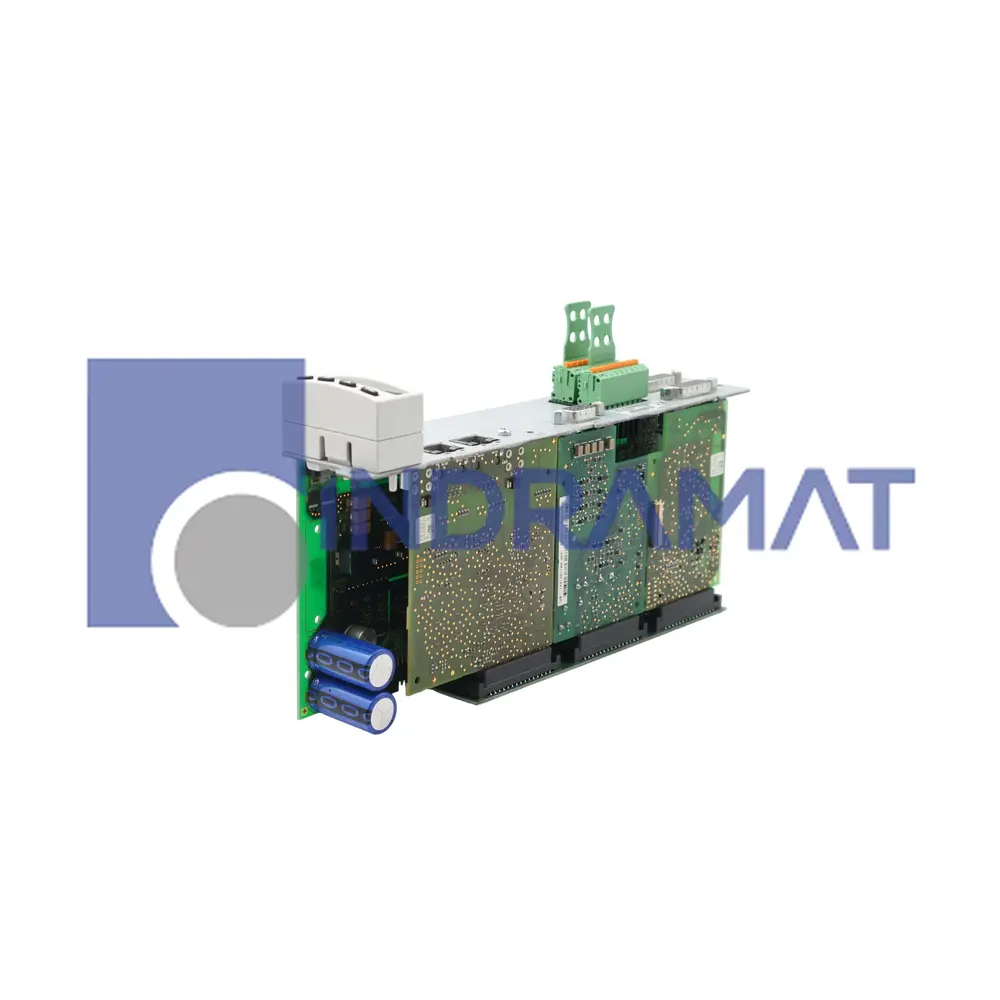

The CSH01.1C-ET-ENS-EN2-NNN-S1-S-NN-FW, Bosch Rexroth Indramat, CSH Advanced Controllers is a highly configurable control section designed for IndraDrive power modules. This advanced control system implements a MultiEthernet master communication interface and supports up to 2 analog outputs for flexible signal handling. The primary encoder option is Indradyn/Hiperface/1 Vpp/TTL, with a second encoder slot accommodating an EnDat 2.1 interface. Configurable slots accept additional I/O, safety, and communication modules to tailor the system to exact machine requirements.
With a regulated 24 Volts DC supply requirement, the control section draws 7.5 Watts of nominal power and exhibits an inrush current of 4 Amps at power-up. Two encoder modules each consume 6 Watts, while the integrated safety technology I/O module uses 1 Watt, yielding a total power consumption of 20.5 Watts. The design includes a memory card interface for parameter exchange and firmware updates, enhancing maintainability. Device mounting is limited to 20 operations to ensure mechanical integrity, and all firmware must be ordered separately from the hardware.
Engineered for seamless integration with Bosch Rexroth IndraDrive power sections, the CSH01.1C-ET-ENS-EN2-NNN-S1-S-NN-FW delivers robust real-time control and deterministic motion coordination. Its modular architecture and standard control panel compatibility simplify retrofits and system expansions. This reliable controller excels in high-precision applications, providing consistency and uptime in demanding industrial automation environments.
Analog Outputs
2
Master Communication
MultiEthernet
Primary Encoder Option
Indradyn/Hiperface/1 Vpp/TTL
