CSH01.1C-PB-ENS-MEM-MA1-L2-S-NN-FW

CSH Advanced Controllers

  Call For Quote
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

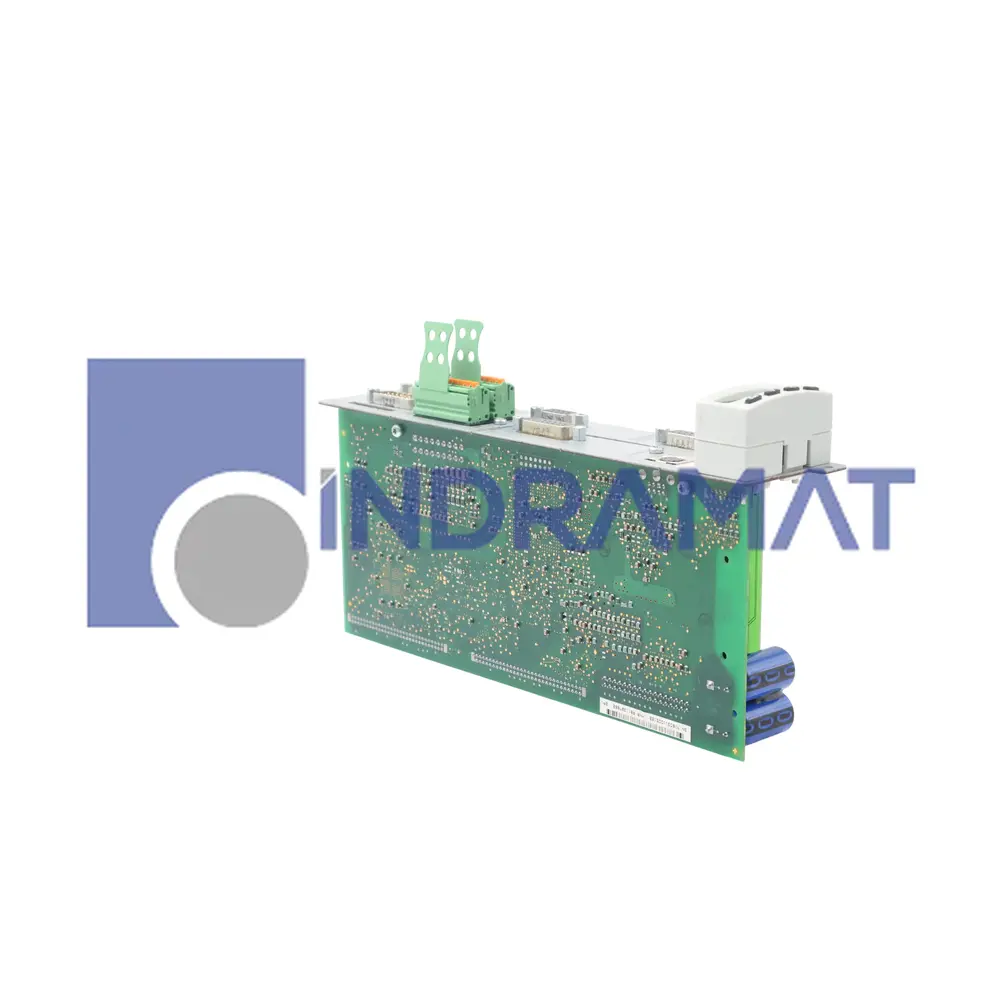

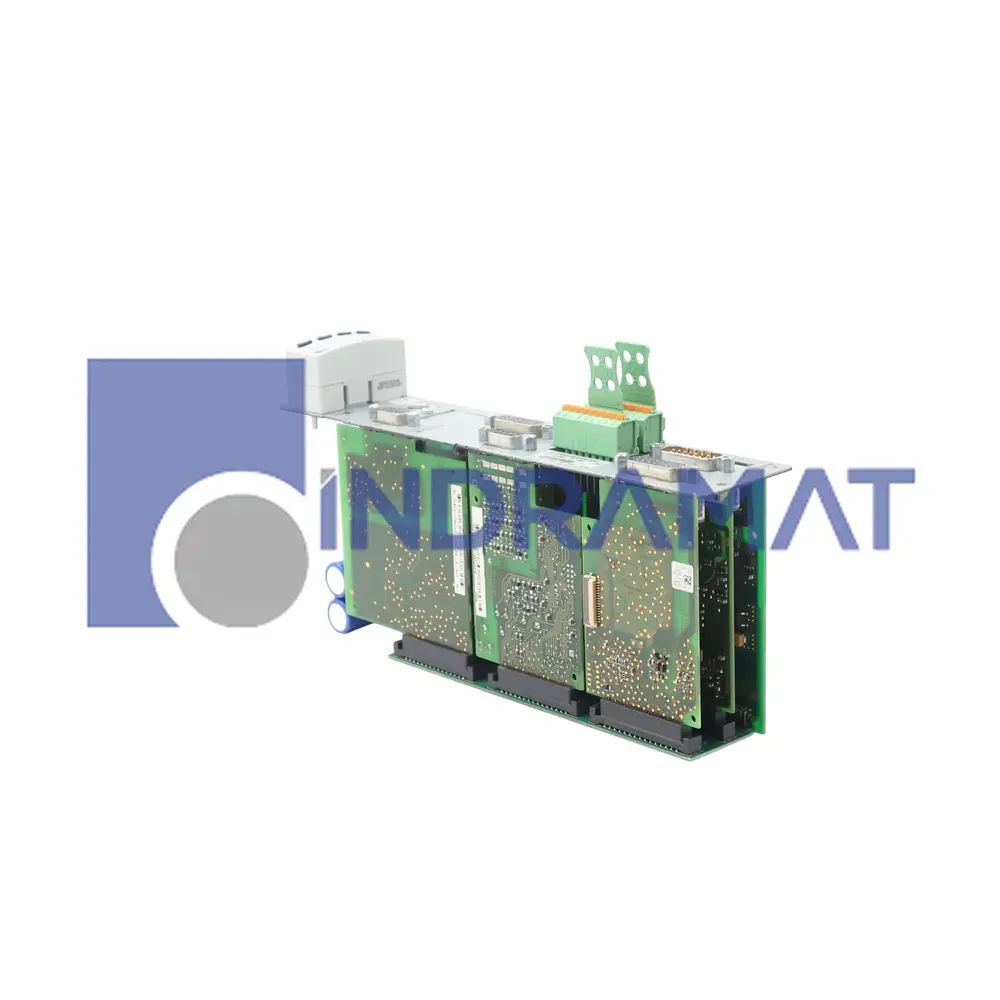

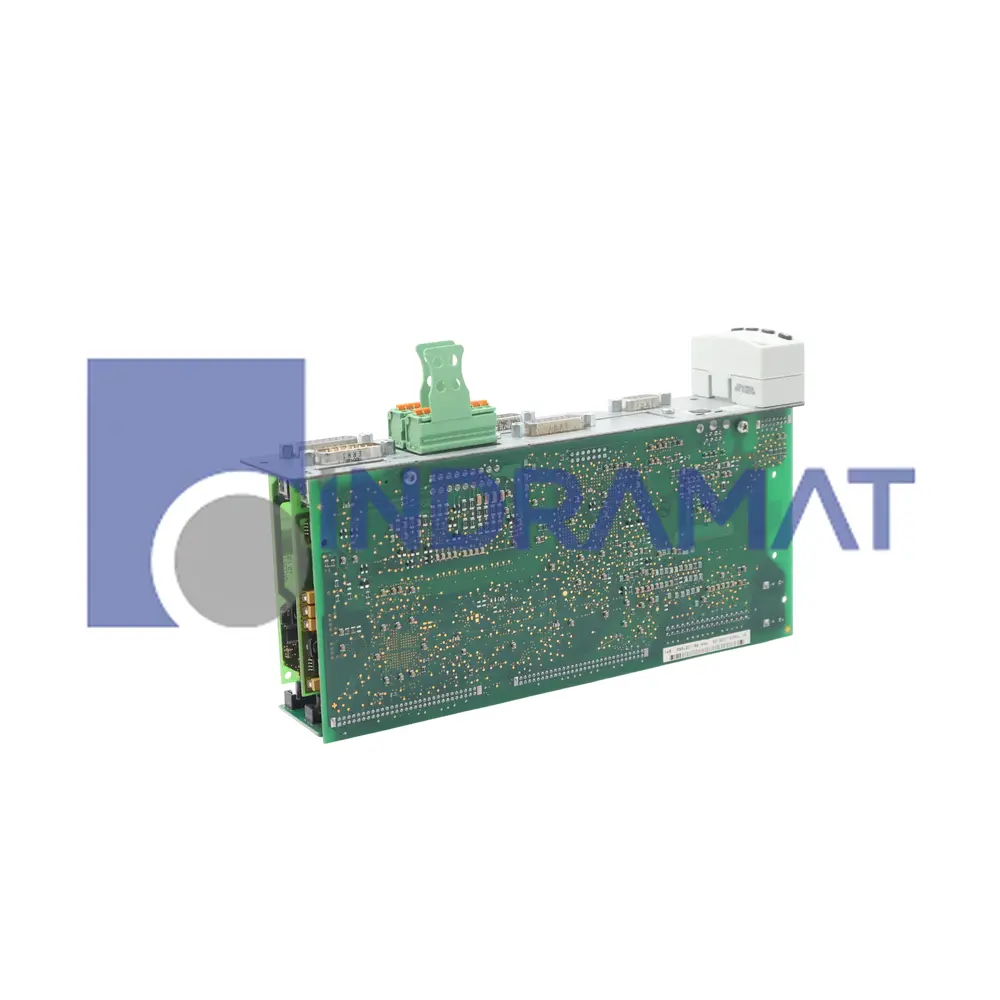

CSH01.1C-PB-ENS-MEM-MA1-L2-S-NN-FW, Bosch Rexroth Indramat, CSH Advanced Controllers opens the conversation with the robust CSH01.1C-PB-ENS-MEM-MA1-L2-S-NN-FW from the Bosch Rexroth Indramat CSH Advanced Controllers lineup. This advanced control section implements a PROFIBUS master communication interface to integrate seamlessly into high-performance drive networks. It supports the primary encoder option of IndraDyn/Hiperface/1 Vpp/TTL for precise feedback and features 2 analog outputs for synchronized process control. Designed as the digital brain of IndraDrive systems, it delivers consistent operation across varied industrial environments.



In terms of detailed specifications, the controller operates reliably within a 0 … 40 °C ambient temperature window and derates above this threshold to maintain thermal stability. Installation must occur at altitudes of 0 … 1000 m, with output reduction beyond that to prevent performance loss. The permissible relative humidity spans 5 … 95 % (non-condensing), while absolute humidity limits lie between 1 … 29 g/m³. Vertical mounting is mandatory to ensure proper airflow—cold air enters at the bottom and hot air exits at the top—protecting internal electronics. Pre-installed optional modules include encoder emulation, analog I/O extension, and the IndraDyn encoder option. A built-in safety module provides Safe Torque Off functionality for machine-level protection. Maintenance guidelines restrict module mating cycles to max. 20 insertions to avoid connector wear.



From an integration standpoint, the CSH01.1C-PB-ENS-MEM-MA1-L2-S-NN-FW slots directly into standard IndraDrive power sections or functions independently for flexible system design. Its PROFIBUS connectivity and modular I/O extensions simplify network scaling, while the stringent environmental specifications ensure <><>consistent uptime<> in demanding applications. Reliability is reinforced by rigorous insertion limits and vertical airflow management, making this controller ideal for precise motor control in handling, machine tools, and food-processing lines.

Technical Specifications

Analog Outputs
2

Master Communication
PROFIBUS

Primary Encoder Option
Indradyn/Hiperface/1 Vpp/TTL

Common Misspellings

Shipping & Payment Options
DHL-logo FexEd-logo UPS-logo freight-icon

AmEx-icon Mastercard-icon Visa-icon wire-transfer-icon
Warranty
1-year-warranty
Indramat USA 1 Year Warranty
Repair
product repair We offer a repair service for the CSH01.1C-PB-ENS-MEM-MA1-L2-S-NN-FW.
