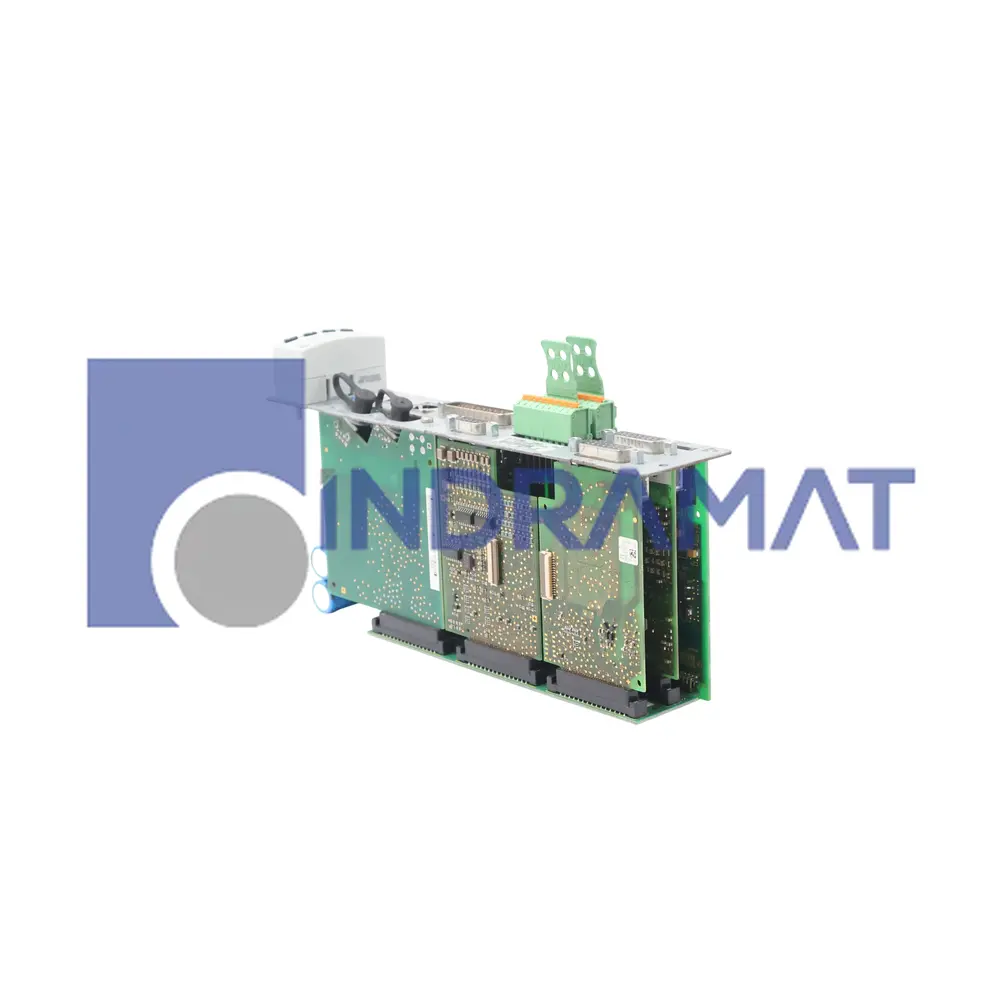

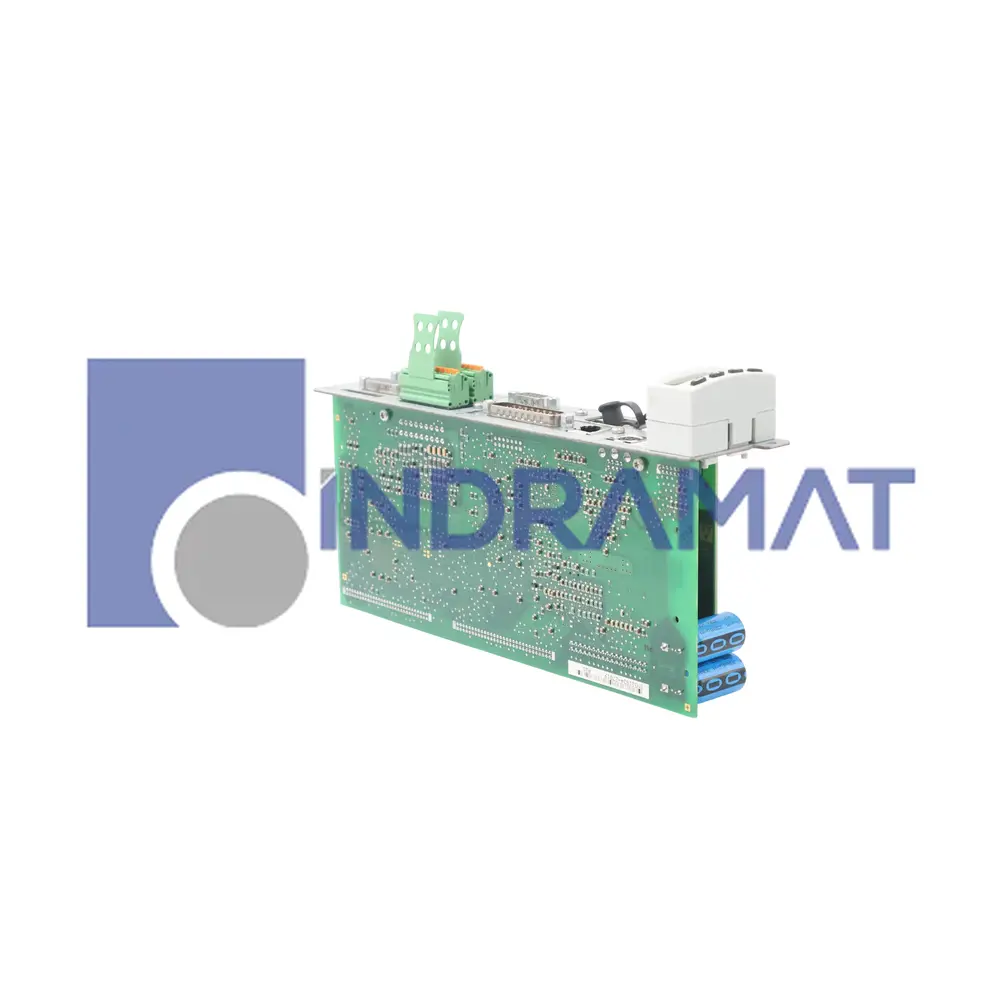

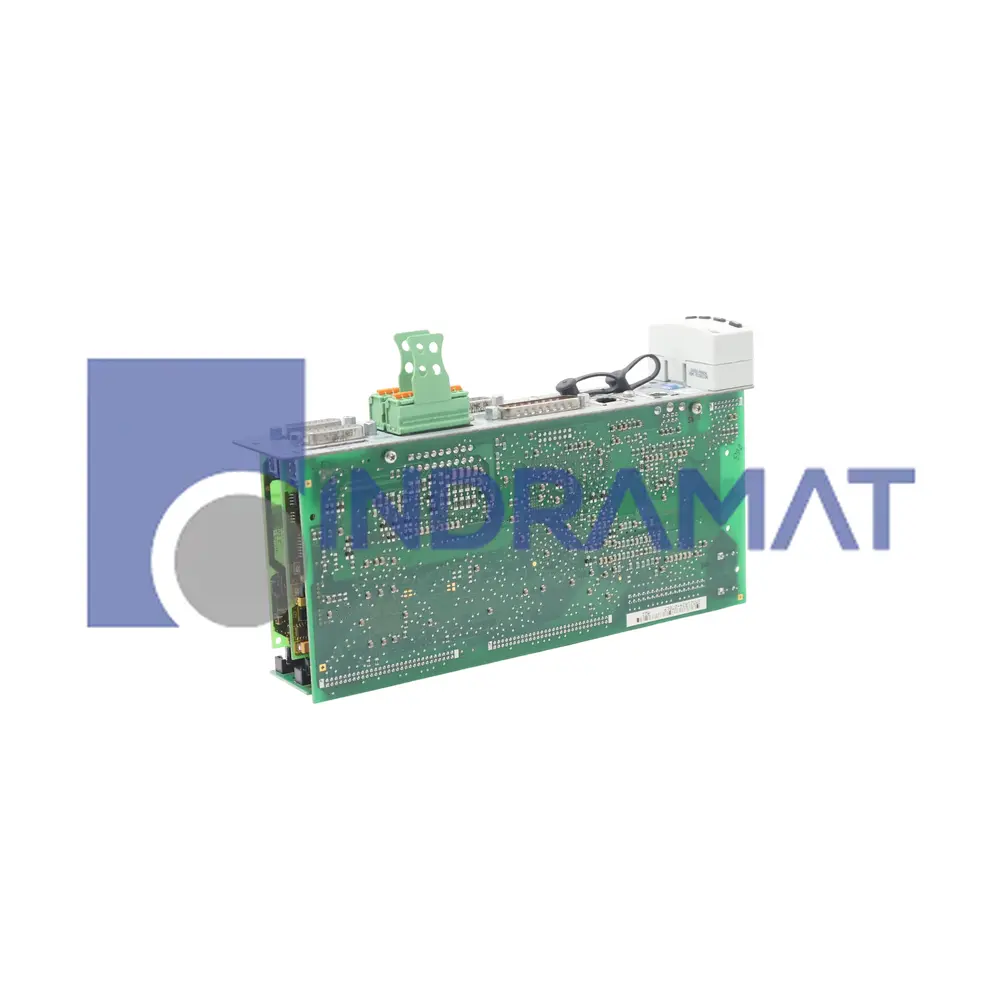

The Bosch Rexroth Indramat CSH01.1C-SE-ENS-MA1-MD2-S2-S-NN-FW from the CSH Advanced Controllers series is a precision-engineered control section designed for high-performance automation applications. This modular unit features a native Master Communication: SERCOS Interface for real-time data exchange and supports a Primary Encoder Option: Indradyn/Hiperface/1 Vpp/TTL to ensure accurate feedback. Engineers will appreciate the two Analog Outputs: 2 channels for smooth signal routing alongside flexible expansion slots for optional modules. Its compact form factor simplifies integration into existing racks and guarantees compatibility across varied machine architectures.
Optional modules include an encoder interface module, an analog I/O extension, a digital I/O extension, and a safety module supporting safe motion functions. The digital I/O extension adds 32 I/O channels and provides an SSI encoder interface for synchronous serial data transfer. Digital inputs are arranged in two groups of eight channels, each group with independent supply voltage, while digital outputs are divided into four groups of four channels, each group also separately powered and galvanically isolated from the control section. This layered isolation architecture enhances noise immunity and protects core electronics in harsh industrial environments.
The unit mounts directly onto a dedicated power section and draws only 7.5 Watts under standard load, with additional consumption becoming available through option modules. Vertical mount design and passive convection cooling allow operation across a 0 to 40 °C ambient range without auxiliary fans. Users may select alternate communication interfaces to suit network topologies, and all installation and maintenance procedures must follow the manufacturer’s safety guidelines to prevent damage or injury.
Analog Outputs
2
Master Communication
SERCOS Interface
Primary Encoder Option
Indradyn/Hiperface/1 Vpp/TTL
