CSH01.3C-ET-EN2-MA1-CCD-NN-S-NN-FW

CSH Advanced Controllers

  Call For Quote
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

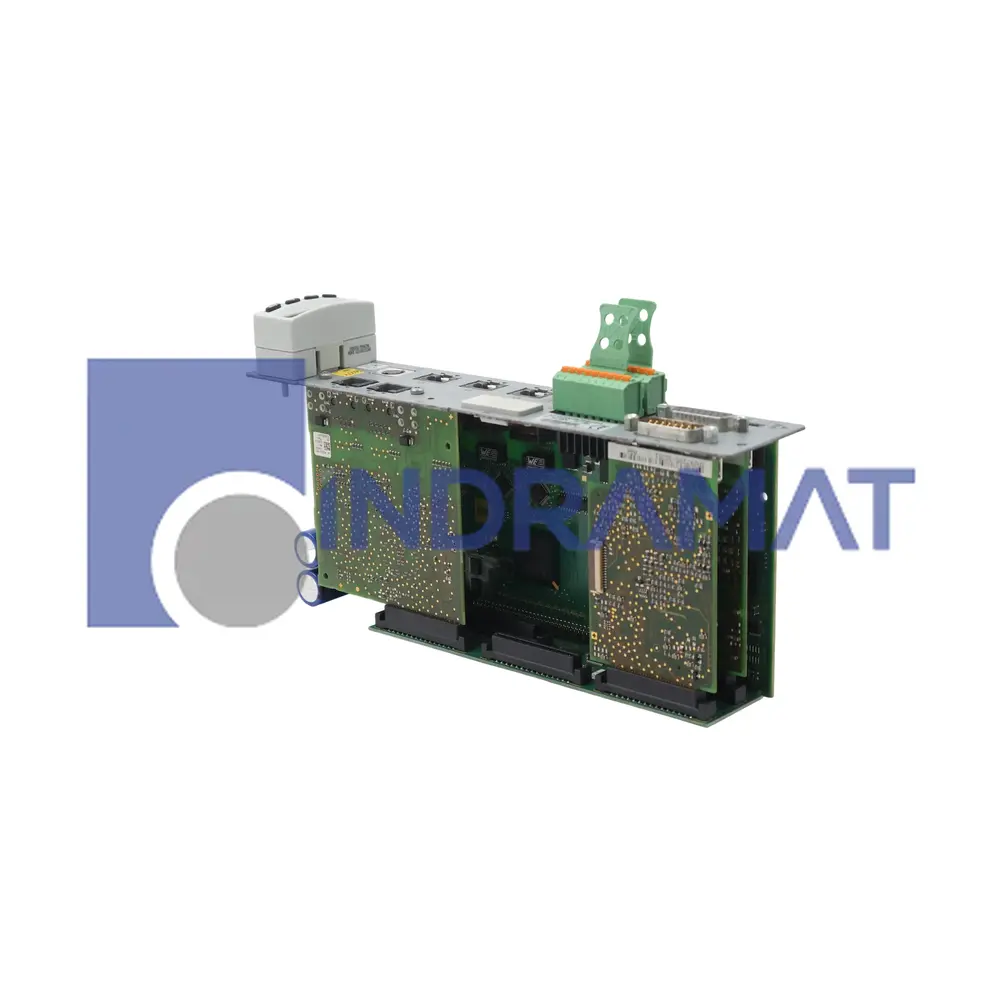

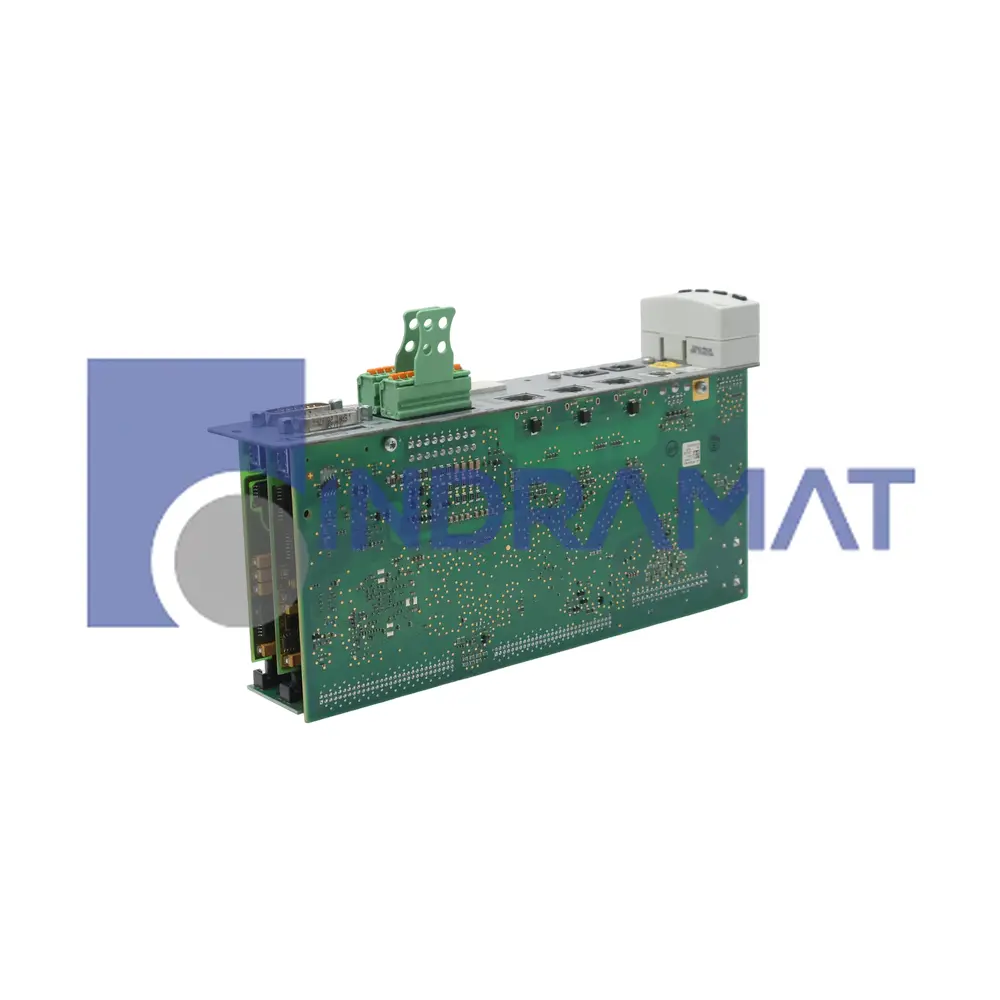

The CSH01.3C-ET-EN2-MA1-CCD-NN-S-NN-FW from Bosch Rexroth Indramat features two analog outputs and supports MultiEthernet master communication. Part of the CSH Advanced Controllers series, it offers an EnDat 2.1/1 Vpp/TTL encoder and a CCD communication module. The modular control section supports bidirectional encoder data and long cables up to 100 m.



Analog channels deliver 12-bit resolution across a ±10 V range. Flexible cables require a 48.75 mm bending radius. Firmware is ordered as a separate subposition.

Technical Specifications

Analog Outputs
2

Master Communication
MultiEthernet

Primary Encoder Option
EnDat 2.1/1 Vpp/TTL
