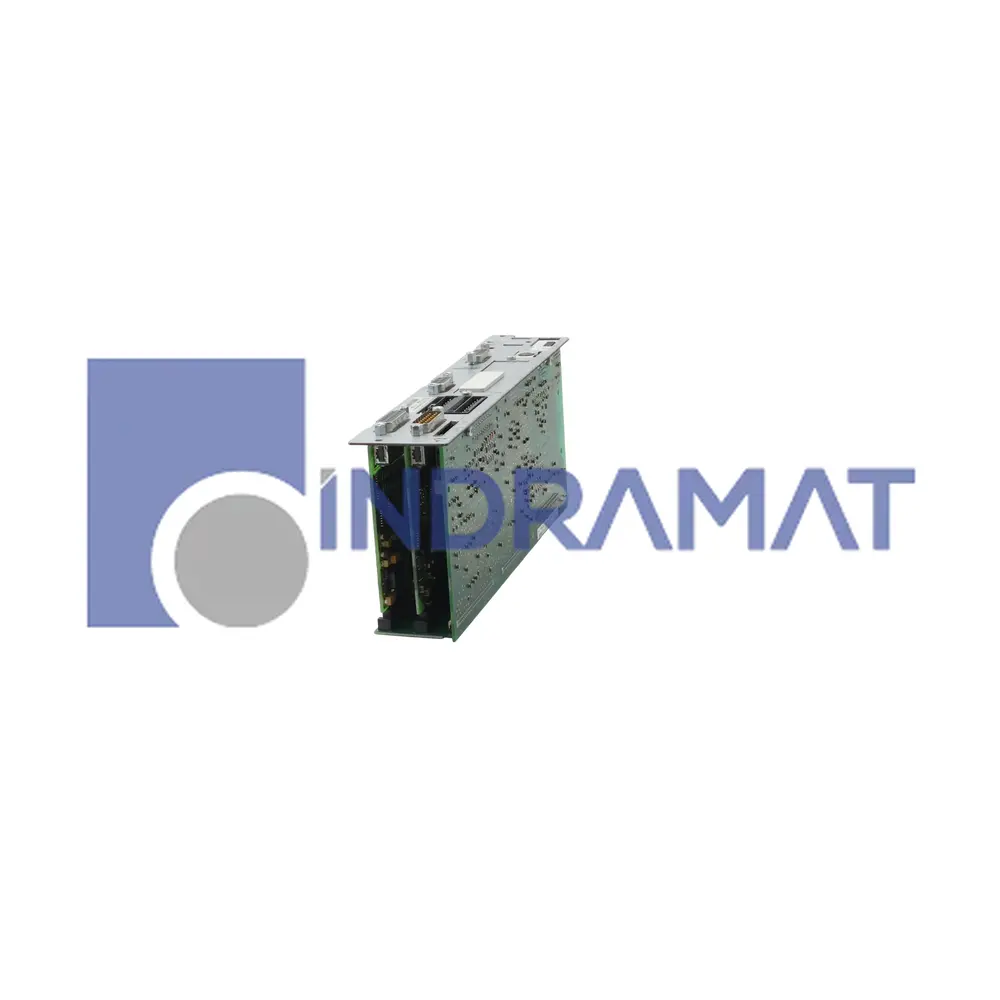

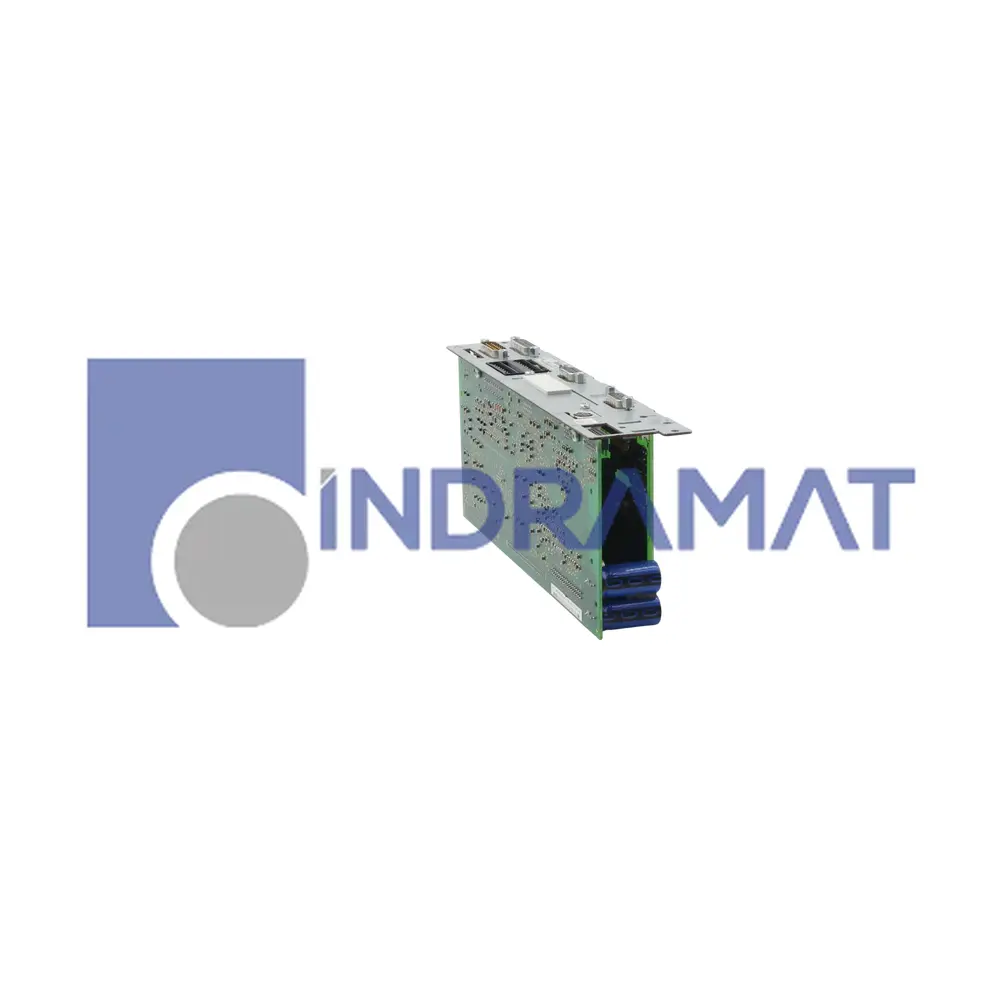

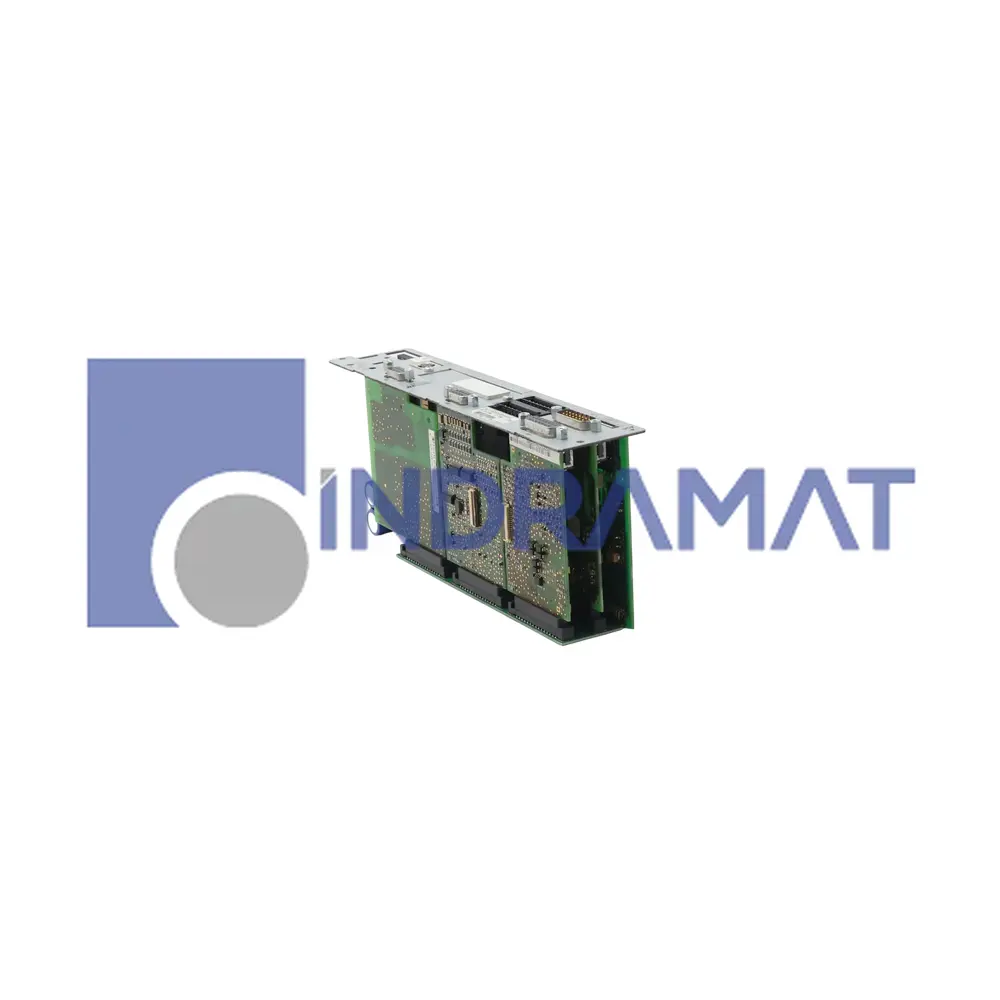

R911306595 (CSH01.1C-SE-EN1-EN1-NNN-S1-S-NN-FW)

CSH Advanced Controllers

  In Stock, Ships Fast
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping
The R911306595 (CSH01.1C-SE-EN1-EN1-NNN-S1-S-NN-FW) is a CSH01.1 series IndraDrive control unit designed for single-axis applications within industrial automation. It features a SERCOS master interface utilizing fiber optic communication for integration with higher-level controllers. This unit includes a Safety Technology I/O module for safety-related control functions. Encoder connections support both Resolver and HSF types, with supply voltages of DC 8V or AC 18.2V peak-peak. The module provides two analog outputs and supports switching frequencies of 2, 4, 8, 12, and 16 kHz. The design aligns with EMC category C3 per EC 61800‑3, enabling deployment in industrial environments.

Technical Specifications

Range
ADVANCED

Line
1

Design
1

Connection Points Type
spring terminals and screw terminal blocks

Master Communication Module
SERCOS

Safety Technology I/O module
Yes

Interfaces for Resolver and HSF encoder evaluation
2

Encoder Supply Voltages
DC 8V or AC 18.2V peak-peak

Firmware Required
Yes, ordered separately

Permitted Switching Frequencies
2kHz, 4kHz, 8kHz, 12kHz, and 16kHz

Operational Area
Industrial areas only

Product Category
C3 per EC 61800‑3
