R911306766 (CSH01.1C-NN-EN1-MEM-MA1-NN-S-NN-FW)

CSH Advanced Controllers

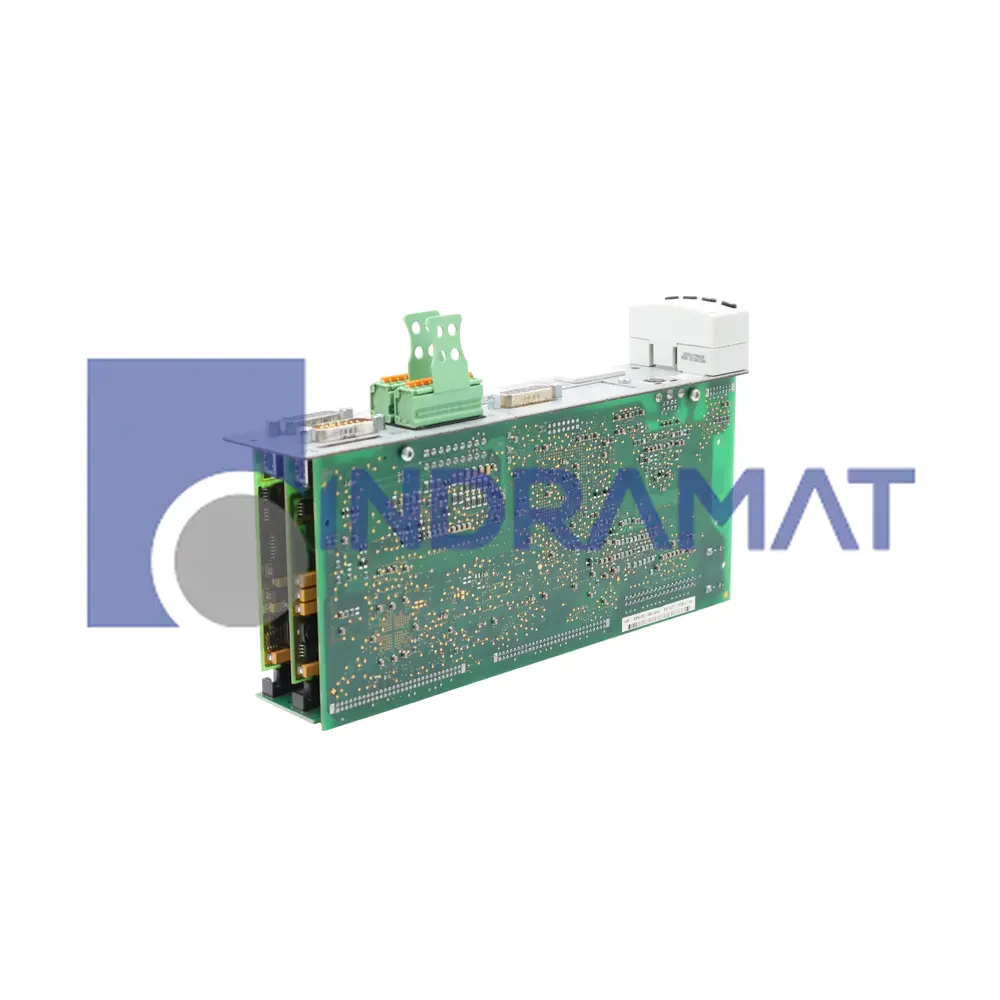

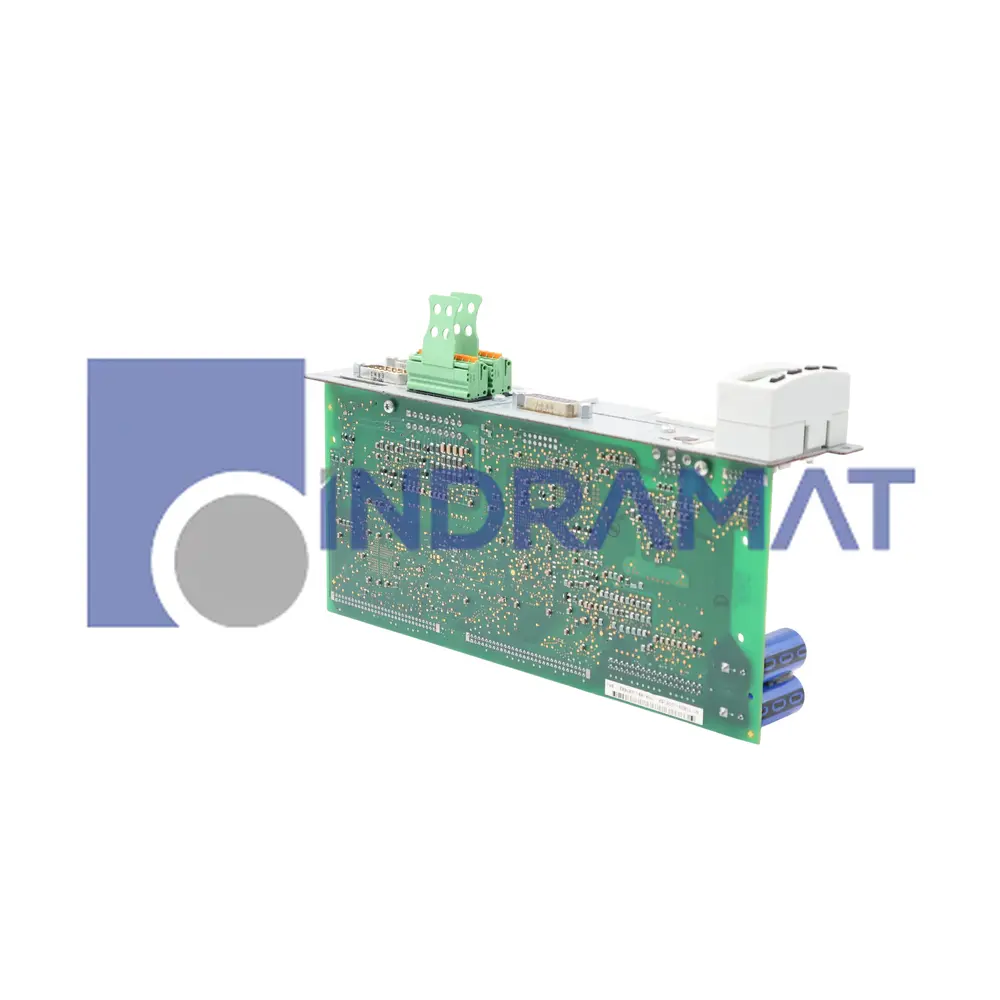

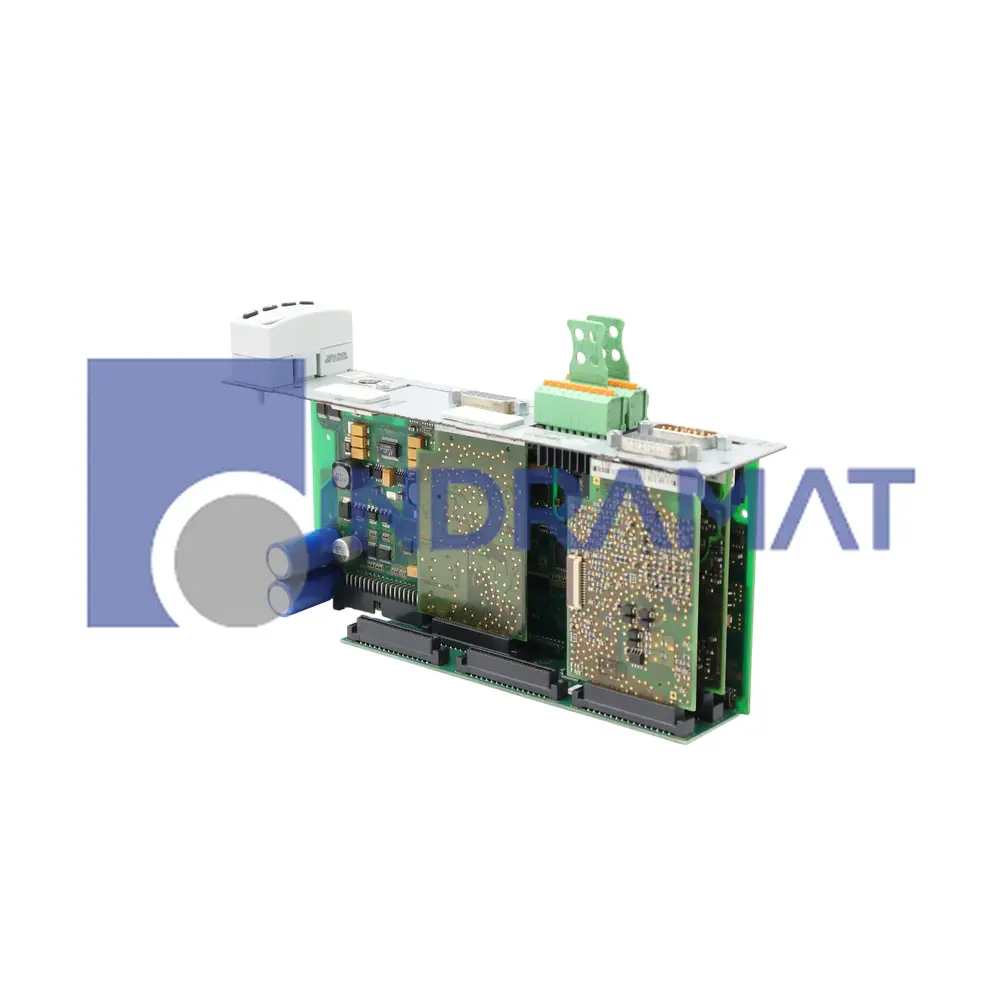

CSH01.1C-NN-EN1-MEM-MA1-NN-S-NN-FW Series Image

Call For Quote

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
[email protected]

The R911306766 (CSH01.1C-NN-EN1-MEM-MA1-NN-S-NN-FW) is a control section designed for application in automation systems and machine tools. It features an MA1 optional module that expands analog I/O capability via a 15-pin D-Sub interface (X8.1), providing two differential analog inputs and two analog outputs, each with a ±10V range and 12-bit resolution. The unit includes digital inputs/outputs compliant with IEC 61131 Type 1, supports eight-fold input oversampling, and offers overload and short circuit protection for outputs. The H1 interface enables connection to a control panel, which must be installed before drive controller initialization. Input voltage range is -3V to 30V, with input sampling frequency determined by firmware. Serial interface and HSF/RSF primary encoder options are available; no master communication is equipped.

Technical Specifications

Safety Technology Implementation
No

Analog Input / Output Extension
Yes

Connector Type
D-Sub 15-pole female

Analog Channel Resolution
12 bits

Voltage Rating
+/-10V

H1 Interface
Yes

Used in Machine Tools
Yes

Digital Input / Output Standards
IEC 61131 Type 1

Allowed Input Voltage
-3V to 30V

Sampling Frequency of Inputs
Depends on firmware used

Firmware Availability
Separate sub item

Probe Input Control
Bounce-free switching elements

Analog Input Feature
8-fold oversampling

Analog Output Protection
Against overload and short circuit

Interface Connection
Serial
