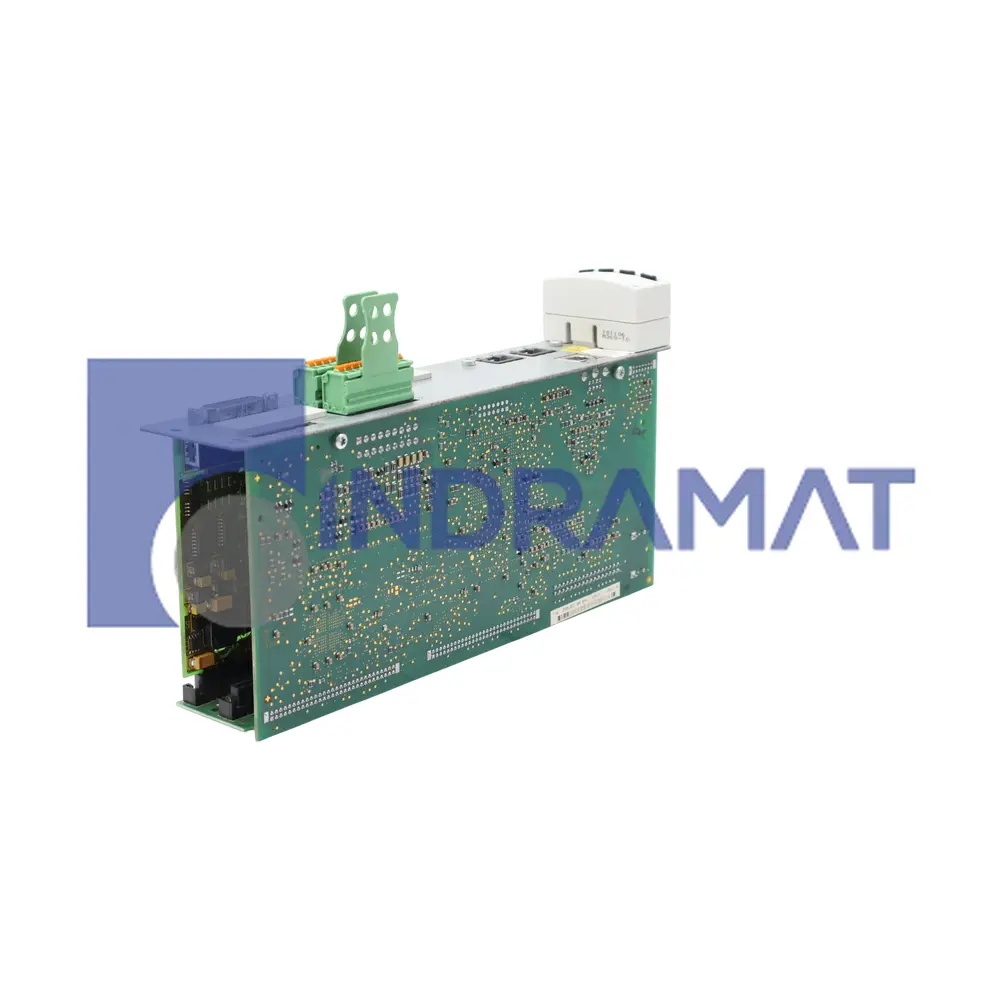

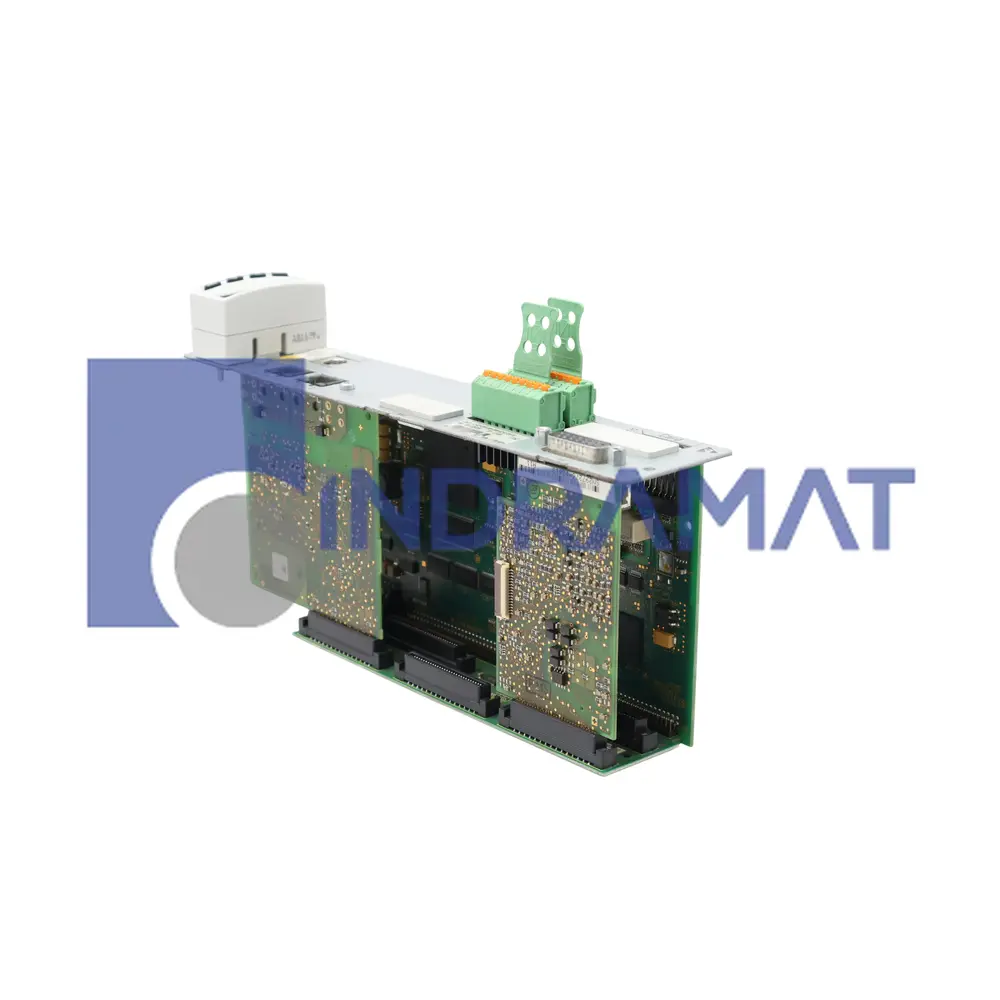

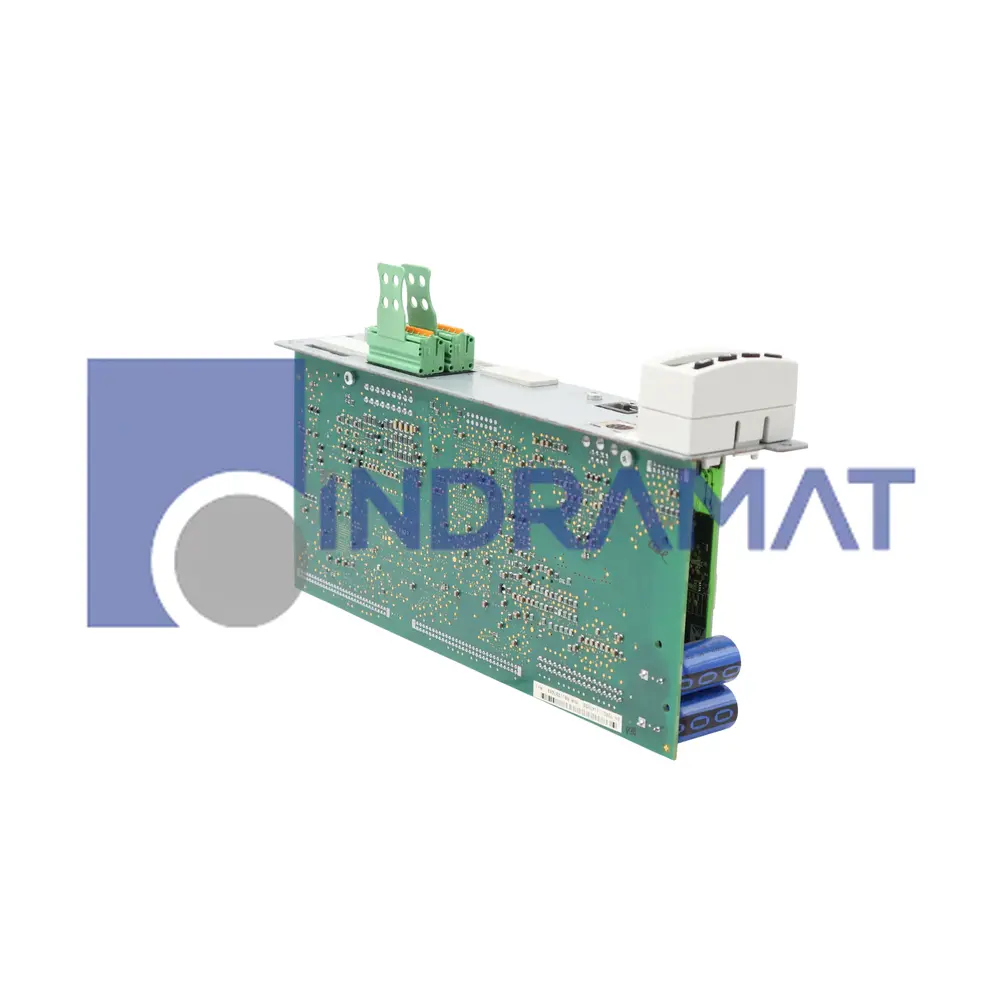

R911315670 (CSH01.1C-S3-EN1-NNN-NNN-NN-S-NN-FW)

CSH Advanced Controllers

CSH01.1C-S3-EN1-NNN-NNN-NN-S-NN-FW Series Image

In Stock, Ships Fast

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
[email protected]

The R911315670 (CSH01.1C-S3-EN1-NNN-NNN-NN-S-NN-FW) is a control unit engineered by Bosch Rexroth for single-axis industrial drive applications requiring precise speed and position regulation. The module offers two analog outputs, supports master communication via SERCOS III, and provides a primary encoder option of HSF/RSF. Compatibility extends to CANopen, DeviceNet, EnDat 2.1, 1Vpp, and TTL encoder protocols. The unit incorporates an additional slot for expanded safety options, optional encoder integration, and includes a built-in control panel for local user interface. Communication is supported through RS232 and RS485 serial interfaces. It operates with selectable frequencies from 2 kHz up to 16 kHz for versatility across automation sectors such as paper processing, packaging, food equipment, material handling, and machine tooling.

Technical Specifications

Product Type
Industrial Drive Control Unit

Industrial Use
Yes

Axis Configuration
Single, Fully Configurable

Safety Features
Inbuilt, Integrated

Extended Safety Features
Compatible with Suitable Encoder

I/O Extension
Available

Control Panel
Inbuilt, Accepts User Prompts

Network Compatibility
CANopen, DeviceNet

Encoder Compatibility
EnDat 2.1, 1Vpp, TTL

Serial Interfaces
RS232, RS485

Operating Frequencies
2 kHz, 4 kHz, 6 kHz, 12 kHz, 16 kHz

Operational Environment
Variety, Industrial Standards Compliant

Common Misspellings

1620 Old Apex Road
Cary, NC 27513, USA

Toll Free: 1-888-551-3082
International: 1-919-443-0207

Fax: 1-919-867-6204

[email protected]

Shipping & Payment Options

Warranty

Indramat USA 1 Year Warranty

Repair

We offer a repair service for the CSH01.1C-S3-EN1-NNN-NNN-NN-S-NN-FW.

Exchange

Want to sell your CSH01.1C-S3-EN1-NNN-NNN-NN-S-NN-FW?
