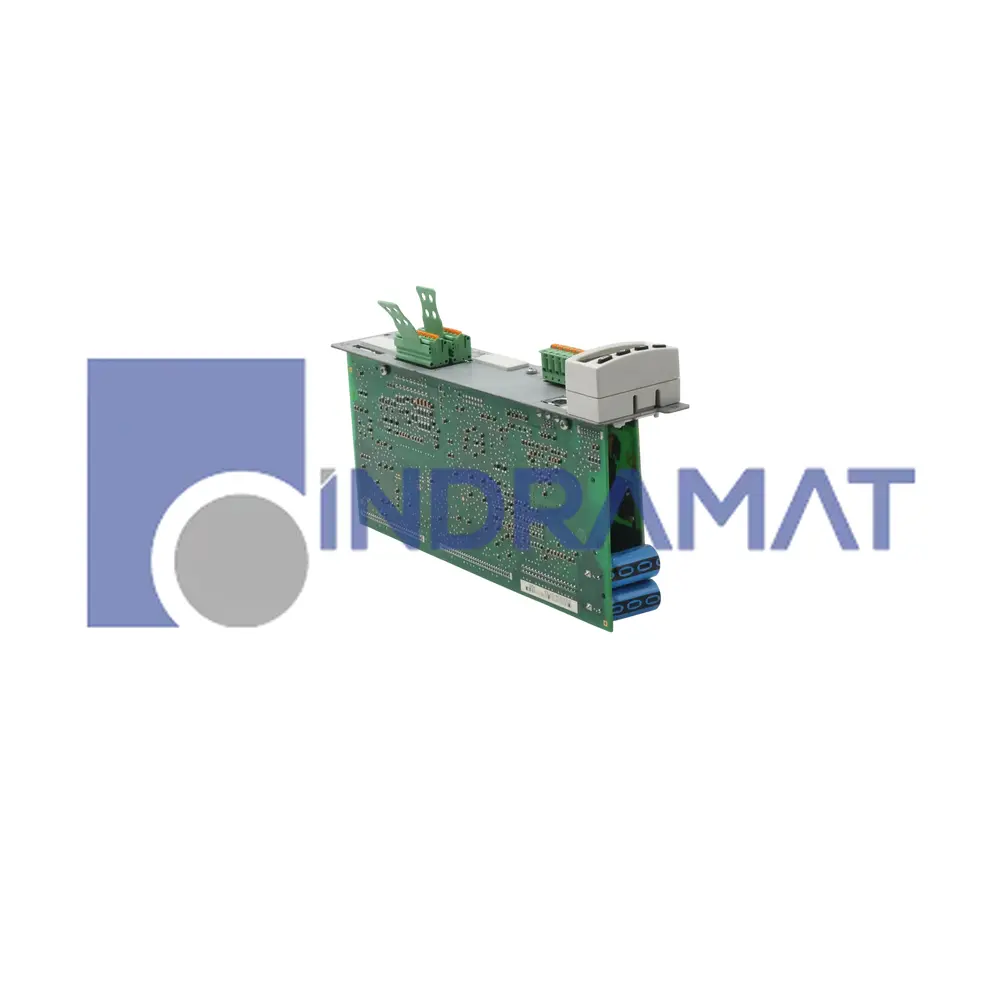

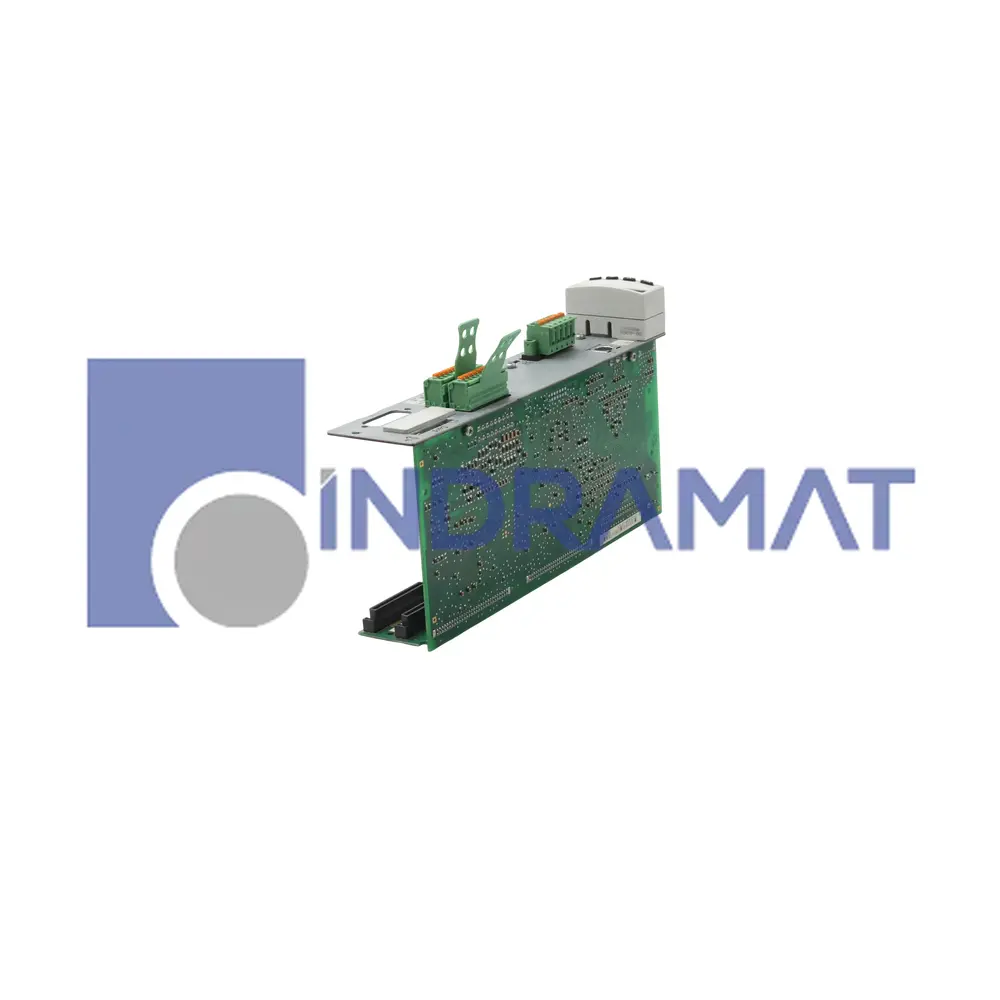

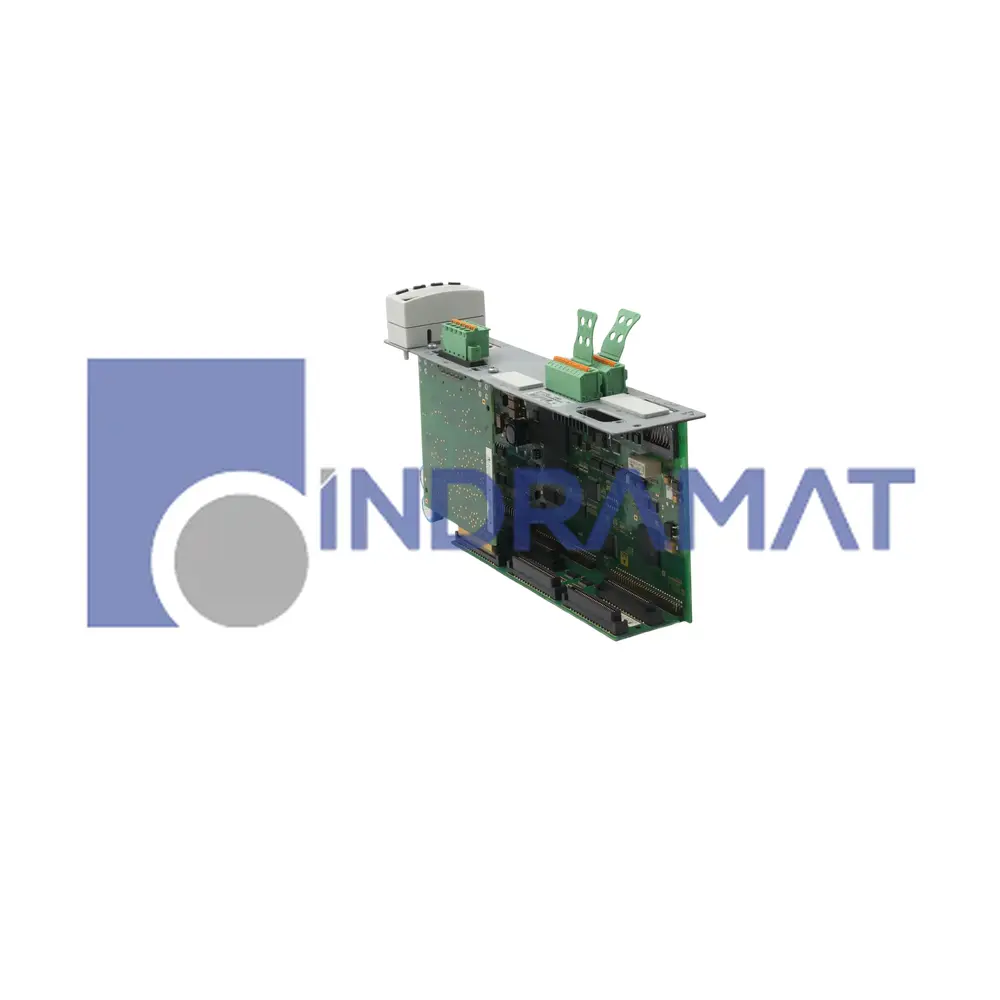

The Bosch Rexroth R911319196 (CSH01.1C-S3-NNN-NNN-NNN-NN-S-NN-FW) is a CSH series drive controller comprising a control and power section, designed for high-performance motion control applications in environments such as machine tools, processing and packaging machinery, and automated handling systems. The unit is equipped with two analog outputs and provides SERCOS III for master communication. Its standard control panel allows configuration tasks such as address setting, position data referencing, and initiation of basic load defaults. Operational status, commands, diagnostics, and warnings are visible via its single-line display. The controller features an RS232 interface for setup and maintenance and does not include a primary encoder option. Compliance with IEC 61800-3 C3 class designates the controller for use in industrial environments; interference suppression is required when used in residential settings.

Technical Specifications

Product Type
Control Section

Control Panel Type
Standard

Display
Single-line

Keys Quantity
4

Commissioning Tool
IndraWorks engineering tool

Communication Module
sercos III

Interface Standard
IEE 802.3

Additional Interface
RS232

Inrush Current
4A

Maximum Pulse Width
100ms

Product Category
C3 (IEC 61800‑3)

Usage Area
Industrial areas only
