R911322788 (CSH01.1C-CO-EN1-NNN-NNN-NN-S-NN-FW)

CSH Advanced Controllers

  Call For Quote
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

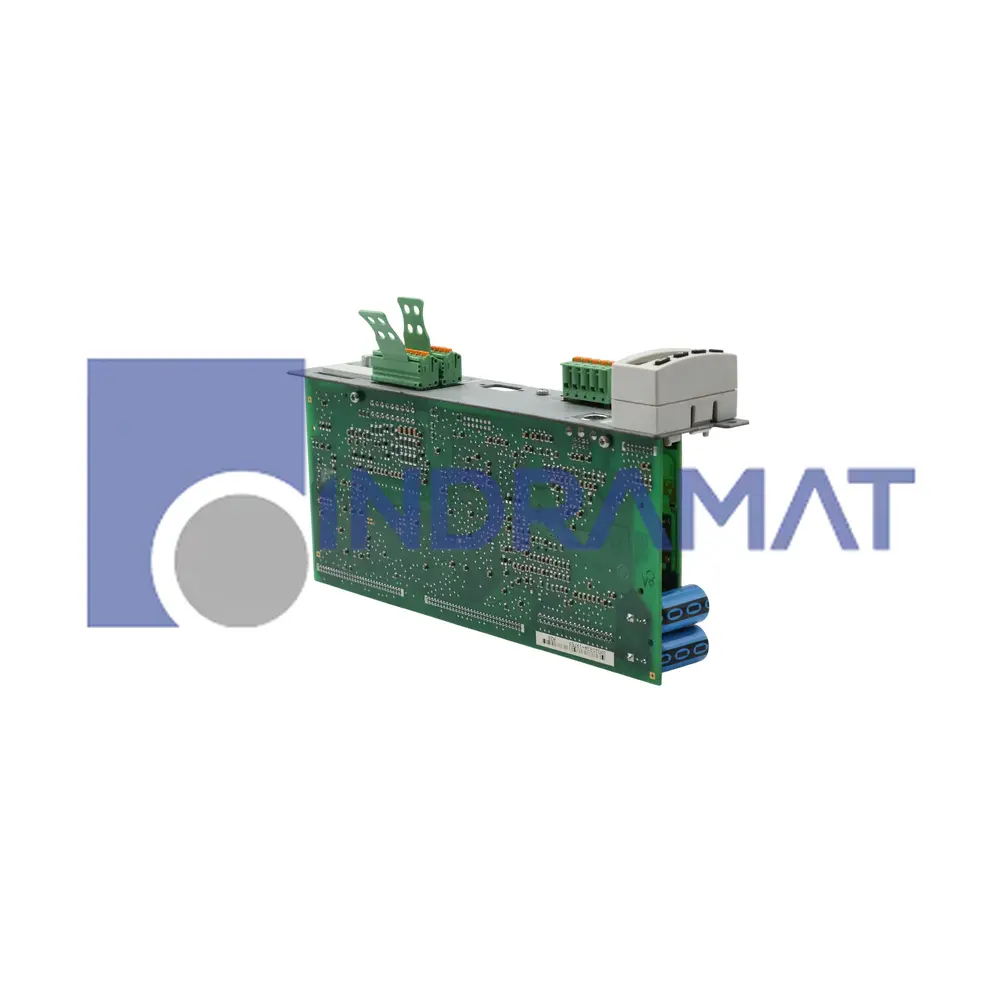

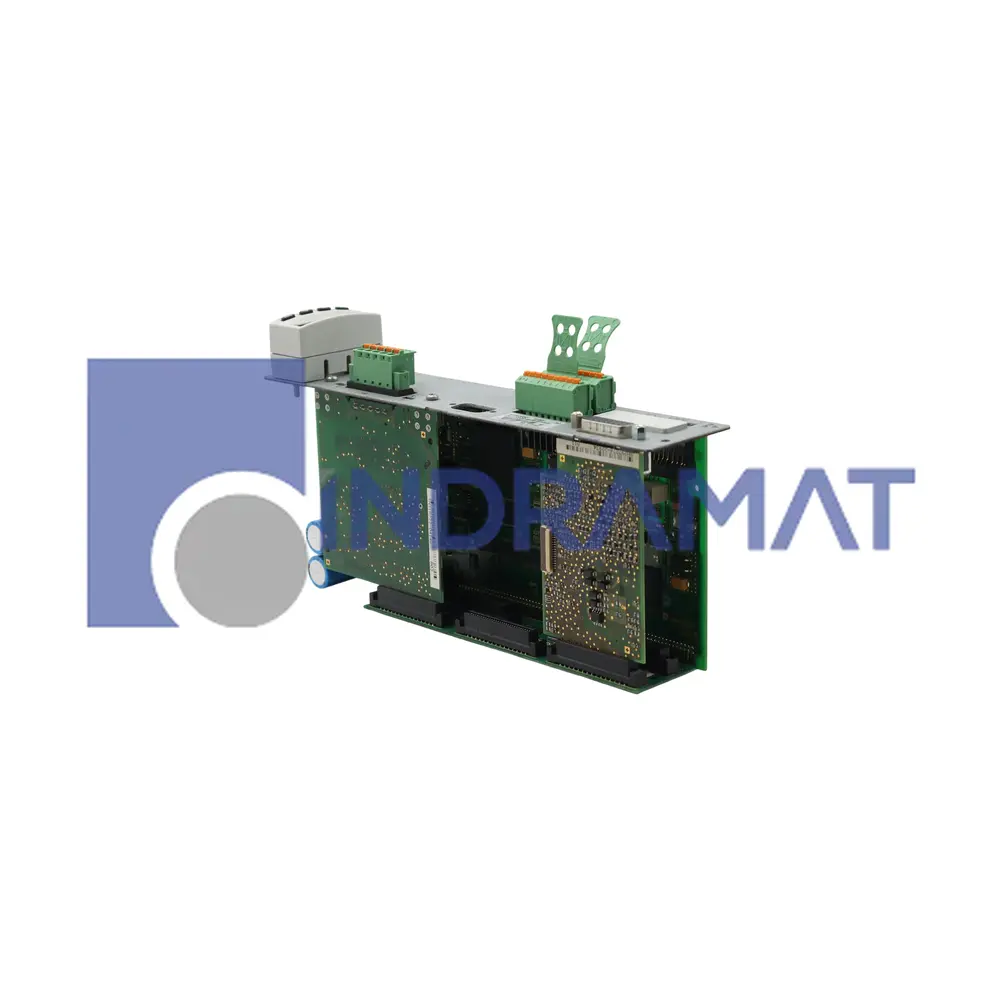

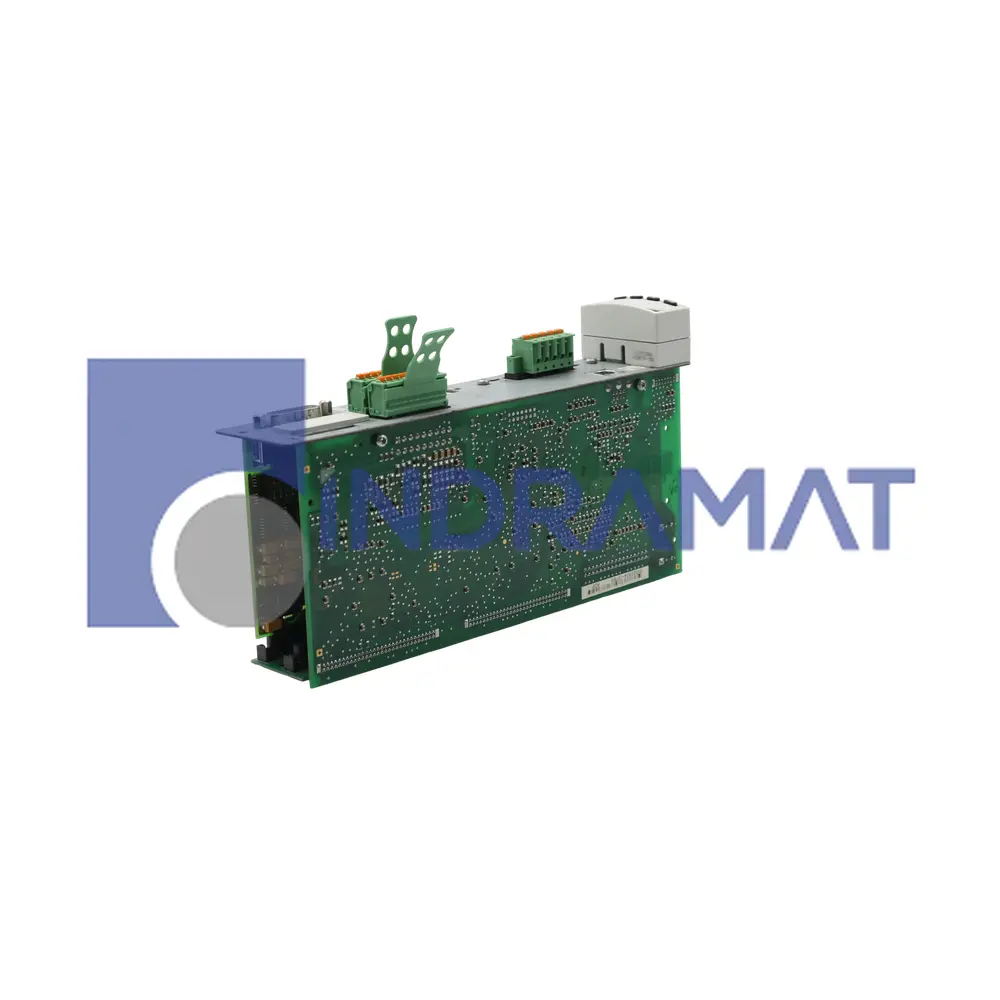

The Bosch Rexroth module R911322788 (CSH01.1C-CO-EN1-NNN-NNN-NN-S-NN-FW) is designed for integration with IndraDrive controllers and supports single-axis configuration. It provides 7 to 11 digital inputs, 4 combinable I/Os, 2 analog outputs, and a single analog input. Communication options include CANopen and DeviceNet interfaces, while encoder feedback is supported via HSF/RSF. Serial communication is enabled through an RS232 interface. Switching frequencies are selectable between 2 kHz and 16 kHz, with a cycle time ranging from 62.5 μs to 125 μs. The module is suitable for various industrial automation applications.

Technical Specifications

Product Type
Control Module

Use Case
IndraDrive controllers

Switching Frequencies
16 kHz, 12 kHz, 8 kHz, 4 kHz, 2 kHz

Response Time
62.5 us to 125 us

Minimum Sercos Cycle Time
250 us

Communication Interface
CANopen/DeviceNet

Additional Option
Encoder HSF/RSF

Module Options
Fieldbus communication module
