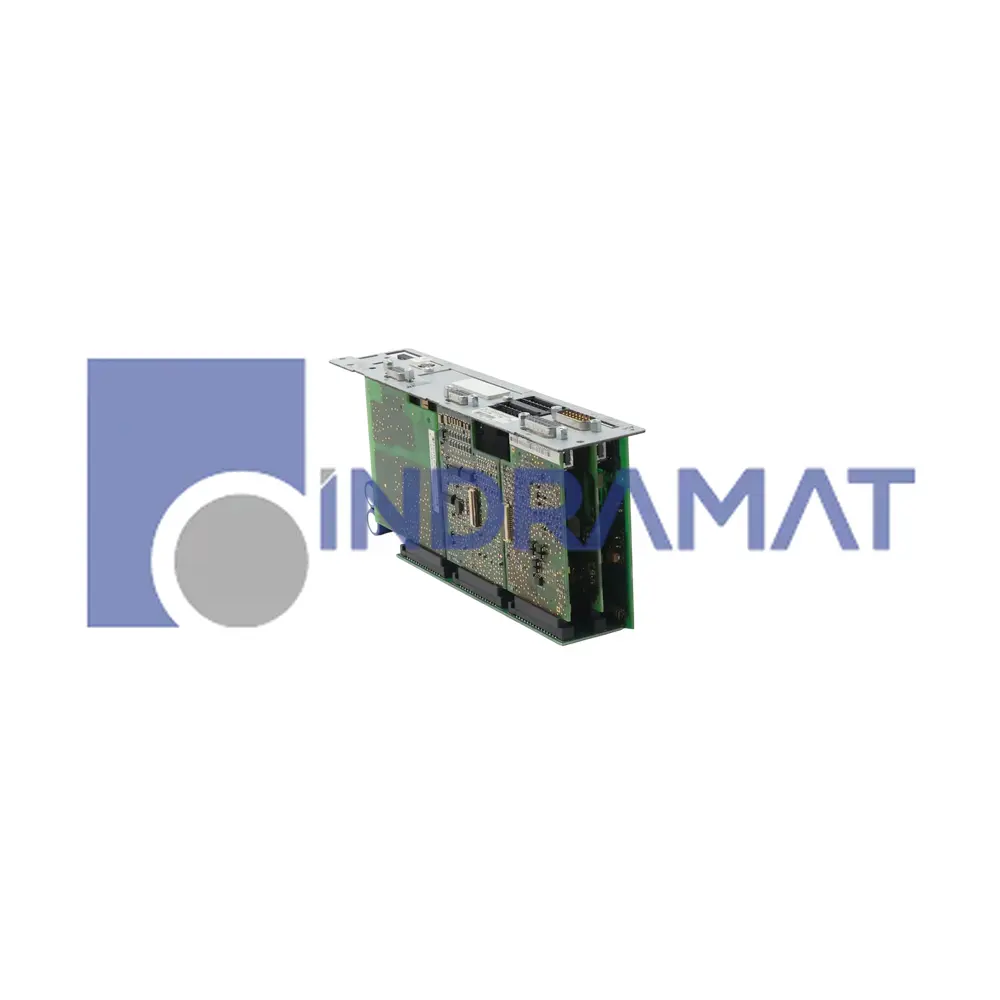

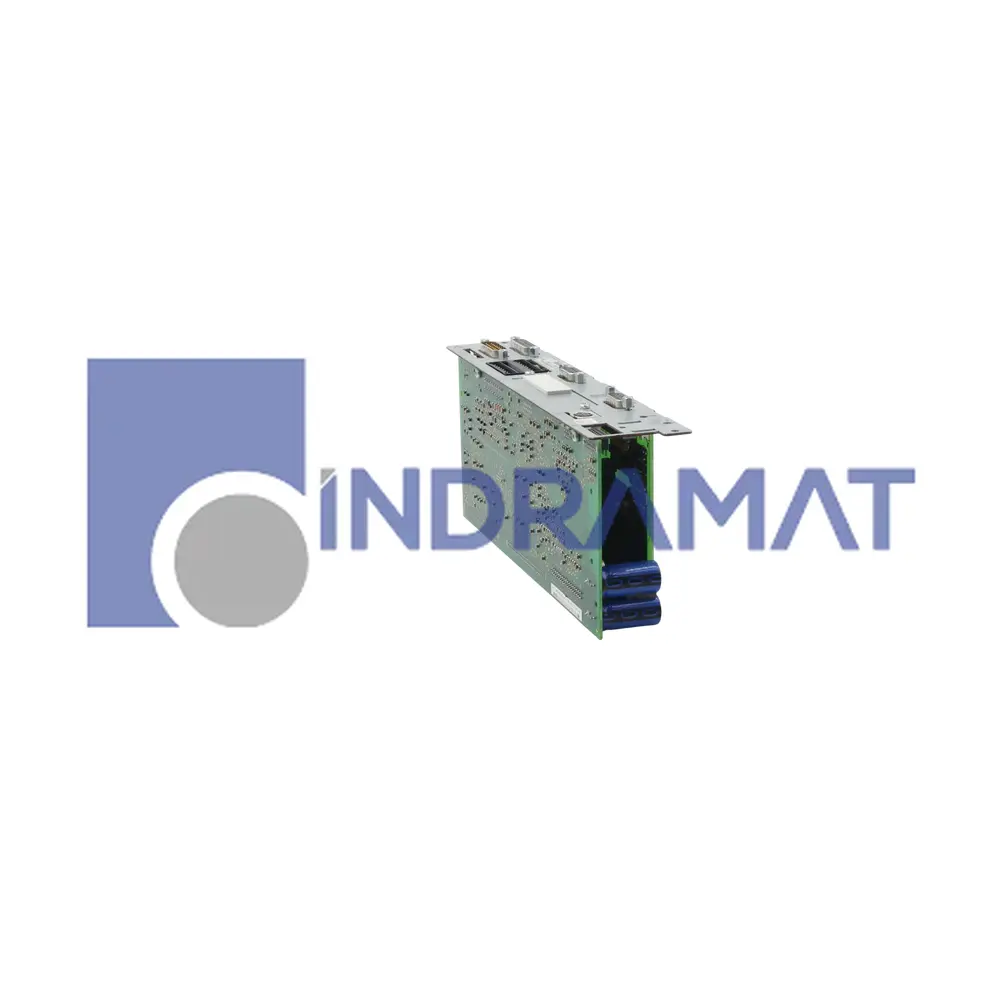

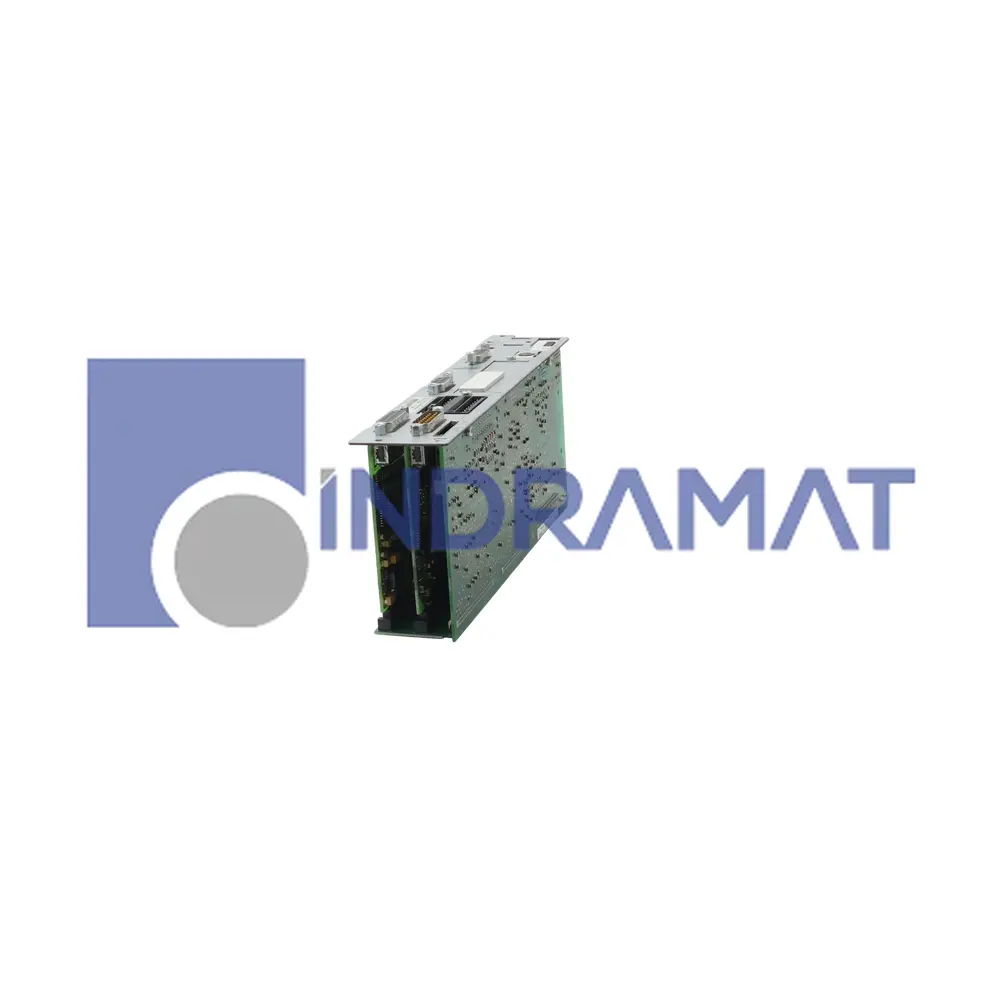

The R911330902 (CSH01.1C-SE-EN1-EN1-NNN-S2-S-NN-FW) is a Bosch Rexroth ADVANCED CSH series control section for single-axis applications in industrial automation. It incorporates HSF/RSF encoder compatibility for resolver and encoder evaluation, and supports DC 8V and AC 18.2V peak-peak encoders, including resolver types without data memory, MHD and MKD motor encoders, and the SHL01.1 Hall sensor box. The unit provides two analog outputs and features SERCOS interface master communication via fiber optics. It includes a user-accessible control panel for referencing and error tracking, an integrated 'Safe Motion' module for implementing safety functions, a 4A inrush current with a maximum pulse width of 100 ms, and offers both spring and screw terminal connection options. Firmware for this device is ordered separately.

Technical Specifications

Type
Single-Axis Control Section

Control Range
ADVANCED

Interface
Two interfaces for Resolver and HSF Encoder

Control Panel
Standard with single-line display

Firmware
Must be ordered separately

Connection Points
Spring Terminals, Screw Terminal Blocks
