R911331449 (CSH01.1C-PB-ENS-EN1-EN2-L2-S-NN-FW)

CSH Advanced Controllers

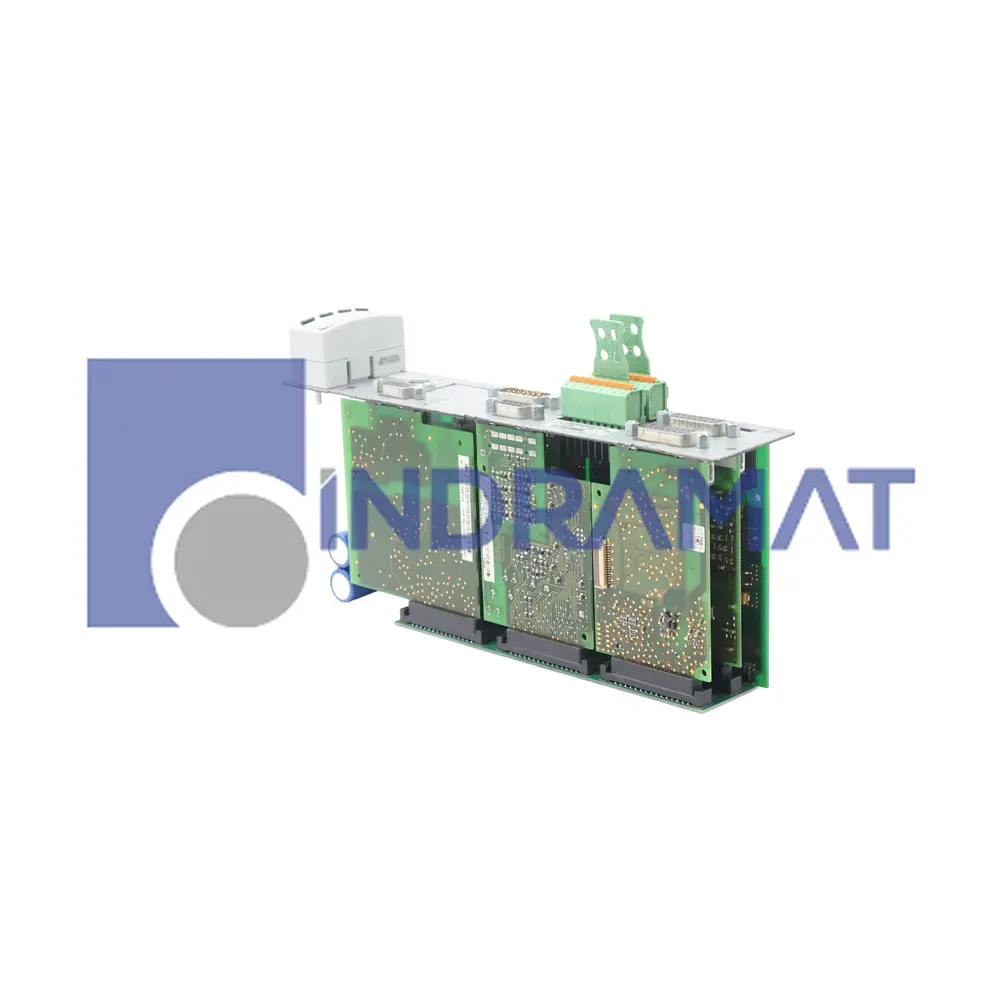

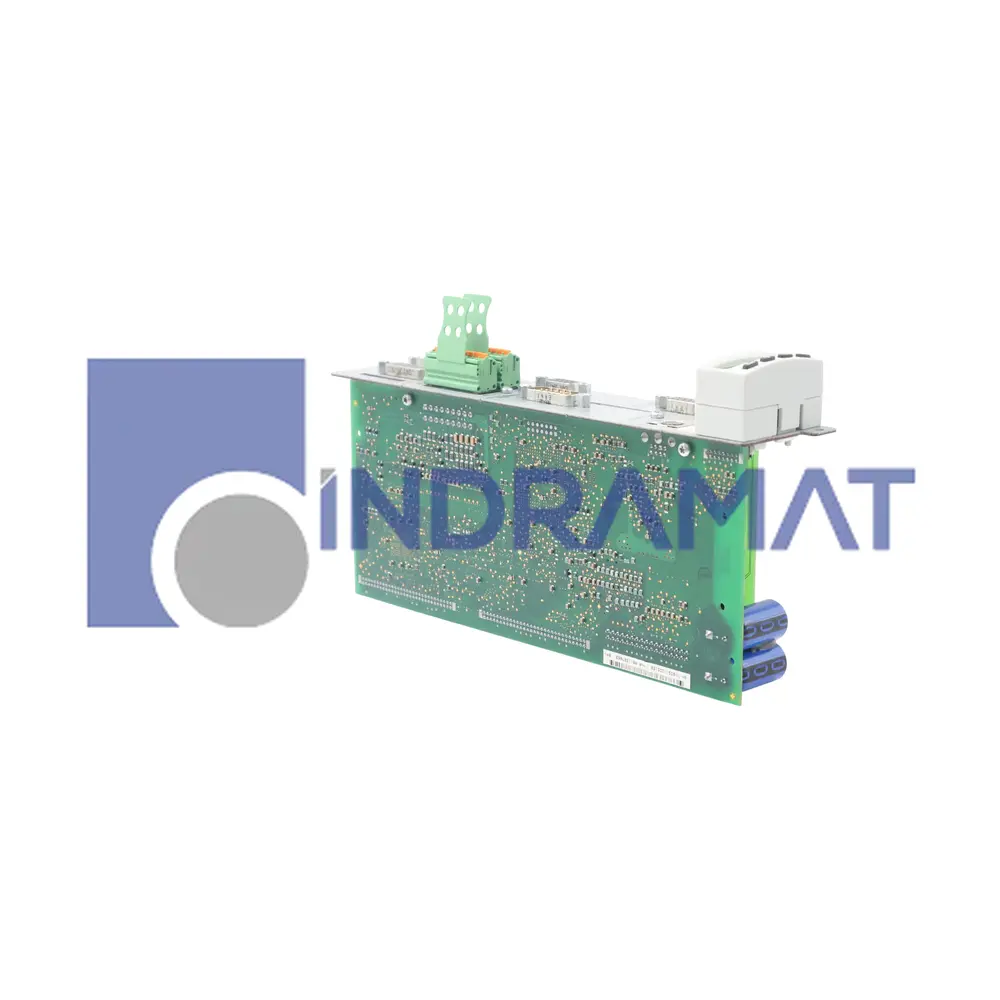

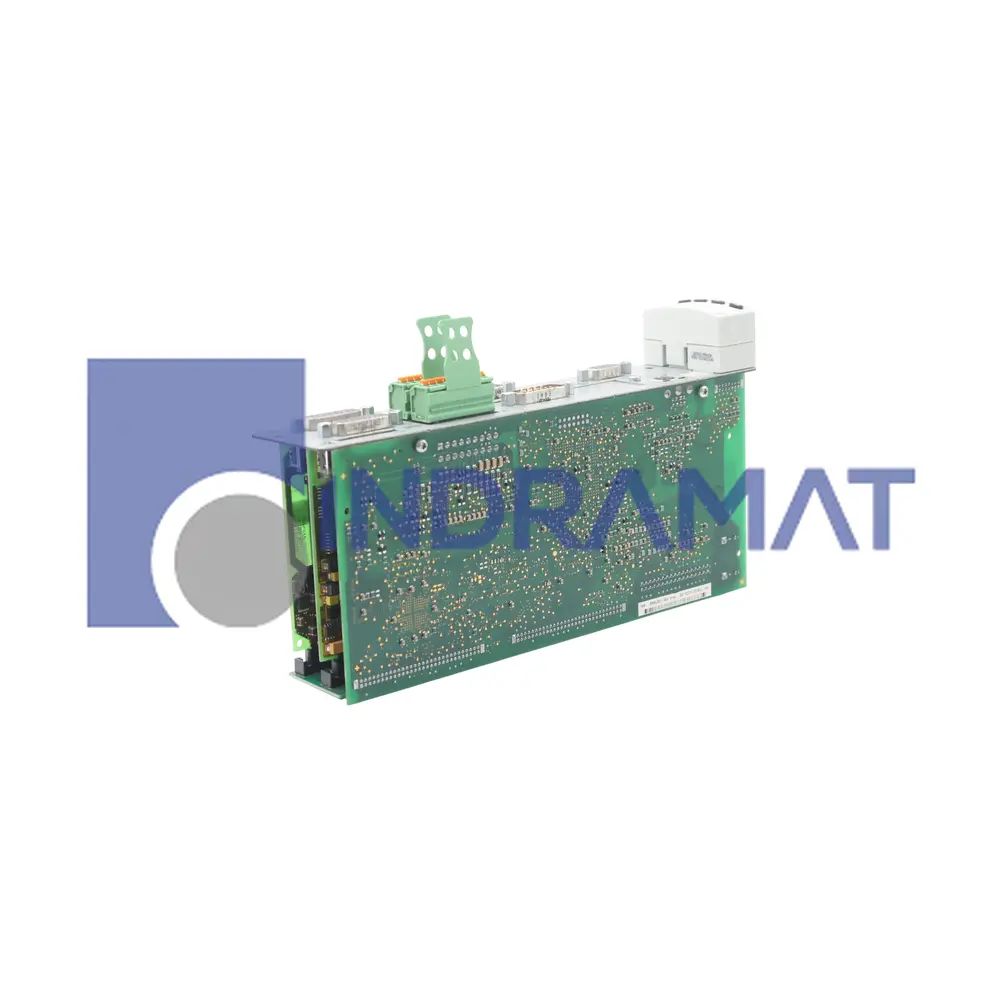

CSH01.1C-PB-ENS-EN1-EN2-L2-S-NN-FW Series Image

Call For Quote

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
[email protected]

The Bosch Rexroth MPN R911331449 (CSH01.1C-PB-ENS-EN1-EN2-L2-S-NN-FW) is a control section from the IndraDrive series, designed for integration in drive controller systems. It features a Profibus master communication interface, two analog outputs, and supports IndraDyn, Hiperface, 1 Vpp, and TTL as primary encoder options. The unit includes modules for safe torque off and multiple encoder protocols, including HSF/RSF and EnDat 2.1. Firmware is ordered separately. Vertical mounting is required, and the device configuration and operational parameter monitoring are completed through a standard control panel. Only trained personnel should perform connection to the associated power section.

Technical Specifications

Product Type
Advanced Control Section

Product Line
IndraDrive

Communication Interface
Profibus Master

Number of Slots for Optional Modules
4

Firmware
Needs to be ordered separately

Safety Module
Supports Safe Torque Off

Configurability
yes

Control Panel Compatibility
Standard Control Panel

Connection Mandate
Control Panel must be connected before power on

Operating Parameters Monitoring
via Display on Control Panel

Command Interface
4-button keypad on Control Panel

Mounting Orientation
Vertical

Power Source
Plugged into Dynamic Power Section

Installation Requirements
Must be carried out by specially trained personnel
