R911332648 (CSH01.1C-SE-EN1-NNN-NNN-L2-S-NN-FW)

CSH Advanced Controllers

  Call For Quote
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

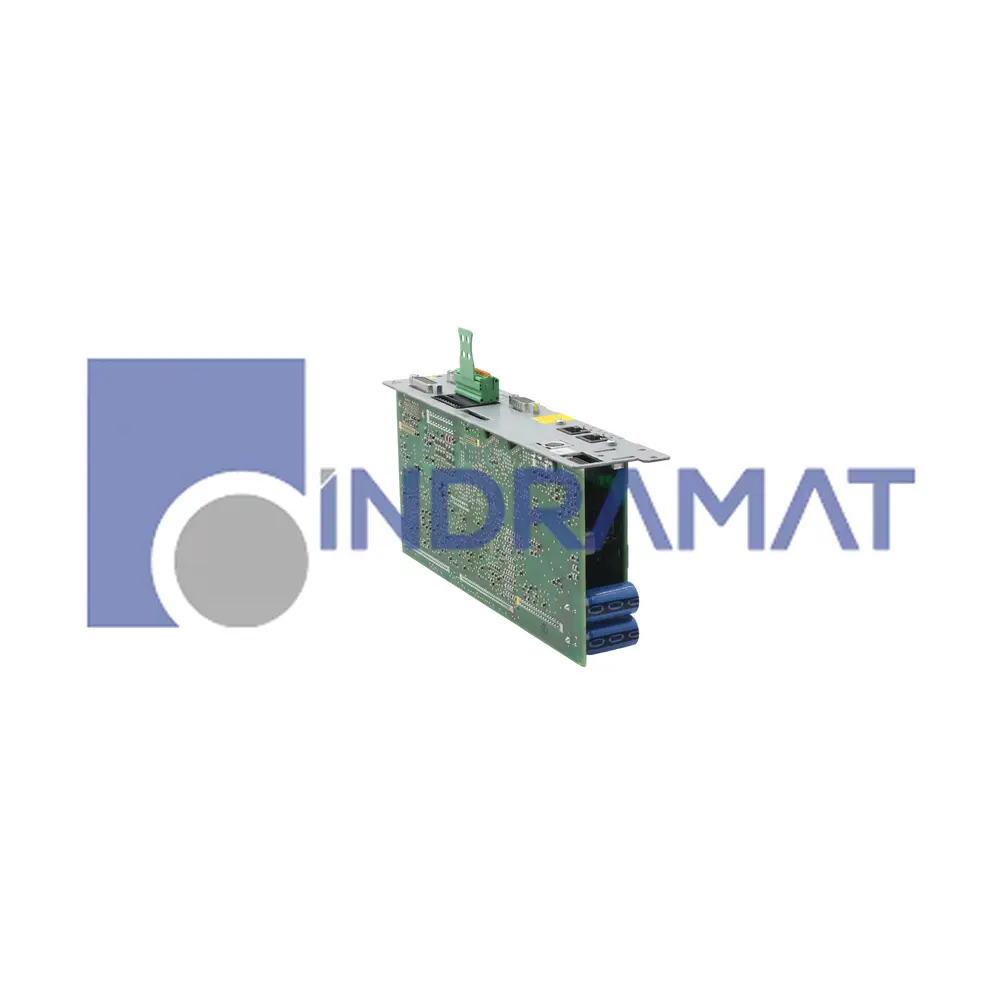

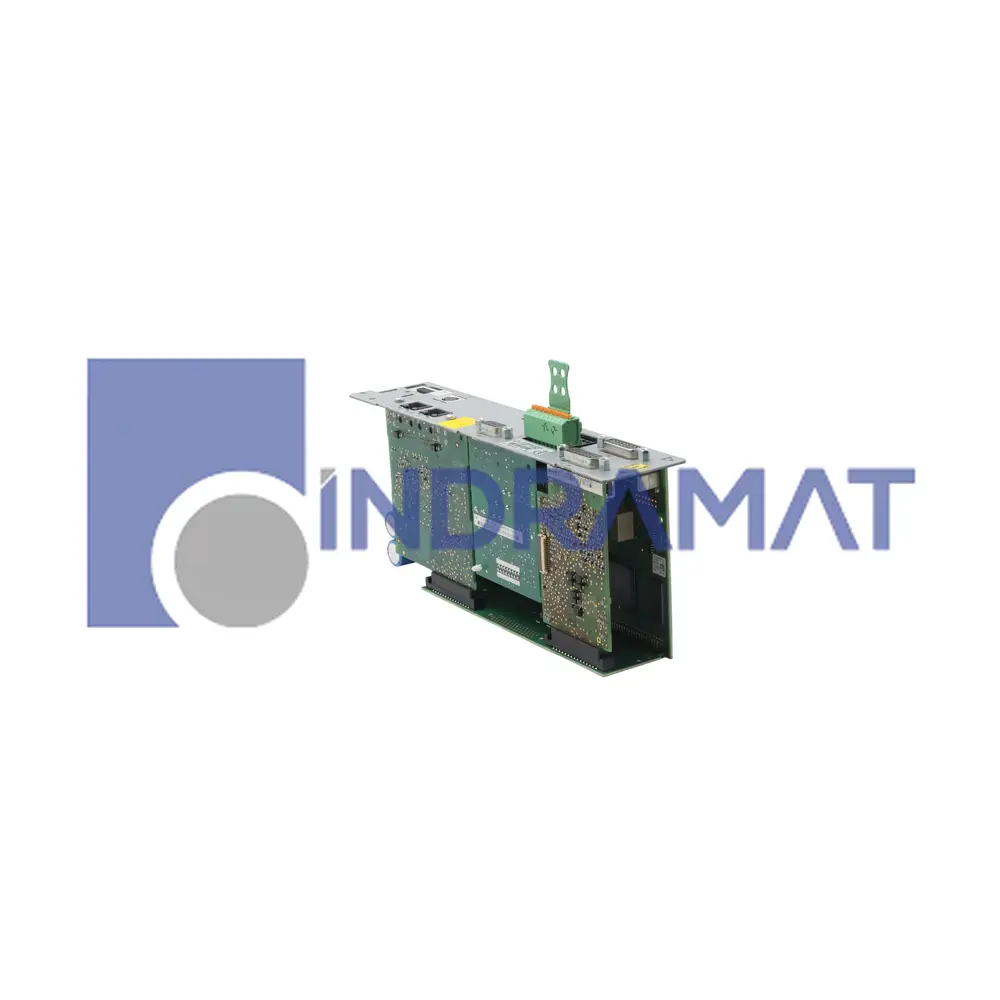

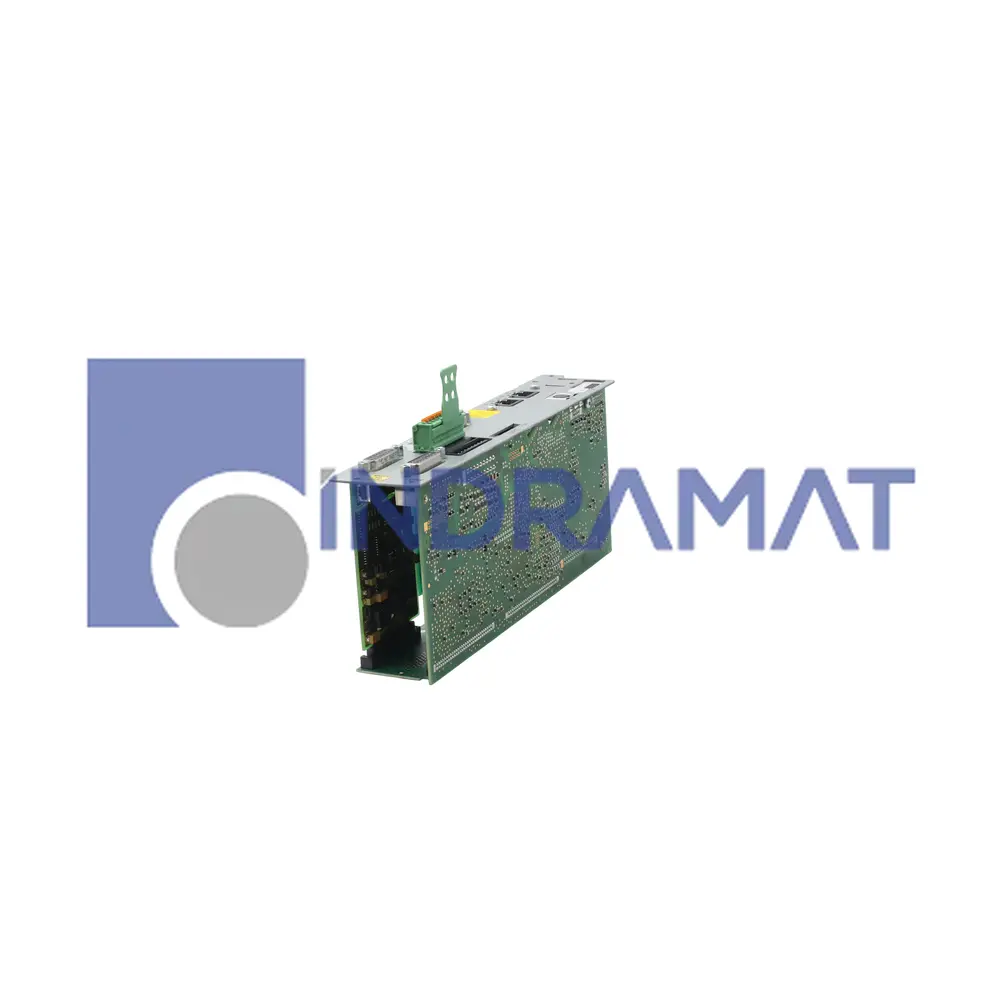

The R911332648 (CSH01.1C-SE-EN1-NNN-NNN-L2-S-NN-FW) is a Rexroth IndraDrive control module designed for precise position and speed control in automation systems. Supporting single-axis operation, it features RS232 and RS485 serial interfaces, 7 to 11 digital inputs, 2 analog outputs, and an adaptable I/O configuration. Master communication is facilitated by the SERCOS interface, while HSF/RSF encoder support allows for flexible feedback integration. The module operates at frequencies from 2 kHz to 16 kHz, enabling rapid response to input changes with minimal cycle times for current, position, and velocity control.

Technical Specifications

Product Type
Industrial Drive Control System

Configuration
Single axis, Configurable

Safety Slots
Various

Interfaces
RS232, RS485

Inputs
7 to 11 digital inputs

I/O
Separate for configuration

Operating Frequencies Compatibility
16 kHz, 12 kHz, 8 kHz, 4 kHz, 2 kHz

Minimum Sercos Time
250 us

Current Control Time
62.5 us to 125 us

Encoders
HSF/RSF for speed control

Functional Modules
Multiple for specific functions
