R911336022 (CSH01.1C-CO-EN1-ENS-NNN-S2-S-NN-FW)

CSH Advanced Controllers

CSH01.1C-CO-EN1-ENS-NNN-S2-S-NN-FW Series Image

Call For Quote

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
[email protected]

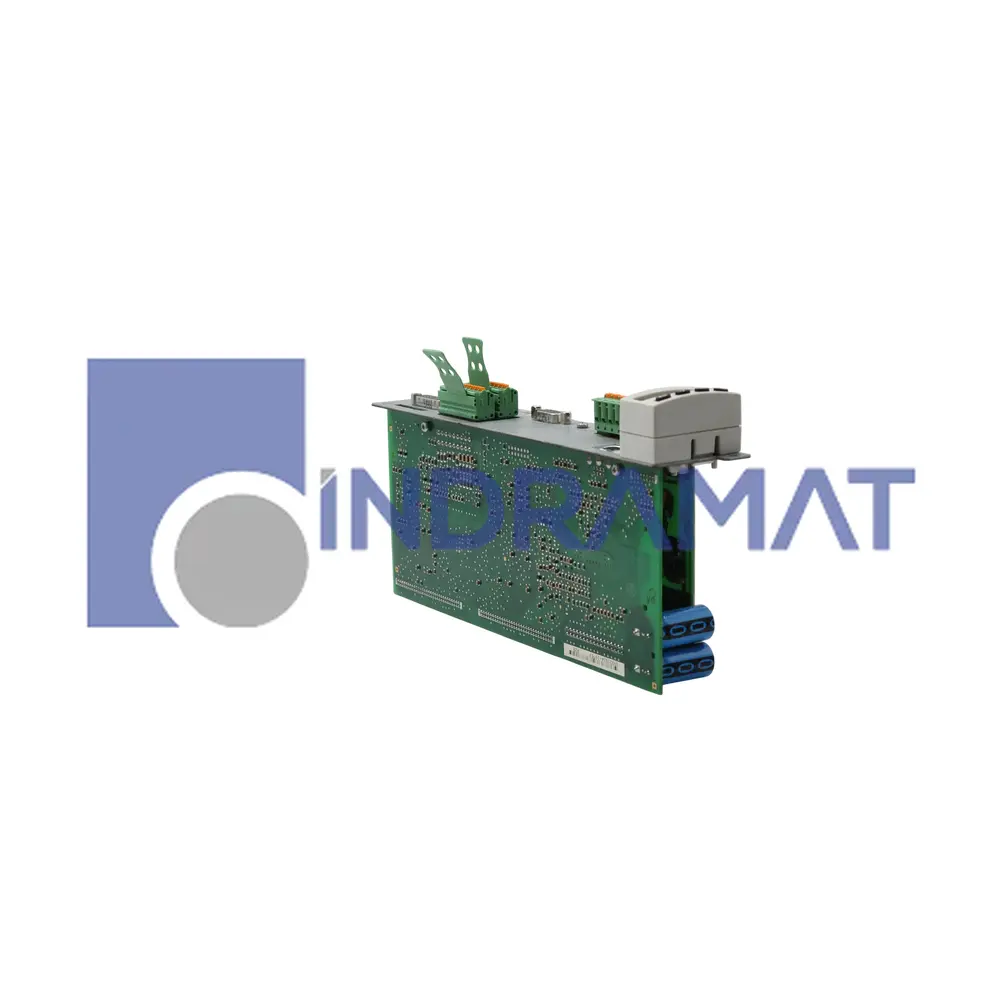

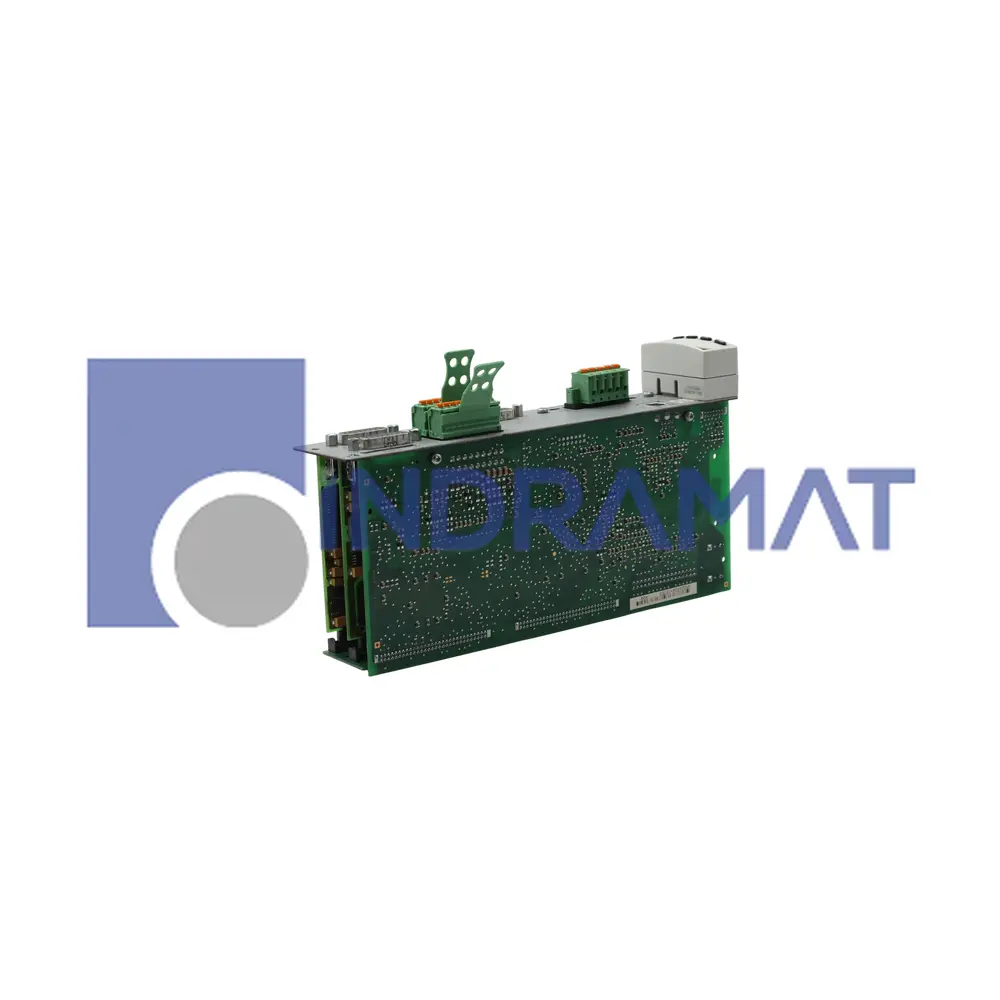

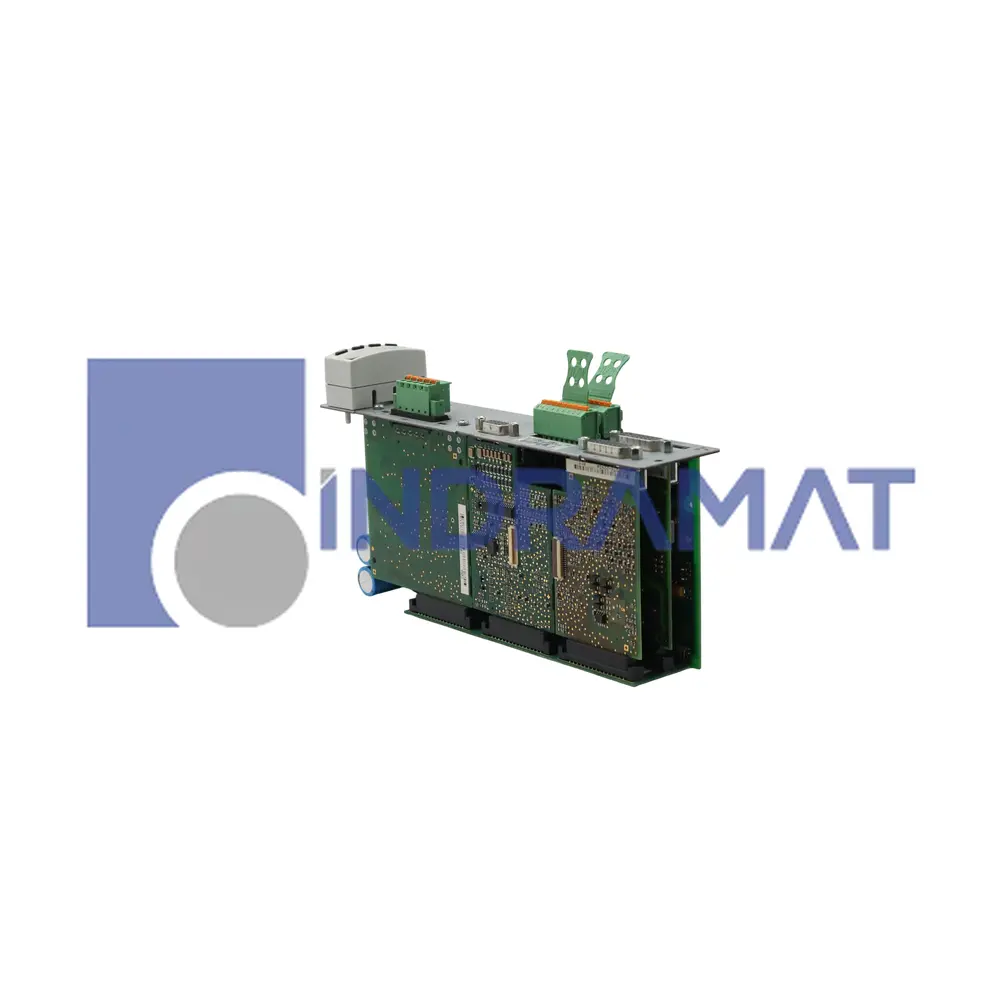

The R911336022 (CSH01.1C-CO-EN1-ENS-NNN-S2-S-NN-FW) is a single-axis control unit from the Rexroth Indramat CSH01.1C series engineered for precision control and monitoring of electric motors. It features a CANopen/DeviceNet master communication interface, RS232 serial interface, one analog input, two analog outputs, and supports two encoder interfaces: HSF/RSF and IndraDyn/Hiperface/1 Vpp/TTL. Current control is achieved with a cycle time ranging from 62.5 to 125 microseconds. The device uses 7.5W of power and supports encoders with power ratings up to 6W each. Operation and configuration are managed through a control panel with four keys. Suitable applications include machine tools, packaging, food processing, and paper printing or converting machinery. Safe Motion (SIL2/cat. 3 PL d) functionality and separately acquired firmware are required for operation.

Technical Specifications

Design Type
Type 1

Control Type
Single Axis

Master Communication Interface
DeviceNet/CANopen

Serial Interface
RS232

Current Control Cycle Time
62.5 - 125 microseconds

Analog Outputs
2

Analog Inputs
1

Safety Option
Safe Motion (SIL2/ cat. 3 PL d)

Control Panel Type
Standard

Encoders
HSF/RSF and IndraDyn/Hiperface/1 Vpp/TTL

Encoder Connection Ports
X4 and X8

Encoder Power Consumption
6 Watts each

Control Panel Features
Single Line Display, Four Control Keys

Power Consumption
7.5 watts

Max. Pulse Width
100 ms

Inrush Current
4A.
