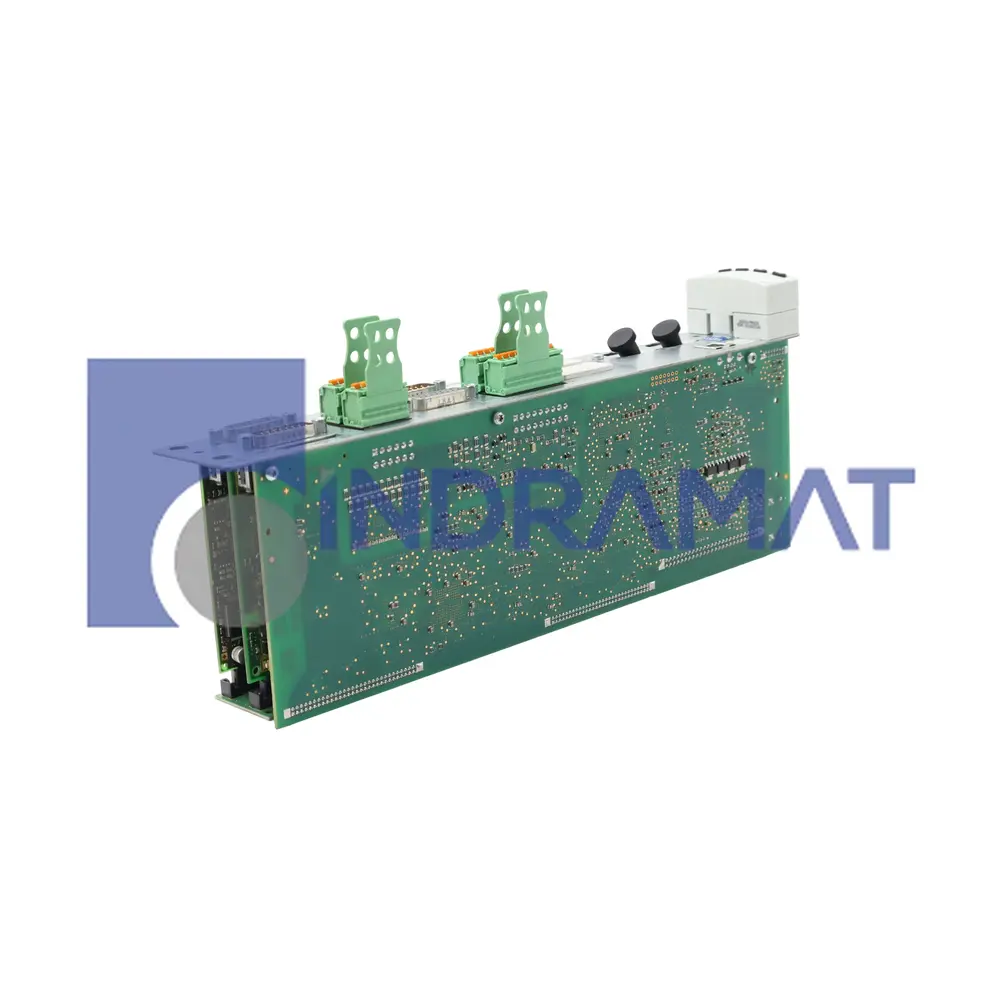

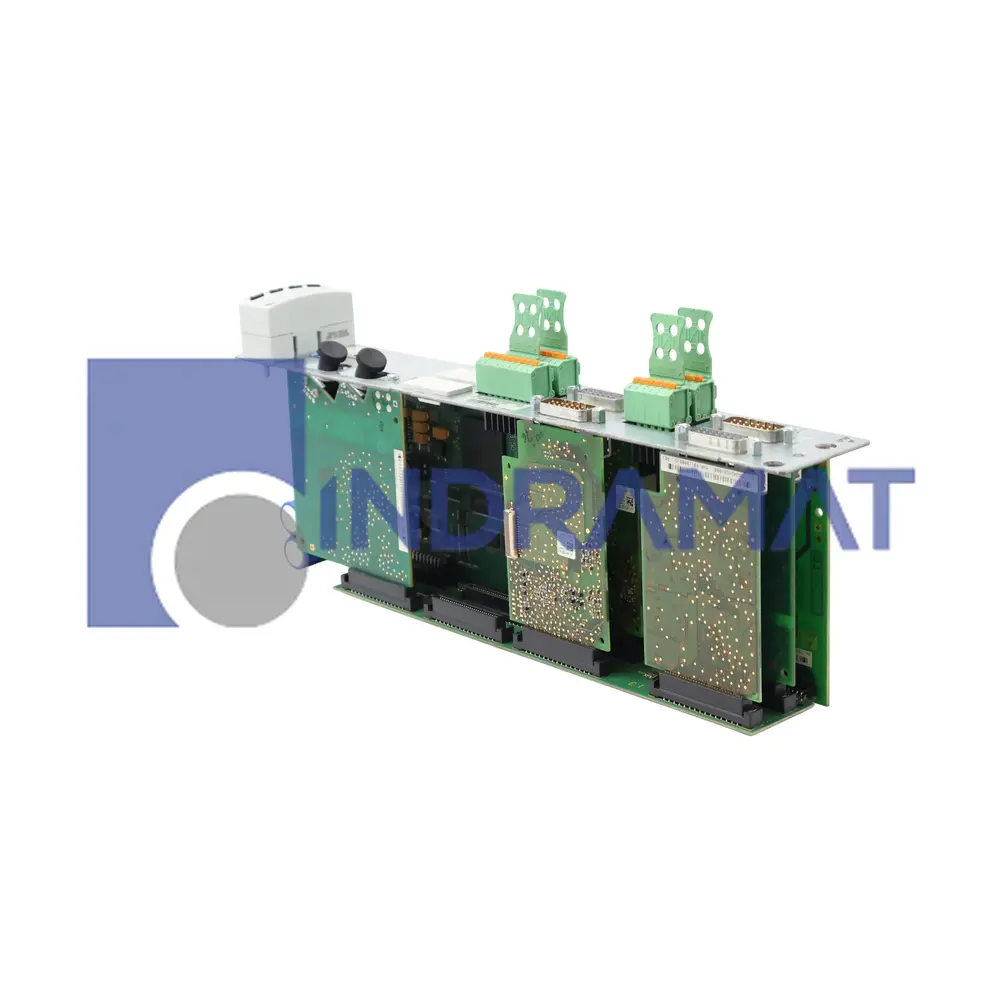

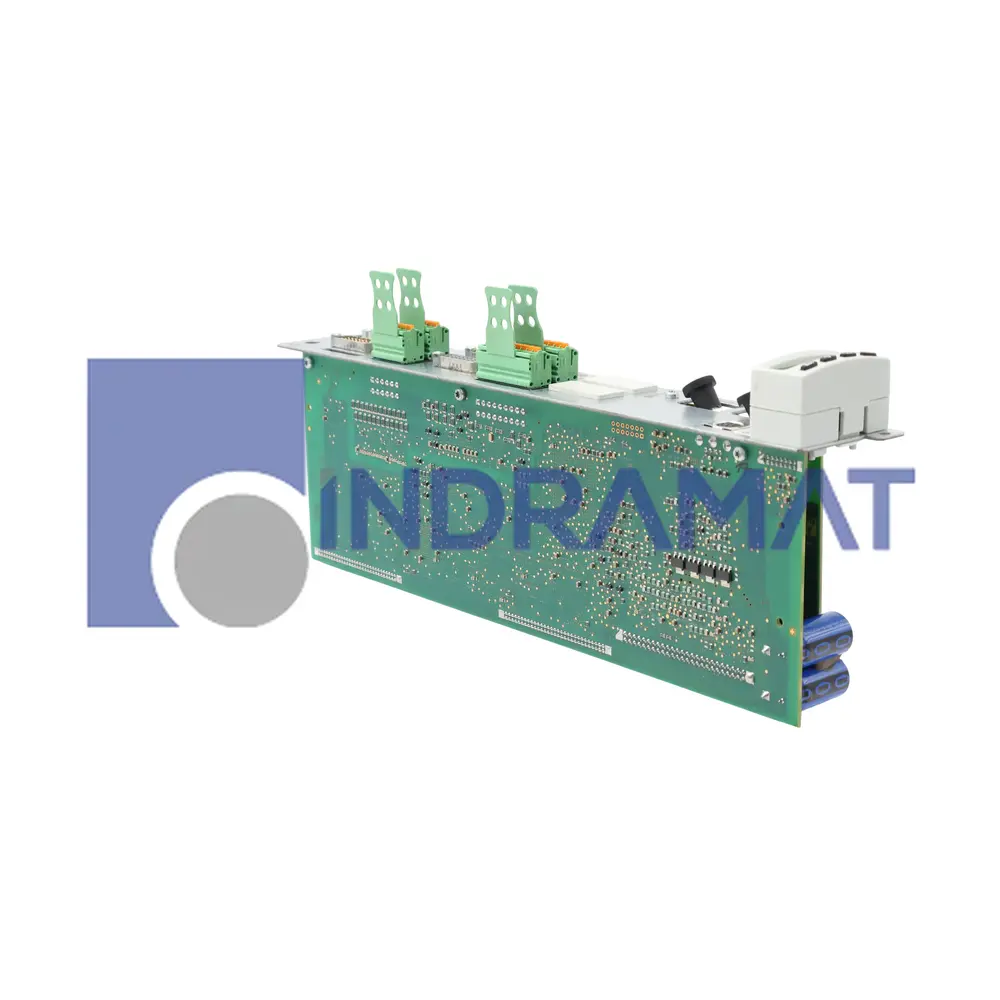

The Bosch Rexroth Indramat CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW control unit from the CDB Control Units series provides a high-performance drive control solution engineered by Bosch Rexroth Indramat. It features a native Master Communication: SERCOS Interface over fiber-optic links and supports both Option 1: Encoder EnDat 2.1/1Vpp/TLL and an integrated Option 3: Encoder Emulator for flexible feedback configurations. This configurable version offers a BASIC UNIVERSAL range design optimized for double-axis operations and is directly slotted into compatible power sections. With firmware available as a separate sub-item, it ensures future-proof scalability and tailored feature sets.
The unit incorporates an encoder evaluation interface supporting a supply voltage of 5 V for both sin-cos encoders (1 Vpp) and 5 V-TTL square-wave encoders, while its encoder emulation interface provides absolute and incremental signal generation without external power. Pulse switching frequencies of 2 kHz, 4 kHz, and 8 kHz adapt to diverse motor dynamics, and the dual two digital inputs can be reconfigured as a single analog voltage input for enhanced I/O flexibility. An analog I/O extension option expands channel count and resolution, and commissioning is streamlined via a standard control panel that grants access to error memory, drive addressing, and parameter sets.
Engineered to meet IEC 61800-3 Category C3 immunity and emissions, this control section delivers robust operation in industrial environments. Its modular design and plug-in architecture ensure seamless integration into existing Bosch Rexroth drive systems, minimizing cabinet footprint and wiring complexity. With global shipping and a one-year warranty backed by Wake Industrial, the CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW offers dependable performance for packaging machines, printing lines, mounting systems, and machine tools.
Master Communication
SERCOS Interface
Option 1
Encoder EnDat 2.1/1Vpp/TLL
Option 2
Encoder EnDat 2.1/1Vpp/TLL
Option 3
Encoder Emulator
