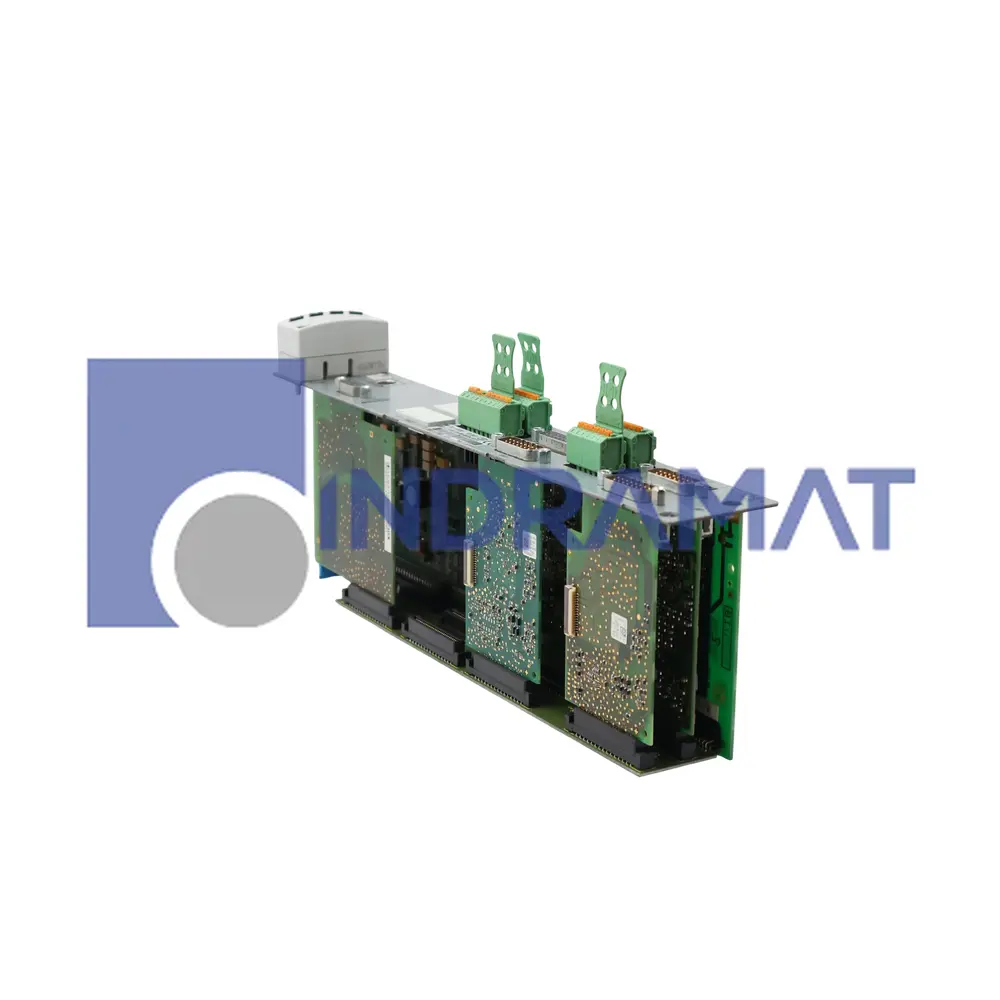

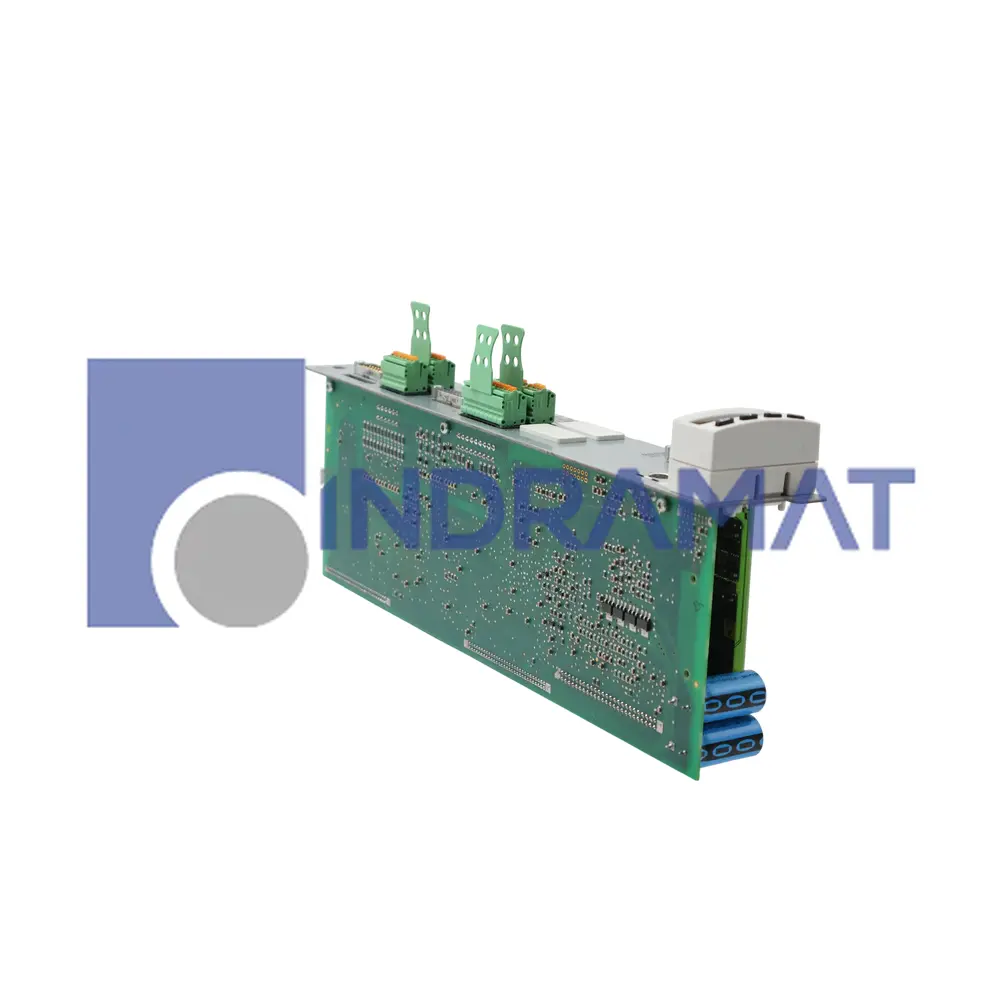

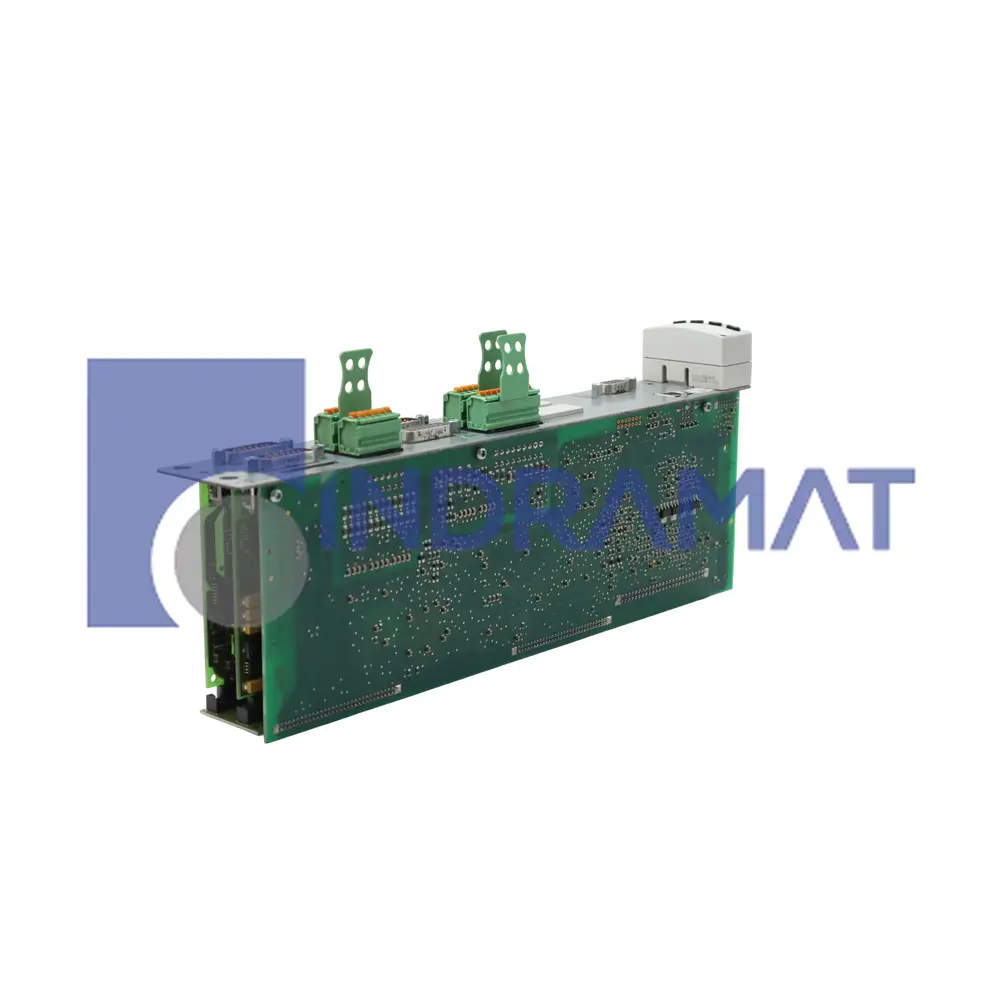

The Bosch Rexroth R911309538 (CDB01.1C-PB-EN1-EN1-EN2-EN2-NN-S-NN-FW) double-axis control section is engineered for integration in drive controllers, supporting precise monitoring and regulation of motor operations. This unit incorporates four configurable option slots for modules, including support for encoders such as HSF/RSF and EnDat 2.1/1Vpp/TLL. PROFIBUS master communication is implemented via a 9-pin D-Sub (X30) interface with indicator LED. An 8-pole RS232 interface is provided for local programming, diagnostics, and parameterization. The device is incompatible with the VCP01.2 control panel. An HSF/RSF encoder module can be connected to the X4.1 port, with supply voltage requirements of 8V DC or 12V AC peak-to-peak. The unit is designed for industrial settings, must be properly grounded before activation, and functions at switching frequencies of 2 kHz, 4 kHz, or 8 kHz. Surface temperatures may become elevated during operation.

Technical Specifications

Product Group
CDB

Control Type
Double-Axis Control Section

Slots for Additional Modules
4

Communication Module
PROFIBUS

Serial Interface
RS 232

Encoder
HSF/RSF

Encoder Supply Voltage
8VDC or 12VAC peak-to-peak

Operating Environment
Industrial

Switching Frequencies
2kHz, 4kHz, 8kHz

Shipping Available
Worldwide

Plug-in Actions
Limited number

Connection
9-pin D-Sub female X30 connector

Operation
Not intended for underwater use
