R911329997 (CDB01.1C-SE-EN2-EN2-EN2-EN2-L2-S-NN-FW)

CDB Control Units

CDB01.1C-SE-EN2-EN2-EN2-EN2-L2-S-NN-FW Series Image

Call For Quote

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
[email protected]

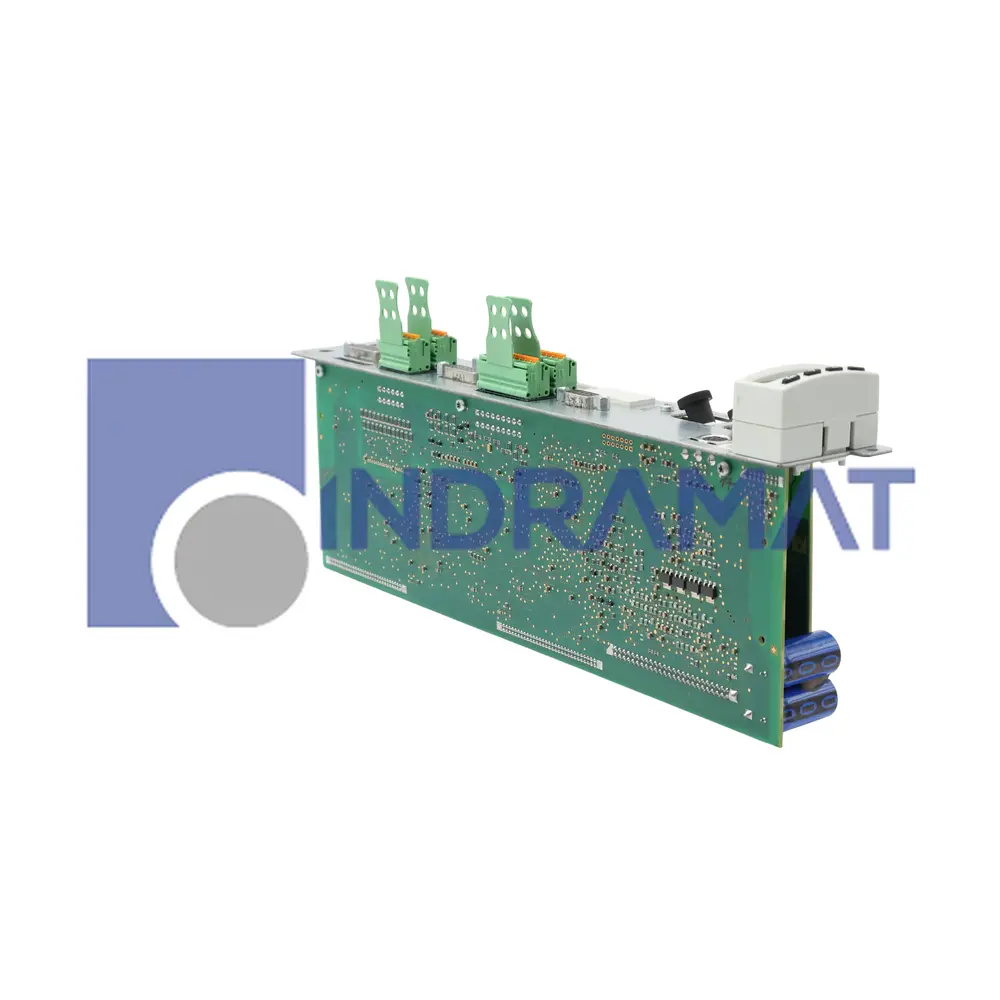

The R911329997 (CDB01.1C-SE-EN2-EN2-EN2-EN2-L2-S-NN-FW) is a Bosch Rexroth CDB01.1 control section engineered for use in IndraDrive drive controllers, supporting both single and multi-axis applications. This double-axis configurable universal control section utilizes SERCOS as the primary communication interface. It features a standard control panel with a single-line display and four keys for configuration and diagnostics. The module is configurable with up to four encoder interfaces, each supporting EnDat 2.1, 1Vpp, and TTL signals. The unit integrates safety functionality via the Safe Torque Off (STO) module to prevent unintended motor start. Required fiber optic cables, firmware, and a 24V power supply are not included and must be sourced separately. The model enables the connection of devices with basic insulation and provides protection against electric shock as part of its core design.

Technical Specifications

Function
Drive and control tasks

Configurable
Yes

Axes
Double

Communication Interface
SERCOS

Control Panel
Standard with Single-line display, Four keys

Optional Modules
Four encoder evaluation interfaces (5V Supply)

Safety Technology Module
Safe Torque Off

Firmware
Purchased Separately

Power Supply
24V terminal connectors at the power section

Connection of Devices
Basic insulation

Global Shipping
Availability available
