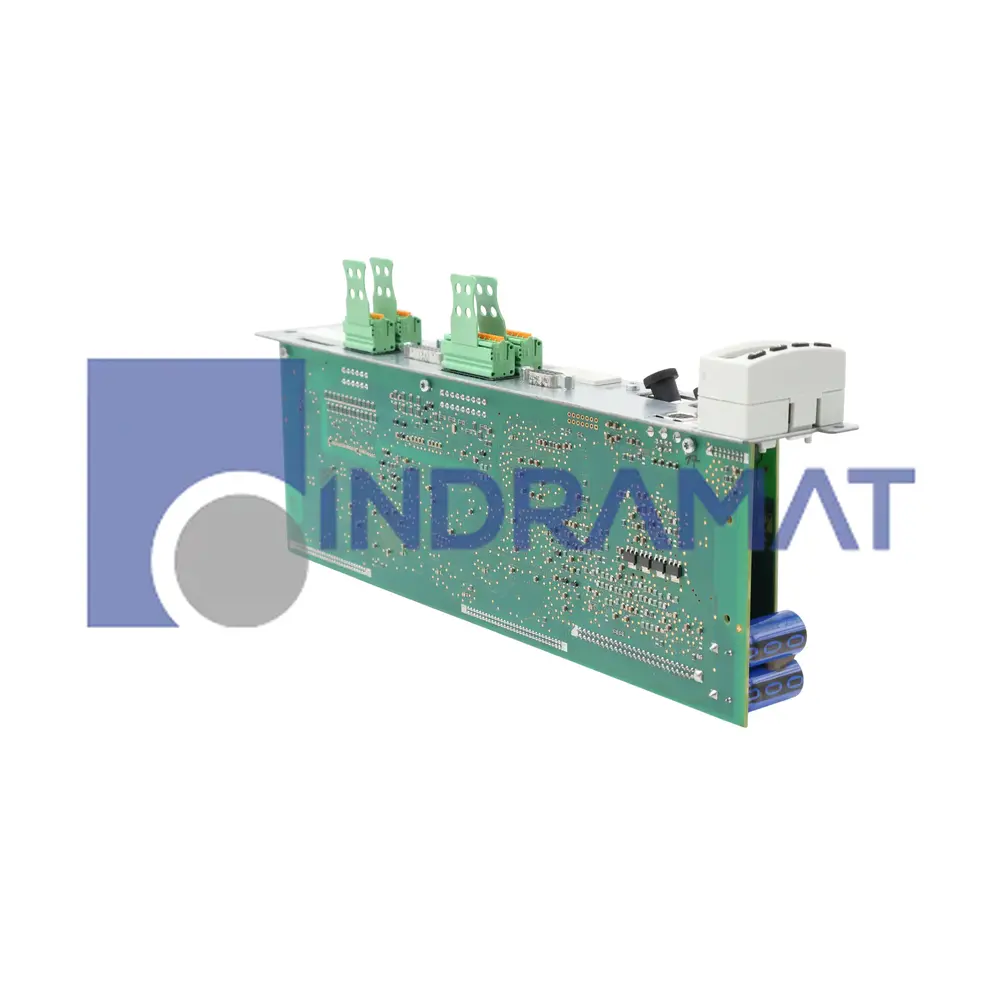

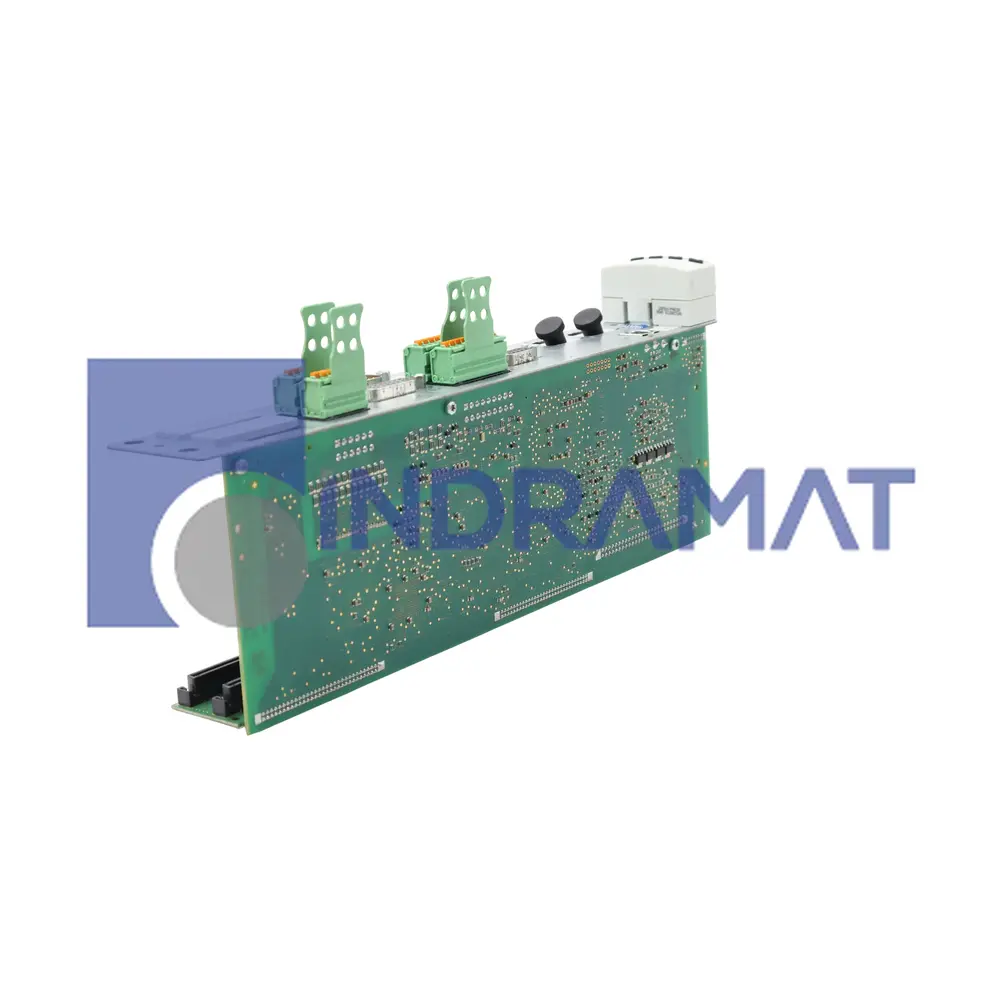

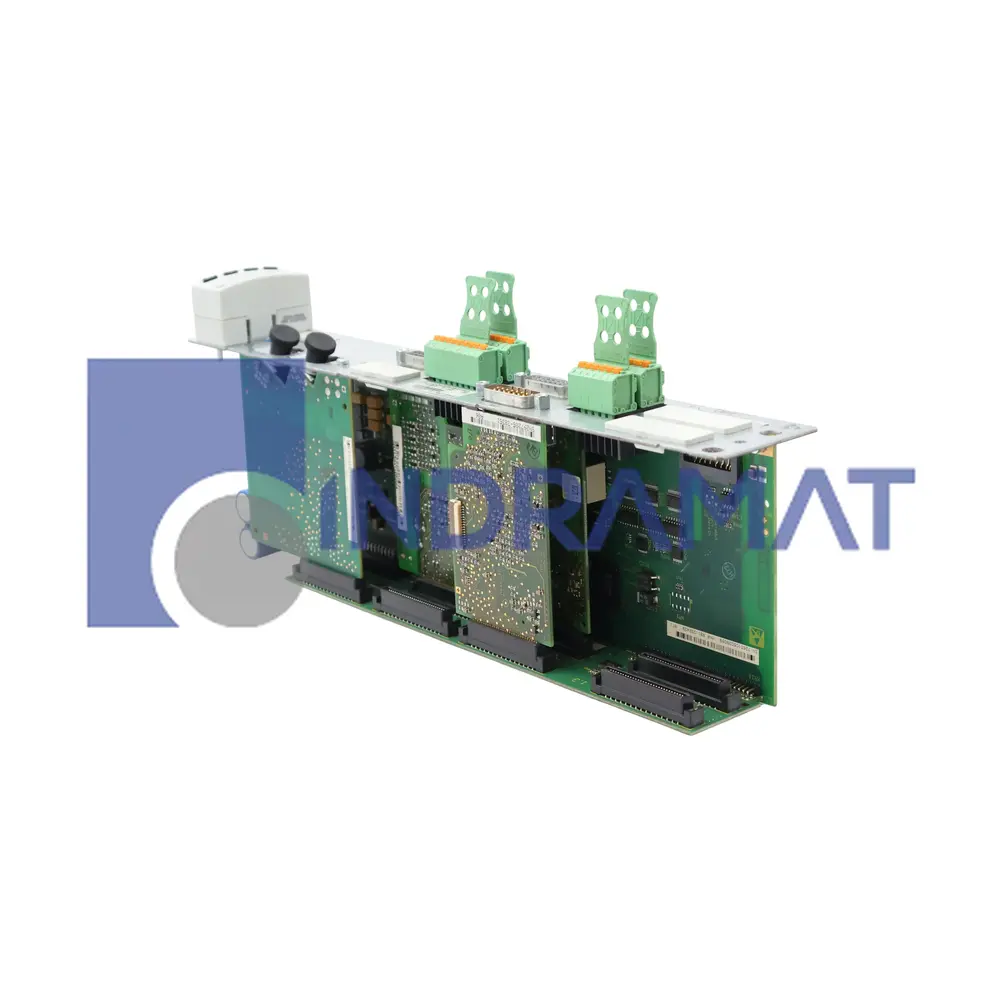

The Bosch Rexroth MPN R911375333 (CDB01.1C-SE-EN1-EN1-NNN-NNN-L2-S-NN-FW) is a dual-axis control unit designed for integration with various motor types, including synchronous linear, synchronous torque, asynchronous, and frameless spindle motors. It incorporates Safe Torque OFF (STO) functionality and utilizes a SERCOS bus interface for master communication. The unit measures 322.6 x 103 x 49.5 mm and is equipped with a standard four-button control panel and a single-line display for status and error reporting. The device specifies encoder options HSF/RSF on both channels, and requires vertical installation using approved connectors. Probe inputs must use bounce-free electronic switches, and digital outputs should not be connected to low resistance sources. Firmware is supplied separately.

Technical Specifications

Contact
One normally open relay contact

Pickup Delay
10ms

Dropout Delay
10ms

Axes
Dual-axis

Placement Orientation
Vertical

Interface
SERCOS

Functionality
Safe Torque OFF

Analog Input
Parallel to sixth and seventh digital inputs

Device Size
322.6 x 103 x 49.5mm

Digital Outputs
Not to be operated at low resistance sources

Probe Inputs
Function like rapid inputs

Firmware
Procured as a separate subitem

Analog Inputs
Portrays a shield connection

Support Period
One year

Delivery
Global logistics team.
