R911285928 (DKR02.1-W200N-BE29-02-FW)

DKR Drive Controllers

In Stock, Ships Today

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Current response time:

4 Minutes 14 Seconds

Phone:
1-888-551-3082

Email:
[email protected]

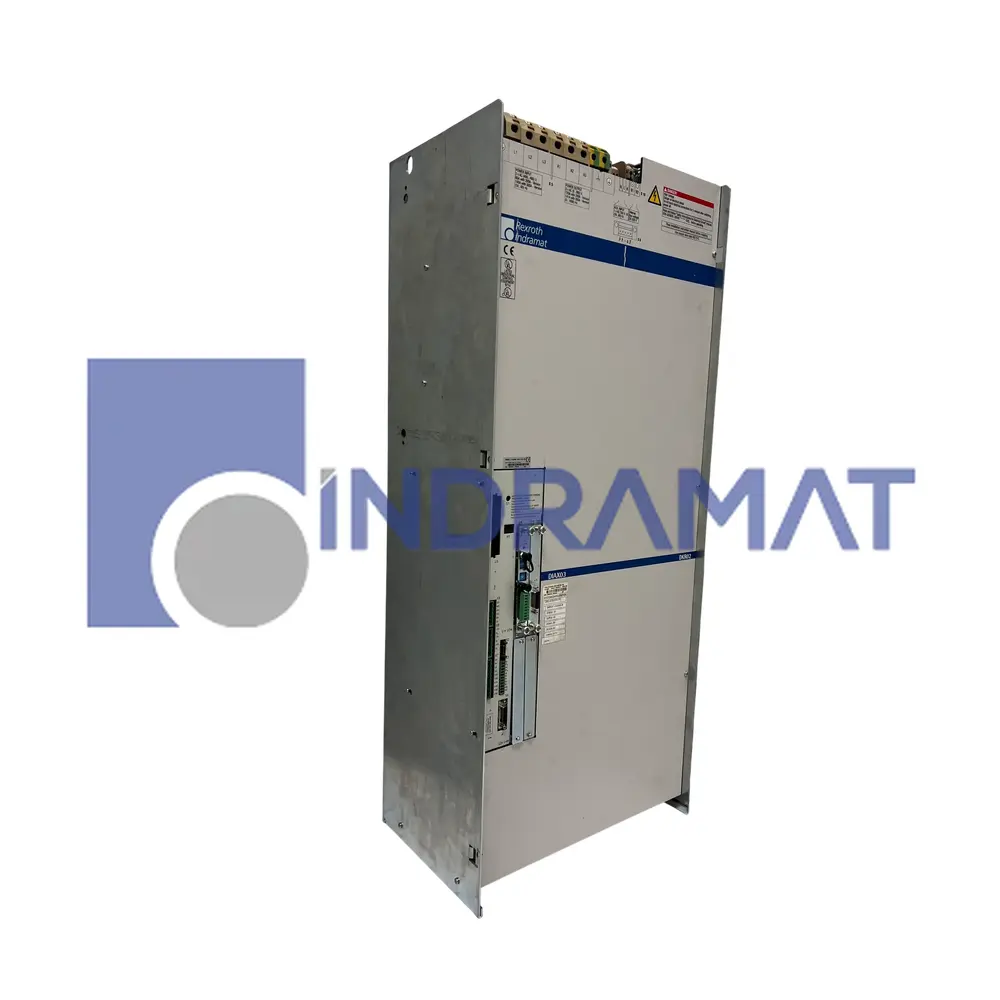

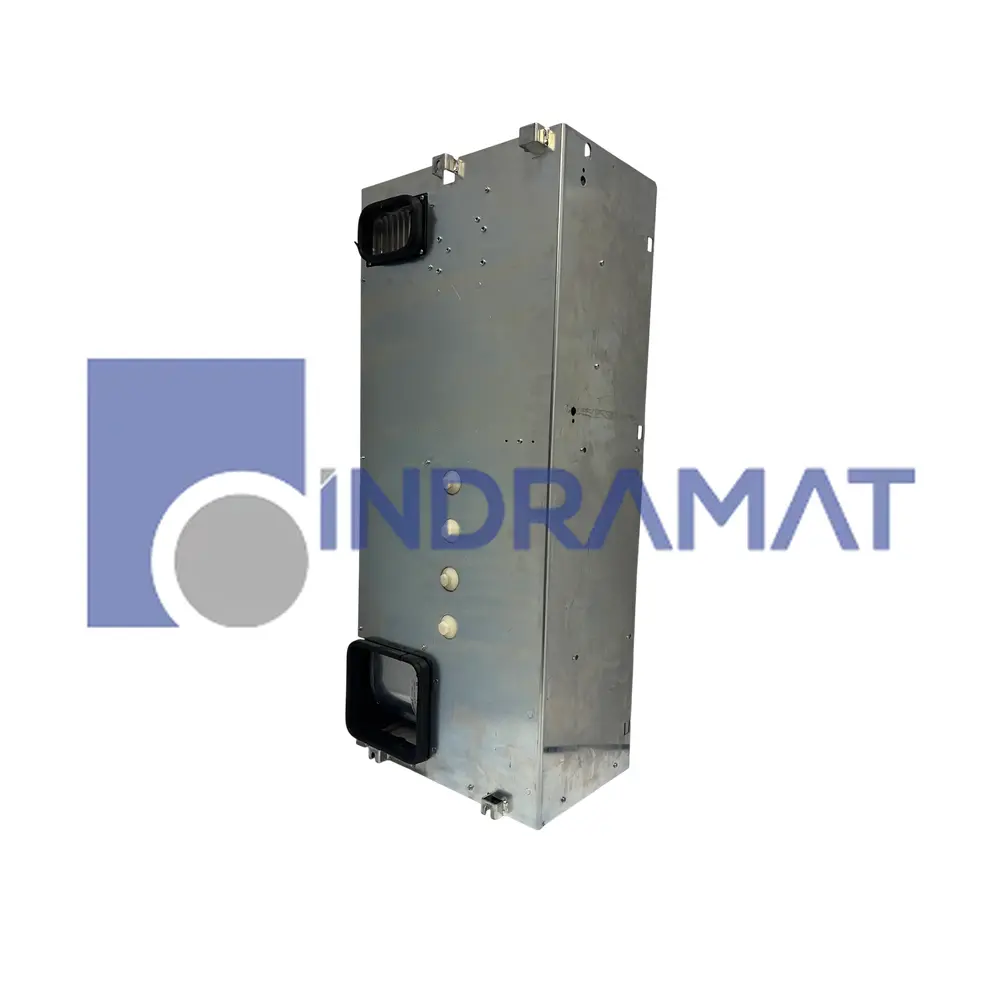

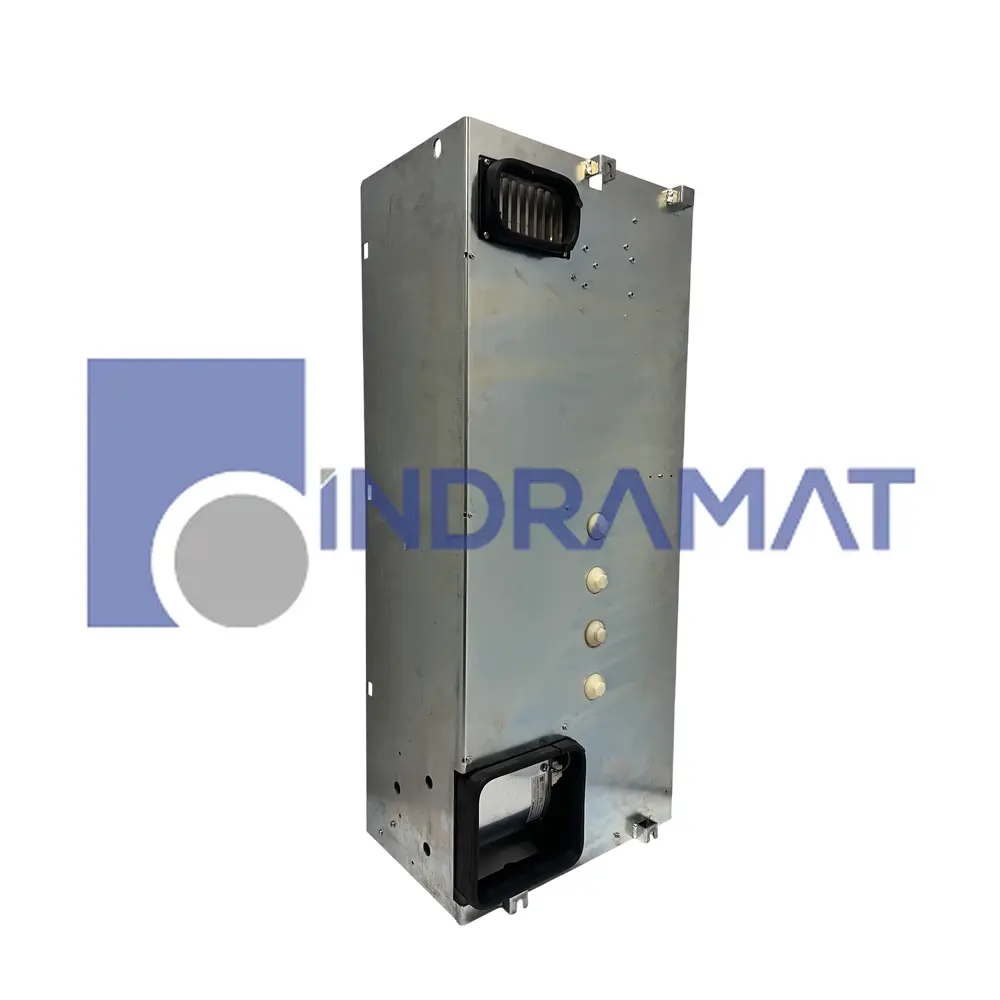

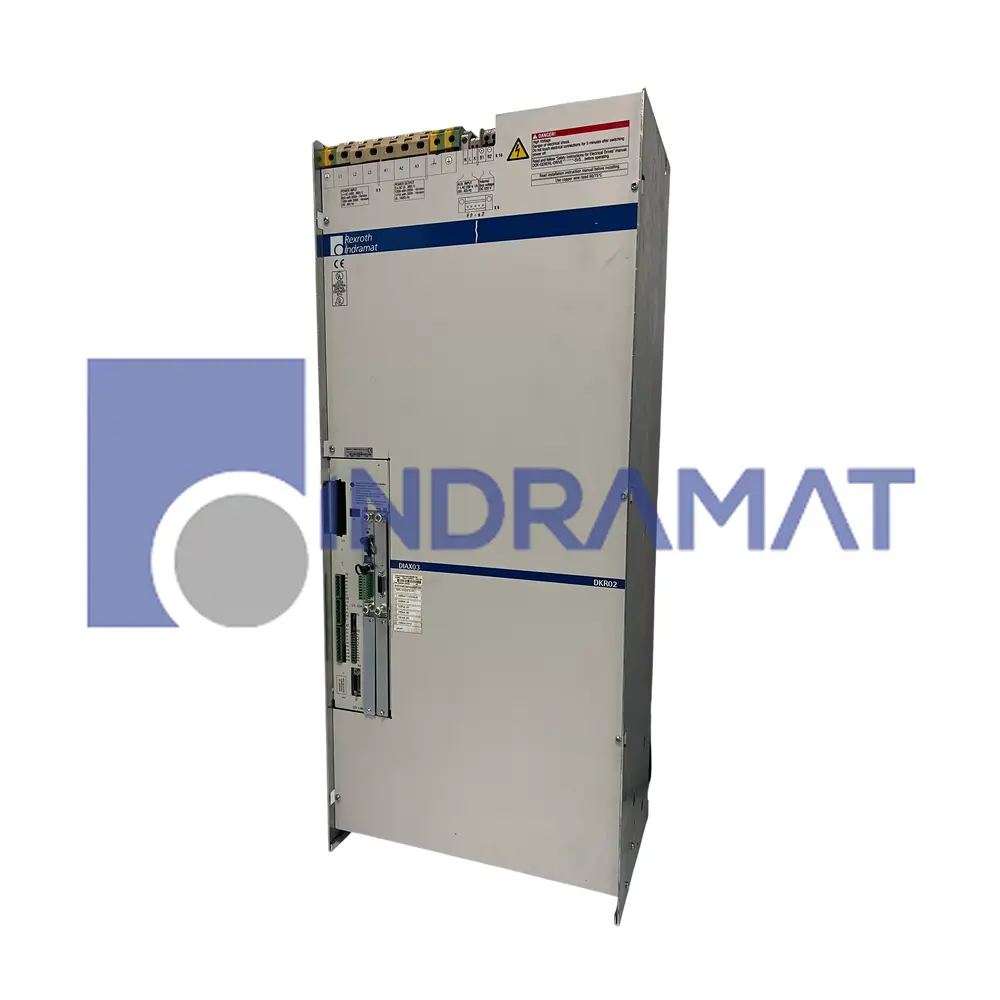

The R911285928 (DKR02.1-W200N-BE29-02-FW) is a drive controller engineered for precise digital control of AC main spindle motors, frameless motors, and linear motors. It utilises a SERCOS command interface and supports both servo and resolver feedback for detailed positional accuracy. Designed for a 3-phase AC input at 230V and 50–60Hz, this model manages heat dissipation up to 1600W and provides continuous output power of 47kW or 37kW, dependent upon switching frequency. Notable features include a built-in blower for cooling, S1 reset key, H1 status display, and ESM 02.3 firmware. The configuration is without a brake chopper, employing a rigid DC bus. Rated current is 200A, and the protection standard is IP 20. Suitable operation is specified up to +45°C, and the device weighs approximately 104kg.

Technical Specifications

Product Type
Drive Controller

Interface
SERCOS

Feedback Type
Digital Servo and Resolver

Voltage Requirement
AC 230 V

Voltage Frequency
50 – 60 Hz

Heat Dissipation
1600 W

Operating Power
120/95 W

Switching Frequency
4 kHz/8 kHz

Continuous Power
47 kW (4 kHz), 37 kW (8 kHz)

Cooling Method
Blower Unit (1000 W heat dissipation)

Current Rating
200 A

Diagnostic Features
S1 Reset Key, H1 Status Display

Firmware Module
ESM 02.3

Weight
Approximately 104 kg

Protection Standard
IP 20

Max Operating Temperature
+45 degree Celsius

Common Misspellings

1620 Old Apex Road
Cary, NC 27513, USA

Toll Free: 1-888-551-3082
International: 1-919-443-0207

Fax: 1-919-867-6204

[email protected]

Shipping & Payment Options

Warranty

Indramat USA 1 Year Warranty

Repair

We offer a repair service for the DKR02.1-W200N-BE29-02-FW.

Exchange

Want to sell your DKR02.1-W200N-BE29-02-FW?
