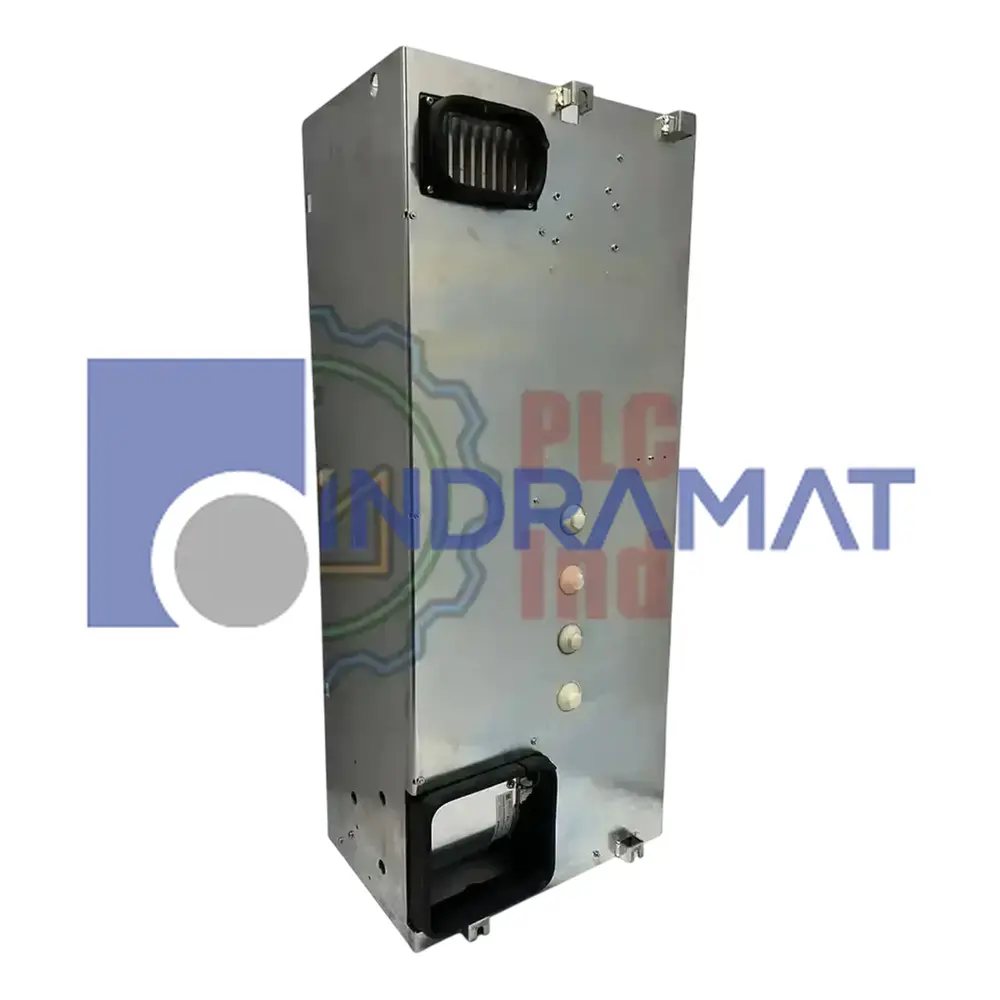

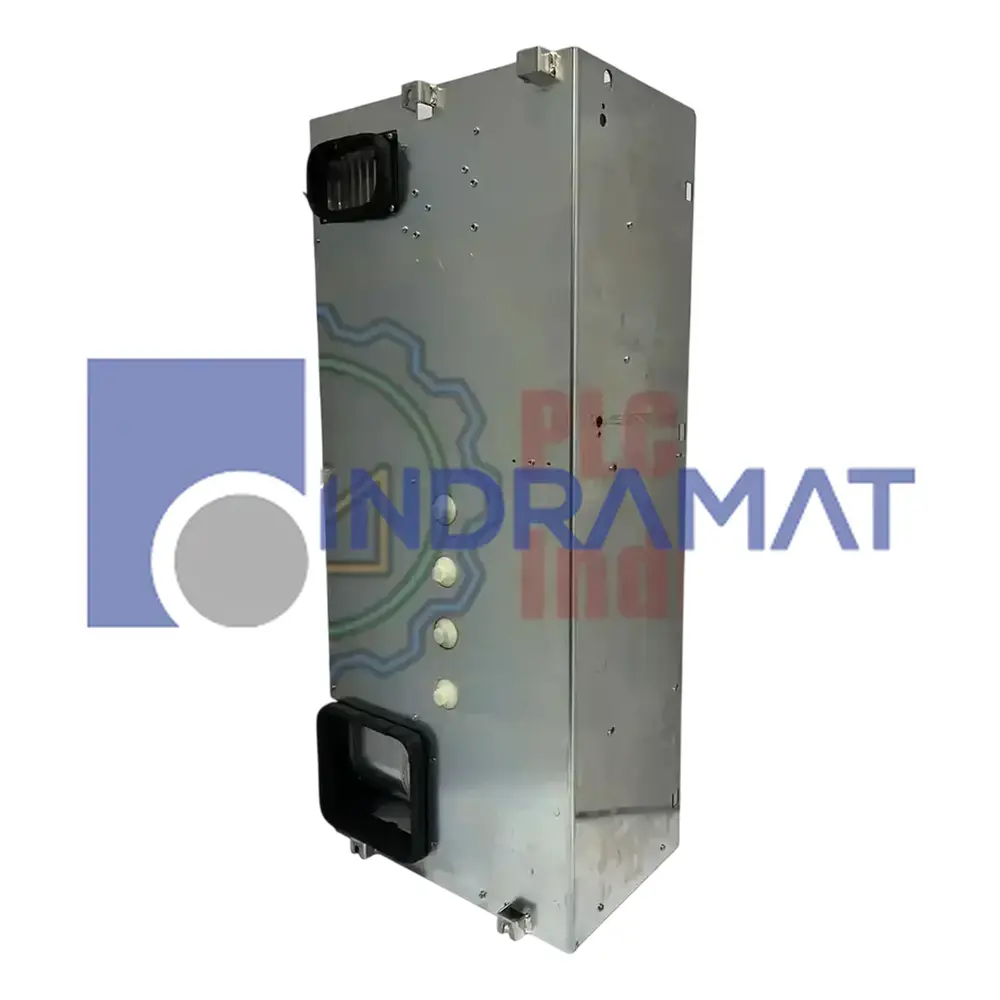

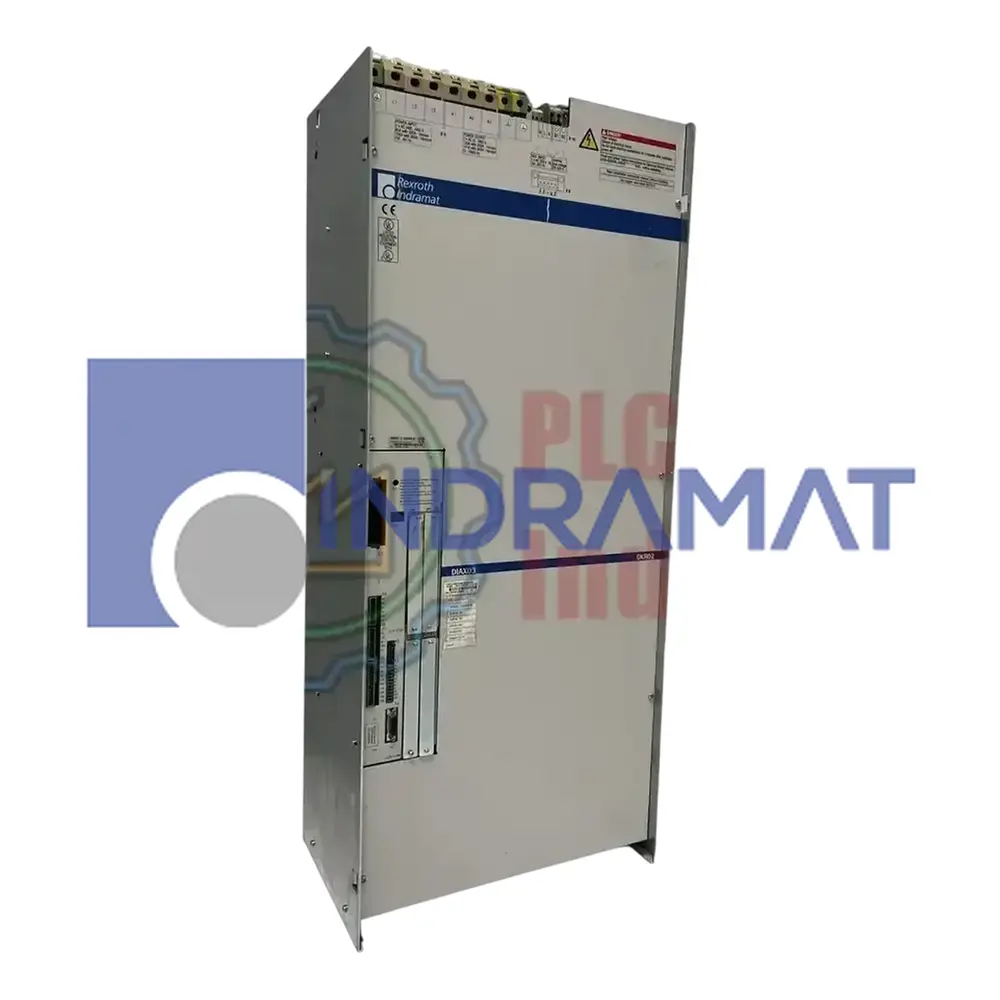

The drive controller R911298312 (DKR03.1-W100N-BT49-01-FW) is designed for integration into industrial automation systems, utilizing a 3-phase AC supply at 400-480 V and 50-60 Hz. It operates with a control voltage of 230 V AC and provides a nominal current of 100 A. The device features five plug-in slots, with firmware required for the fifth slot to be ordered separately. The protection rating is IP20, suitable for environments with protection against solid objects greater than 12.5 mm but not against water ingress. The operating temperature range is +5 to +45°C, with derating to 80% at +55°C, and installation is possible up to 1000 m altitude. The controller supports both digital servo and resolver feedback, employs a SERCOS interface for command input, and uses air cooling with a built-in blower. Two output configurations are available: at 4 kHz, the unit delivers 26 kW at 800 Hz and 71 A; at 8 kHz, it provides 22 kW at 1600 Hz and 60 A. The DC bus is rigid and the unit does not feature a brake chopper (bleeder configuration: no bleeder).

Technical Specifications

Product Type
Drive Controllers, Servo motors, Controls

Power Supply
3-phase AC 400 to 480V

Voltage Frequency
50 to 60 Hz

Protection Class
IP20

Operating Temperature
+5 to +45 ͦC

Max Temperature
+55 ͦC with derating of nominal data to 80%

Installation Altitude
up to 1000 meters above sea level

Max Frequency 4kHz Drive
800 Hz

Continuous Power 4kHz
26 kW at 71 A

Max Frequency 8kHz Drive
1600 Hz

Continuous Power 8kHz
22 kW at 60 A

Regenerated Power
22 kW with -5% tolerance

Control Voltage
AC 230V

Control Voltage Power
200 VA

Heat Dissipation
900 W (600 W in the air channel)

Basic Part
DKR03.1-W100-B

Plug-in Slots
5 (U1 to U5)

Command Communication
SERCOS interface

Bleeder
Not Included

Blower
Included

Frequently Asked Questions

How does Bosch Rexroth Indramat DKR03.1-W100N-BT49-01-FW motor drive integrate with turbine motors in power generation?

It ensures precise torque regulation, maintaining turbine synchronization and resolver-based feedback, crucial for stable output in energy utility motor systems.

Where does Bosch Rexroth Indramat DKR03.1-W100N-BT49-01-FW motor controller store operational parameters?

Parameters are digitally stored in its firmware, allowing reproducible motor control, quick replacement, and stable runtime without external EEPROM dependency.

How does Bosch Rexroth Indramat DKR03.1-W100N-BT49-01-FW motor controller handle load fluctuations?

It stabilizes torque output by adjusting resolver feedback signals and regulating DC bus voltage, ensuring constant motor performance under variable mechanical loads.

Does Bosch Rexroth Indramat DKR03.1-W100N-BT49-01-FW motor drive allow multi-axis operation?

Yes, it can be deployed in multi-axis motor configurations where rigid DC bus synchronizes multiple servo drives, ensuring parallel control fidelity.

What mounting orientation is recommended for Bosch Rexroth Indramat DKR03.1-W100N-BT49-01-FW motor drive?

The controller should be vertically mounted in a control cabinet, allowing optimal blower airflow across motor electronics and power modules.

Common Misspellings

DKR031W100NBT4901FW

DKR03 1 W100N BT49 01 FW

dkr03.1-w100n-bt49-01-fw

DKR3.1-W100N-BT49-01-FW

Internal Product Review

The drive controller with code DKR03.1-W100N-BT49-01-FW comes from Bosch Rexroth Indramat and is found in DKR series. It supports a rated current of 100 A, SERCOS interface, and resolver feedback with CE certification. It suits automation lines, heavy-duty machinery and energy-sector motor applications.
