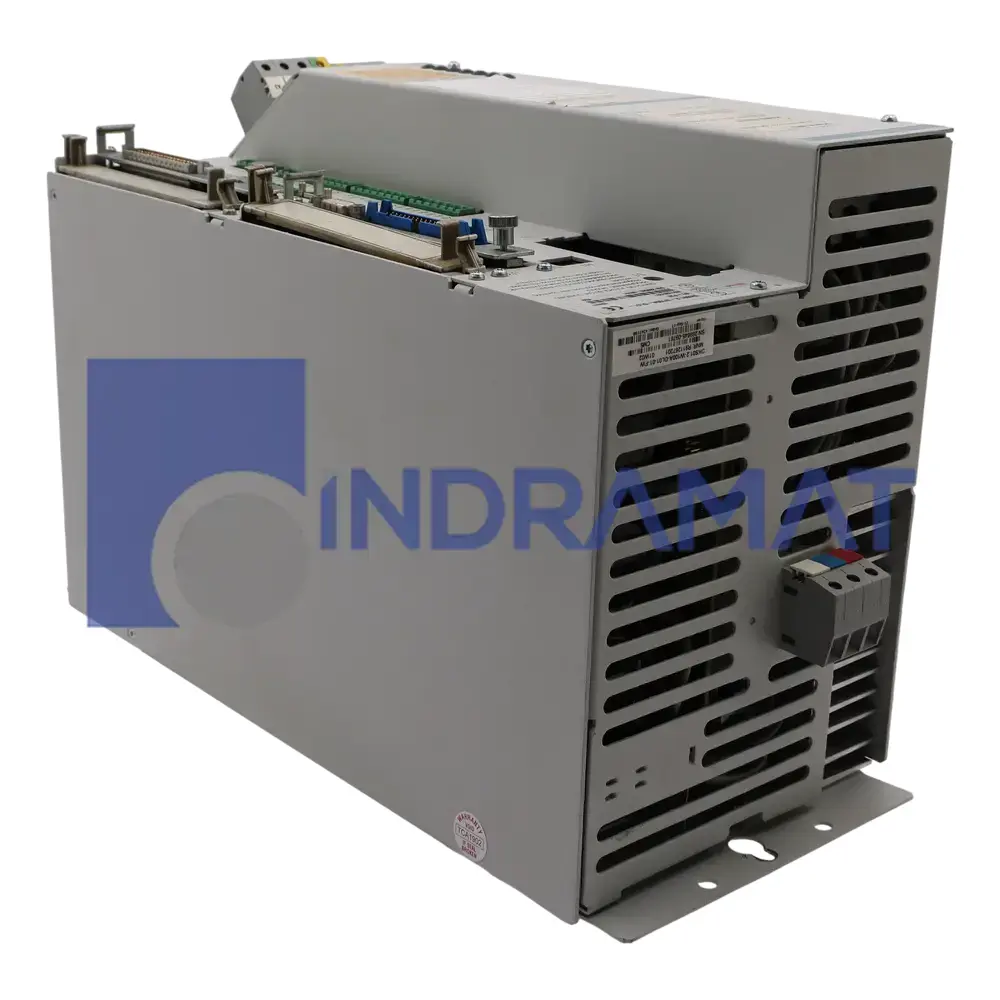

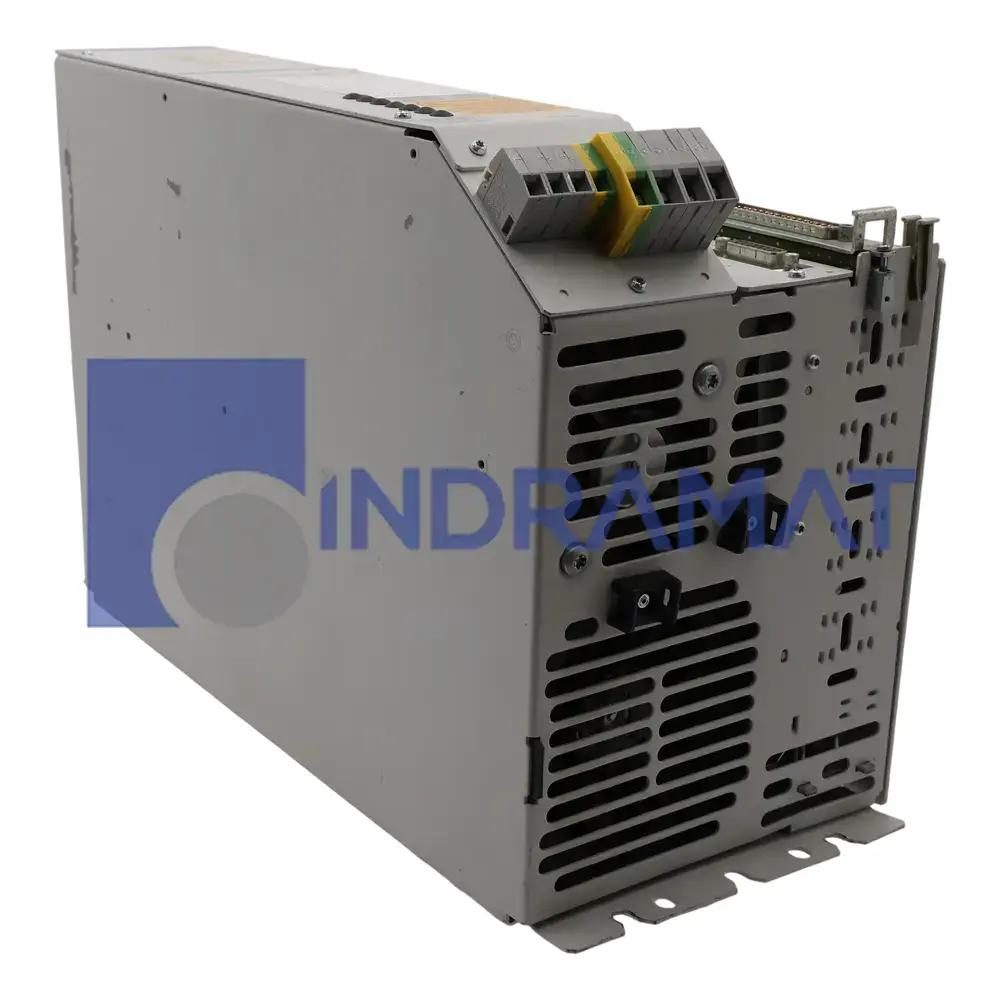

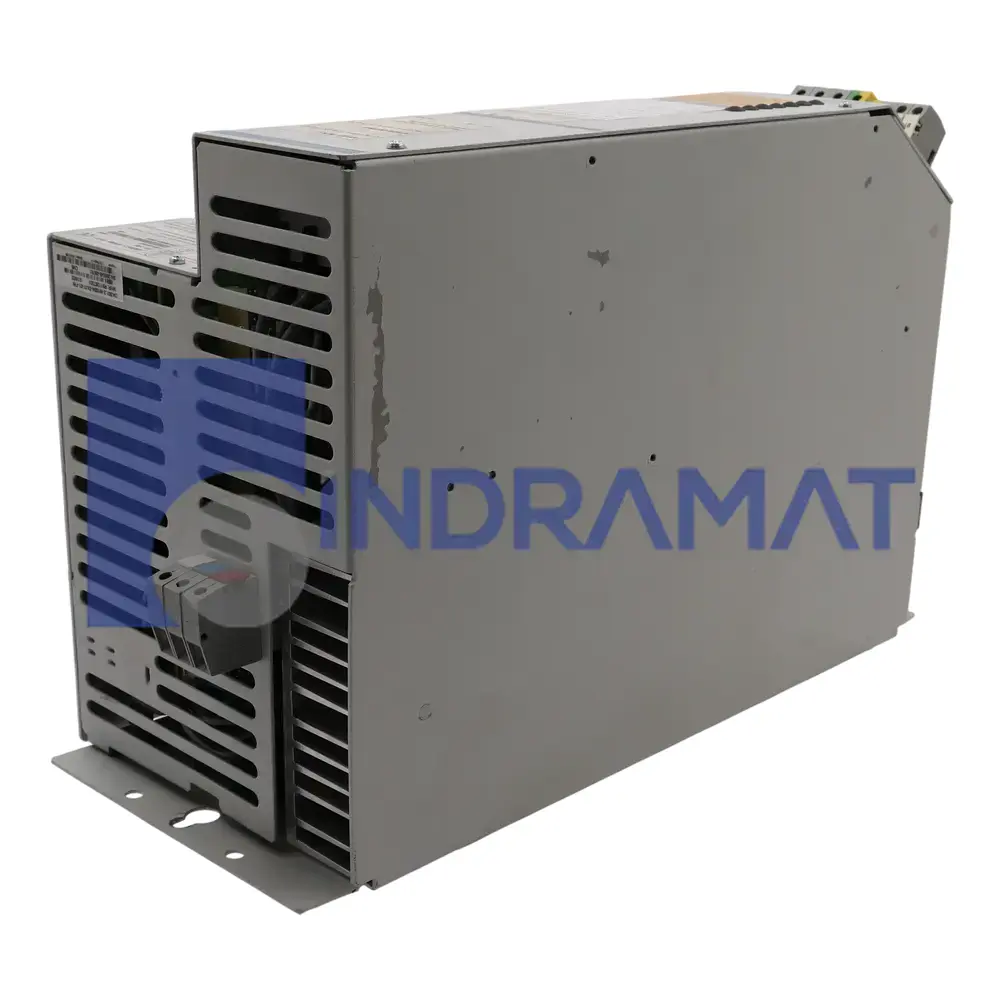

R911263202 (DKS01.1-W100A-DG01-00)

DKS Intelligent Digital Servo Drives

In Stock, Ships Today

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
[email protected]

The R911263202 (DKS01.1-W100A-DG01-00) is a DKS-series digital servo drive designed by Bosch Rexroth Indramat for use with MDD servo motors. The device has a rated current of 100A and operates on a 230V 3-phase power supply. It incorporates an integral holding brake, dynamic braking, and a power shut-off protection system. This unit is programmable for error reaction to system faults and is compatible with DSF type encoders. The servo drive has a frequency range of 50 to 60 Hz, a maximum power draw of 11kVA under load, and a standard noise emission. Its operating temperature range is -30 to +85°C, with maximum installation altitude of 1000 m above sea level. Protection rating is IP10; insulation and humidity ratings conform to DIN 40 400 and DIN 570 110 (Class F and C). It utilizes heat dissipation for cooling and is intended for dry, vibration-free storage.

Technical Specifications

Approximate weight
11 kg

Current rating
100 Amps

Motor noise emission
Standard

Encoder type
DSF

Compatible motors
MDD servo motors

Peak current
100 A

Operating frequency
50 - 60 Hz

Optimal power requirement
11 kVA

Continuous regenerated power
0.5 kW

Peak regenerated power
18 kW

Power loss (maximum load)
480 W

Humidity classification
Class F (DIN 40 400)

Insulation class
Class C (DIN 570 110)

Protection class
IP 10 (DIN 40 050)

Storage requirements
Cool, vibration free and dust free environment

Maximum installation altitude
1000 meters

Permissible shipping/storage temperature
-30 to +85 C
