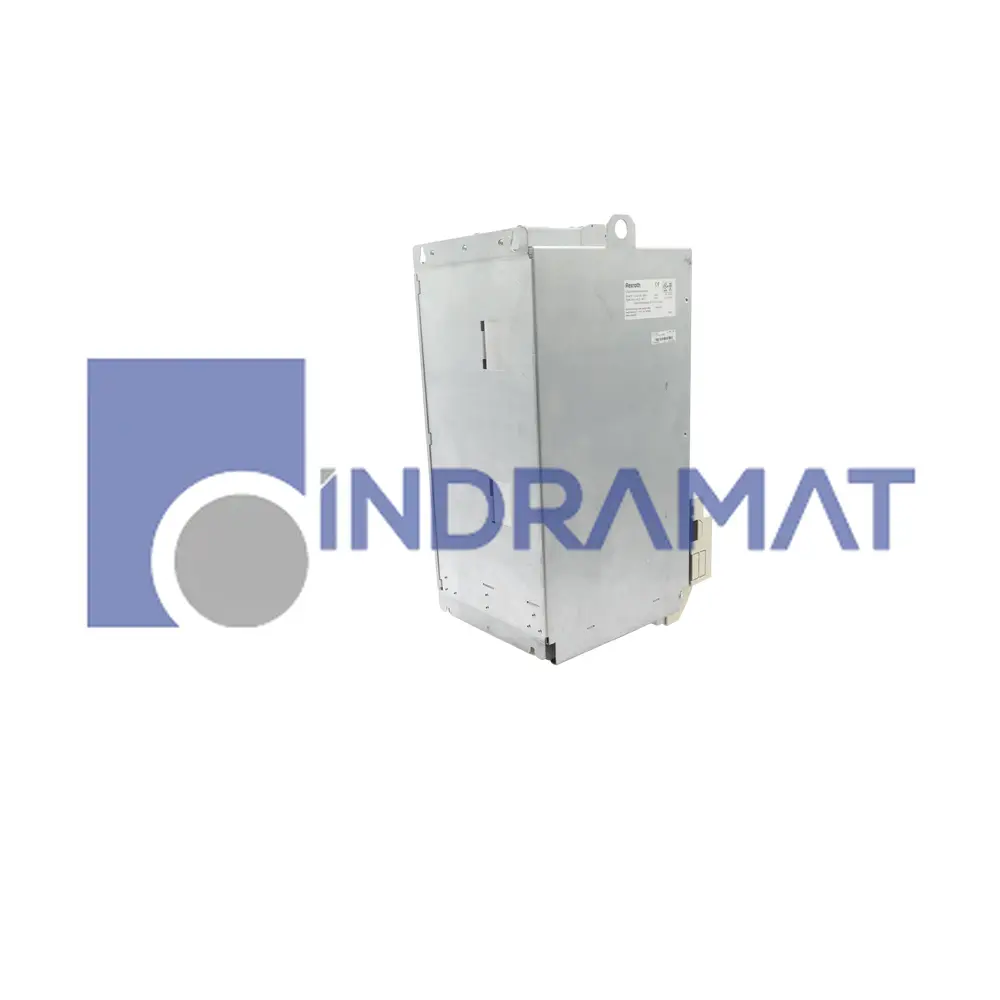

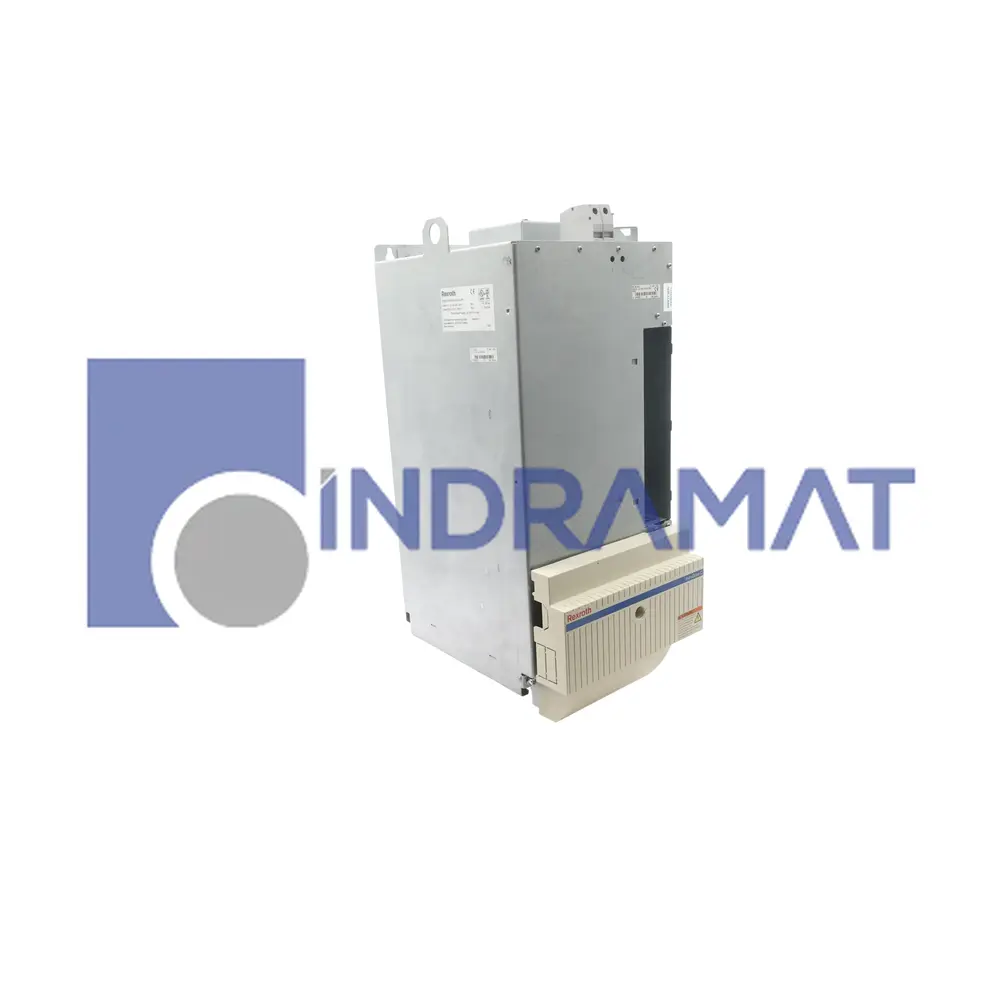

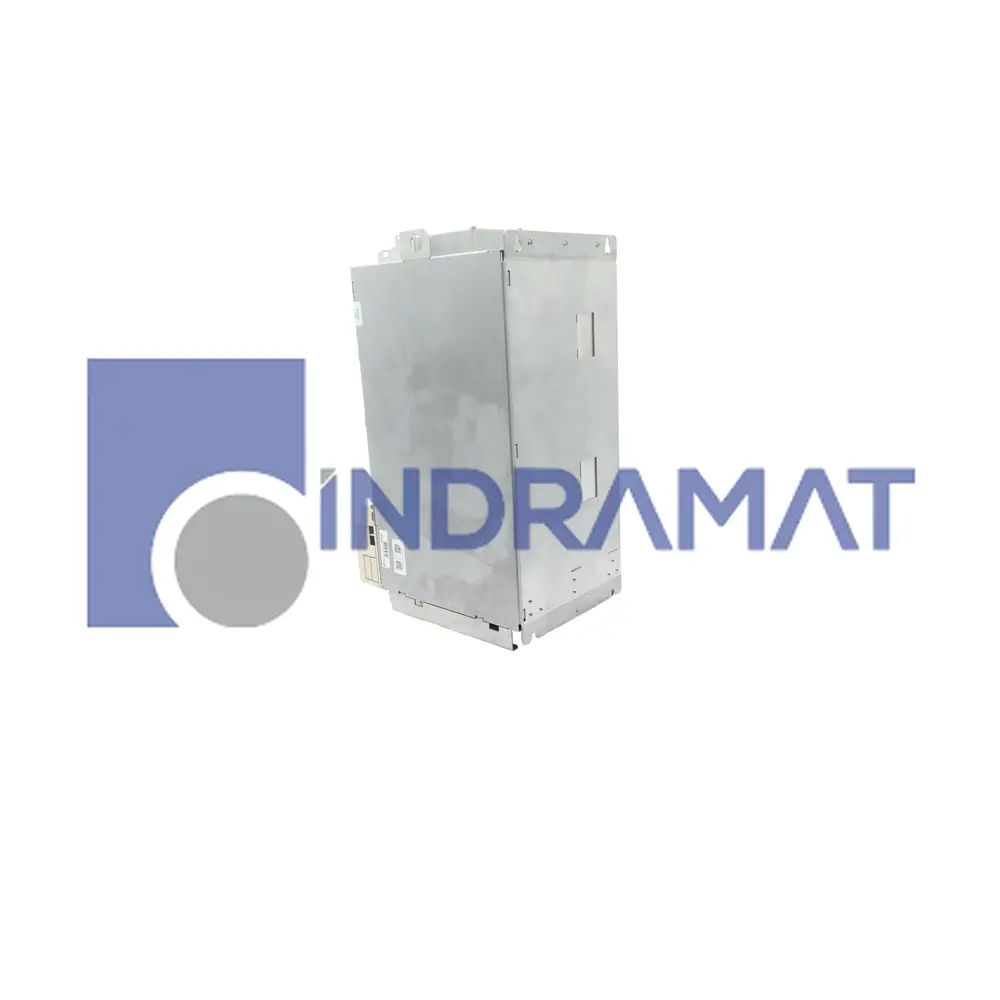

HCS03.1E-W0100-A-05-NNBV
HCS IndraDrive Controllers
The HCS03.1E-W0100-A-05-NNBV from Bosch Rexroth Indramat supports a power range of 15 to 75 kW and uses DC 24V bus input. Part of the HCS IndraDrive Controllers series, it operates on 3 x AC 400...500V mains voltage and features an integrated blower cooler. This drive controller has an IP20 rating and can handle device peak currents up to 100 A.
It operates from 0 to 40 °C and tolerates up to 95% humidity. Weighing 20 kg, it supports up to 1000 m installation. Storage -20 to +80 °C.
Technical Specifications
Voltage Supply from DC bus
DC 24V from DC-Bus
Cooling Method
Air, internal (through integrated blower)
IP Rating
IP20
Design Version
1
Line Series
HCS03
Power Range
15 to 75kW
Mains Voltage
3 x AC 400...500V +10%, -15%
Voltage Code
05
Device Peak Current
100 A
Power Supply Unit
Infeeding / Feeded
Product Type
HCS Drive Controller
Allowable Humidity
95%
Allowable Installation Height
1000 m
Allowable Pollution Degree
2
Input Frequency
50 - 60 Hz
Operating Temperature Range
0 to 40 degree centigrade
Rated Control Voltage Input
24 V
Storage Temperature Range
-20 to +80 degree centigrade
Weight
20 kg
Frequently Asked Questions
What is the allowable humidity for the HCS03.1E-W0100-A-05-NNBV drive controller?
The HCS03.1E-W0100-A-05-NNBV drive controller allows up to 95% humidity.
What is the storage temperature range of the HCS03.1E-W0100-A-05-NNBV drive controller?
The HCS03.1E-W0100-A-05-NNBV drive controller can be stored between -20°C to +80°C.
What is the operating temperature of the HCS03.1E-W0100-A-05-NNBV drive controller?
The HCS03.1E-W0100-A-05-NNBV drive controller operates between 0°C and 40°C.
What is the weight of the HCS03.1E-W0100-A-05-NNBV drive controller?
The HCS03.1E-W0100-A-05-NNBV drive controller weighs approximately 20 kg.
What input frequency does the HCS03.1E-W0100-A-05-NNBV drive controller support?
The HCS03.1E-W0100-A-05-NNBV drive controller supports 50 – 60 Hz input frequency.
Common Misspellings
HCS 03.1E-W0100-A-05-NNBV
HCS 3.1E-W0100-A-05-NNBV
HCS O3.1E-W0100-A-05-NNBV
HCS-03.1E-W0100-A-05-NNBV
HCS3.1E-W0100-A-05-NNBV
HCSO3.1E-W0100-A-05-NNBV
HCS031EW0100A05NNBV
HCS03 1E W0100 A 05 NNBV
HCS031EW0100A05LNBV
HCS03 1E W0100 A 05 LNBV
hcs03.1e-w0100-a-05-lnbv
Internal Product Review
The HCS03.1E-W0100-A-05-NNBV is ideal for heavy workloads. It offers reliable control and built-in safety, delivering steady performance in high-demand industrial applications. This makes it a trusted choice for tough working environments.
