HDS03.1-W075N-HS79-01-FW

HDS Drive Controllers

Rated 4.3 stars (5 total reviews)
  In Stock, Ships Today
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

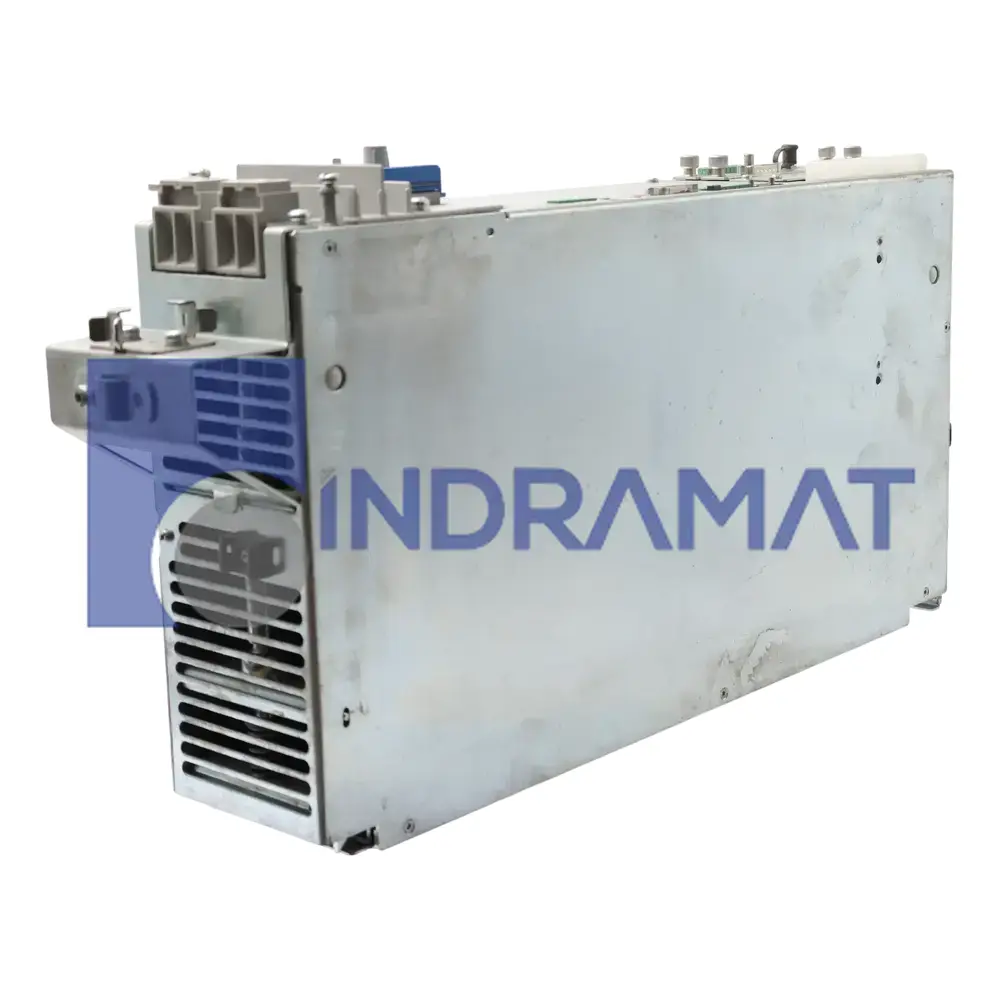

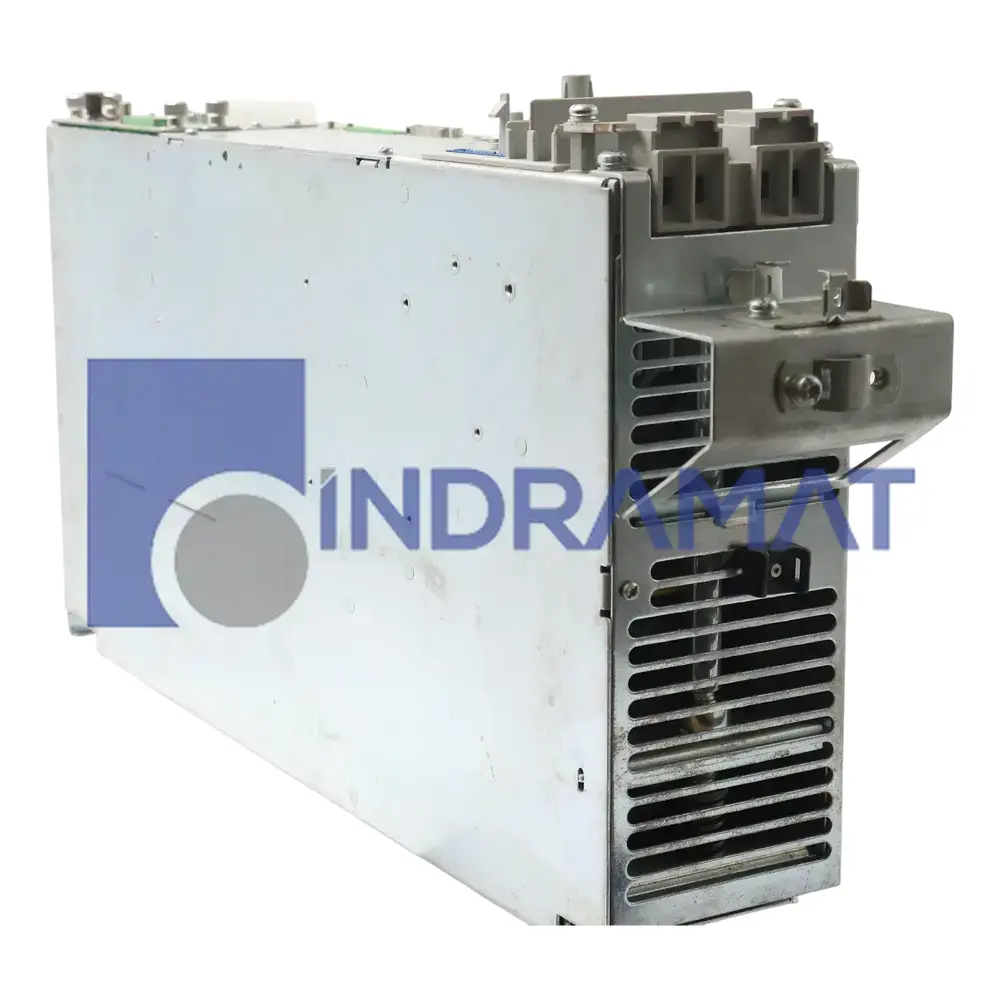

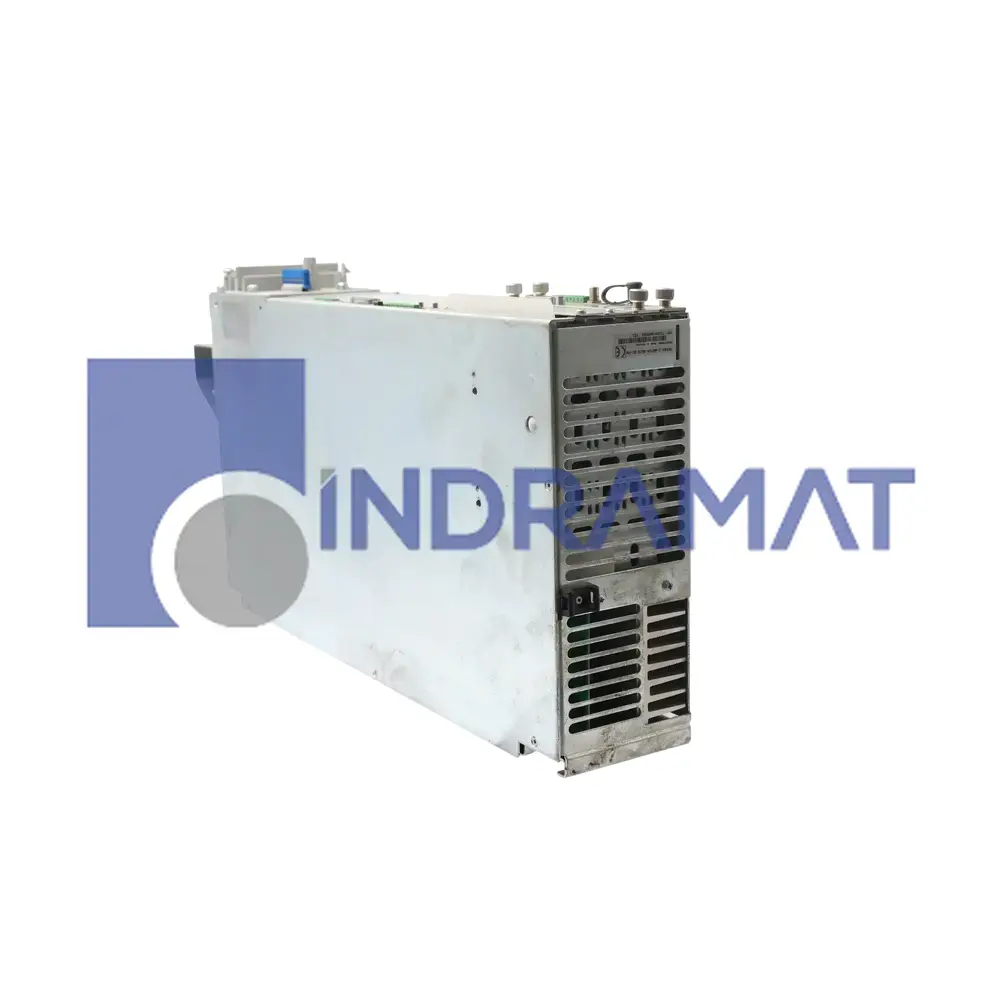

The Bosch Rexroth Indramat HDS03.1-W075N-HS79-01-FW from the HDS Drive Controllers series by Bosch Rexroth Indramat is a high-performance HDS Drive Controller engineered for precision motion tasks. It delivers a Rated Current of 75 A and features a robust Controller Family DIAX04 design with an integrated Command Communication Interface: SERCOS. The unit employs a Built-in Internal Air Blower as its primary Cooling Method and carries a Function ID Code 79 within the compact Product Group HDS. This model is designated Line 03, marked Version 1, with Other Versions: None to ensure consistency across installations.



The HDS03.1 drive controller package comprises a base unit drive controller, a dedicated command communications module, and an optional software module for enhanced motion profiles. Provision exists for up to three additional plug-in modules to augment digital or analog I/O capacities without altering the core Product Type hardware. A clearly marked configuration type plate on the front panel displays the Line 03, Version 1, and Function ID Code 79 alongside the Controller Family DIAX04 identifier, simplifying commissioning and maintenance. All electronics are housed within a robust frame that channels internal airflow from the Built-in Internal Air Blower, eliminating the need for external cooling devices.



Designed for seamless interoperability, the controller’s Command Communication Interface: SERCOS ensures deterministic, high-speed data exchange across multi-axis networks. Its modular structure and strict part uniformity—confirmed by Other Versions: None—allow system architects to standardize on a single controller footprint. Delivering a reliable Rated Current of 75 A with integrated internal cooling, the HDS03.1-W075N-HS79-01-FW excels in applications from precision machining to complex robotics where performance and uptime are critical.

Technical Specifications

Command Communication Interface
SERCOS

Controller Family
DIAX04

Cooling Method
Built-in Internal Air Blower

Line
03

Other Versions
None

Product Type
HDS Drive Controller

Rated Current
75 A

Version
1

Function ID Code
79

Product Group
HDS
