R911320607 (KSM01.2B-071C-35N-M1-HG2-SE-NN-D7-NN-FW)

KSM Motor Integrated Servo Drives

  Call For Quote
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

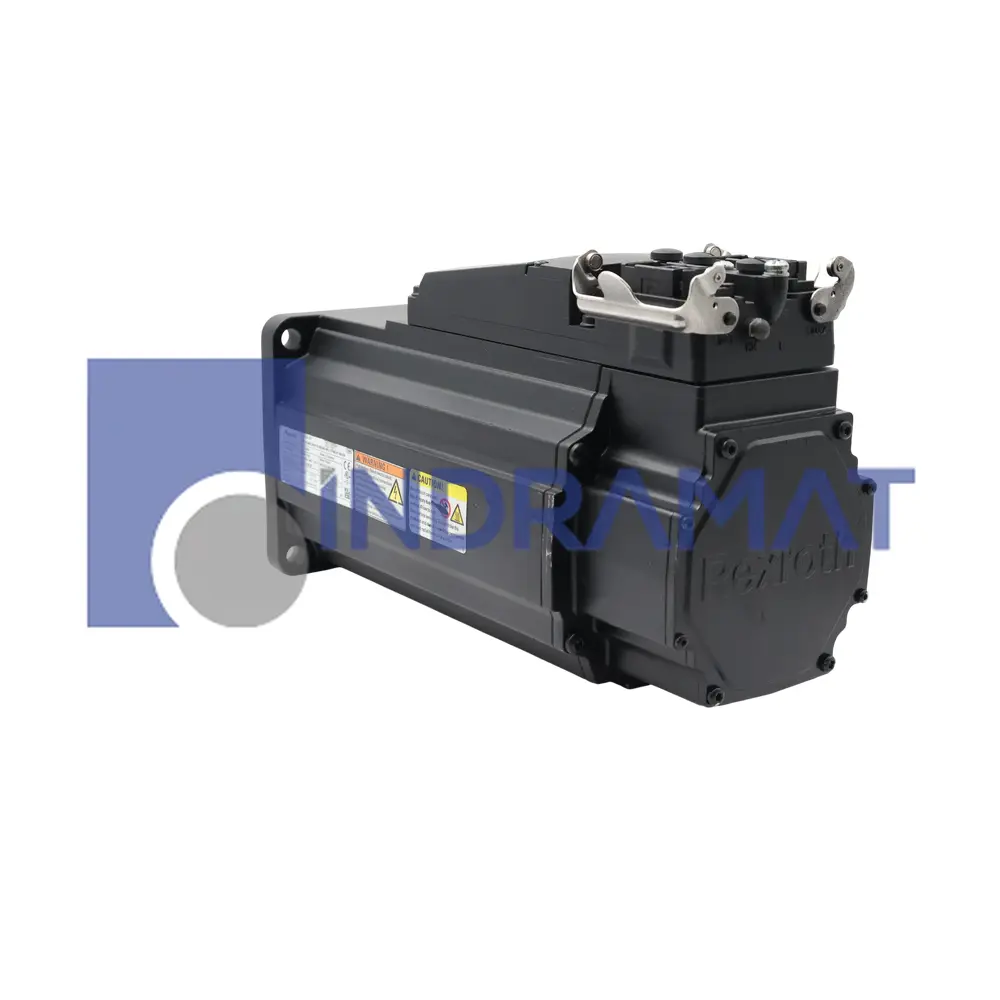

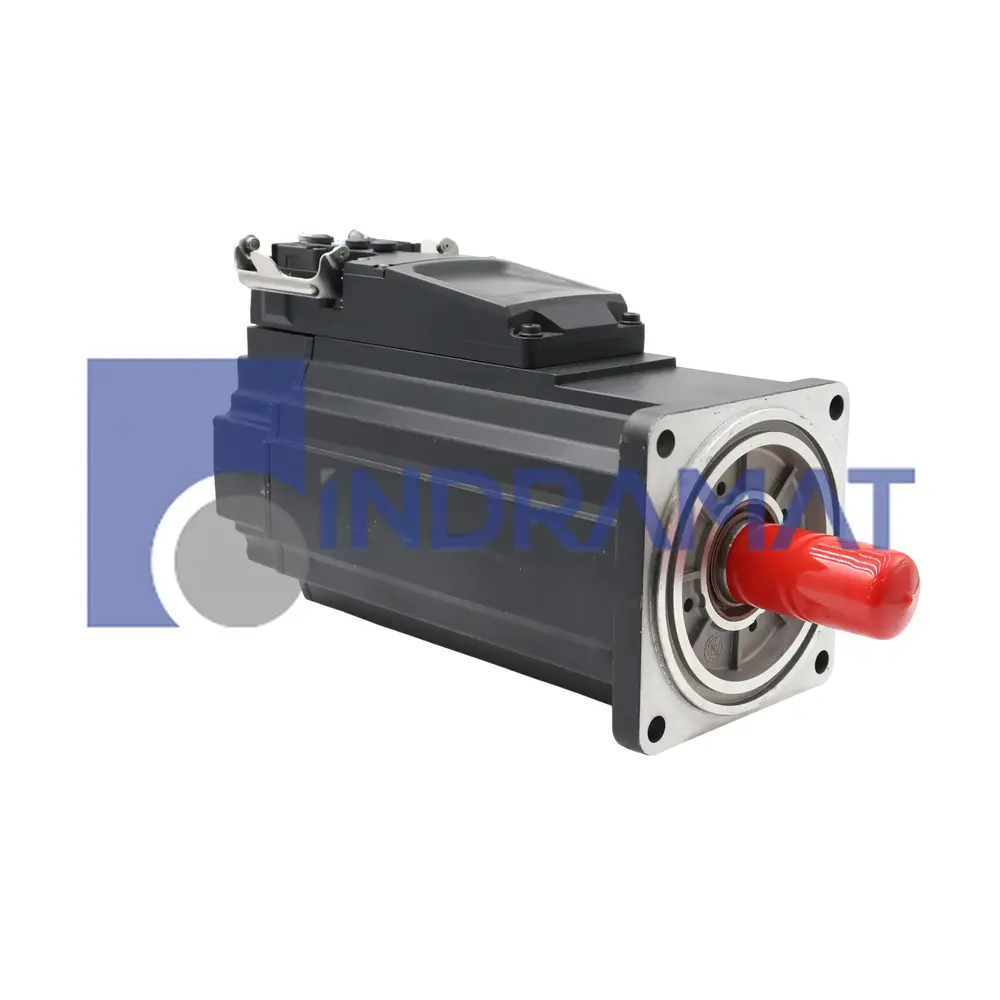

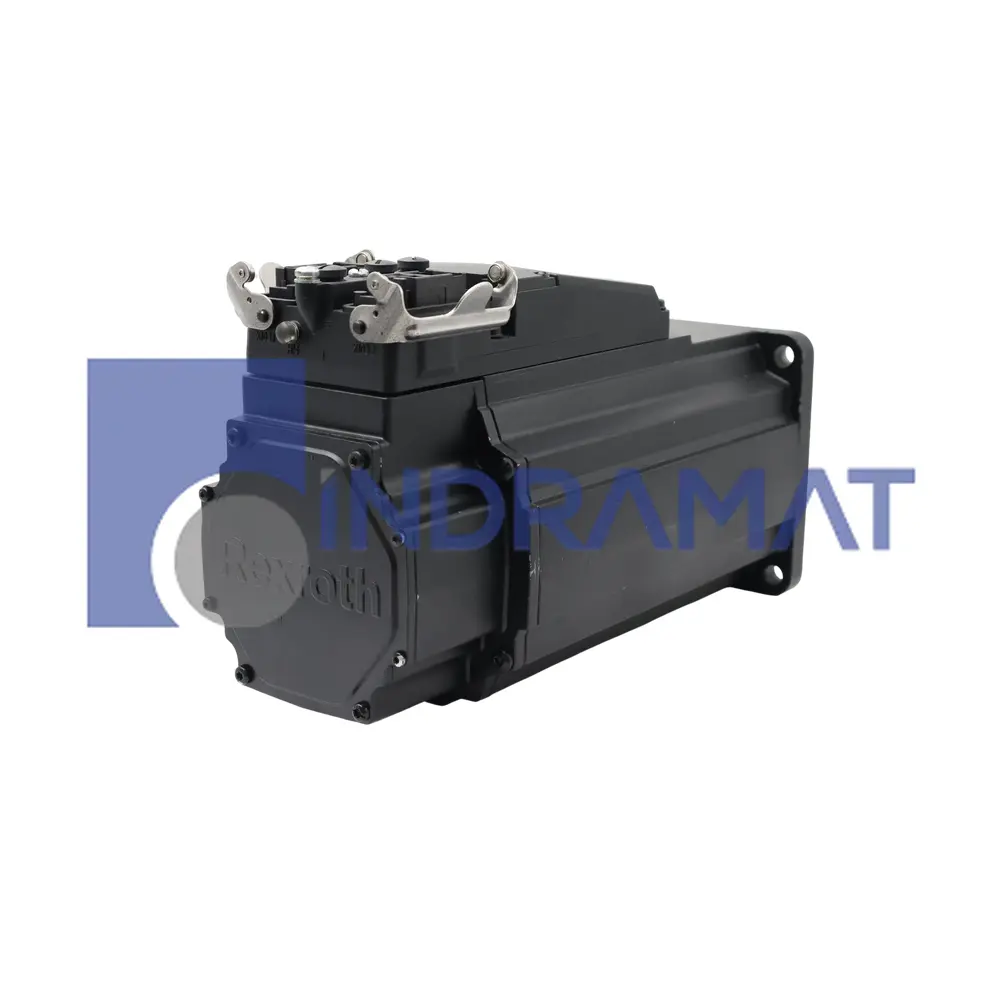

The Bosch Rexroth MPN R911320607 (KSM01.2B-071C-35N-M1-HG2-SE-NN-D7-NN-FW) is a motor-integrated distributed servo drive from the IndraDrive Mi series. It features a frame size of 71, length C, and a line-1, design-2 configuration with winding code 35. The unit employs natural convection cooling and a hybrid electrical connector, supports an optical multi-turn absolute Hiperface encoder with 128 signal periods, and has a plain shaft with seal ring. The electrically released holding brake operates at 24 V DC. Communication is via SERCOS II (RS422) without safety technology. The device is rated for 750 V DC supply, IP65 ingress protection, and operation up to 1,000 meters altitude. Firmware must be sourced separately.

Technical Specifications

Type
Servo Drive

Frame Size
71

Frame Length
C

Line Product
1

Design Type
2

Performance
Basic

Winding Code
35

Cooling
Natural Convection

Interface
Hybrid

Shaft
Plain with Sealing Ring

Brake
Electrically Released, 24 Volts DC

Master Communication
SERCOS II with RS 422

Connecting Voltage
750 Volts DC

Maximum Bypass Current
25 Amperes

Temperature Range (Transport)
-20 to 80 C

Humidity Range
5-95%

Absolute Humidity Range
1-60 g/m3

Temperature Range (Storage)
-20 to 60 C

Climatic Class
1K3

Protection
IP 65

Mounting Altitude
1000 meters above sea level

Operating Temperature Range
0 to 40 C

Firmware
Purchase Separately.
