R911320784 (KSM01.2B-041C-42N-S1-HP2-SE-NN-D7-NN-FW)

KSM Motor Integrated Servo Drives

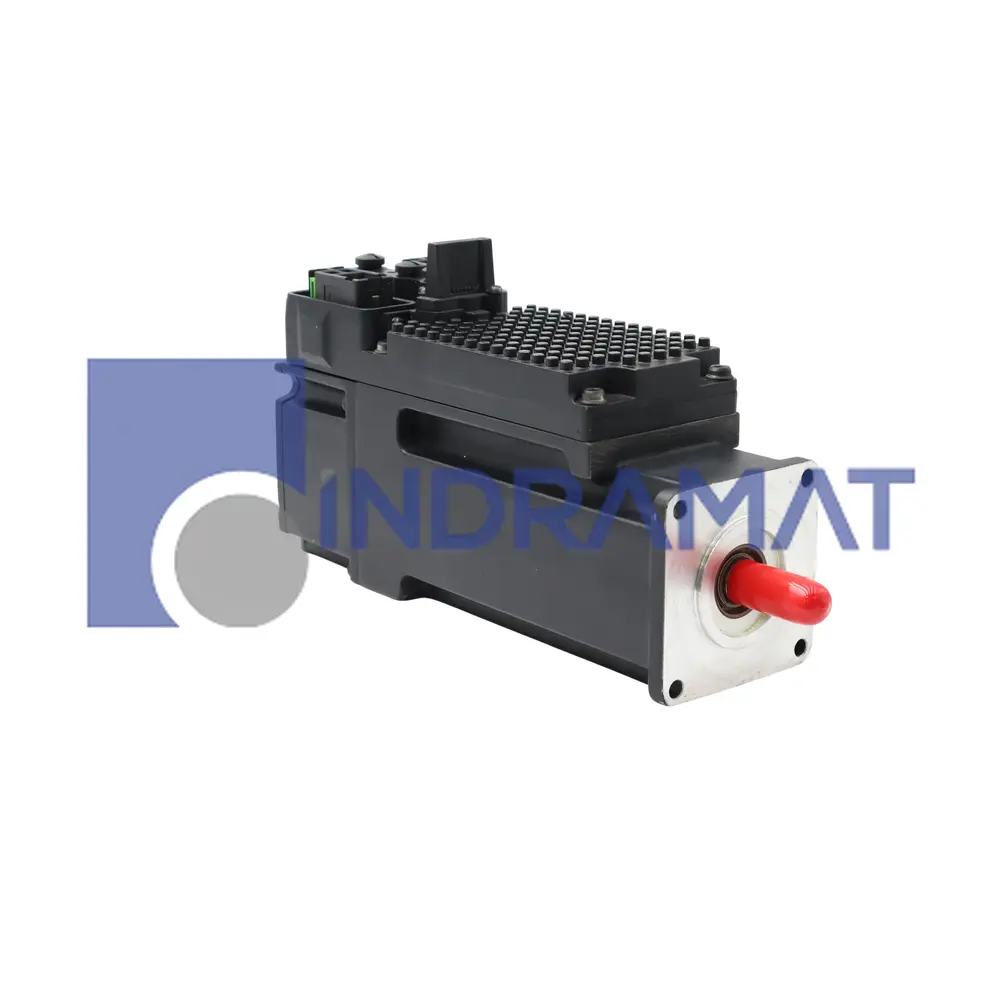

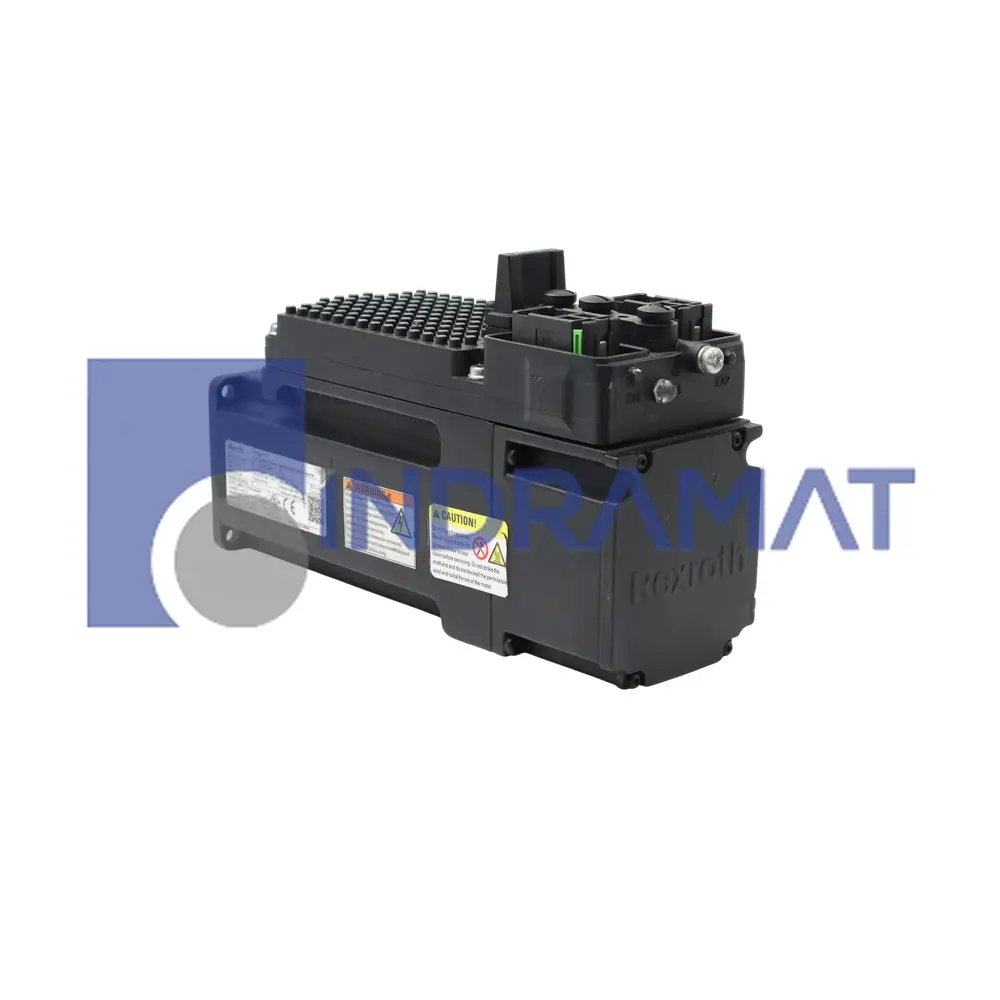

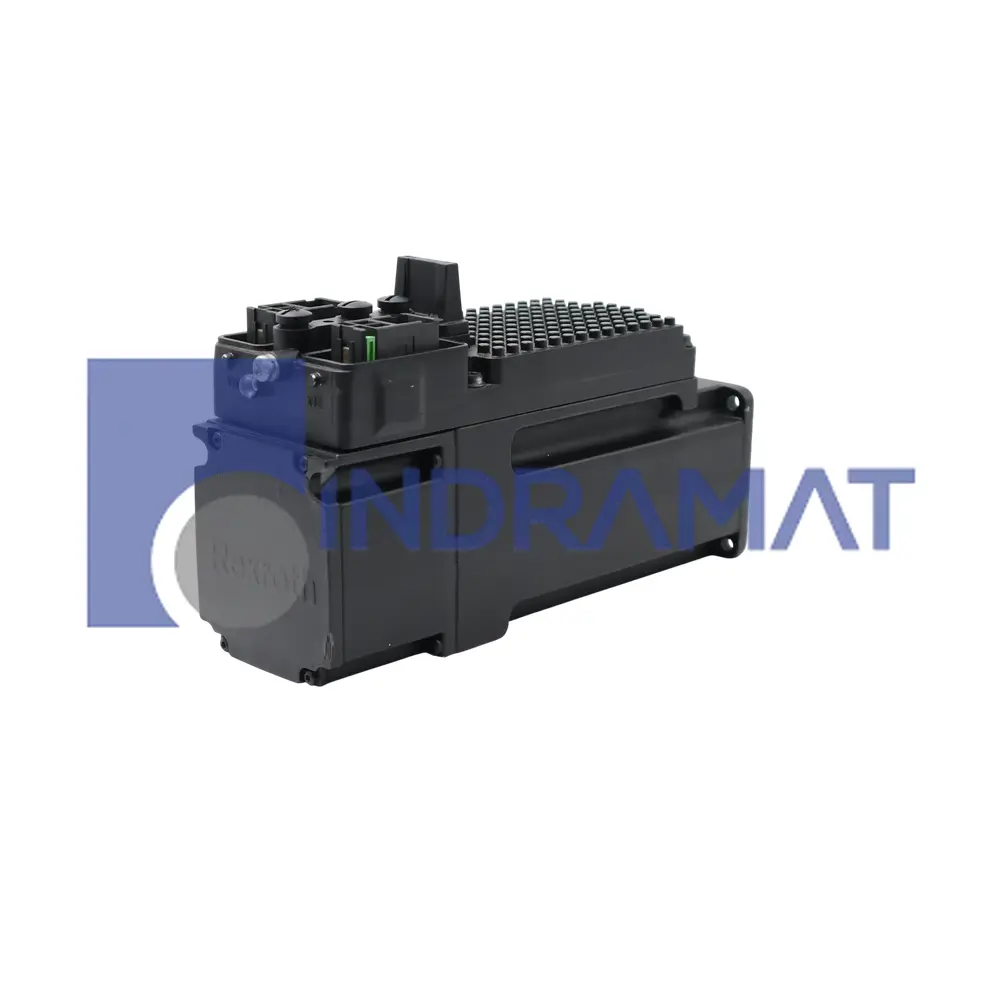

KSM01.2B-041C-42N-S1-HP2-SE-NN-D7-NN-FW Series Image

Call For Quote

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
[email protected]

The Bosch Rexroth servo drive, MPN R911320784 (KSM01.2B-041C-42N-S1-HP2-SE-NN-D7-NN-FW), is a motor-integrated unit designed for distributed automation systems. It operates at a DC supply voltage of 750V and provides a rated power output of 495W. The device supports up to 42 Arms and a maximum bypass current of 25A, delivering a maximum torque of 9.4 Nm at 5500 rpm. It includes a single-turn Hiperface optical encoder with 128 signal periods, a DC 24 V electrically released holding brake, and a shaft with keyway and sealing ring. This model features an IP65-rated enclosure, hybrid connectors for power and signal, natural convection cooling, SERCOS 2 (RS422) master communication, and measures approximately 5.8 kg in weight.

Technical Specifications

DC Voltage
750V

Rated Power
495W

Design
Compact

Weight
5.8 kg

Control Input Voltage
30 to 40V

Rated Power Consumption
27.5 W

Current Withstand
42000 Arms

Maximum Bypass Current
25 A

Protection Class
IP65

Maximum Current
6.8 A

Maximum Torque
9.4 Nm

Maximum Speed
5500 rpm

Cooling Method
Natural Convection

Connectors
Hybrid

Holding Brake
Electrically released DC 24V

Communication Protocol
SERCOS 2

Firmware
To be ordered separately
