R911346375 (KSM02.1B-061C-35N-M3-HG2-ET-NN-D7-NN-FW)

KSM Motor Integrated Servo Drives

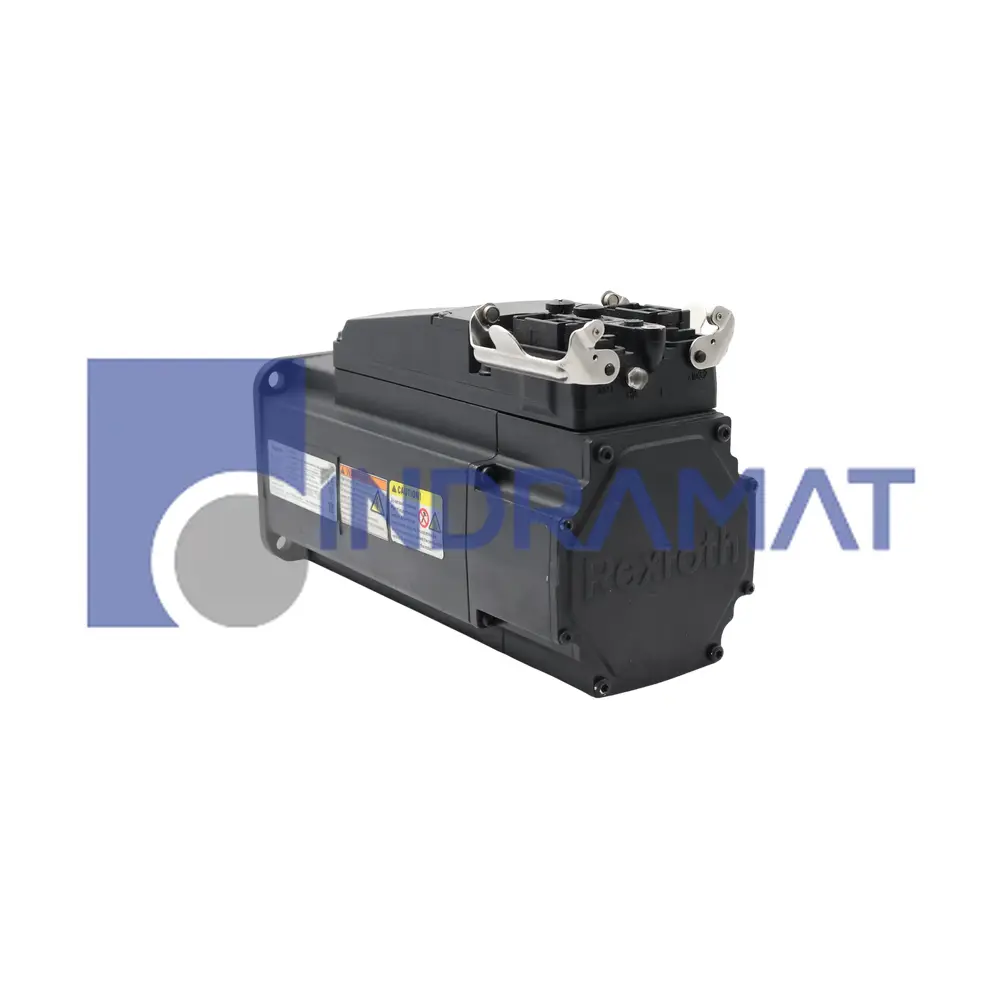

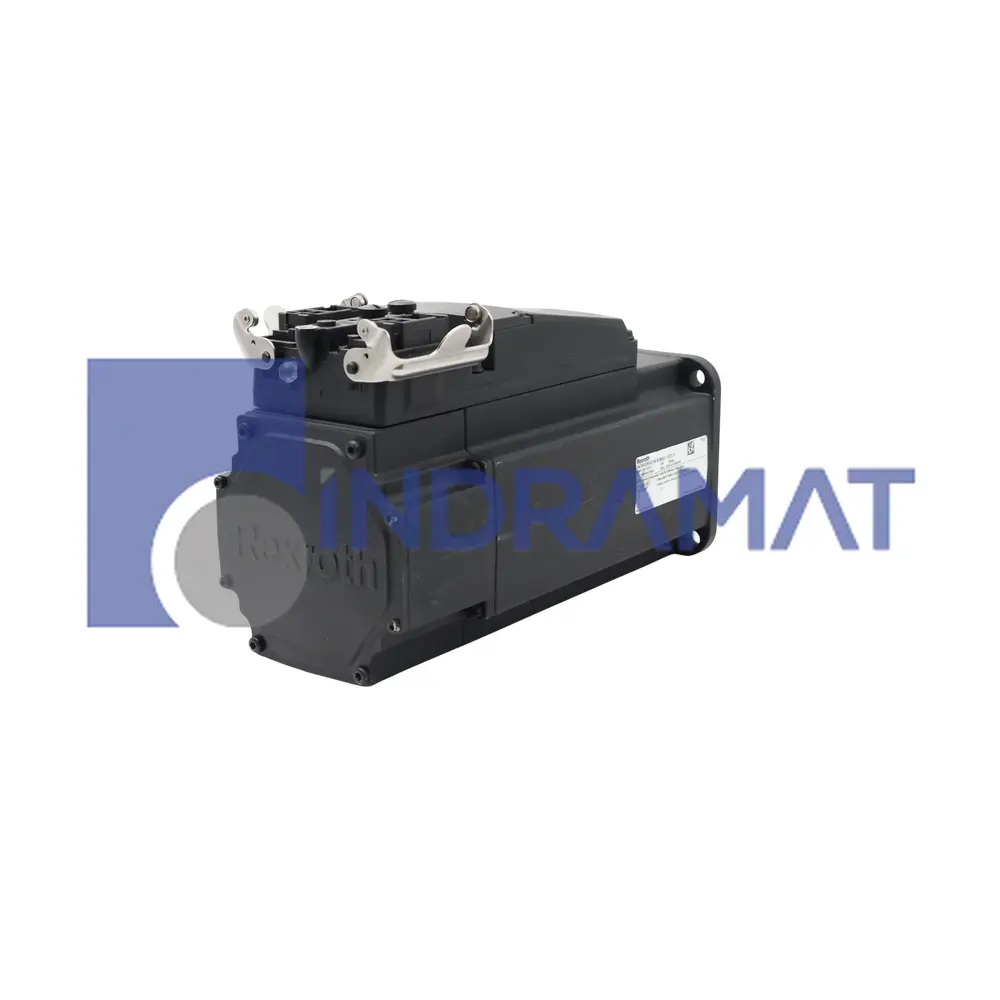

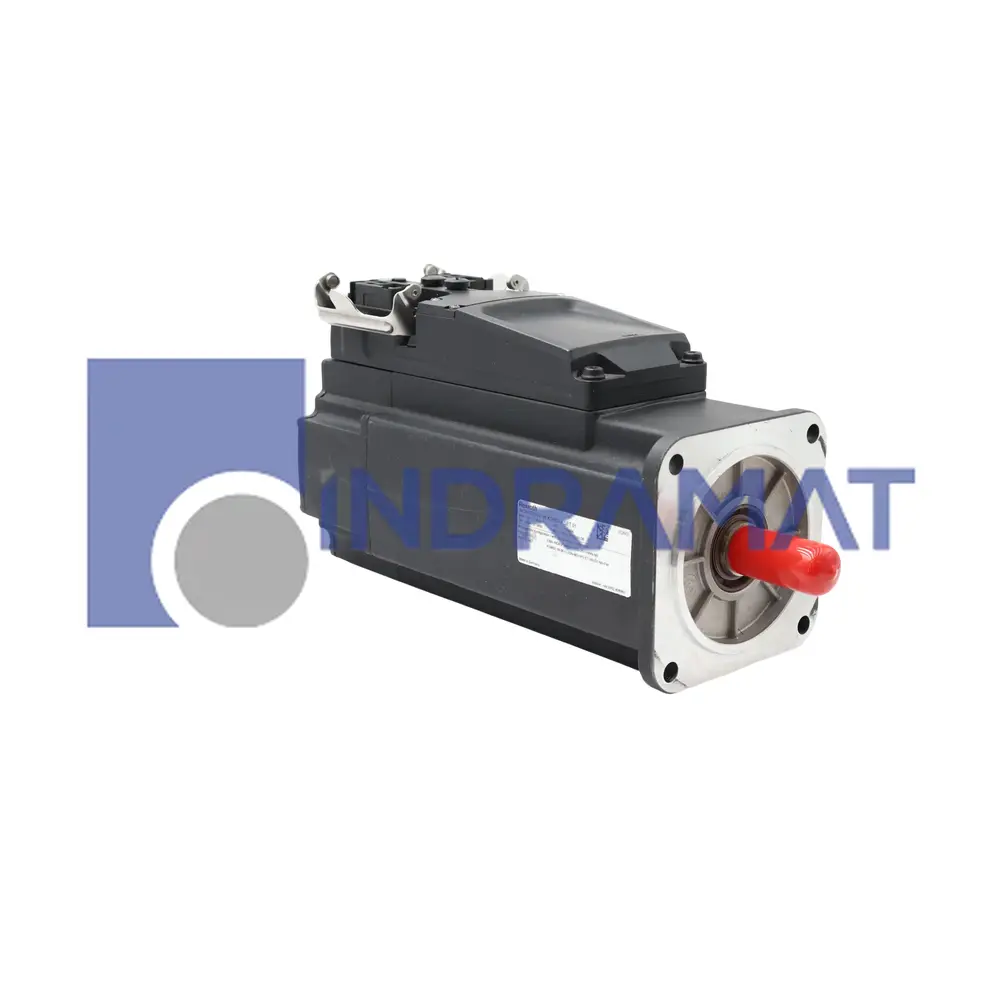

KSM02.1B-061C-35N-M3-HG2-ET-NN-D7-NN-FW Series Image

Call For Quote

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
[email protected]

The R911346375 (KSM02.1B-061C-35N-M3-HG2-ET-NN-D7-NN-FW) is a Rexroth Indramat motor-integrated servo drive engineered for use in various industrial applications, such as metal forming and paper conversion equipment. It operates with a supply voltage of DC 750 V, achieves speeds up to 4300 rpm, and delivers a torque of 24 Nm. The unit features a plain shaft, a DC 24 V holding brake for load retention, and employs natural convection cooling. It utilizes a hybrid connector handling both power and encoder signals, and incorporates a multi-turn absolute capacitive hyperface encoder for precise position feedback. The servo drive facilitates system integrity through internal diagnostics, indicated by LED signals, and its grease-lubricated bearings are rated for approximately 30,000 hours. This model does not include additional safety technology and supports multi-Ethernet master communication protocols.

Technical Specifications

Application
Industrial Machines

Motor Speed
4300 revolutions per minute

Torque Capacity
24-newton meters

Features
Holding Brake, LED Display, Self-diagnostic

Cable Included
Hybrid (encoder+power) cable

Bearing Type
Grease-lubricated bearings

Bearing Life
30,000 hours

Encoder Type
Capacitive Hyperface Multiturn Encoder.
