2AD134D-B35OB1-AS06-B2N1
2AD 3-Phase Induction Motors

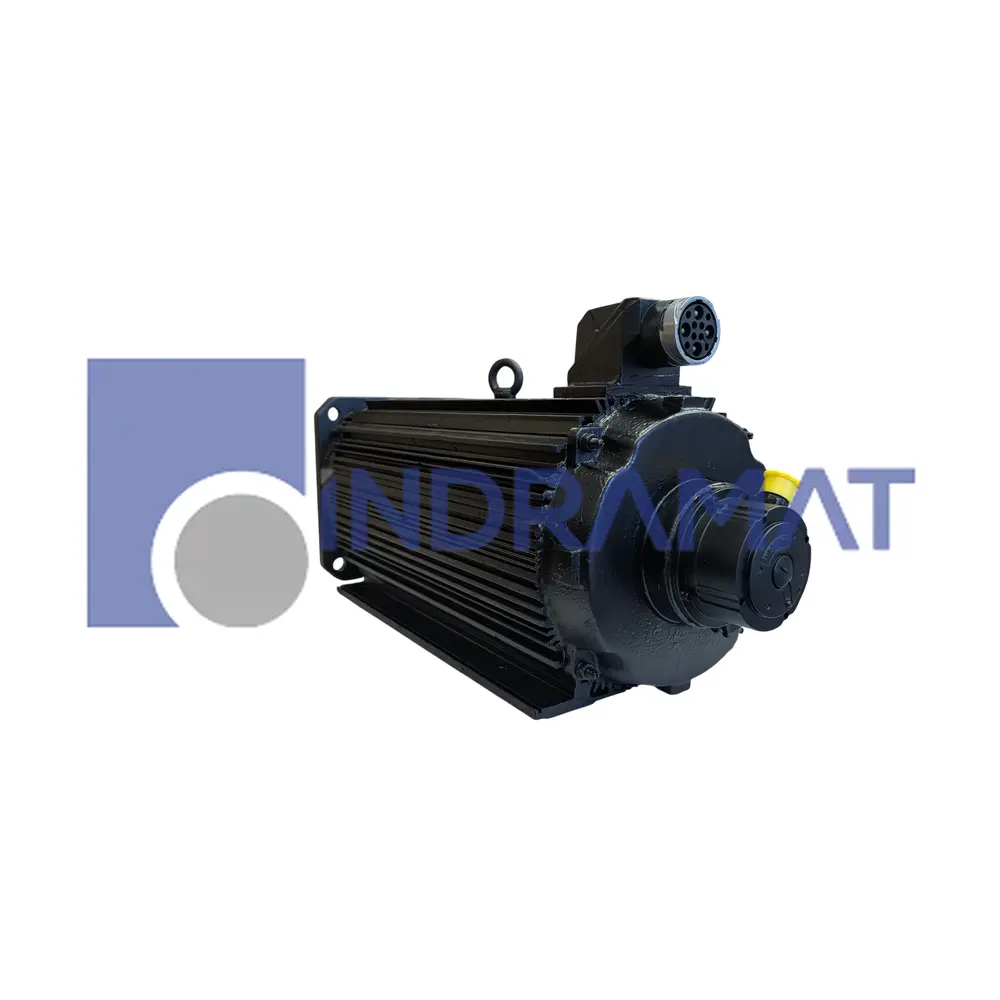

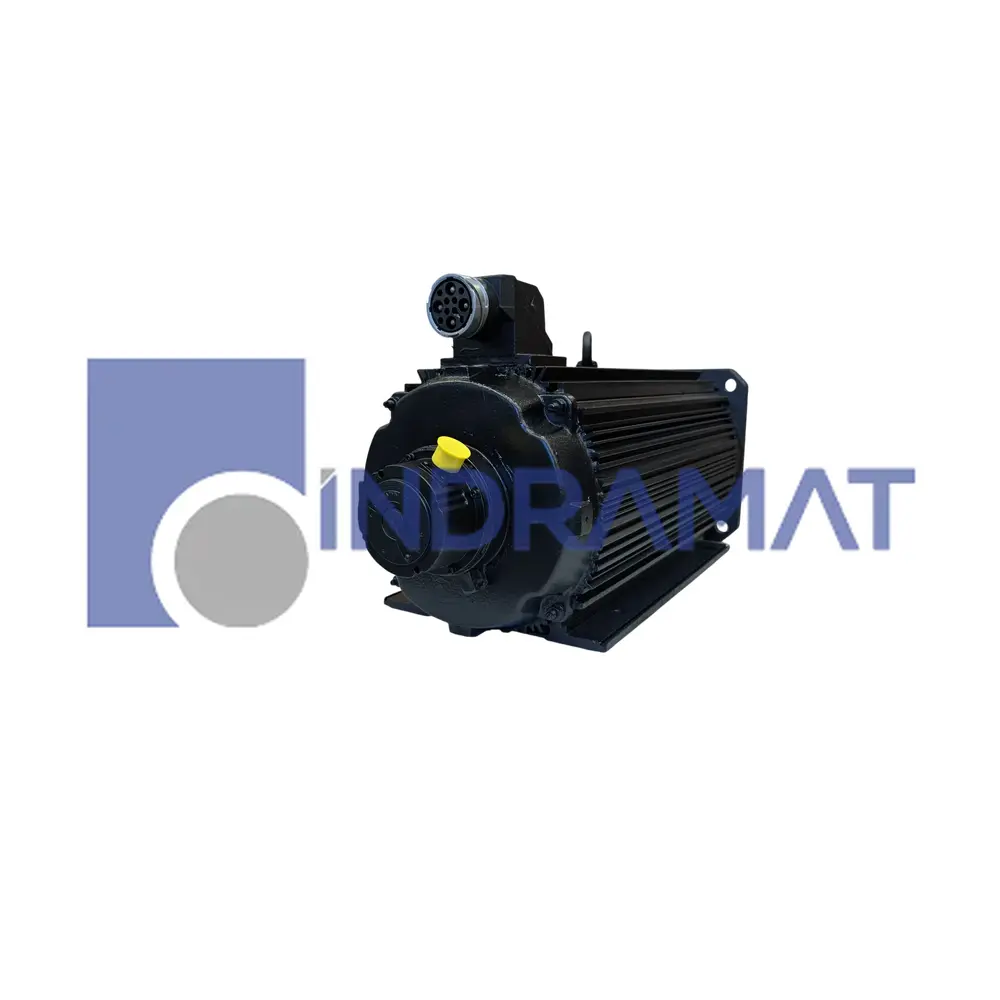

The 2AD134D-B35OB1-AS06-B2N1 from Bosch Rexroth Indramat features a motor size code of 134 and axial blower cooling. Part of the 2AD 3-Phase Induction Motors series, it uses digital servo feedback and operates without a holding brake. This AC induction motor offers standard bearings and has a winding code AS.
With flange and foot mounting, it accepts a top-position power plug directed to Side B. The ambient temperature range is 0-40 °C. Its vibration grade R classification ensures stable performance.
Technical Specifications
Bearings
Standard
Cooling Type
Axial Blower
Brake
Without holding brake
Feedback Device
Digital servo feedback
Motor Length Code
D
Motor Size Code
134
Mounting
Flange and foot mounting
Shaft Type
Without shaft seal, with balanced with entire key
Power Connection Direction
To Side B
Power Connection Type
Power Plug (Blower with plug)
Power Connection Position
Top
Product Type
AC Induction Motor
Shaft End (Side B)
Without shaft end
Vibration Grade
R
Winding Code
AS
Ambient Temperature Range
0-40 Degrees Celsius
Motor Designation
2AD
Frequently Asked Questions
How does the servo feedback in the 2AD134D-B35OB1-AS06-B2N1 motor enhance control accuracy?
Digital servo feedback provides precise rotor position data. This improves dynamic response and allows fine-tuned motor control in complex automation systems.
How does the derating speed affect operational limits of the 2AD134D-B35OB1-AS06-B2N1 induction motor?
The motor’s derating speed at 1150 rpm defines the threshold for reduced performance. Operating beyond this requires careful thermal and mechanical management to prevent damage.
How does the axial blower cooling mode impact the thermal management of the 2AD134D-B35OB1-AS06-B2N1 motor?
Axial blower cooling directs airflow from B to A, efficiently dissipating heat. This enhances motor reliability by maintaining optimal temperature during continuous operation.
How does the power connection influence installation flexibility for the 2AD134D-B35OB1-AS06-B2N1 motor?
A top power connection facilitates easier cable routing in confined spaces. It reduces mechanical strain on terminals and supports cleaner integration into control panels.
How does insulation class affect the thermal endurance of the 2AD134D-B35OB1-AS06-B2N1 induction motor?
The insulation class F withstands higher temperatures up to 155°C. This improves the motor’s tolerance to thermal stress, extending operational life in demanding environments.
Common Misspellings
2AD134D B35OB1 AS06 B2N1
2AD134DB35OB1AS06B2N1
2AD134D-B350B1-AS06-B2N1
2AD134D-B35OB1-ASO6-B2N1
2AD134D-835O81-AS06-82N1
2AD134D-835O81-ASO6-82N1
2AD134DB350B1AS06B2N1
2AD134DB35OB1ASO6B2N1
Internal Product Review
The Rexroth Indramat 2AD134D-B35OB1-AS06-B2N1 is a 3-phase induction motor with digital servo feedback. It features flange and foot mounting, standard bearings, and a vibration grade R classification for stable performance. It is ideal for use in environments with ambient temperatures between 0 - 40 °C.
