2AD134D-B35OB1-CS16-B2V1
2AD 3-Phase Induction Motors

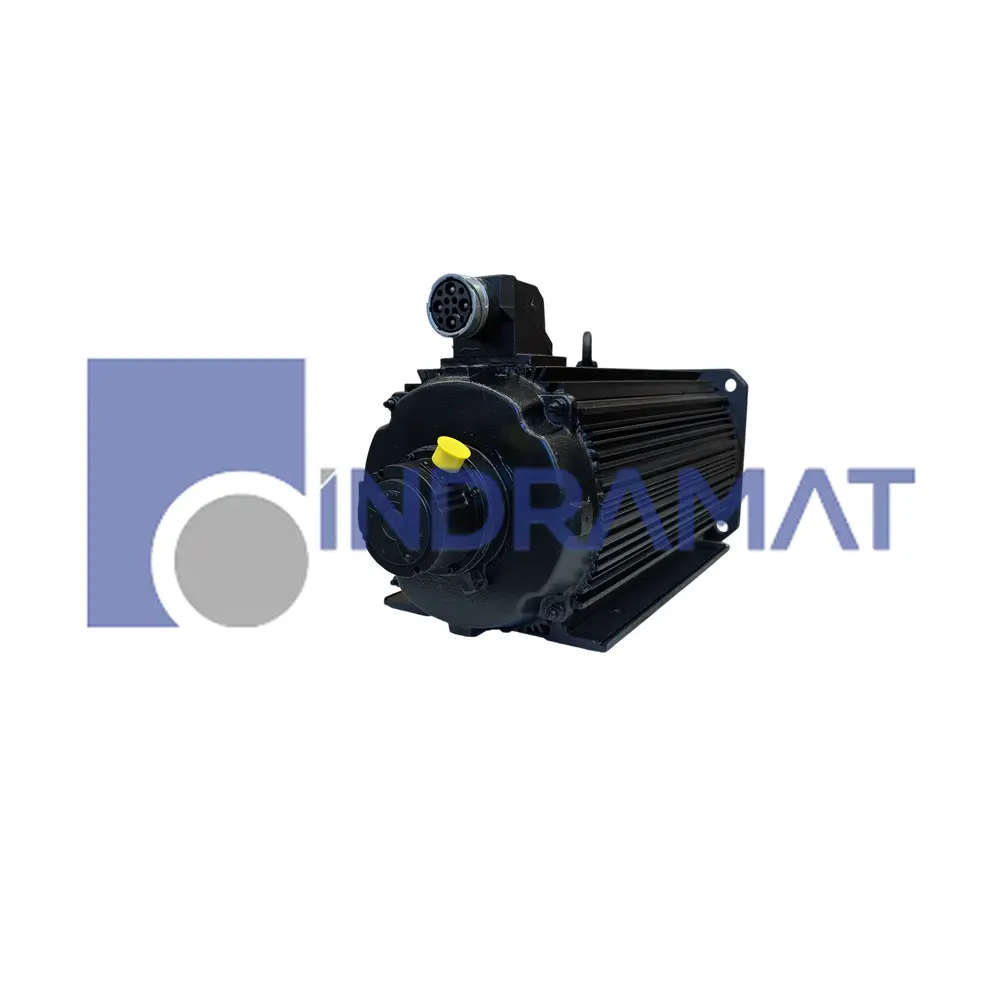

2AD134D-B35OB1-CS16-B2V1, Bosch Rexroth Indramat, 2AD 3-Phase Induction Motors delivers a robust AC Induction Motor platform engineered for precision and endurance. Its compact Motor Size Code 134 and versatile Mounting: Flange and foot mounting allow seamless integration into existing automation frames. The motor features a built-in Brake: Electrically engaged (clamp) offering an immediate holding function, backed by a Brake Torque: 100 Nm capacity for safe stopping. A high-resolution Feedback Device: Digital servo feedback streamlines motion control loops and enhances positioning accuracy.
Designed for continuous operation under demanding conditions, the unit uses Bearings: Heavy-duty bearings paired with an Axial Blower cooling system for efficient heat dissipation and extended service intervals. The Winding Code: CS ensures uniform thermal performance across the specified Ambient Temperature Range: 0-40 Degrees Celsius, while the Vibration Grade: R rating maintains smooth operation with minimal noise and mechanical stress. Power and cooling connections are optimized for installation flexibility: the Power Connection Type: Power Plug (Blower with plug) mounts at the Power Connection Position: Top and routes toward Power Connection Direction: To Side B. The Shaft Type: Without shaft seal, with balanced with entire key design minimizes unbalance and simplifies coupling alignment.
Engineers benefit from the motor’s standardized Motor Designation: 2AD footprint and consistent Motor Length Code: D, which reduces spare-parts complexity across multi-axis installations. Its dual mounting options and side-plug configuration accelerate field replacement and cut downtime. Ideal for high-precision machine tools, conveyors, and packaging lines, this induction motor combines rugged reliability with straightforward integration into Rexroth motion control systems.
Technical Specifications
Bearings
Heavy-duty
Cooling Type
Axial Blower
Brake
Electrically engaged (clamp)
Brake Torque
100 Nm
Feedback Device
Digital servo feedback
Motor Length Code
D
Motor Size Code
134
Mounting
Flange and foot mounting
Shaft Type
Without shaft seal, with balanced with entire key
Power Connection Direction
To Side B
Power Connection Type
Power Plug (Blower with plug)
Power Connection Position
Top
Product Type
AC Induction Motor
Shaft End (Side B)
Without shaft end
Vibration Grade
R
Winding Code
CS
Ambient Temperature Range
0-40 Degrees Celsius
Motor Designation
2AD
Frequently Asked Questions
Common Misspellings
Internal Product Review
The Bosch Rexroth Indramat 2AD134D-B35OB1-CS16-B2V1 is a robust AC induction motor designed for precision and endurance. It features a built-in brake with 100 Nm torque, heavy-duty bearings, and a high-resolution feedback device for accurate motion control. This motor is ideal for high-precision machine tools, conveyors, and packaging lines.
