2AD134D-B35OB1-CS26-B2N1
2AD 3-Phase Induction Motors
Technical Specifications
Bearings
Standard
Cooling Type
Axial Blower
Brake
Electrically released
Feedback Device
Digital servo feedback
Motor Length Code
D
Motor Size Code
134
Mounting
Flange and foot mounting
Shaft Type
Without shaft seal, with balanced with entire key
Power Connection Type
Power Plug (Blower with plug)
Power Connection Position
Top
Product Type
AC Induction Motor
Shaft End (Side B)
Without shaft end
Peak Torque
74 Nm
Rated Speed
3000 rpm
Maximum Current
84.5 A
Incremental Encoder
Yes (with Hiperface interface)
Flange Size
130 mm
Motor Type
Synchronous Servomotor
Ambient Temperature Range
0-40 Degrees Celsius
Motor Designation
2AD
Frequently Asked Questions
How does the minimum cross-section of the power connection influence the electrical integration of the 2AD134D-B35OB1-CS26-B2N1?
The motor requires a minimum power connection cross-section of 10 mm² to ensure efficient current flow. This prevents voltage drops and overheating during continuous operation.
What impact does the permissible ambient temperature range have on the operational reliability of the 2AD134D-B35OB1-CS26-B2N1?
This motor operates reliably between 0 and 40 °C ambient temperatures. Staying within this range ensures optimal insulation performance and prevents thermal stress damage.
How does the mounting construction affect the installation flexibility of the 2AD134D-B35OB1-CS26-B2N1?
The combined flange and foot mounting enables versatile installation orientations. This design supports both horizontal and vertical configurations without compromising motor stability.
In what ways does the rated current parameter influence the thermal management requirements for the 2AD134D-B35OB1-CS26-B2N1?
Operating at a rated current of 50 A generates significant heat during prolonged use. Adequate cooling strategies must be implemented to maintain safe operating temperatures.
How does the class of blower protection affect the motor’s performance in dusty or humid environments?
The IP24 blower protection safeguards against solid objects larger than 12.5 mm and dripping water. This level of protection helps maintain blower efficiency and prevents premature component wear.
Common Misspellings
2AD134D B35OB1 CS26 B2N1
2AD134DB35OB1CS26B2N1
2AD134D-B350B1-CS26-B2N1
2AD134D-B35OB1-CS26-B2N1
2AD134D-835O81-CS26-82N1
2AD134DB350B1CS26B2N1
Internal Product Review

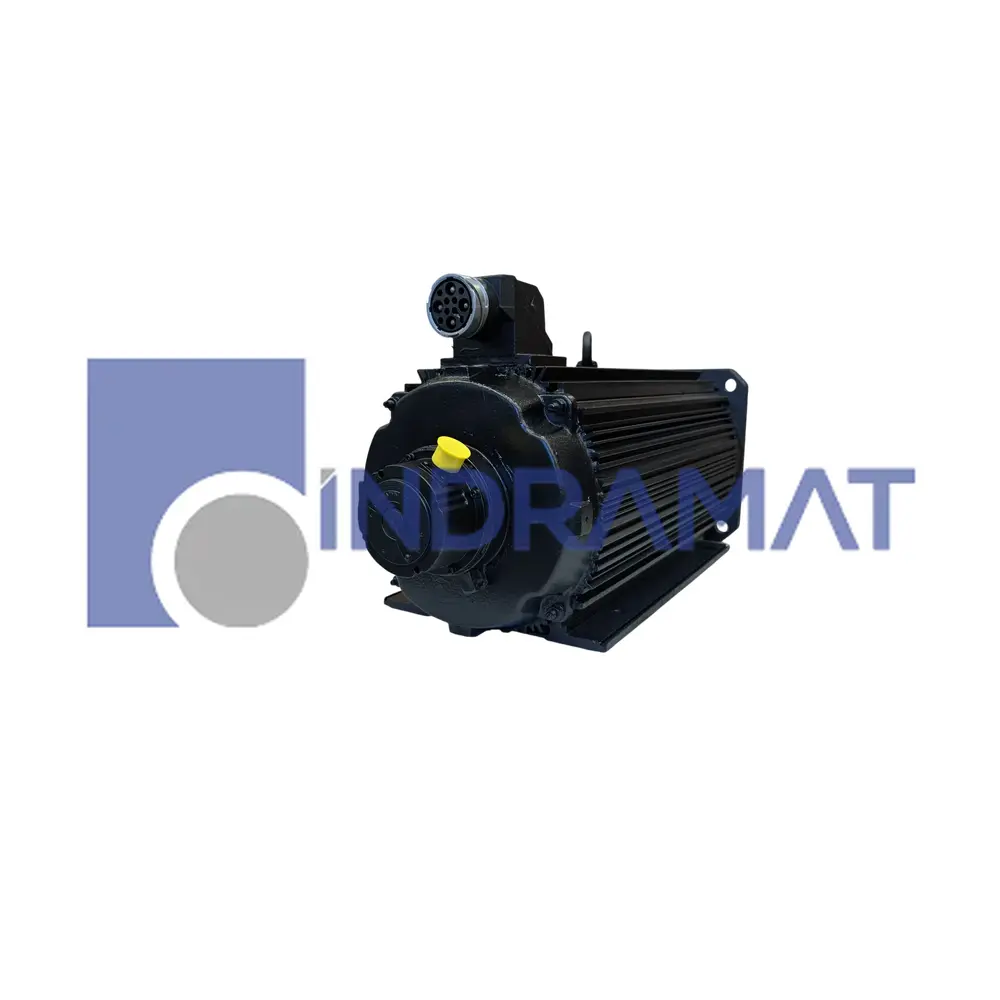

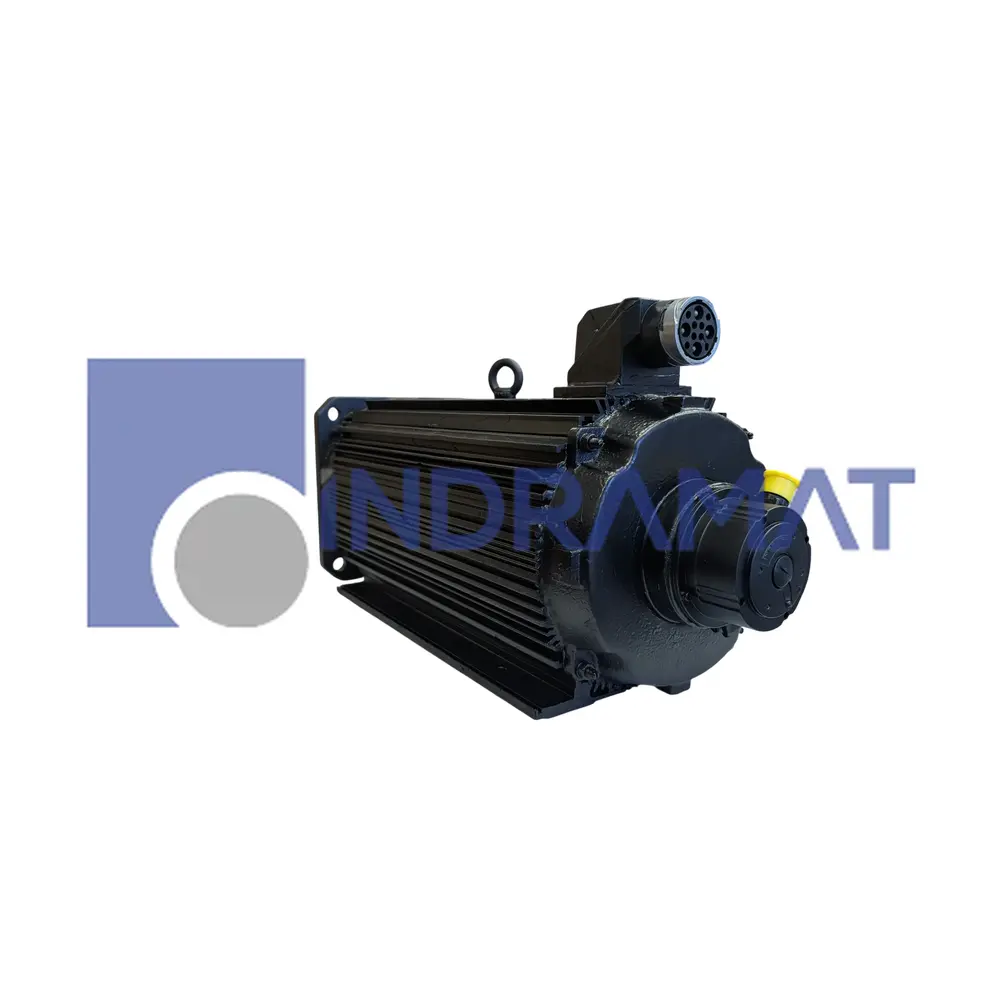

The 2AD134D-B35OB1-CS26-B2N1 is an AC induction motor by Bosch Rexroth Indramat with a 80 Nm torque electrically released brake. It features axial blower cooling, flange mounting, and digital servo feedback, ensuring precise control and reliability. It supports efficient performance in 0 - 40°C ambient conditions.
Shipping & Payment Options
Warranty
Repair
We offer a repair service for the 2AD134D-B35OB1-CS26-B2N1.
