2AD134D-B35OB1-DS06-B2N1
2AD 3-Phase Induction Motors

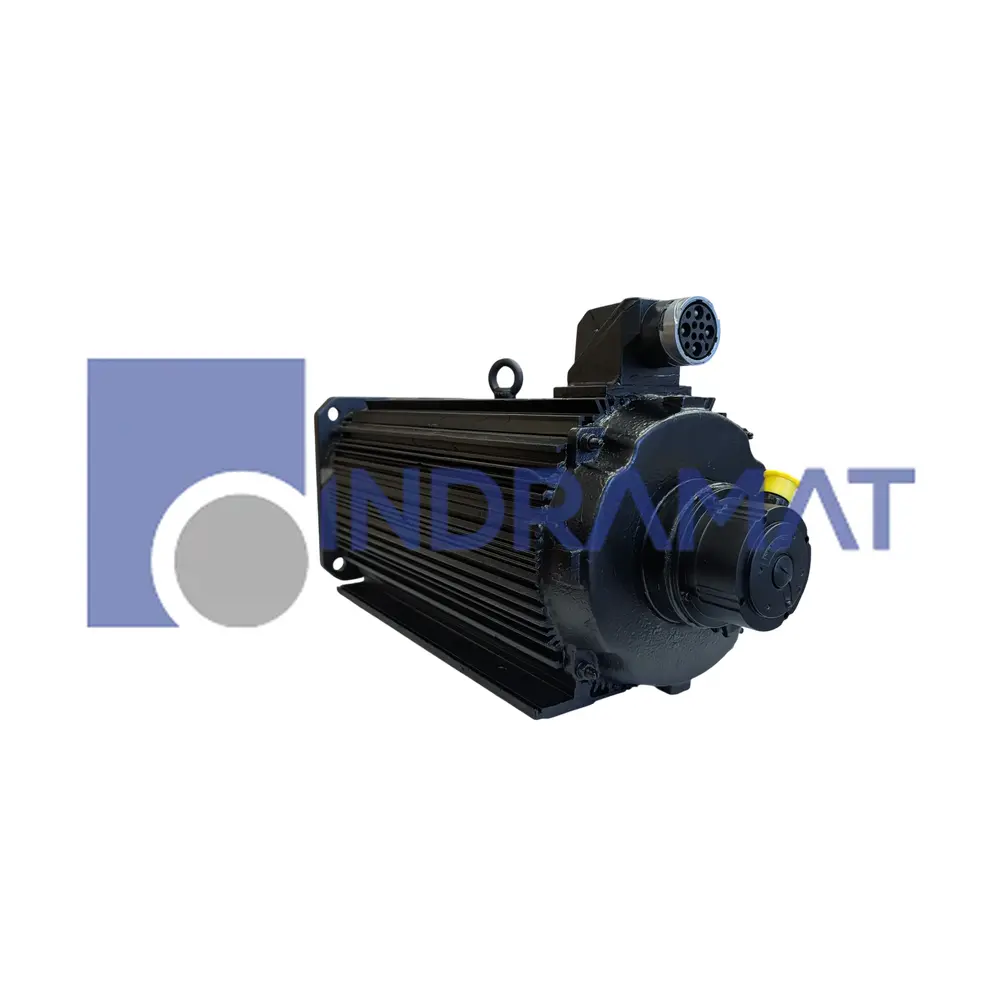

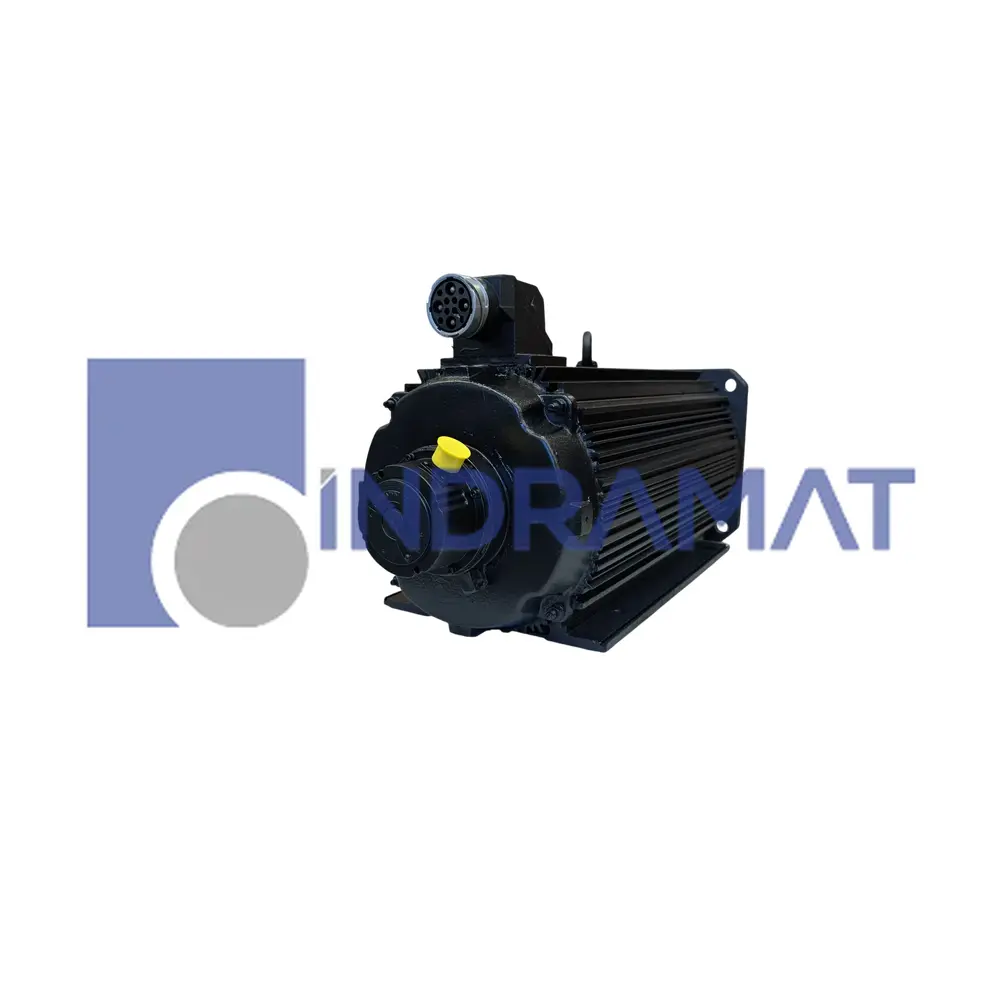

The Bosch Rexroth Indramat 2AD134D-B35OB1-DS06-B2N1 from the 2AD 3-Phase Induction Motors series by Bosch Rexroth Indramat combines compact packaging with robust performance. This Product Type: AC Induction Motor is designated Motor Designation: 2AD with a Motor Size Code: 134 frame and Motor Length Code: D profile, delivering precise control as an Motor Type: AC Servo Motor. It supports continuous operation under a Duty Cycle: Continuous rating and is engineered for a Nominal Voltage: 400 VAC supply with variable Nominal Current profiles based on winding and load. Weighing Weight: Approximately 50 kg (depending on final configuration), this device offers a high power density in industrial automation applications.
Reliability is ensured by a Bearings: Standard configuration featuring lifetime prelubrication and deep-groove ball bearings that accommodate radial and axial forces. Thermal management is accomplished with an Cooling Type: Axial Blower integrated fan and directed airflow over the surface, while structural integrity is maintained through Mounting: Flange and foot mounting options. The shaft is produced Shaft Type: Without shaft seal, with balanced with entire key in compliance with DIN standards, and the Power Connection Type: Power Plug (Blower with plug) is located at the Power Connection Position: Top for simplified installation. Ambient conditions from Ambient Temperature Range: 0-40 Degrees Celsius are supported, and the unit features Feedback Device: Digital servo feedback for high-resolution position sensing. Notably, the motor is supplied Brake: Without holding brake, and must be paired with a compatible drive controller and blower.
This IP65-protected device offers full dust ingress and water-jet resistance under its Protection Class: IP65 enclosure. There is no Shaft End (Side B): Without shaft end or explosion-protected elements, limiting its use to nonhazardous environments. Simplified keyway design and standardized mounting make the Bosch Rexroth Indramat 2AD134D-B35OB1-DS06-B2N1 an ideal choice for demanding industrial automation tasks requiring precision, durability, and ease of service.
Technical Specifications
Bearings
Standard
Cooling Type
Axial Blower
Brake
Without holding brake
Feedback Device
Digital servo feedback
Motor Length Code
D
Motor Size Code
134
Mounting
Flange and foot mounting
Shaft Type
Without shaft seal, with balanced with entire key
Power Connection Type
Power Plug (Blower with plug)
Power Connection Position
Top
Product Type
AC Induction Motor
Shaft End (Side B)
Without shaft end
Duty Cycle
Continuous
Motor Type
AC Servo Motor
Nominal Current
Varies (consult datasheet for detailed ratings based on winding and load)
Nominal Voltage
400 VAC
Protection Class
IP65
Weight
Approximately 50 kg (depending on final configuration)
Ambient Temperature Range
0-40 Degrees Celsius
Motor Designation
2AD
Frequently Asked Questions
How does the derating speed affect the performance limits of the 2AD134D-B35OB1-DS06-B2N1 in high-load scenarios?
The derating speed of 1500 rpm defines the threshold for maintaining optimal thermal and mechanical stability. Operating above this speed risks overheating and reduced motor lifespan.
What advantages does the output shaft provide in minimizing vibration and mechanical stress?
The balanced output shaft reduces rotational imbalances, which lowers vibration and mechanical wear. This design enhances smooth operation and extends the motor's service intervals.
How does the power connection influence system integration and maintenance accessibility?
Having the power connection on top simplifies cable routing in compact assemblies. It also improves maintenance access by minimizing interference with adjacent components.
In what ways does servo feedback enhance control precision for the 2AD134D-B35OB1-DS06-B2N1?
Digital servo feedback delivers accurate position and speed signals, improving dynamic response. This feedback enables tighter control loops and enhances process reliability.
How does the insulation class impact the motor’s durability under thermal stress?
The insulation class F supports operation at higher temperatures up to 155°C, providing greater thermal tolerance. This enhances motor reliability under demanding operating conditions.
Common Misspellings
2AD134D B35OB1 DS06 B2N1
2AD134DB35OB1DS06B2N1
2AD134D-B350B1-DS06-B2N1
2AD134D-B35OB1-DSO6-B2N1
2AD134D-835O81-DS06-82N1
2AD134D-835O81-DSO6-82N1
2AD134DB350B1DS06B2N1
2AD134DB35OB1DSO6B2N1
Internal Product Review
The Bosch Rexroth Indramat 2AD134D-B35OB1-DS06-B2N1 is a 3-phase AC servo motor with a 134 mm frame size. It offers features like axial blower cooling, flange and foot mounting, and digital servo feedback. This motor is ideal for applications in machine tools, packaging, and automation systems.
