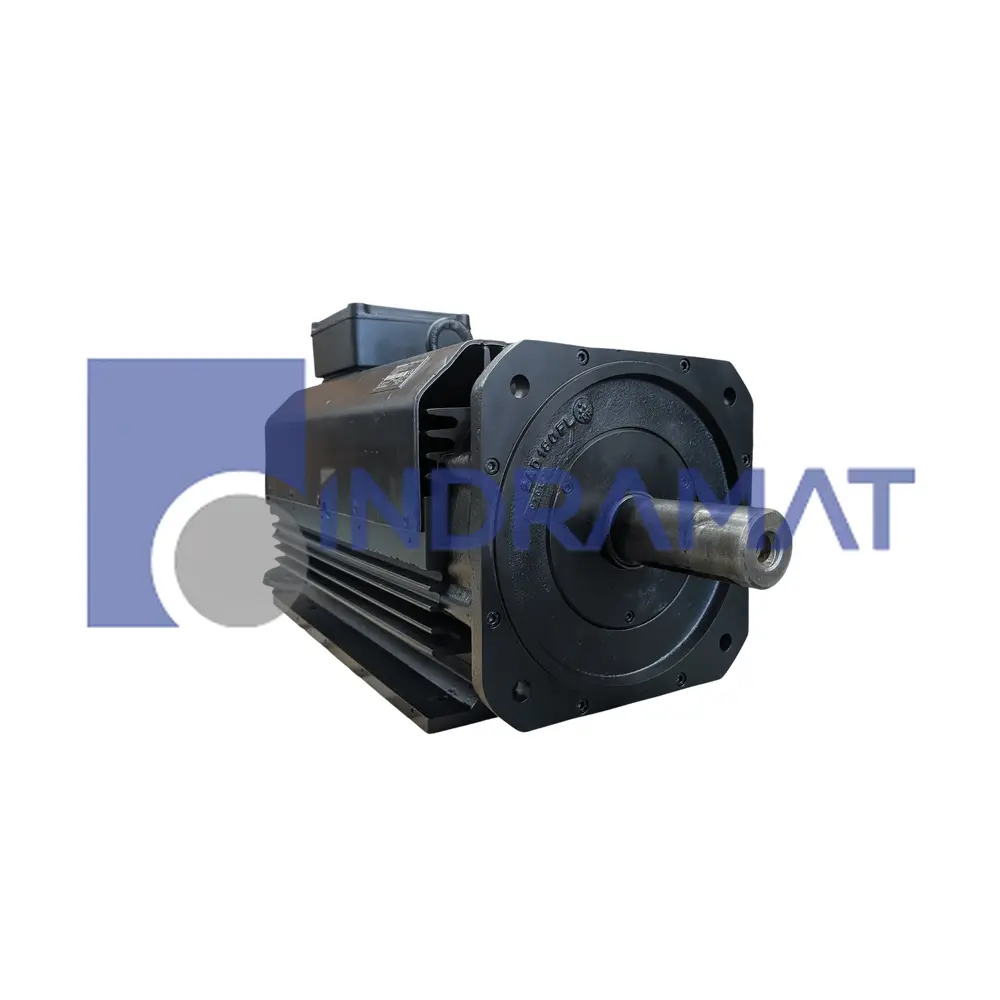

The Bosch Rexroth Indramat 2AD180C-B35OB1-BS23-B2V1 is a robust asynchronous AC induction motor engineered for precision motion control in industrial automation. This manufacturer: Bosch Rexroth Indramat motor belongs to the series: 2AD 3-Phase Induction Motors lineup and carries the part_number: 2AD180C-B35OB1-BS23-B2V1 designation. With a Motor Size Code: 180 and Motor Length Code: C, it delivers consistent torque and speed regulation under dynamic load conditions. Designed for applications requiring both reliability and repeatable positioning, this motor integrates seamlessly with high-performance drive controllers. Its compact form factor and modular design facilitate rapid deployment in both new installations and retrofit projects.
In terms of technical specifications, the 2AD180C-B35OB1-BS23-B2V1 features Product Type: AC Induction Motor architecture optimized for asynchronous operation. It incorporates Bearings: Heavy-duty supports that sustain radial and axial loads while minimizing friction, and an Axial Blower: Cooling Type that ensures effective thermal management during continuous duty. The motor includes an Electrically released: Brake for emergency stops and torque holding, along with a High-resolution motor feedback: Feedback Device system for accurate rotor position sensing. Power is delivered via a Terminal Box: Power Connection Type positioned at the Top: Power Connection Position and routed To Side B: Power Connection Direction for streamlined cabling. The shaft is specified as Without shaft seal, with balanced with entire key: Shaft Type on the drive side (Side B), eliminating potential leakage points.
Operational performance is enhanced by a Vibration Grade: R rating, ensuring smooth operation under varying load profiles and reducing mechanical resonance. The ambient operating range of 0-40 Degrees Celsius: Ambient Temperature Range allows reliable performance in standard industrial environments. The motor’s broad speed control ratio of 1:6 under feed control supports applications from precise low-speed indexing to high-speed continuous motion. Mounting versatility is provided through Flange and foot mounting: Mounting options, accommodating diverse machine tool and conveyor configurations. With a balanced rotor and optimized winding layout defined by Winding Code: BS, the motor exhibits low acoustic noise and minimal torque ripple.
System integration is straightforward when paired with Rexroth’s proven inverter drives and automation controllers, leveraging built-in feedback compatibility and regenerative braking support. Typical target applications include packaging machinery, printing presses, main spindle drives for machine tools, and high-performance servo drive systems. Installation flexibility is further enhanced by optional radial blowers and selectable mounting kits to suit foot installation or flange attachment. The combination of high reliability, precision feedback, and modular mounting makes the 2AD180C-B35OB1-BS23-B2V1 motor ideal for demanding industrial processes requiring accurate speed and position control.
Bearings
Heavy-duty
Cooling Type
Axial Blower
Brake
Electrically released
Feedback Device
High-resolution motor feedback
Motor Length Code
C
Motor Size Code
180
Mounting
Flange and foot mounting
Shaft Type
Without shaft seal, with balanced with entire key
Power Connection Direction
To Side B
Power Connection Type
Terminal Box
Power Connection Position
Top
Product Type
AC Induction Motor
Shaft End (Side B)
Without shaft end
Vibration Grade
R
Winding Code
BS
Ambient Temperature Range
0-40 Degrees Celsius
Motor Designation
2AD
