MDD071B-N-040-N2S-095PB1
MDD Synchronous Motors

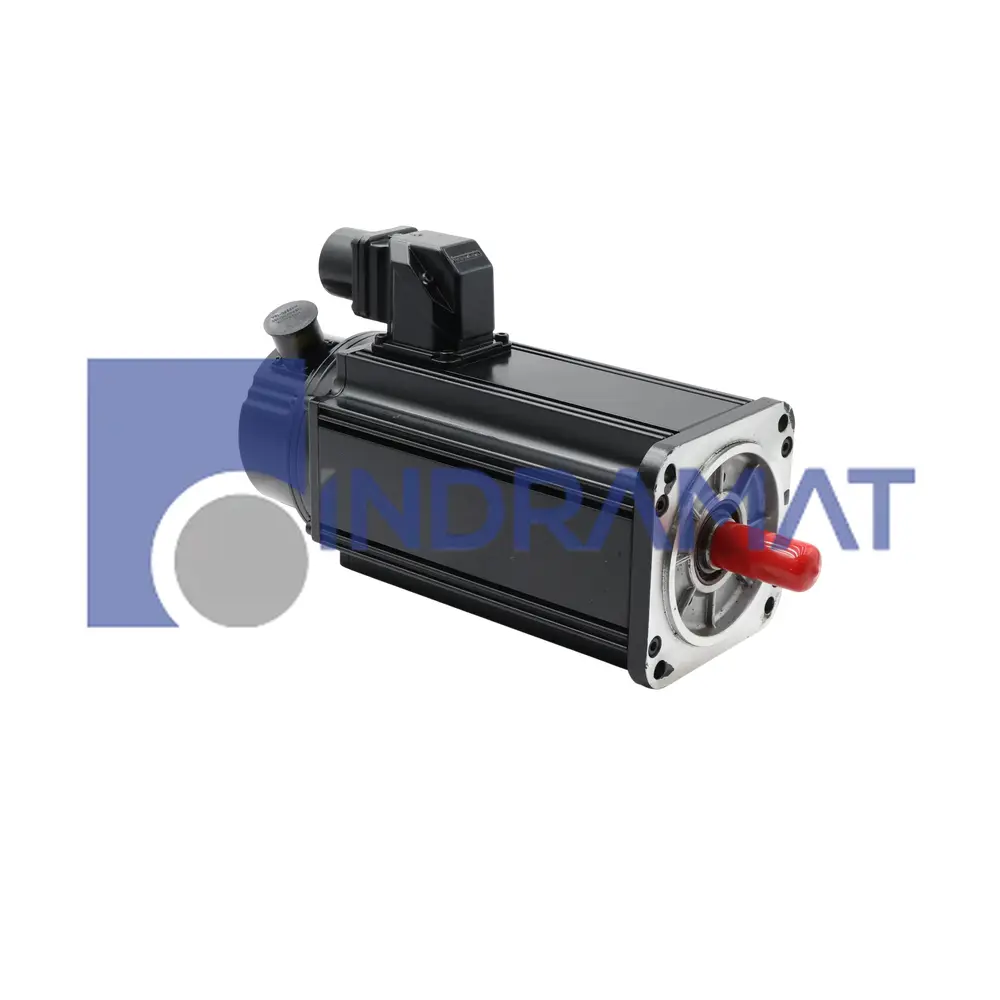

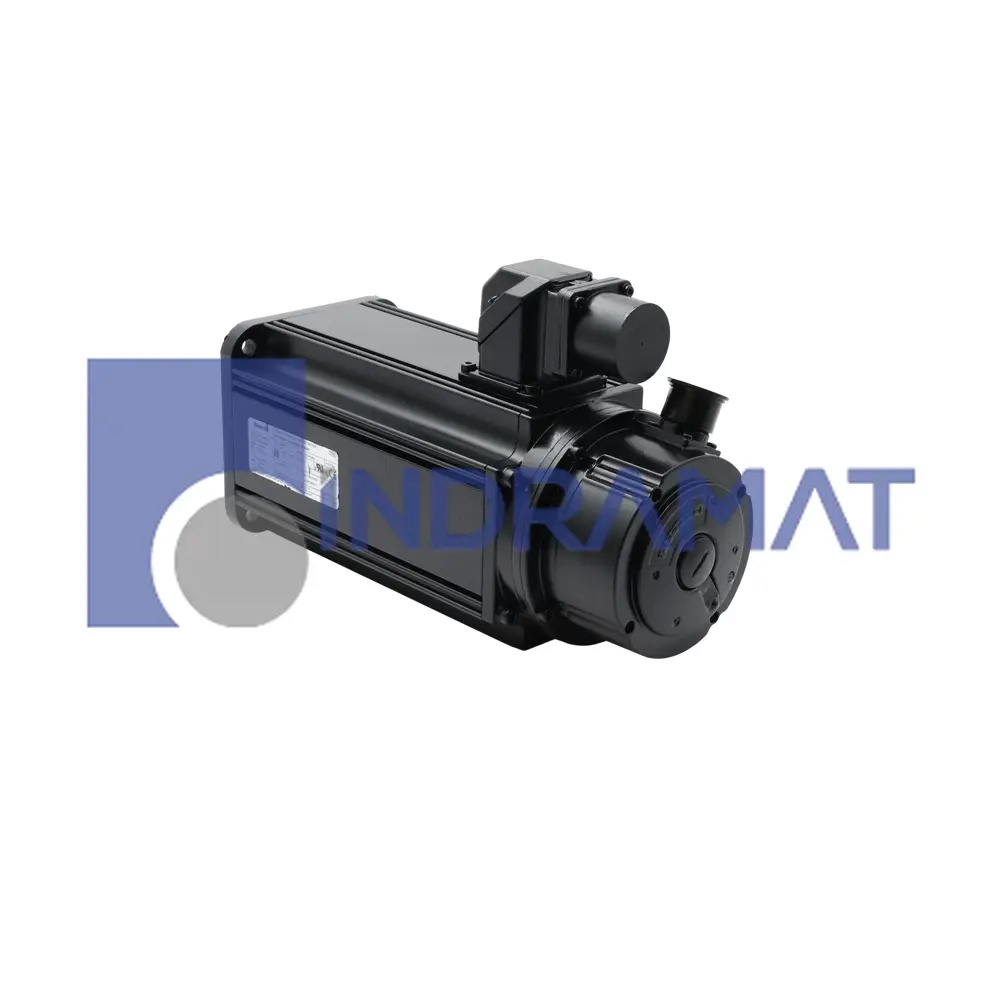

The Bosch Rexroth Indramat MDD071B-N-040-N2S-095PB1 is a high-precision motor from the MDD Synchronous Motors series, designed as a Motor for digital drive controllers. Engineered for responsive control, it integrates seamlessly with Bosch Rexroth Indramat digital drive architectures. Its compact Motor Size: 071 and Motor Length Code: B enable installation in space-constrained applications without sacrificing torque performance. The model name itself—MDD071B-N-040-N2S-095PB1—signifies a standardized housing and advanced feedback option.
Featuring a Continuous Torque at Standstill of 4.4 Nm and a Holding Brake Torque of 3.0 Nm, this motor ensures stable positioning under load. The Nominal Speed: 4000 min⁻¹ rating delivers rapid dynamic response, while the Standard Balancing reduces vibration and noise in high-speed operation. A precision Centering Diameter: 95 mm and a keyed Shaft Type: keyway facilitate accurate coupling to downstream components. Robustness is further enhanced by a Shaft Seal and a Housing: Standard enclosure that protect internal bearings. Connectivity is achieved via a side-mounted Connection Type: Connector in the Connection Direction: Side B orientation, and positional feedback is handled by the integrated Motor feedback: Digital servo feedback (DSF) system.
With its integrated blocking brake and engineered sealing, the MDD071B-N-040-N2S-095PB1 offers exceptional reliability in demanding industrial environments. The standardized form factor and modular feedback interface simplify commissioning and maintenance. Ideal for precision automation, robotics, and digital motion control, this motor delivers uninterrupted performance and precise positioning over extended duty cycles.
Technical Specifications
Balancing
Standard
Holding Brake
With blocking brake
Holding Brake Torque
3.0 Nm
Centering Diameter
95 mm
Housing
Standard
Motor feedback
Digital servo feedback (DSF)
Continuous Torque at Standstill
4.4 Nm
Motor Length Code
B
Motor Size
071
Nominal Speed
4000 min⁻¹
Shaft Seal
With shaft seal
Shaft Type
keyway
Connection Direction
Side B
Connection Type
Connector
Product Type
Motor for digital drive controllers
Shaft End
Standard (without side B shaft end)
Frequently Asked Questions
How does the blocking brake contribute to performance stability in MDD071B-N-040-N2S-095PB1?
The MDD071B-N-040-N2S-095PB1 features a blocking brake that enhances performance stability by securely keeping the load in place during a power failure or instantaneous stop. This mechanism is particularly beneficial in applications that require precise positioning as it prevents undesirable motion.
How does a side B connection influence system design with MDD071B-N-040-N2S-095PB1?
The side B connector configuration makes this component a versatile choice as it permits lateral wiring connections. This thoughtful design also allows it to fit into compact spaces and hence facilitates effective wiring routing.
What advantages does the connection of the keyway shaft type to MDD071B-N-040-N2S-095PB1 have?
The type of shaft keyway type forms a very solid mechanical link toward the motor and the interconnected devices. This connection guarantees maximum torque transmission, making it ideal for applications involving frequent and speedy movements.
How does the continuous torque ensure effective operation in MDD071B-N-040-N2S-095PB1?
Based on a steady torque of 4.4 Nm, this motor provides reliable force output whether in stillness or at its rated speed; thus virtually all related loads can be handled easily. This attribute is crucial in designs where it is necessary a dependable power and performance be maintained.
How does digital servo feedback enhance performance of MDD071B-N-040-N2S-095PB1?
Users rely on the digital servo feedback system to receive real-time updates on position and speed as it is equipped with one. As a result, the MDD071B-N-040-N2S-095PB1 can operate delicately and effectively in all applications that require precision.
Common Misspellings
MDD-071B-N-040-N2S-095PB1
MDD071B N 040 N2S 095PB1
MDD071B-N-040-N2S-095-PB1
MDD071BN040N2S095PB1
MDD71B-N-040-N2S-095PB1
MDDO71B-N-040-N2S-095PB1
MDDO71B-N-O4O-N2S-O95PB1
mdd071b-n-040-n2s-095pb1
Internal Product Review
The MDD071B-N-040-N2S-095PB1 basically stands out owing to its integral blocking brake, which not only supports robust torque but also ensures object stillness during emergencies. The unit boasts solid dimensions plus enabling it to merge seamlessly into the standard mechanical setups while governing digital control mechanics.
