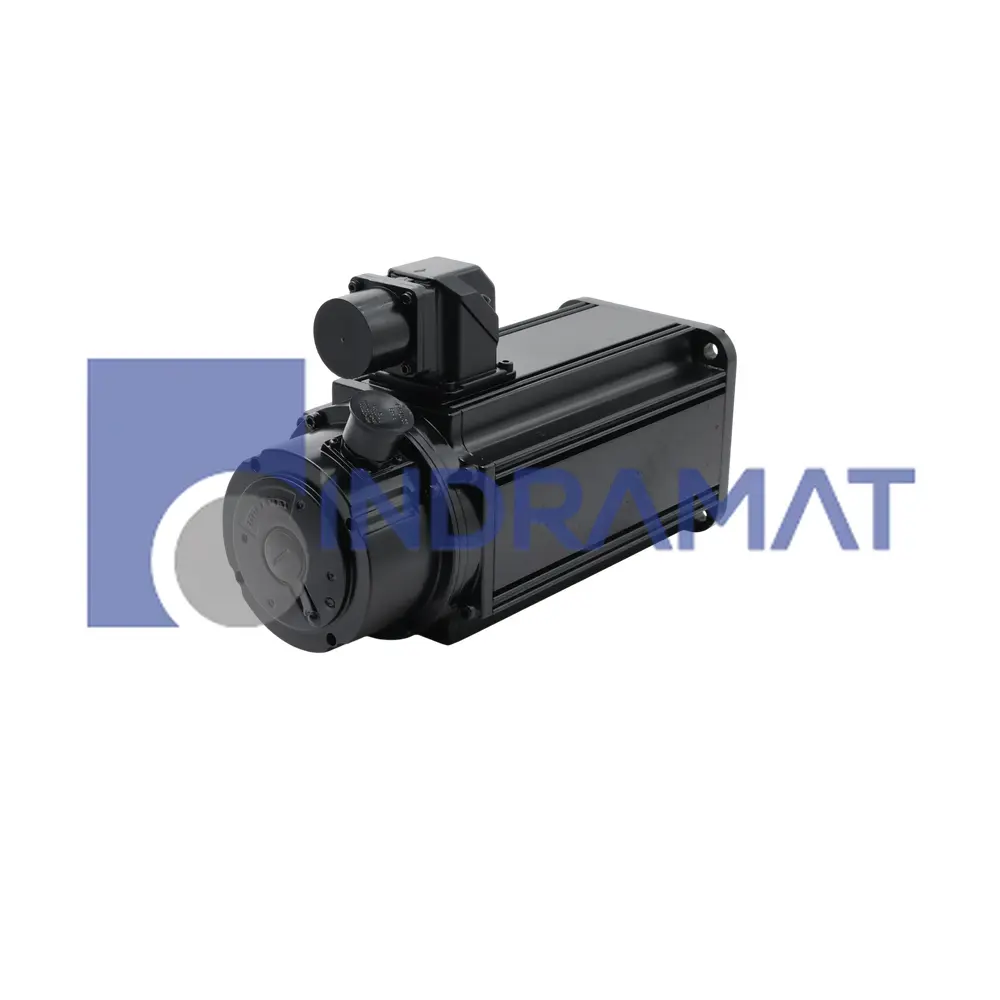

The Bosch Rexroth Indramat MDD071C-N-030-N2T-095GL1 servo motor is part of the renowned MDD Synchronous Motors lineup, designed for high-precision digital drive applications. This model, with Motor Size 071 and Motor Length Code C, delivers a Nominal Speed of 3000 min⁻¹ and boasts a compact Centering Diameter of 95 mm for seamless integration into space-constrained systems. Manufactured by Bosch Rexroth Indramat, the MDD071C-N-030-N2T-095GL1 features a robust permanent-magnet design and an advanced encoder system for commutation, rotor position, and speed control. The built-in blocking brake provides reliable holding under load, offering a Holding Brake Torque of 3.0 Nm to secure the motor shaft when at rest.
Across its technical envelope, the MDD servo motor is engineered for responsive and accurate performance. The integrated digital servo feedback (DSF) system works in tandem with an Integrated multiturn absolute encoder to continuously monitor rotor position and eliminate the need for homing routines. With a Continuous Torque at Standstill of 6.6 Nm, this motor sustains high static loads without compromise. Its Plain shaft design, equipped With shaft seal, ensures durable power transmission and protection against contaminants. The motor’s Standard balancing and Standard housing construction contribute to low vibration and extended bearing life under dynamic operating conditions.
Operational reliability is enhanced through thoughtful design features. The With blocking brake system engages instantaneously to prevent unwanted motion during power interruptions or maintenance, while the Shaft Seal safeguards internal components from dust and moisture ingress. Cable management is simplified by the Connector Connection Type and the Left Connection Direction, reducing installation time and minimizing potential error. The motor’s plain shaft with Standard (without side B shaft end) termination allows straightforward coupling to gearboxes or pulleys, ensuring efficient torque delivery. Designed as a Motor for digital drive controllers, it seamlessly interfaces with IndraDrive control platforms for unified parameter configuration and diagnostics.
Integration into automated machinery is straightforward, thanks to the motor’s standardized mounting dimensions and connector layout. As part of the MDD Synchronous Motors series, this unit is fully compatible with Bosch Rexroth Indramat control electronics, enabling advanced functions such as electronic nameplate recognition and real-time status monitoring. Its combination of moderate weight, compact Centering Diameter, and high-precision feedback make it ideal for packaging machines, assembly robots, CNC machining centers, and other high-accuracy positioning systems. The MDD071C-N-030-N2T-095GL1 offers a balanced solution of torque density, control fidelity, and operational resilience, streamlining integration and maximizing uptime in demanding industrial environments.
Balancing
Standard
Holding Brake
With blocking brake
Holding Brake Torque
3.0 Nm
Centering Diameter
95 mm
Housing
Standard
Encoder
Integrated multiturn absolute encoder
Motor feedback
Digital servo feedback (DSF)
Continuous Torque at Standstill
6.6 Nm
Motor Length Code
C
Motor Size
071
Nominal Speed
3000 min⁻¹
Shaft Seal
With shaft seal
Shaft Type
Plain shaft
Connection Direction
Left
Connection Type
Connector
Product Type
Motor for digital drive controllers
Shaft End
Standard (without side B shaft end)
