MDD071C-N-030-N2T-095PR0
MDD Synchronous Motors

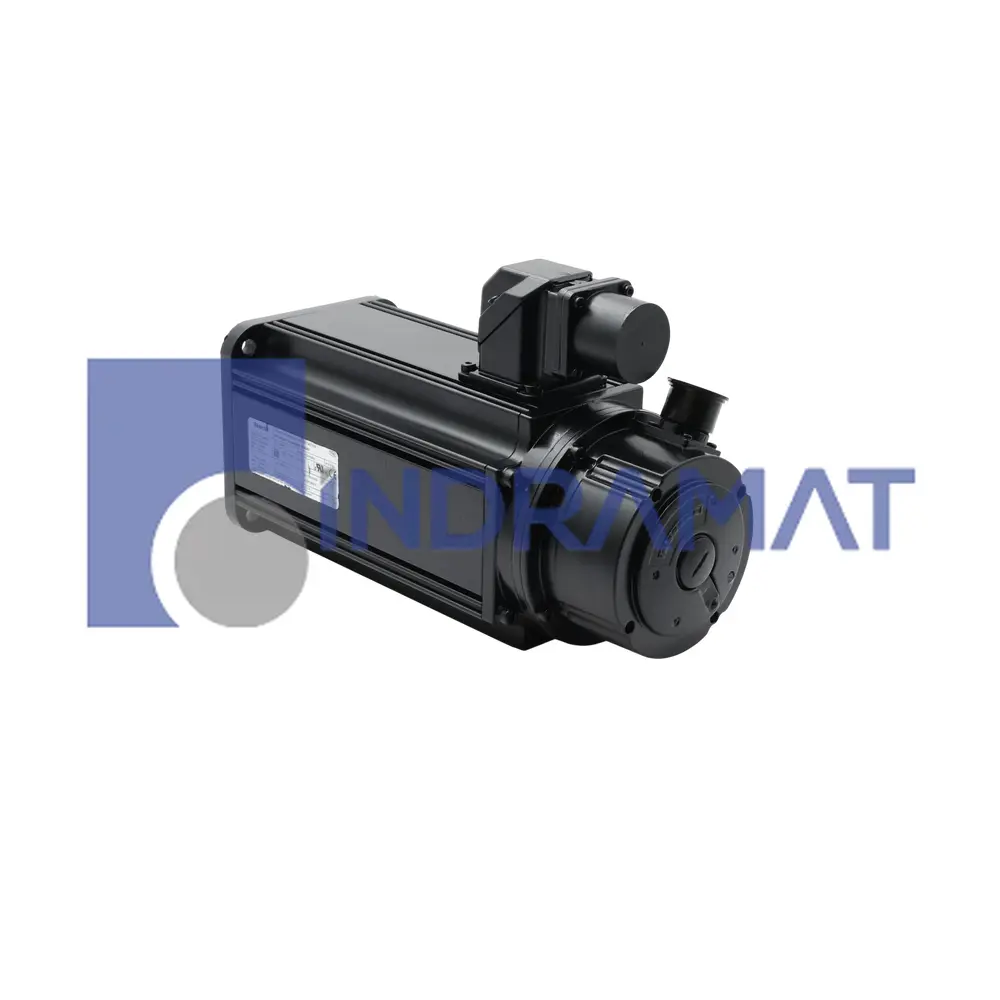

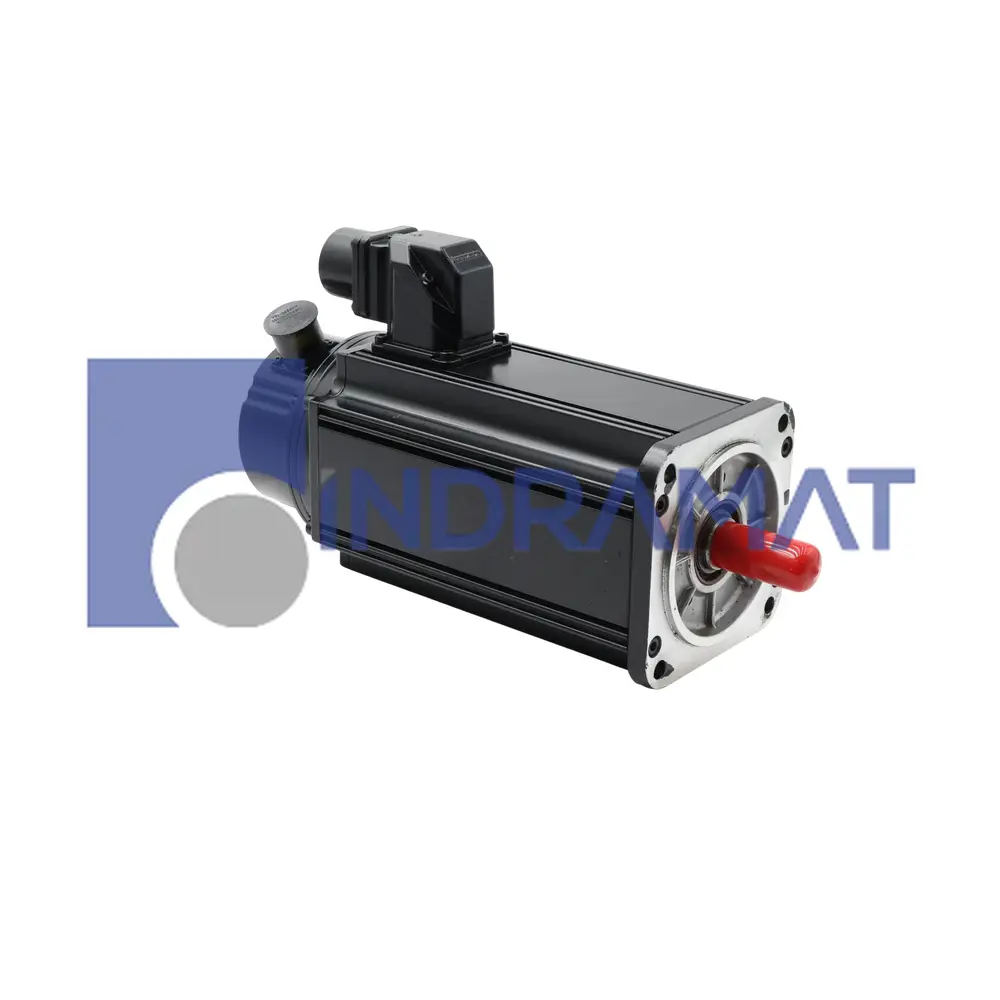

The Bosch Rexroth Indramat MDD071C-N-030-N2T-095PR0 is a precision-engineered device in the MDD Synchronous Motors series, designed as a Motor for digital drive controllers with a motor size 071 and motor length code C frame. This unit delivers a continuous torque at standstill of 6.6 Nm and reaches a nominal speed of 3000 min⁻¹ under rated conditions. Built around a rugged housing standard design, it incorporates an integrated multiturn absolute encoder for reliable position indexing. The motor operates with digital servo feedback (DSF) to support high-bandwidth control loops in demanding automation applications.
Engineered for robustness, the MDD071C model features standard balancing to minimize vibration and extend bearing life during high-speed operation. A shaft seal is integrated to protect internal components against contaminants, paired with a precision keyway shaft type for secure coupling. The absence of a blocking brake is noted by its holding brake without blocking brake configuration, reducing inertia for rapid dynamic response. Thermal stability is enhanced by the standard housing design, while the encoder’s multiturn capability ensures faultless position recall after power loss.
Installation is simplified by a centering diameter of 95 mm and a standard shaft end without side B shaft end interface that matches industry mounting patterns. Electrical hookup is facilitated through a right-facing connector connection type with connection direction right orientation, enabling straightforward panel integration. Together, these features make the MDD071C-N-030-N2T-095PR0 a highly adaptable motor solution for precision-driven machine tools, robotics, and high-performance indexing systems.
Technical Specifications
Balancing
Standard
Holding Brake
Without blocking brake
Centering Diameter
95 mm
Housing
Standard
Encoder
Integrated multiturn absolute encoder
Motor feedback
Digital servo feedback (DSF)
Continuous Torque at Standstill
6.6 Nm
Motor Length Code
C
Motor Size
071
Nominal Speed
3000 min⁻¹
Shaft Seal
With shaft seal
Shaft Type
keyway
Connection Direction
Right
Connection Type
Connector
Product Type
Motor for digital drive controllers
Shaft End
Standard (without side B shaft end)
