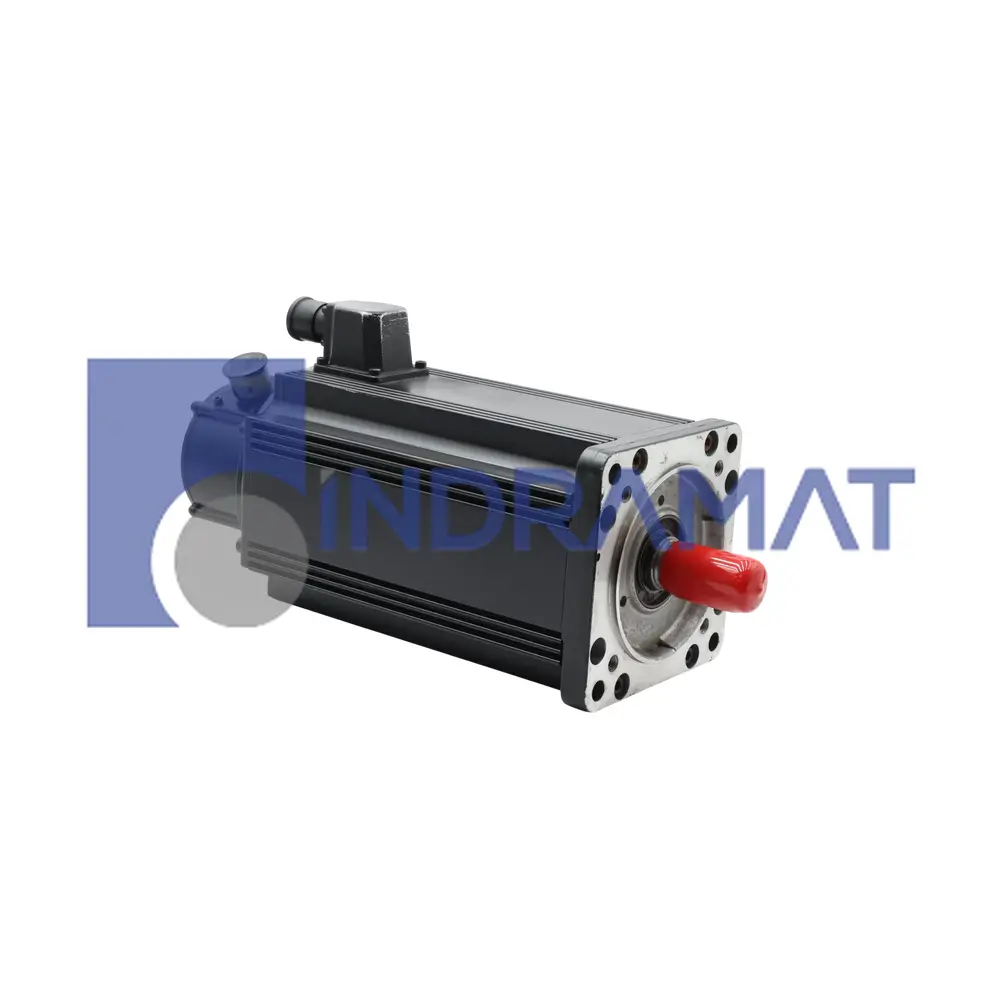

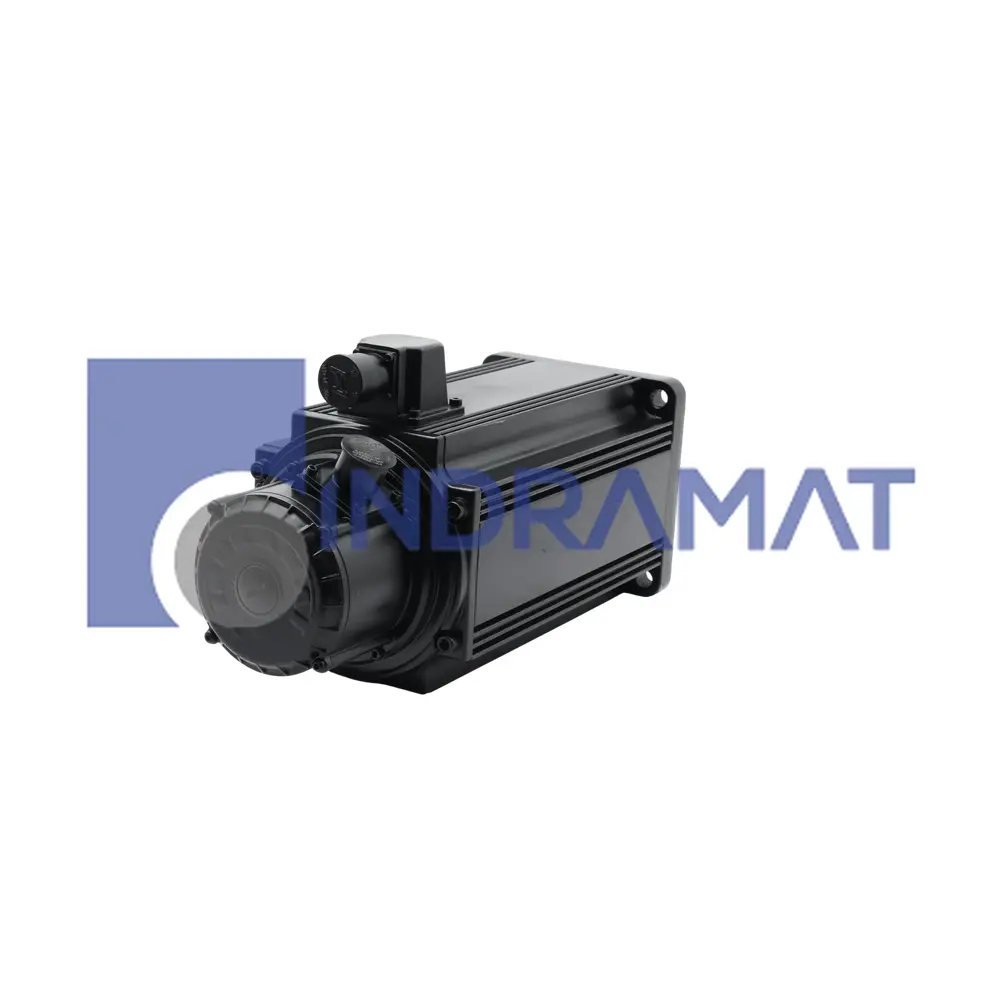

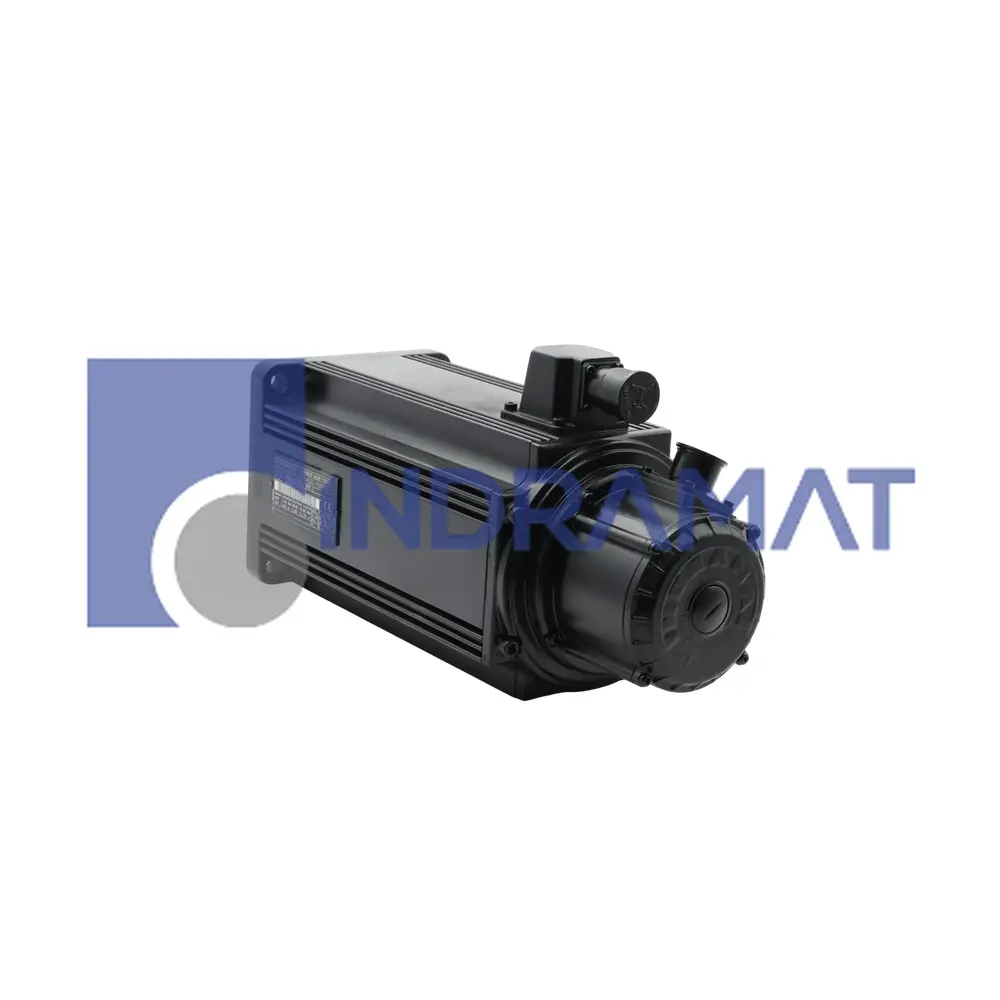

MDD090B-N-020-N2L-110PB1

The MDD090B-N-020-N2L-110PB1 is a high-performance servo motor from Bosch Rexroth Indramat, part of the MDD Synchronous Motors series. This Motor Size 090 unit features a Motor Length Code B housing, designed for robust industrial applications. With a Nominal Speed of 2000 min⁻¹ and Product Type designation as a motor for digital drive controllers, it delivers precise motion control in compact form. The standard housing ensures ease of installation while maintaining structural integrity. Equipped with Balancing rated as Standard, it provides smooth operation across varying speeds.

Technical capabilities of the MDD090B-N-020-N2L-110PB1 include advanced Motor Feedback via digital servo feedback (DSF) for real-time speed and torque monitoring. The motor achieves a Continuous Torque at Standstill of 7.2 Nm under natural convection cooling, increasing to 10.5 Nm with surface cooling. An integrated Holding Brake rated at 6.5 Nm Holding Brake Torque offers secure stationary positioning. The robust Centering Diameter of 110 mm and Shaft Type keyway design guarantee reliable coupling to driven equipment. A Shaft Seal prevents contamination ingress, extending the motor’s service life in demanding environments.

Operational features of this servo motor enhance productivity and safety. The standard balanced configuration reduces vibration and noise, improving machine lifespan. Digital servo feedback ensures high-precision positioning and dynamic response, while the keyway shaft provides positive torque transmission without slippage. The integrated holding brake secures the shaft when power is removed, preventing unintended motion and enhancing operator safety. The compact B-length frame simplifies retrofitting into existing systems without sacrificing performance.

Integration of the MDD090B-N-020-N2L-110PB1 into automated systems is streamlined by its Connection Type connector interface and Connection Direction on Side B. Compatibility with Bosch Rexroth Indramat digital drive controllers allows for plug-and-play commissioning and parameterization. The standard (without Side B shaft end) Shaft End configuration aligns with common machine tool requirements, minimizing customization efforts. This versatile servo motor is ideal for packaging machinery, robotics, and precision assembly applications where reliability, control accuracy, and compact design are paramount.
