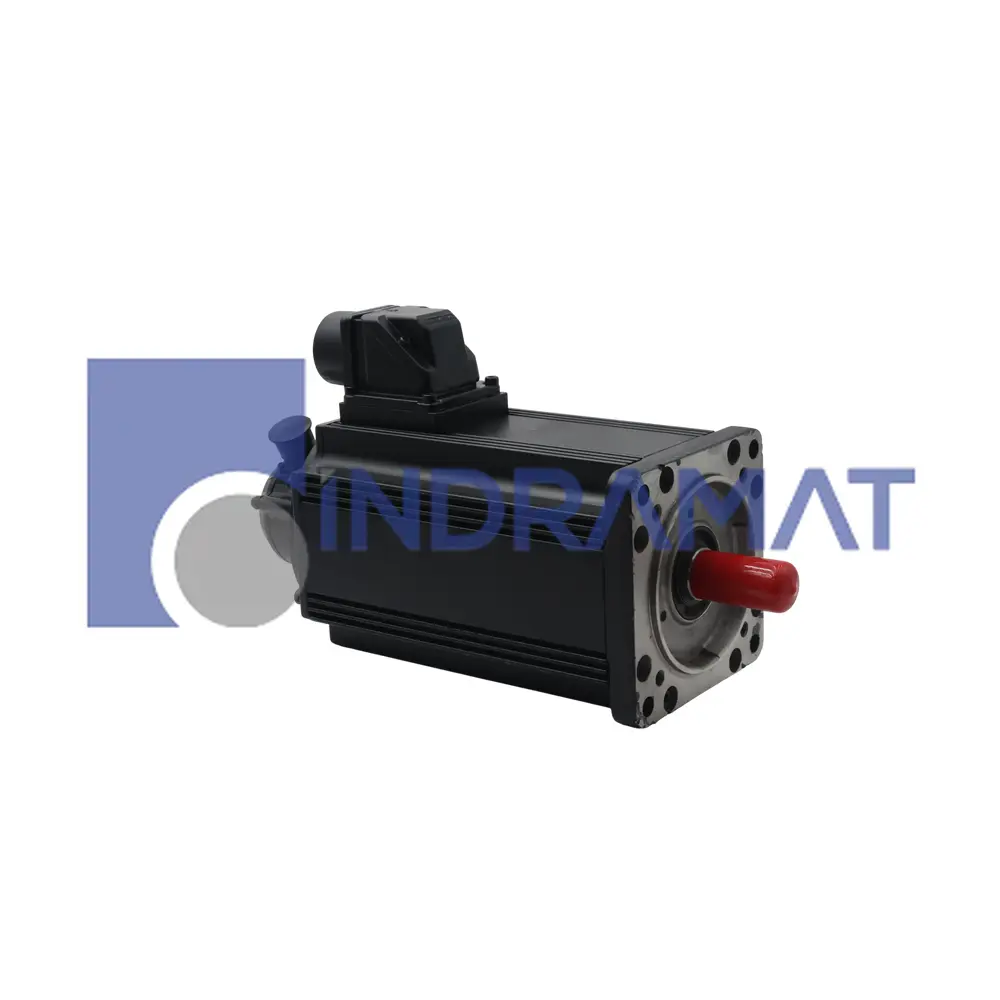

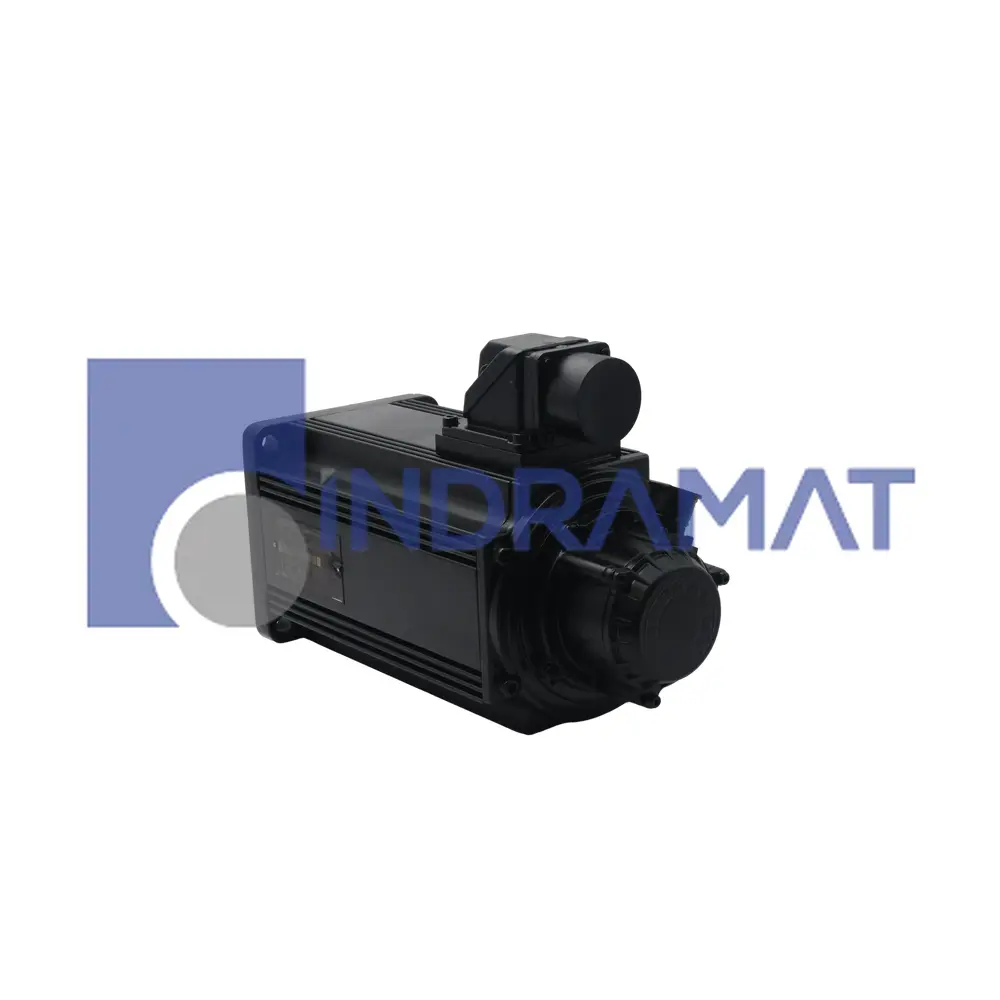

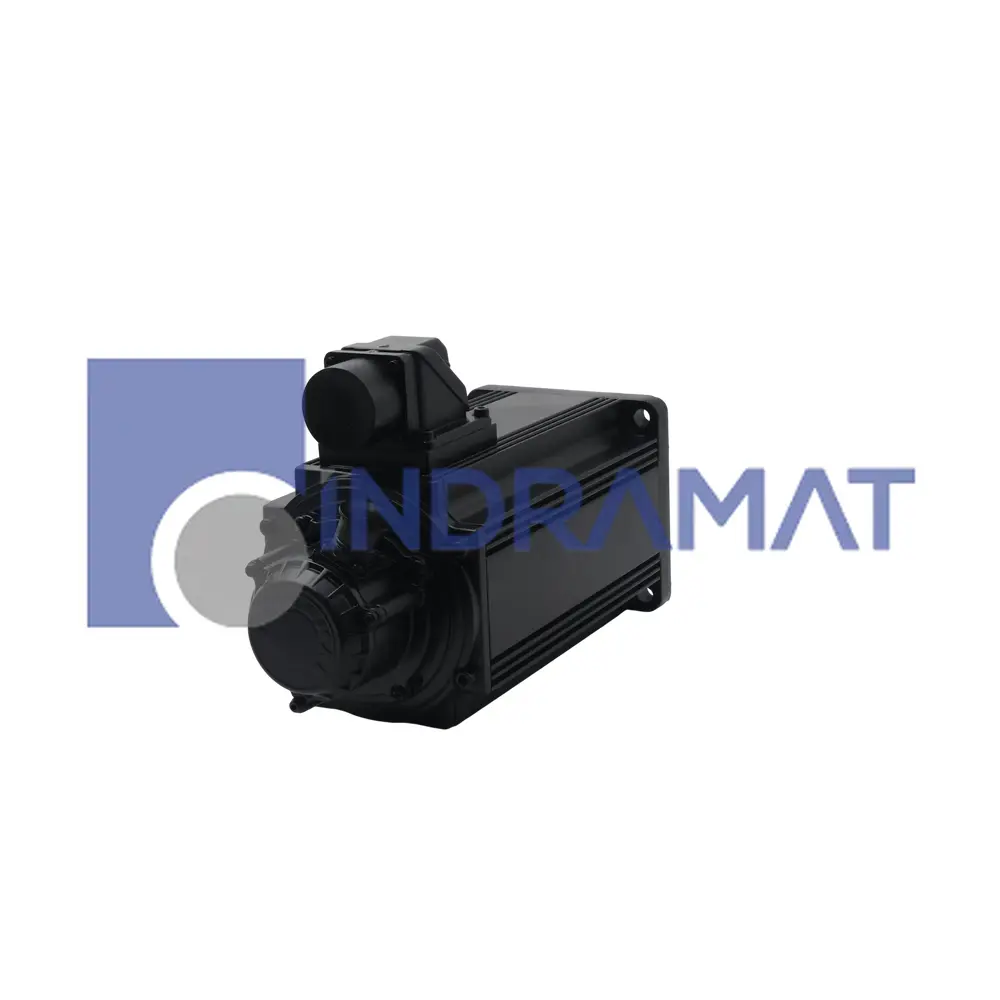

MDD093B-N-040-N2L-110GR1

The Bosch Rexroth Indramat MDD093B-N-040-N2L-110GR1 digital AC servo motor from the MDD Synchronous Motors series is engineered for high-precision motion control applications. This permanent-magnet motor incorporates an integrated encoder for commutation, rotor position, and speed control. It features a Motor Length Code B design optimized for compact installations and a Centering Diameter of 110 mm for seamless mechanical integration. The motor delivers reliable braking performance with an 11 Nm holding brake torque and operates at a nominal speed of 4000 min⁻¹. Its plain shaft configuration ensures straightforward coupling to gearboxes and rotary components, while the Digital Servo Feedback (DSF) system provides accurate, real-time feedback for advanced drive controllers.

Built to exacting technical standards, the MDD093B-N-040-N2L-110GR1 offers continuous torque at standstill of 14.5 Nm under rated conditions, paired with a standard balancing protocol to minimize vibration and noise. The with shaft seal arrangement protects internal components against dust and contamination, maintaining performance over extended service intervals. The motor’s standard housing and right connection direction streamline installation in tight or modular machine assemblies. Connection is facilitated via a robust connector interface, supporting rapid commissioning and maintenance. As a motor for digital drive controllers, it communicates seamlessly with Indramat digital servo drives, leveraging high-resolution feedback, advanced commutation algorithms, and field-oriented control strategies. The plain shaft and standard (without side B shaft end) configuration maximize mechanical flexibility across a variety of coupling options.

Engineered for durability, the MDD093B-N-040-N2L-110GR1 maintains precise performance in demanding industrial environments, benefiting from Bosch Rexroth Indramat’s proven quality and service network. Its blocking brake design ensures secure holding under power loss, making it ideal for safety-critical applications. Integration with Indramat digital drives delivers built-in functions such as auto-tuning, vibration suppression, and position ripple compensation. Application areas span semiconductor manufacturing, precision machining, automated assembly, and robotics, where reliability, repeatability, and seamless system integration are paramount. Maintenance is simplified by the standardized mechanical interfaces and transparent diagnostic feedback from the DSF system, ensuring minimal downtime and long operational life.
