MDD093B-N-040-N2M-110PL1

Name: MDD093B-N-040-N2M-110PL1
Brand: Indramat Motors
SKU: MDD093B-N-040-N2M-110PL1
Price: 846.00 USD
Availability: InStock
Rating: 4.3 (5 reviews)

MDD Synchronous Motors

Rated 4.3 stars (5 total reviews)

Front Left

In-Stock, Ships 3-5 Days

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
sales@indramat-usa.com

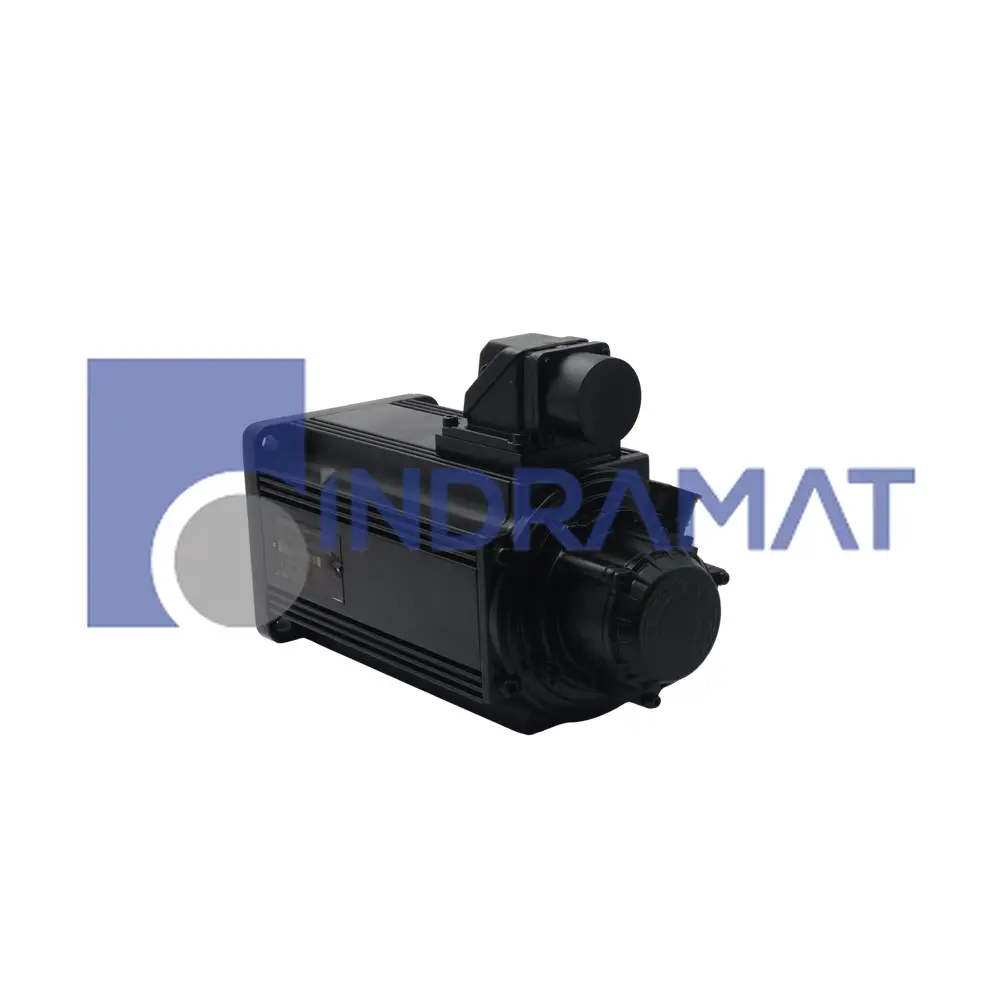

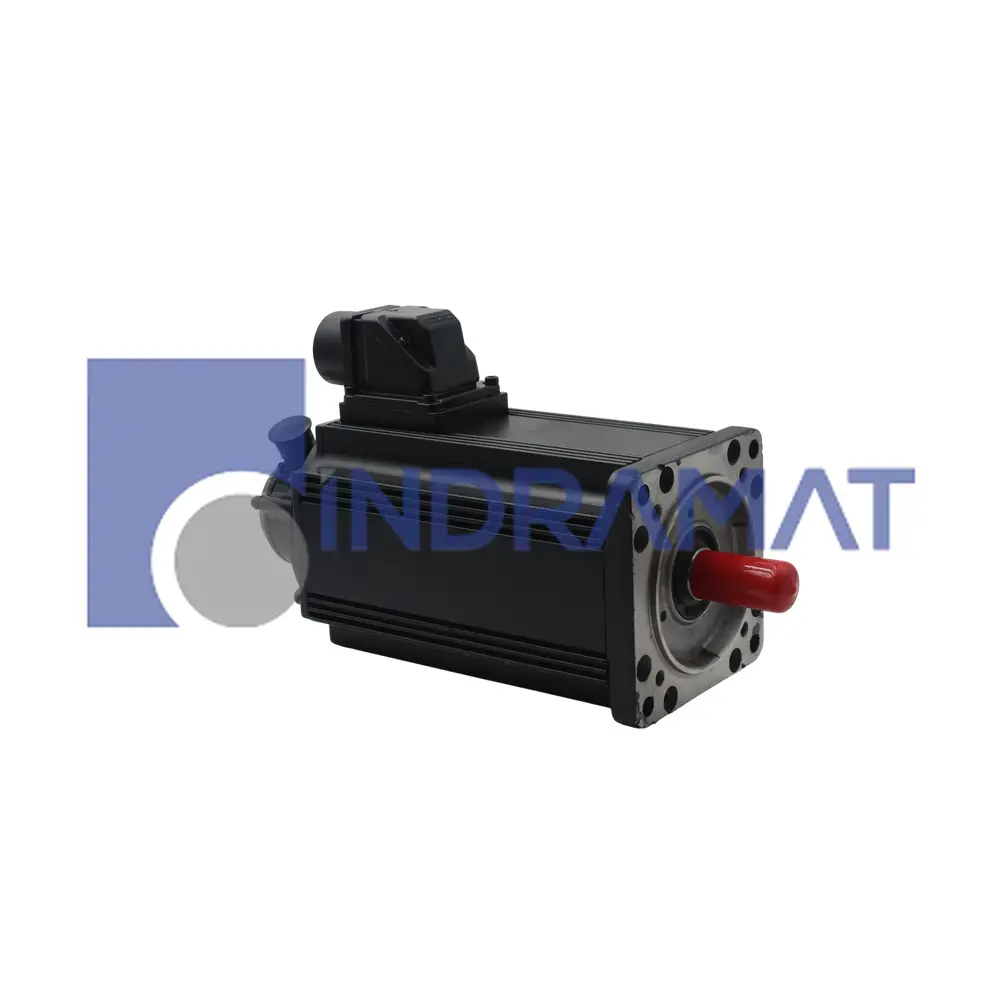

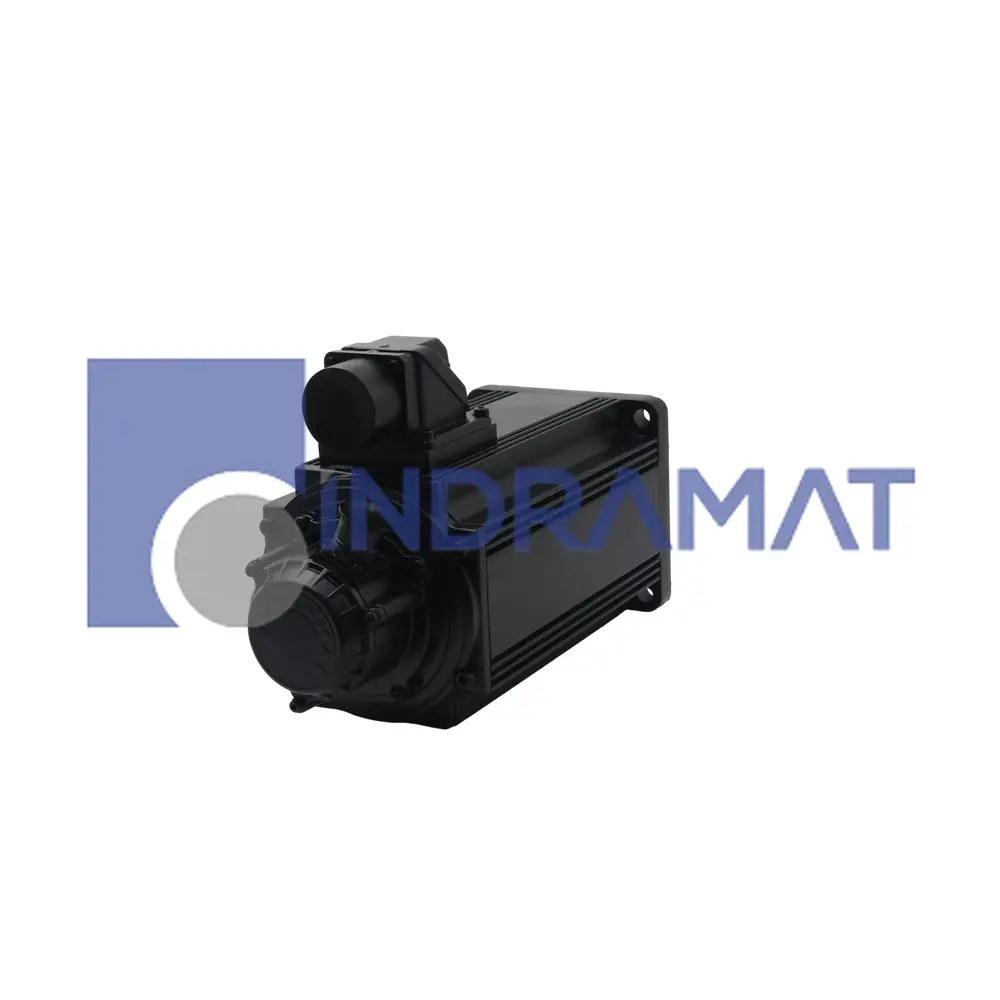

The MDD093B-N-040-N2M-110PL1 motor by Bosch Rexroth Indramat is part of the MDD Synchronous Motors series. It delivers 14.5 Nm continuous torque at standstill, includes a blocking brake with 11 Nm holding torque, and runs at a nominal speed of 4000 min⁻¹. The integrated multiturn absolute encoder and digital servo feedback ensure accurate position control. The shaft uses a DIN keyway on a 110 mm centering diameter with a protective shaft seal.

Technical Specifications

Balancing
Standard

Holding Brake
With blocking brake

Holding Brake Torque
11 Nm

Centering Diameter
110 mm

Housing
Standard

Encoder
Integrated multiturn absolute encoder

Motor feedback
Digital servo feedback (DSF)

Continuous Torque at Standstill
14.5 Nm

Motor Length Code
B

Motor Size
093

Nominal Speed
4000 min⁻¹

Shaft Seal
With shaft seal

Shaft Type
keyway

Connection Direction
Left

Connection Type
Connector

Product Type
Motor for digital drive controllers

Shaft End
Standard (without side B shaft end)

Output Shaft
Shaft With Keyway Per DIN 6885 sh. 1, 8-68 Edition

Frequently Asked Questions

Why is the connection direction on the left for the MDD093B-N-040-N2M-110PL1?

A left-side connection allows easier integration in specific machine layouts. It provides installation flexibility where space constraints exist.

How does the motor length code B impact the MDD093B-N-040-N2M-110PL1 design?

The length code determines the compactness and torque characteristics of the motor. Code B balances motor size with output performance.

What is the advantage of digital servo feedback (DSF) in this motor?

Digital servo feedback enables highly precise motor positioning and speed control. It enhances responsiveness and accuracy in demanding automation tasks.

How does the shaft seal in the MDD093B-N-040-N2M-110PL1 improve reliability?

The shaft seal prevents dust and contaminants from entering the motor. This extends motor life and ensures consistent performance in industrial environments.

Why is balancing important in the MDD093B-N-040-N2M-110PL1?

Balancing reduces vibrations during high-speed operation. This improves motor smoothness and extends the service life of connected machinery.

Common Misspellings

MDD-093B-N-040-N2M-110PL1

MDD093B N 040 N2M 110PL1

MDD093B-N-040-N2M-110-PL1

MDD093BN040N2M110PL1

MDD93B-N-040-N2M-110PL1

MDDO93B-N-040-N2M-110PL1

MDDO93B-N-O4O-N2M-11OPL1

Internal Product Review

The MDD093B-N-040-N2M-110PL1 from Bosch Rexroth Indramat is a digital drive motor with standard housing and a left-side connector. It finds extensive application in packaging lines and print systems where servo precision control is essential. Its specifications include 14.5 Nm continuous torque, 11 Nm holding brake, and a multiturn absolute encoder integrated.
