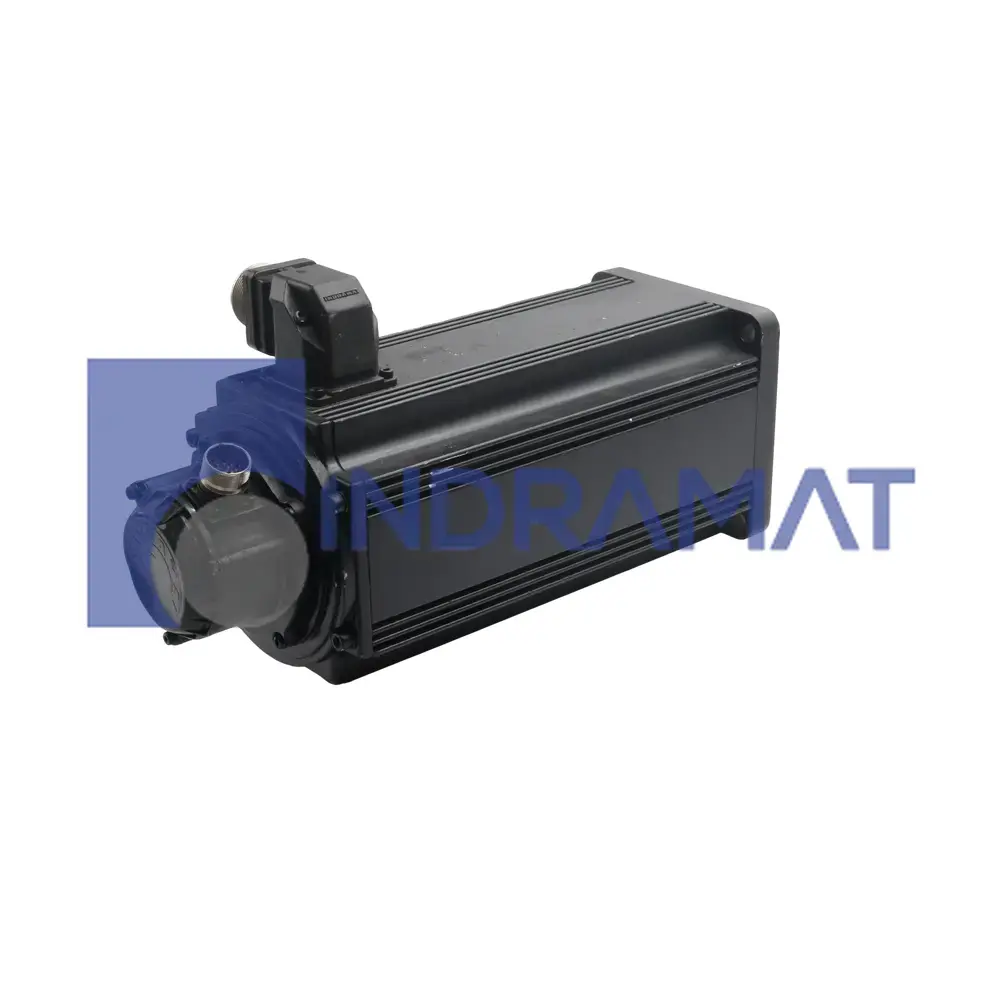

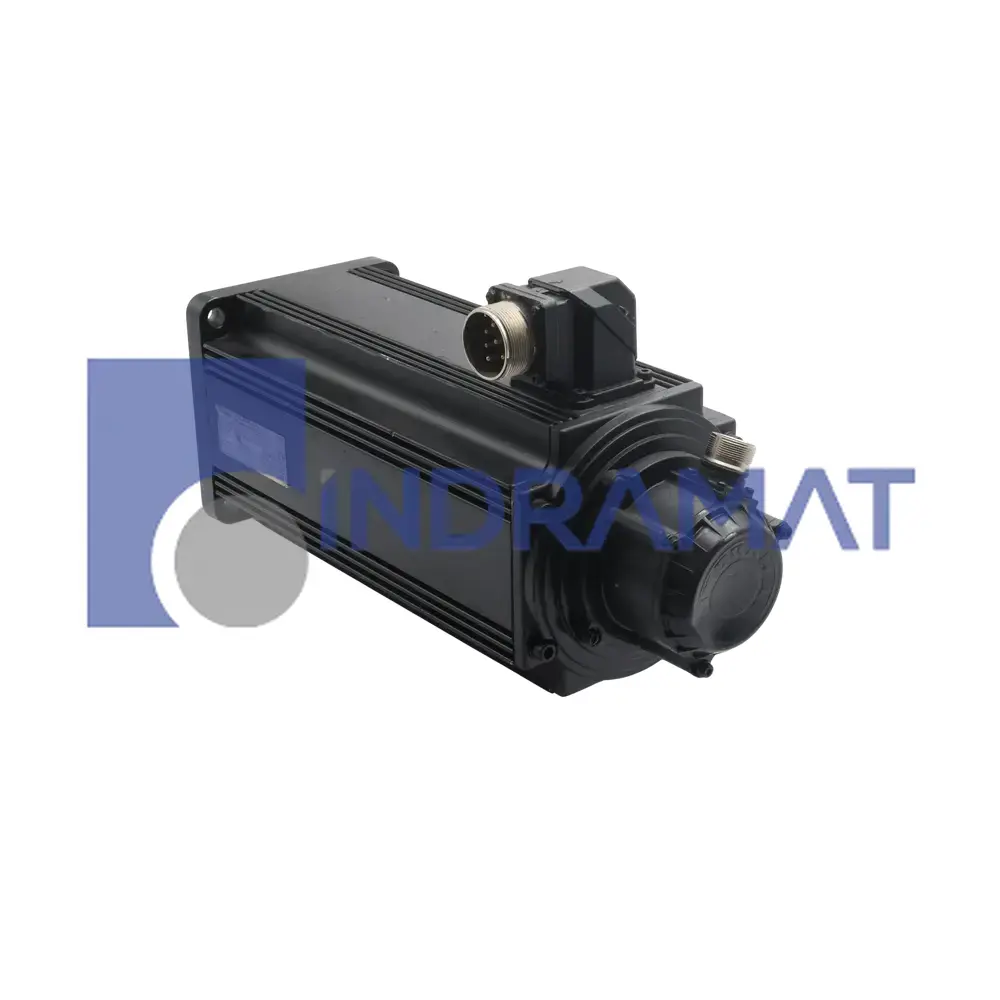

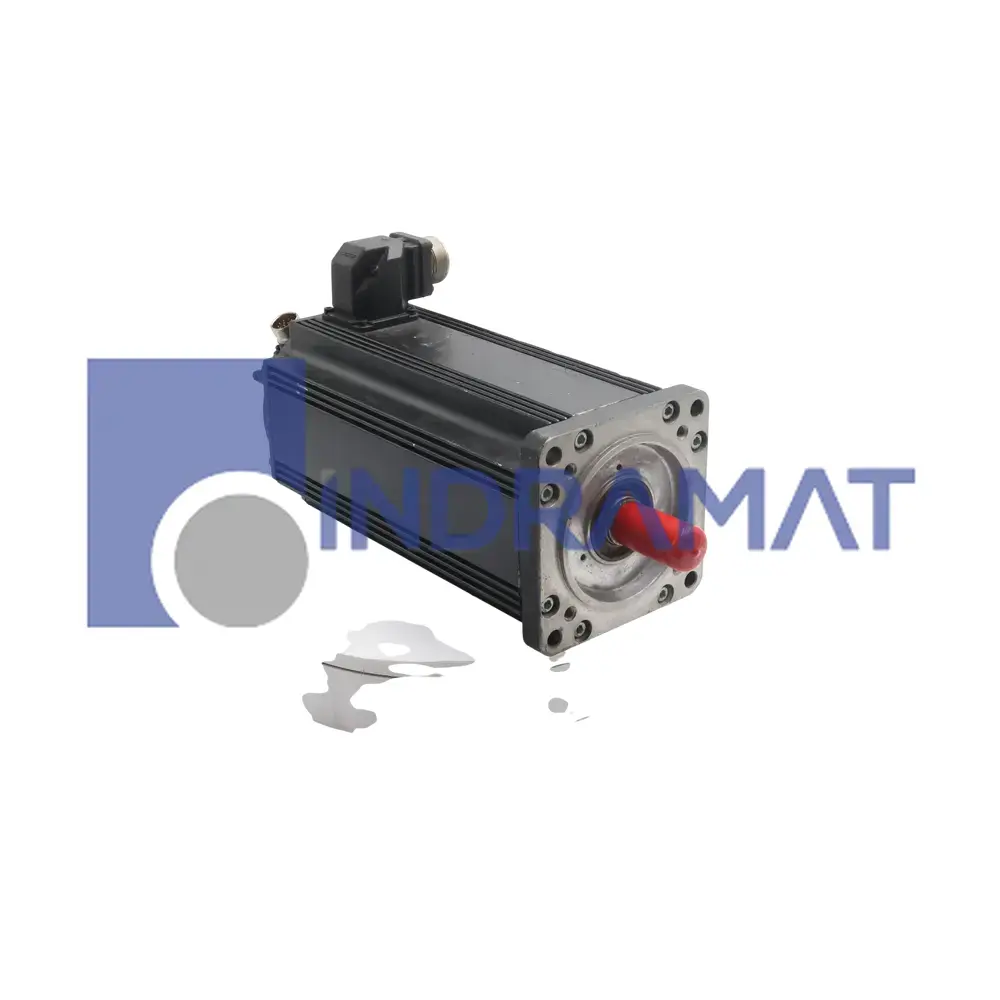

MDD093C-N-020-N2L-110GL0

The Bosch Rexroth Indramat MDD093C-N-020-N2L-110GL0 servo motor is an advanced member of the MDD Synchronous Motors series, designed for high-precision digital motion control. This Motor for digital drive controllers features a permanent-magnet rotor with integrated encoder for commutation, rotor position, and speed control. The unit delivers a nominal speed of 2000 min⁻¹ and is driven by a plain shaft that ensures reliable torque transmission in demanding industrial applications. With digital servo feedback (DSF) and a robust construction, the MDD093C-N-020-N2L-110GL0 provides precise, closed-loop performance and reduced tuning complexity. The design omits a blocking brake, streamlining maintenance and reducing system inertia for rapid response.

The MDD093C-N-020-N2L-110GL0 retains a compact form factor, featuring a Motor Size: 093 frame and Motor Length Code: C configuration for versatile installation in space-restricted machine designs. The Centering Diameter: 110 mm and Standard housing ensure straightforward mechanical integration with existing mounting interfaces. The plain shaft termination is accompanied by With shaft seal to guard against contamination, while the Standard (without side B shaft end) shaft end simplifies coupling compatibility. Critical connection parameters include a Left connection direction and a reliable Connector connection type, ensuring secure signal and power interfacing. The motor’s Balancing: Standard specification maintains acceptable vibration levels for general industrial use.

Operationally, the MDD093C-N-020-N2L-110GL0 excels in digital motion control environments through its integrated Digital servo feedback (DSF) system, which delivers high-resolution position and speed data directly to the drive controller. The permanent-magnet rotor and encoder enable precise commutation and smooth torque delivery across the entire speed range. Nominal speed of 2000 min⁻¹ is supported by sophisticated control algorithms for rapid acceleration and deceleration. The absence of a blocking brake reduces mechanical drag, improving dynamic response and extending bearing life under cyclic loads. The plain shaft design contributes to straightforward mechanical coupling, facilitating quick assembly and alignment.

This servo motor integrates seamlessly with Bosch Rexroth Indramat digital drive controllers, capitalizing on advanced DSP-based control loops and built-in diagnostics. Its compact dimensions, robust shaft seal, and standardized connection interface make it ideal for applications in robotics, packaging machinery, CNC machine tools, and automated assembly lines. The MDD093C-N-020-N2L-110GL0’s digital feedback and optimized mechanical configuration support high throughput and precise motion sequences, positioning it as a reliable solution for modern industrial automation tasks.
