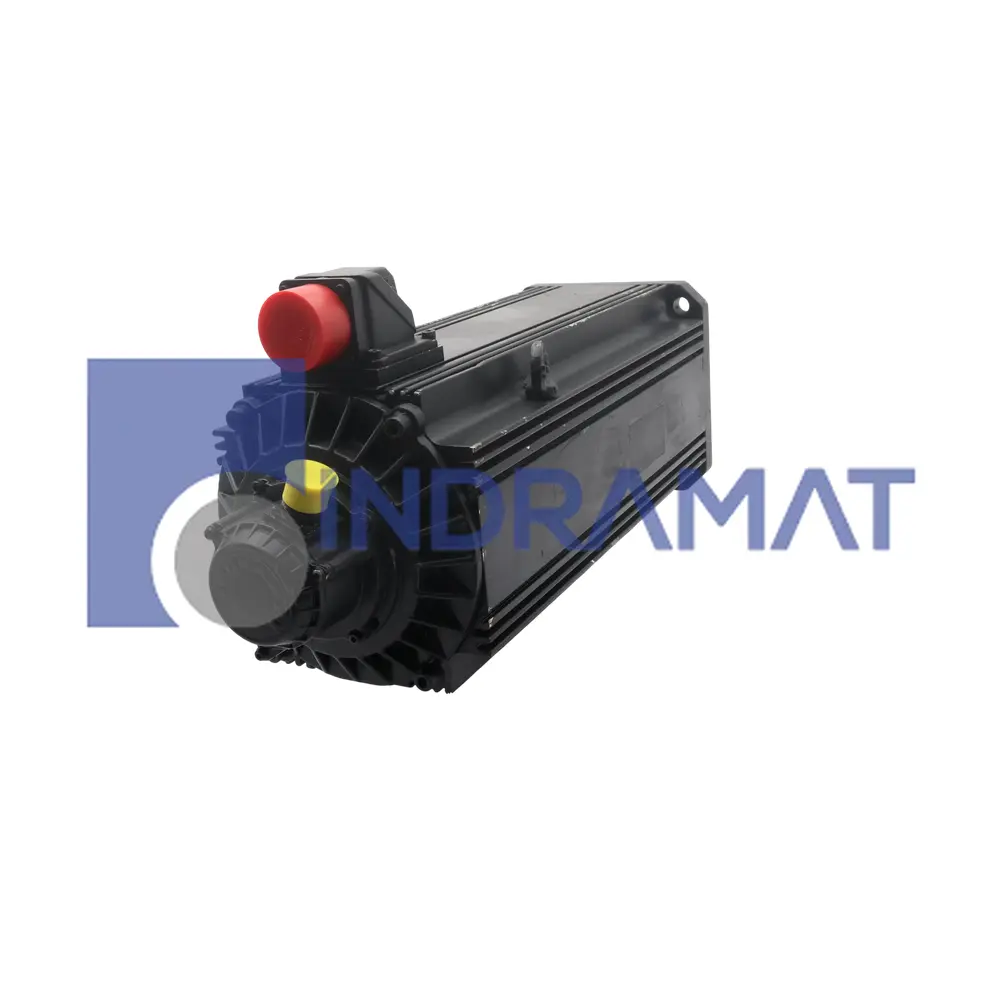

MDD112D-N-040-N2L-130PB2

  In Stock, Ships 2-3 Days
Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Request a Quote


Request a Repair


Or speak to a sales representative for additional information:

Description

The MDD112D-N-040-N2L-130PB2 is a digital AC servo motor from the MDD series designed by Bosch Rexroth. The motor is designed for cost-effective and rapid-response automation systems, making it suitable for various applications including tools, textiles, printing and packaging machines, robotics, handling equipment, and transfer facilities. It is particularly favourable for high-precision applications in grinding machines where extreme synchronism is crucial. The motor boasts a rated speed of 4000 RPM and is encased in a standard housing designed for natural convection and surface cooling. A digital servo feedback, a main shaft with a DIN 6885-1 keyway for optimized torque transfer, and a 40 Nm holding torque blocking brake add to its high efficiency. The brake comfortably releases the shaft with a 24 Volts DC signal. The total package of the motor, including the brake, weighs around 62.5 kilograms. The MDD112D-N-040-N2L-130PB2 motor falls in the IP65 protection category and has an insulation class of F. It operates within an ambient temperature range of 0 to 45 degrees Celsius and an altitude of up to 1000 meters. Proper handling should be done by trained personnel.

Rated Speed: 4000 RPM
Housing Design: Standard
Cooling Method: Natural Convection & Surface
Feedback Type: Digital Servo
Shaft Spec: Keyway as per DIN 6885-1
Brake Options for MDD112: 14 Nm, 40 Nm, 60 Nm
Brake Rating for this Model: 40 Nm Holding Torque
Brake Operation: Releases shaft when 24 Volts DC signal is applied
Brake Current: 1.35 Amps nominal
Brake Release Delay: 150 milliseconds
Brake Clamping Delay: 30 milliseconds
Brake Mass: 3.5 kilograms
Motor Mass: 59 kilograms
Total Package Mass: 62.5 kilograms
Power Socket Location: Side B of the motor
Protection Category: IP65
Motor Insulation Class: F
Qualified Handlers: Trained Personnel Only

MDD112DN040N2L130PB2
MDD112D N 040 N2L 130PB2
mdd112d-n-040-n2l-130pb2
