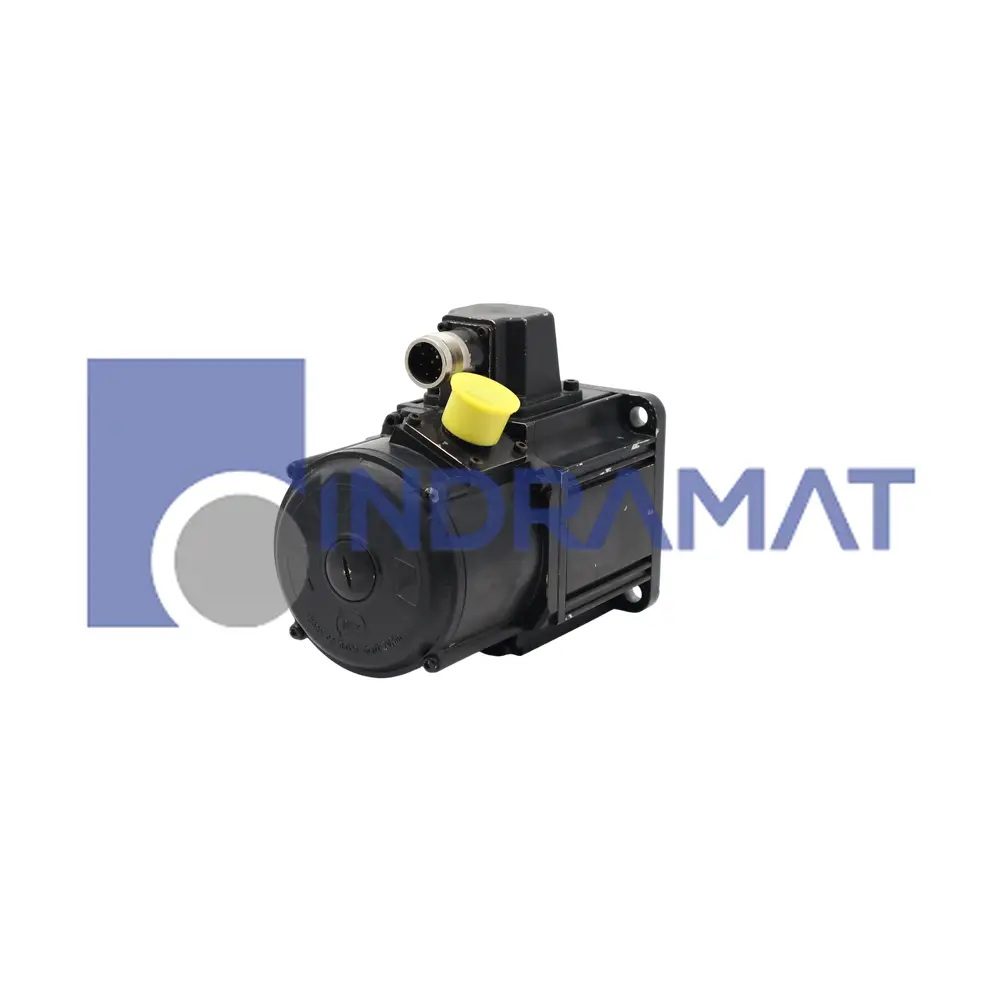

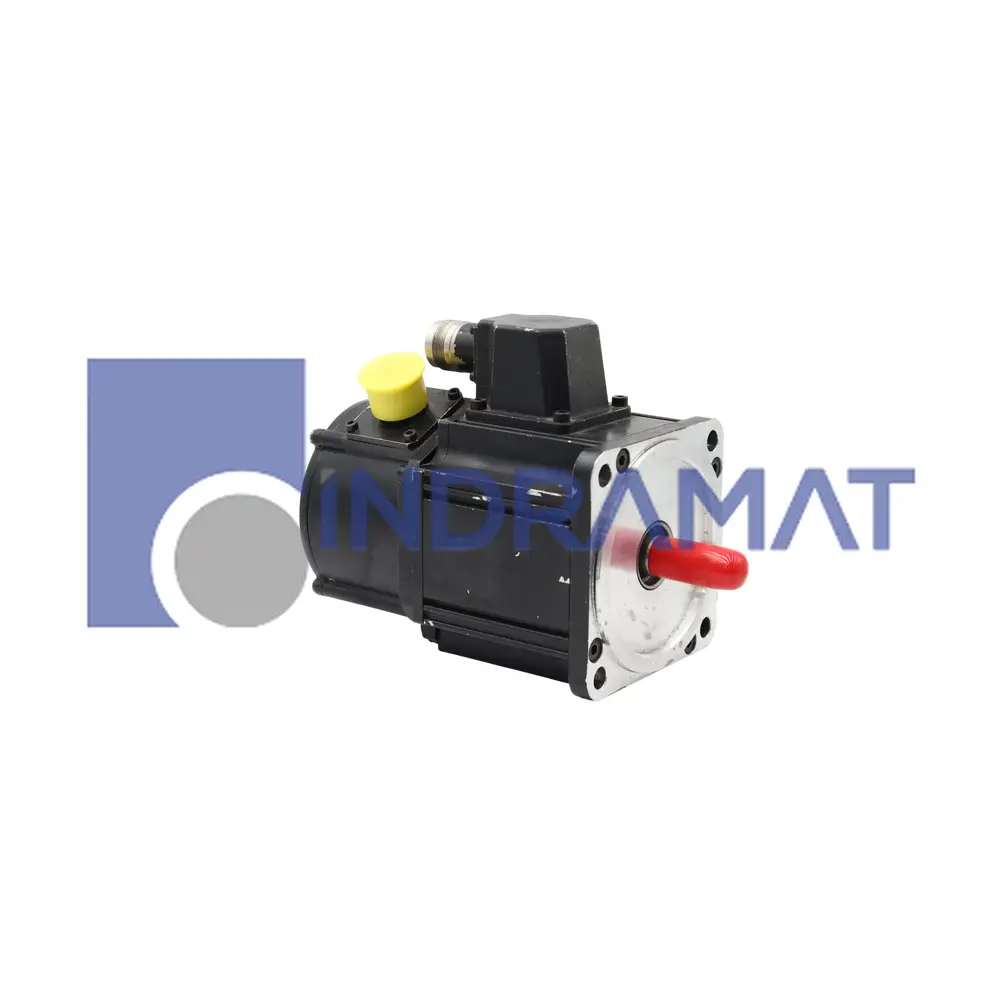

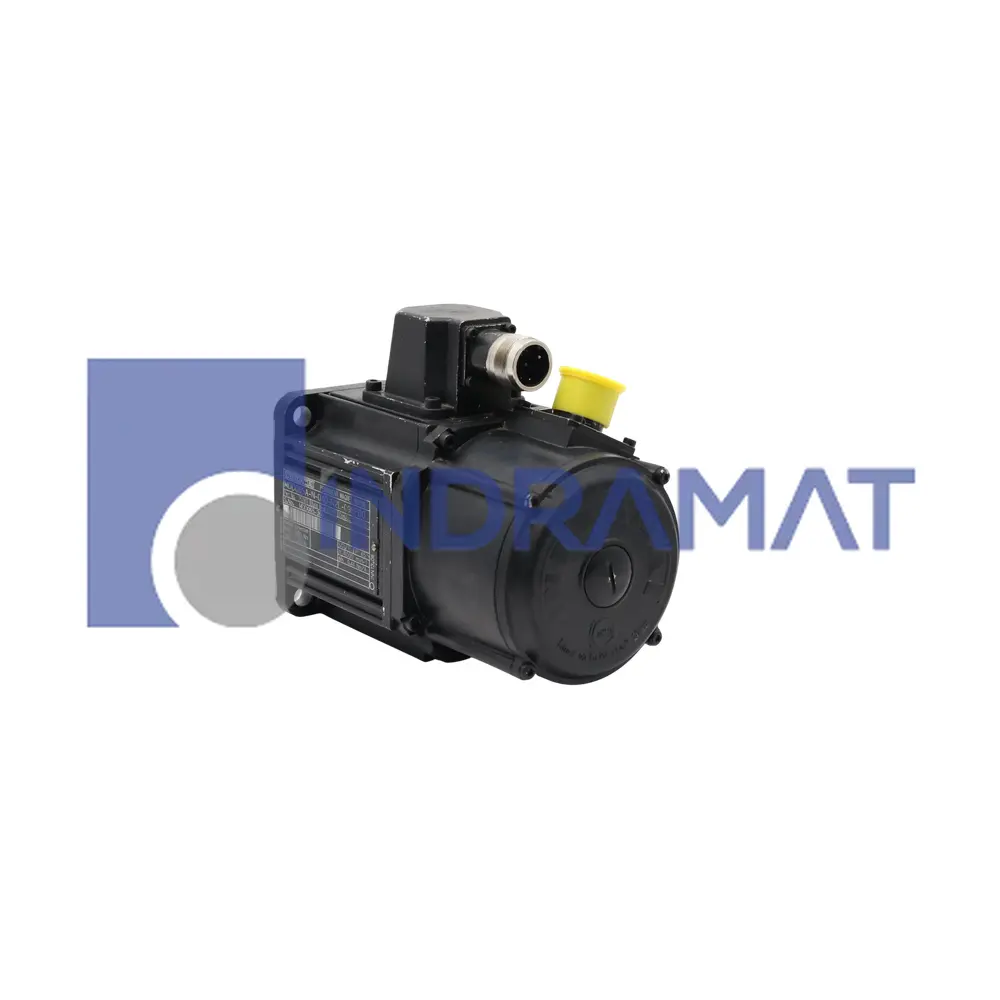

The R911246196 (MDD065A-N-040-N2L-095PA0) is a brushless digital AC servomotor with a size code of 065 and a motor length code A, designed for use in roller feeds and similar applications. The unit employs efficient heat conduction from the stator windings to the housing to optimize thermal performance. It features a centering diameter of 95 mm, achieves a nominal speed of 4000 min⁻¹, and delivers a theoretical maximum torque of 2.3 Nm with a continuous standstill torque of 0.8 Nm. The shaft incorporates a keyway, uses a shaft seal, and is designed for a form-fitting hub connection. The motor feedback is provided by a digital servo feedback (DSF) system. The motor is equipped with a standard housing and black coating, supports side A connector orientation, and conforms to standard balancing per DIN VDE 0530. It does not include a holding brake and is intended for mounting via the B05 style. Steam cleaning is not recommended due to potential coating degradation, and the bearing is not suitable for use with bevel gear pinions.

Technical Specifications

Size Code
065

Winding Inductance
20.3mH

Commutation Type
Electronic

Design Type
Brushless

Temperature Monitoring
Temperature sensor in the motor windings

Dust Protection
Yes

Operation
Stationary under weatherproofed conditions

Coat Type
Prime black coat

Coat Resistances
Chalky buildups, weathering and yellowing

Shaft Sealing Ring
Does not completely prevent liquid penetration

Shaft
Form-fitting shaft hub connection

Maximum Torque
2.3Nm

Centering Diameter
95mm

B Side Bearing
May get damaged if bevel gear pinions are used

Peak Current Rating
8.1A

Rotor Moment of Inertia
1.4 x 10-4 kgm2

Balance Class
Reduced as per DIN VDE 0530

Shaft Design
With key as per DIN 6885

Mounting Style
B05

Shipping Partners
UPS and USPS.

Frequently Asked Questions

How does the MDD065A-N-040-N2L-095PA0 integrate with digital drive controllers?

It is optimized for compatibility with digital drives that interpret servo feedback. This enables closed-loop operation and high positional accuracy.

Can the continuous torque rating of 0.8 Nm handle demanding loads?

It is designed for light to medium duty precision applications. Higher torque tasks would require gearing or a larger motor size.

How does a centering diameter of 95 mm affect mounting?

It ensures consistent alignment during installation. Accurate centering reduces vibration and misalignment stresses on couplings.

Why is a shaft seal important for motors like the MDD065A-N-040-N2L-095PA0?

The shaft seal prevents dust and contaminants from entering the housing. This extends motor lifespan in production environments with particles or fluids.

What role does the keyway shaft type play in installation?

The keyway allows secure torque transmission between motor and coupling or gear. It reduces slippage risks under repetitive acceleration and deceleration.

Common Misspellings

MDD-065A-N-040-N2L-095PA0

MDD065A N 040 N2L 095PA0

MDD065A-N-040-N2L-095-PA0

MDD065A-N-040-N2L-095-PAO

MDD065A-N-040-N2L-095PAO

MDD065AN040N2L095PA0

MDD65A-N-040-N2L-095PA0

MDDO65A-N-040-N2L-095PA0

MDDO65A-N-O4O-N2L-O95PAO

mdd065a-n-040-n2l-095pa0

Internal Product Review

The Bosch Rexroth Indramat MDD065A-N-040-N2L-095PA0 motor is a digital-servo synchronous motor. It delivers nominal speed of 4000 min⁻¹ and uses digital servo feedback (DSF), side-A connector, and includes a shaft seal. It suits precise motion control tasks in CNC machining, packaging machinery, robotics, and factory automation.
