R911285487 (MKE045B-144-GP1-KN)

MKE Synchronous Motors

Call For Quote

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Current response time:

4 Minutes 34 Seconds

Phone:
1-888-551-3082

Email:
[email protected]

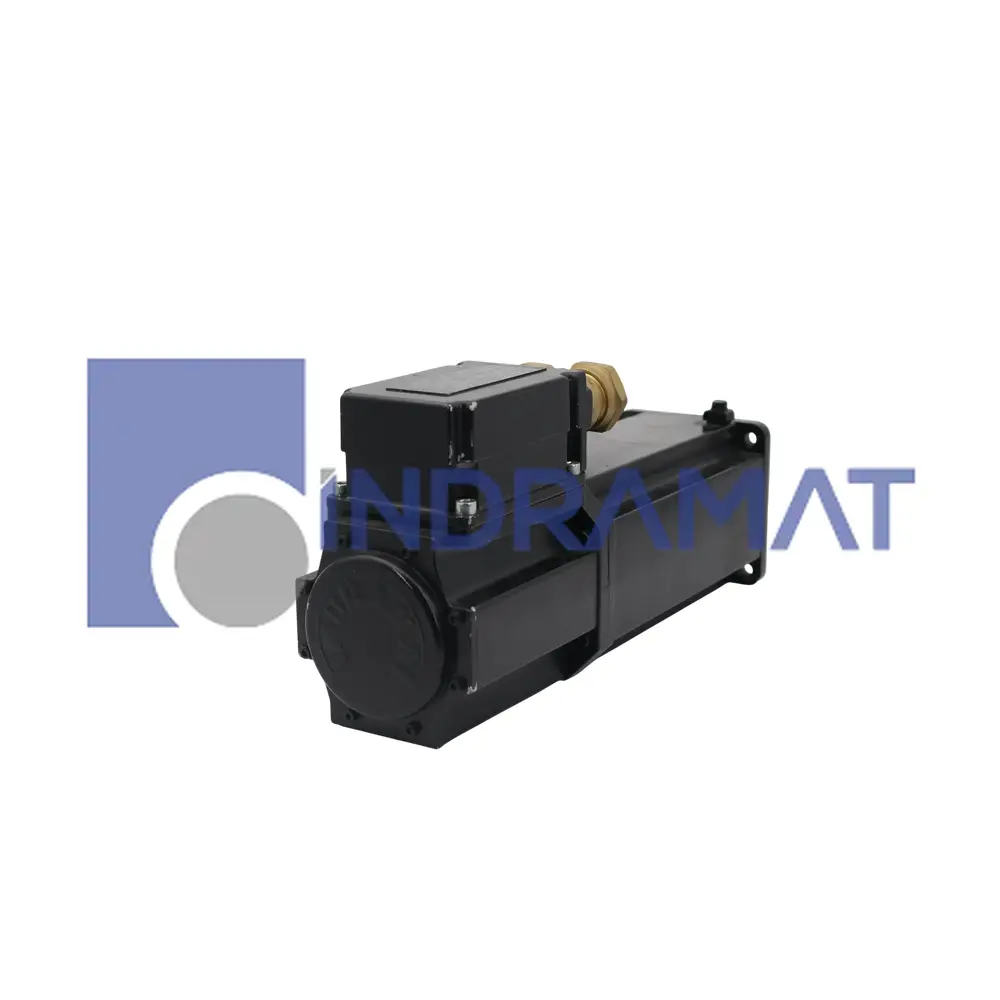

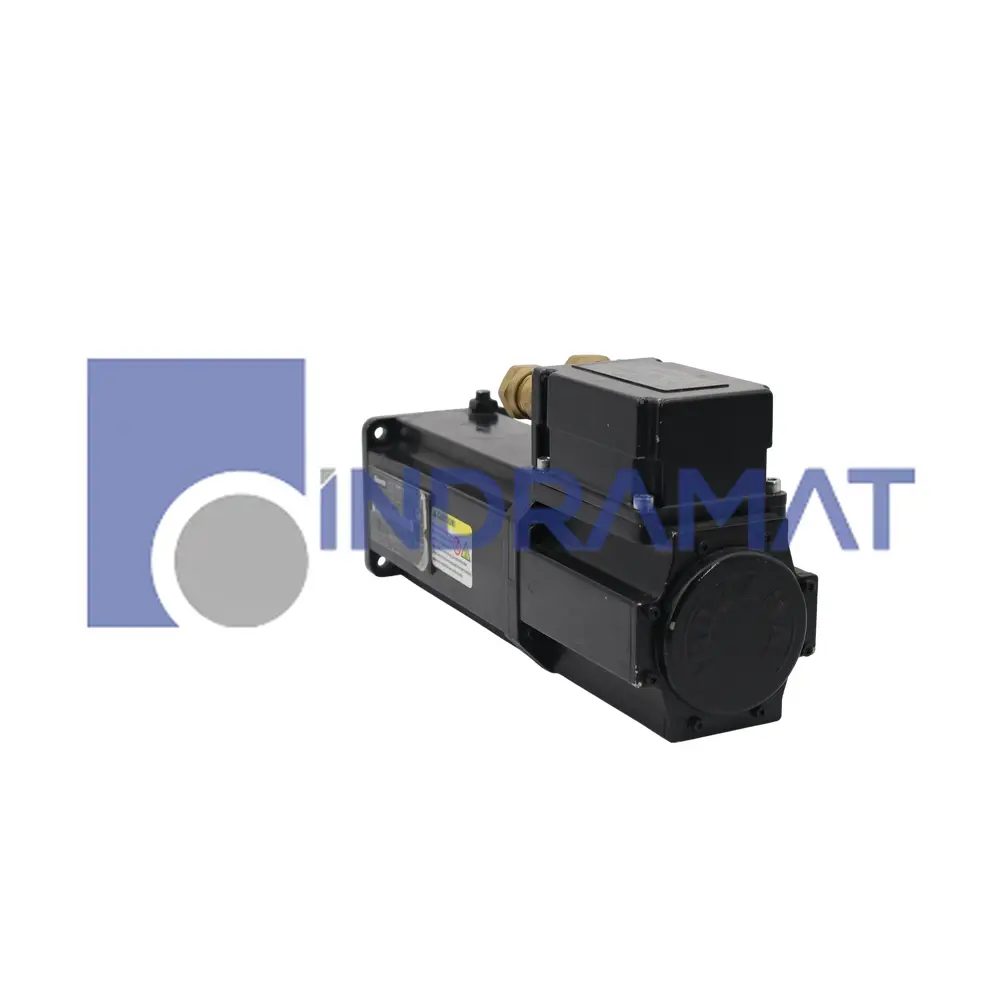

The R911285487 (MKE045B-144-GP1-KN) is an industrial-grade, electric servo motor supplied by Rexroth Indramat, manufactured to enhance the operations of a wide range of industrial machinery. With its high durability and long operational life, this motor offers a maintenance-free operation for over five years, thanks to its brushless design. It complies with EN 60079-0, the international standard for safety in explosive atmospheres, and DIN 42948, the standard for its flange design, ensuring global quality and versatile installation options. The motor features a permanent magnet, designed with the aid of high-quality magnetic materials, which guarantees low inertia while ensuring a robust power output. It integrates an optical encoder with data memory to facilitate quick start-ups. The servo can produce a persistent torque of 2.7 Nm at rest, with a constant current intake of 5.0 A and can achieve a maximum rotational speed of 7000 rpm at a peak current of 22.6 A. It falls under the insulation class 155 and protection category IP65. Indramat USA supplies the motor globally, offering a one-year international warranty.

Technical Specifications

Product Type
Electrical Servo Motor

Design Regulation
EN 60079-0

Brushless Design
Yes

Operating life
5+ years

Maintenance-free Operation
Yes

Quality Standards Compliance
Yes

Flange Design
DIN 42948

Motor Type
Permanent Magnet Motor

Electronic Commutation
Yes

Magnet Material
Special Material

Encoder Type
Optical Encoder

Data Memory
Yes

Continuous Torque at Standstill
2.7 newton meters

Continuous Current Consumption
5.0 Amperes

Peak Velocity
7000 revolutions per minute

Maximum Current
22.6 Amperes

Insulation Class
155

Protection Category
IP65
