MSK070D-0300-NN-M3-UP1-NNNN
MSK IndraDyn S Synchronous Motors

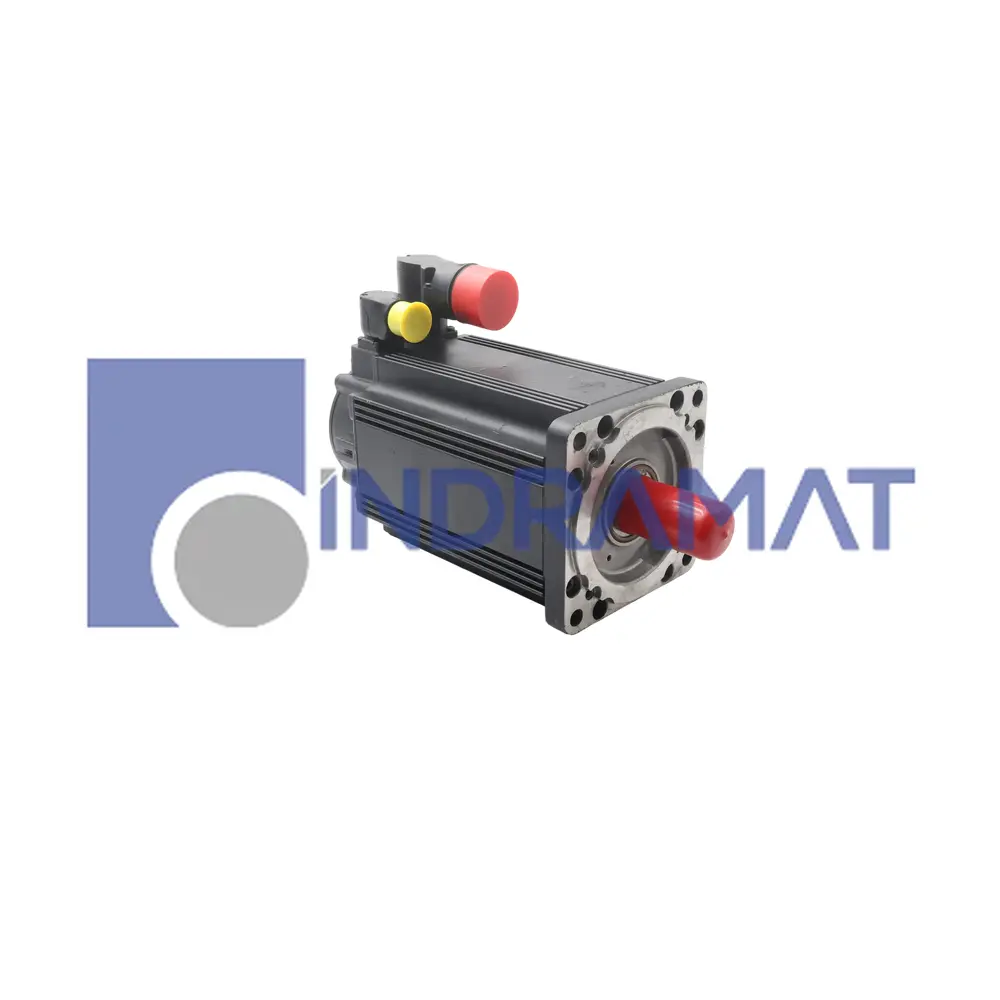

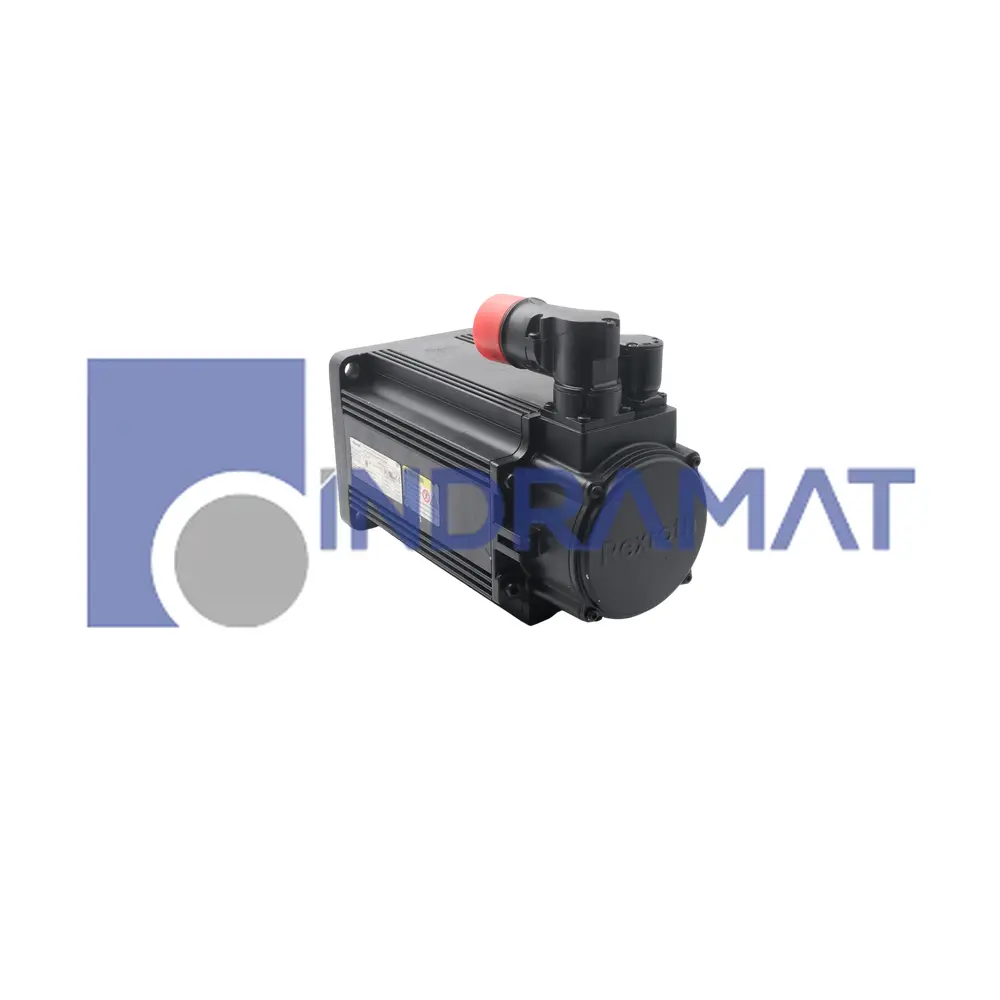

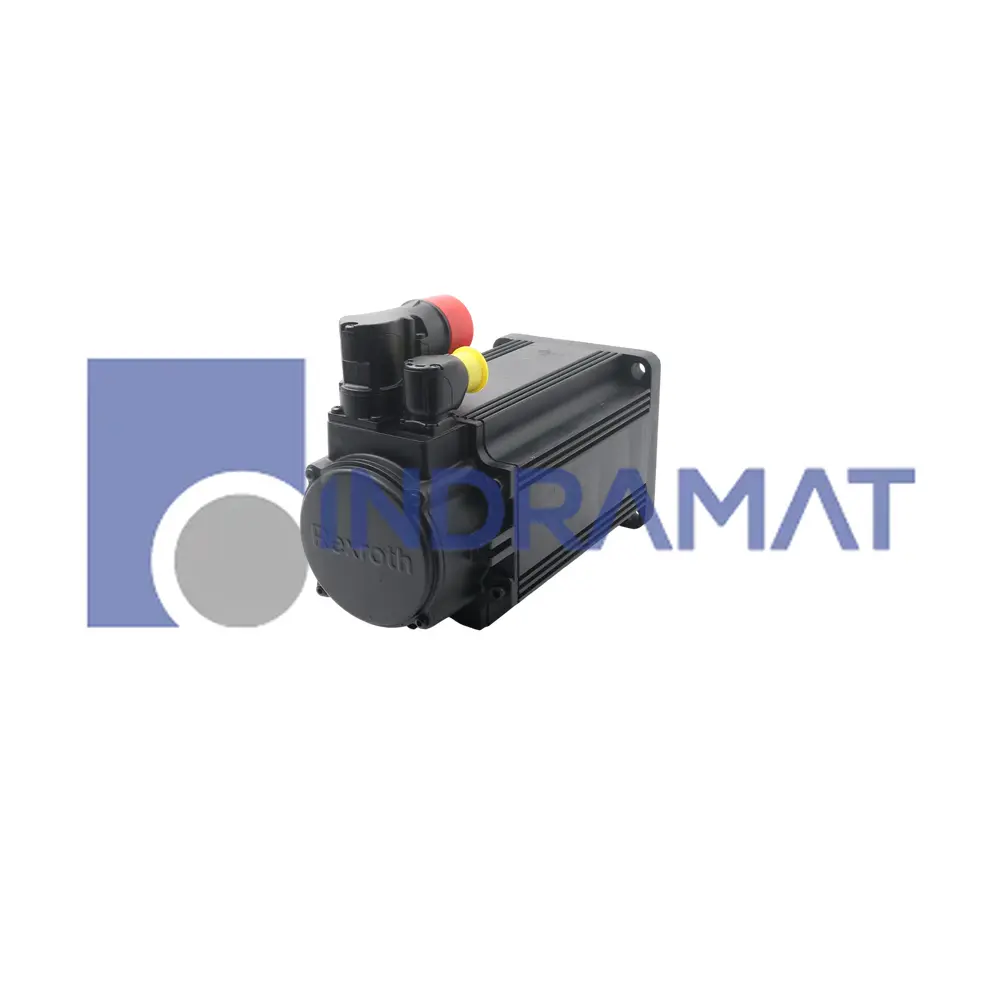

The MSK070D-0300-NN-M3-UP1-NNNN is a synchronous servomotor produced by Bosch Rexroth Indramat and positioned within the MSK IndraDyn S Synchronous Motors series. It is intended for closed-loop motion axes where precise velocity and position must be sustained under variable load. In automated handling, packaging, or machining cells, this motor converts controlled electrical power from an inverter into rotational mechanical energy for coordinated drives and gantries.
Heat is removed through Natural convection, so no external fan or liquid circuit is required. The feedback system communicates over the Hiperface protocol, and its sensing element is Capacitive, giving immunity to dust and magnetic fields. Rotor position is resolved into 16 signal periods, allowing fine interpolation inside the drive controller. For static holding or emergency stops, an electrically released brake supplies 23 Nm of torque to lock the shaft without power. Together, these features simplify cabinet design, shorten commissioning time, and maintain accurate servo loops during thermal changes.
The encoder stores multi-turn data, identified as Multiturn Absolute, so absolute position is preserved after power loss and homing cycles are avoided. Mechanical power is transferred through a Shaft with keyway, enabling standard keyed couplings for belts, gearheads, or clutches. Service access is flexible because the encoder connector can rotate through 240°, reducing cable strain in compact machines. Electrical characteristics are defined by winding code 0300, which aligns the motor’s impedance and back-EMF profile with designated IndraDrive amplifiers, completing the matched servo package.
Technical Specifications
Cooling
Natural convection
Design
Standard
Encoder Connector
Rotatable, 240°
Encoder Interface
Hiperface
Encoder Resolution
16 signal periods
Encoder Technology
Capacitive
Encoder Turn Type
Multiturn Absolute
Holding Brake
With holding brake, electrically-released
Holding Brake Torque
23 Nm
Motor Length
D
Motor Size
070
Product Type
IndraDyn S Synchronous Servomotor
Shaft Type
Shaft with keyway
Winding Code
0300
Frequently Asked Questions
Common Misspellings
Internal Product Review
The MSK070D-0300-NN-M3-UP1-NNNN ensures consistent results across demanding applications. Its adaptability supports smooth integration into varied setups. The motor emphasizes dependable function, reinforcing confidence in continuous service. With stable outcomes over time, it proves effective for environments requiring durable operation and lasting results in challenging workloads that demand trusted long-term performance.
