R911315718 (MSK100C-0200-NN-M1-LG2-NNNN)

Name: R911315718 (MSK100C-0200-NN-M1-LG2-NNNN)
Brand: Indramat Motors
SKU: MSK100C-0200-NN-M1-LG2-NNNN
Price: 504.00 USD
Availability: InStock

MSK IndraDyn S Synchronous Motors

Front Left

In-Stock, Ships 3-5 Days

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
sales@indramat-usa.com

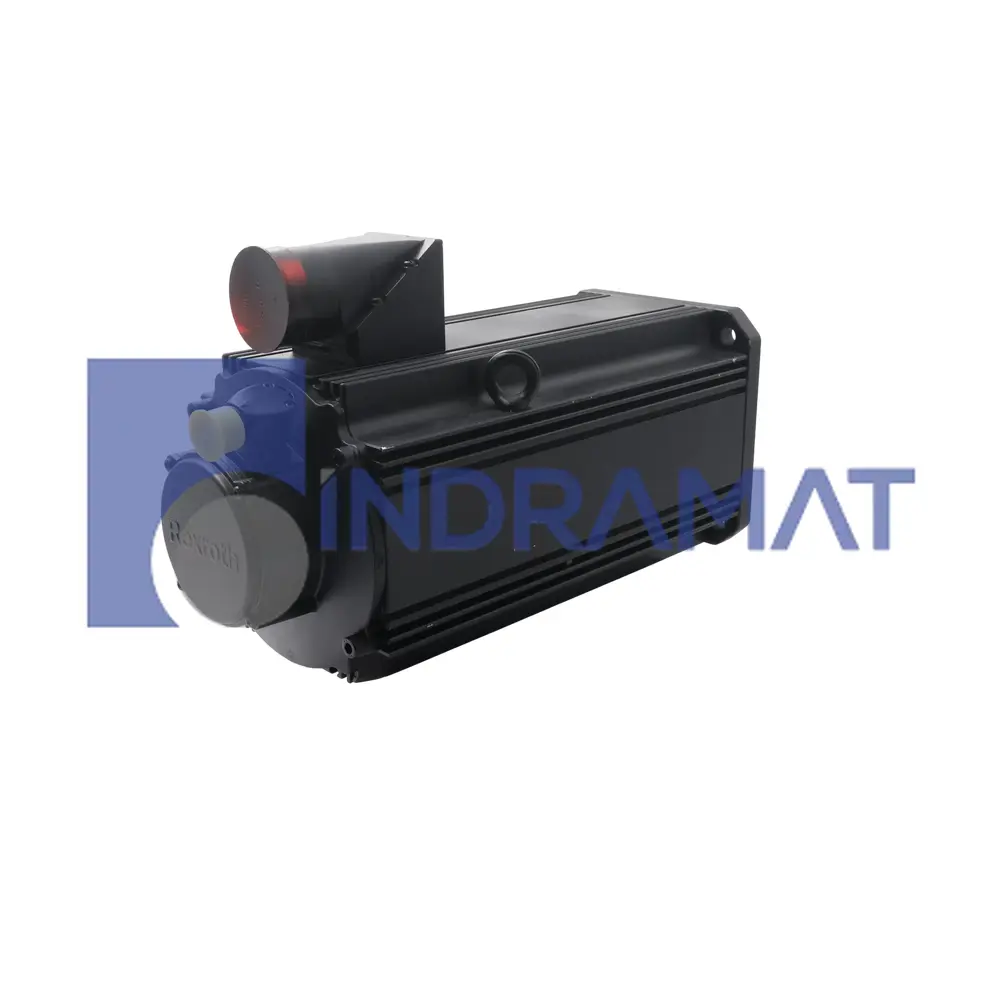

The R911315718 (MSK100C-0200-NN-M1-LG2-NNNN) is an IndraDyn S synchronous servomotor featuring a robust black housing rated to IP65, providing protection against dust and water jets. This unit utilizes natural convection cooling and incorporates a plain output shaft with a sealing ring, Class 155 insulation, and a holding brake delivering 70 Nm of torque with electrically-released actuation times of 53 ms (activation) and 97 ms (deactivation). The synchronous motor supports a maximum speed of 3500 RPM and a peak torque of 148 Nm. With windings presenting 6,700 mH inductance and 0.46 ohms resistance, the motor achieves 38 Nm continuous torque at 60 K with 17.7 A current, and 43.5 Nm continuous torque at 100 K with 20.3 A. The encoder is a multiturn absolute Hiperface device with optical technology and 128 signal periods. The design includes left-side power connection and is not available in length A configuration. The motor weighs 45.1 kg.

Technical Specifications

Protection Class
IP 65

Thermal Time Constant
90 minutes

Maximum Torque
148 Newton-meters

Maximum Speed
3500 rpm

Motor Inductance
6700 mH

Motor Resistance
0.46 ohms

Voltage Constant at 20 degrees Celsius
145.5 V/min-1

Continuous Torque at 60 K
38 Nm

Continuous Current
17.7 A

Brake Torque
70 Newton-meters

Brake Weight
4.9 kilograms

Brake Nominal Current
1.29 A

Connection Duration
53 milliseconds

Disconnection Duration
97 milliseconds

Motor Weight
45.1 kg

Operational Relative Humidity
Less than 90%

Operational Temperature
0 to 40 degrees Celsius.

Frequently Asked Questions

How is safety managed in the MSK100C-0200-NN-M1-LG2-NNNN?

The holding brake delivers 70 Nm of secure load retention, preventing shaft drift and maintaining positional integrity during inactive system states.

What encoder technology supports the MSK100C-0200-NN-M1-LG2-NNNN?

Optical feedback with 128 signal periods maintains absolute position tracking, eliminating drift errors during power interruptions or extended idle periods.

How does electrical stability manifest in the MSK100C-0200-NN-M1-LG2-NNNN?

Drawing 20.3 A continuous current, it maintains energy efficiency and consistent drive control under sustained duty conditions.

What structural feature enhances mechanical reliability in the MSK100C-0200-NN-M1-LG2-NNNN?

Its plain shaft configuration ensures accurate power transmission and simplified coupling alignment within constrained installation spaces.

Why is the MSK100C-0200-NN-M1-LG2-NNNN suitable for high-load environments?

With 148.0 Nm maximum torque, it provides ample reserve for peak-cycle acceleration demands while sustaining stable performance.

Common Misspellings

MSK100C0200NNM1LG2NNNN

MSK100C 0200 NN M1 LG2 NNNN

MSK-100C-0200-NN-M1-LG2-NNNN

Internal Product Review

The MSK100C-0200-NN-M1-LG2-NNNN integrates an electrically released holding brake that locks the shaft under power loss. Its Hiperface encoder ensures absolute multiturn precision for reliable automation control.
