R911320177 (MSK076C-0300-NN-S1-UG1-NSNN)

Name: R911320177 (MSK076C-0300-NN-S1-UG1-NSNN)
Brand: Indramat Motors
SKU: MSK076C-0300-NN-S1-UG1-NSNN
Price: 791.00 USD
Availability: InStock

MSK IndraDyn S Synchronous Motors

Front Right

In-Stock, Ships 3-5 Days

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone

Part Number

+Add a message

Message

Request a Replacement

Request a Repair

Quote Both

Expedited Lead Times on Select Parts
1 Year Warranty Included
Free Ground Shipping

Phone:
1-888-551-3082

Email:
sales@indramat-usa.com

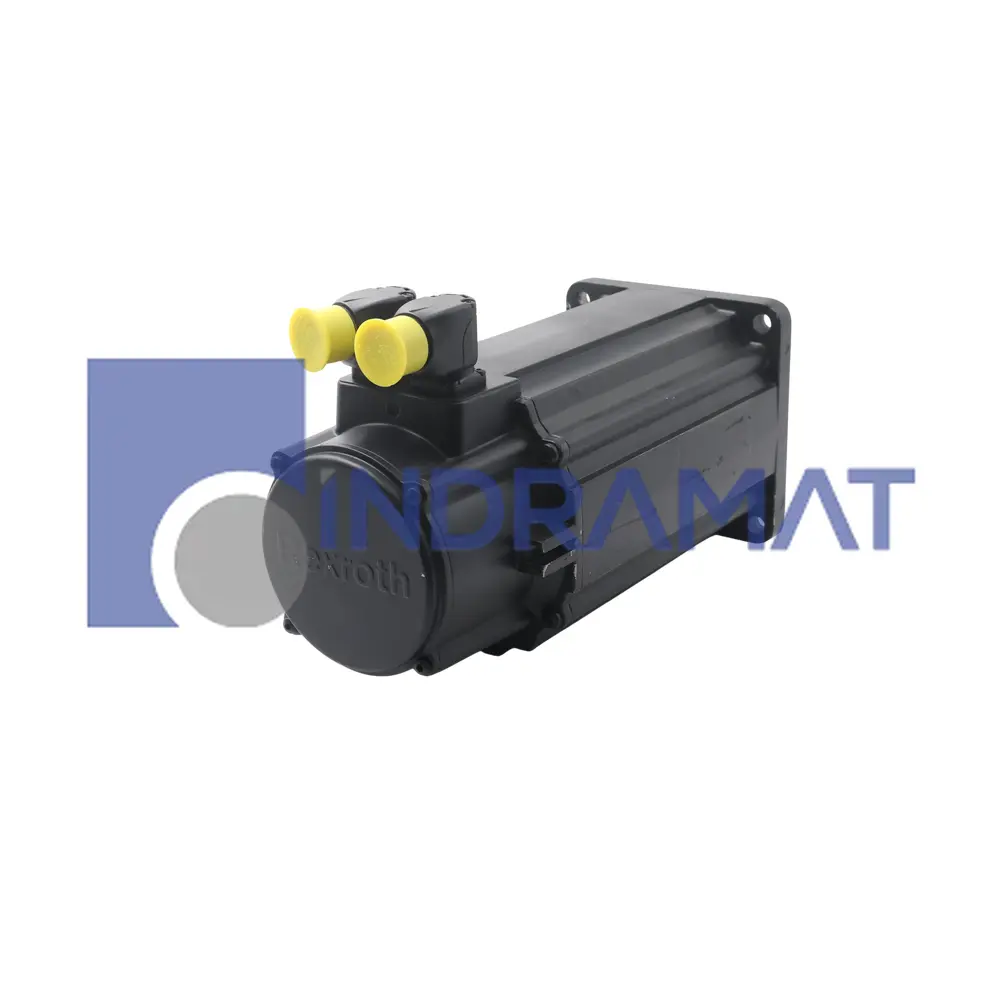

The R911320177 (MSK076C-0300-NN-S1-UG1-NSNN) is a synchronous servomotor from the IndraDyn S series, designed for applications that require precise positioning and speed control. This motor features a compact form factor with motor size 076 and length C, allowing installation in tight spaces. It operates within an ambient temperature range of 0 to 40°C and is protected by an IP65-rated housing, resistant to water jets and non-corrosive particles. The motor uses natural convection for cooling and integrates a plain shaft and DIN standard flange. Its encoder utilizes Hiperface interface, optical technology, and provides 128 signal periods in singleturn mode, with the connector rotatable by 240°. Electrical parameters include a winding code 0300, a standstill continuous current of 8.1 A at 100 K, continuous torque of 13.5 Nm, maximum current of 32.4 A, maximum torque of 43.5 Nm, and winding inductivity of 12,600 mH. A holding brake, with an electrically released design, delivers 11 Nm torque. The motor conforms to standard and explosion protection designs and features bearings rated for 30,000 hours of operation as per DIN standards.

Technical Specifications

Product Type
Synchronous Motor

Usage
Positioning tasks and speed control

Size
Compact

Rotor inertia
Low

Ambient condition suitability
Challenging conditions

Enclosure Standard
IP 65

Flange
DIN Standard

Optimal Operating Temperature
0 to 40 degrees Celcius

Secondary Braking Mechanism
Holding brake

Bearing Operational Life
30,000 hours

Frequently Asked Questions

Why is the keyed shaft in MSK076C-0300-NN-S1-UP0-NNNW important?

The keyed shaft ensures firm torque transmission under load. It prevents slipping or misalignment during fast acceleration and deceleration cycles.

How does the optical encoder enhance MSK076C-0300-NN-S1-UP0-NNNW accuracy?

Its optical sensing gives fine position detail per rotation. This allows precise motion feedback for smooth control in automated operations.

What benefit does natural convection bring to MSK076C-0300-NN-S1-UP0-NNNW?

Passive airflow removes heat steadily without fans. It keeps performance stable and reduces maintenance needs for continuous machine operation.

Why is 43.5 Nm torque valuable in MSK076C-0300-NN-S1-UP0-NNNW?

The torque supports medium-load handling equipment effectively. Motion remains consistent during frequent start-stop actions in production systems.

Where is MSK076C-0300-NN-S1-UP0-NNNW commonly applied?

It’s used in packaging, conveyors, and automated fillers. Compact design ensures reliable torque output with quiet operation.

Common Misspellings

MSK076C0300NNS1UG1NSNN

MSK076C 0300 NN S1 UG1 NSNN

MSK-076C-0300-NN-S1-UG1-NSNN

MSK76C-0300-NN-S1-UG1-NSNN

Internal Product Review

The MSK076C-0300-NN-S1-UG1-NSNN synchronous motor from Rexroth Indramat includes an 11 Nm brake and an optical Hiperface encoder. It uses natural convection cooling and supports explosion protection. The motor produces 13.5 Nm continuous torque and 43.5 Nm maximum torque for reliable industrial automation.
